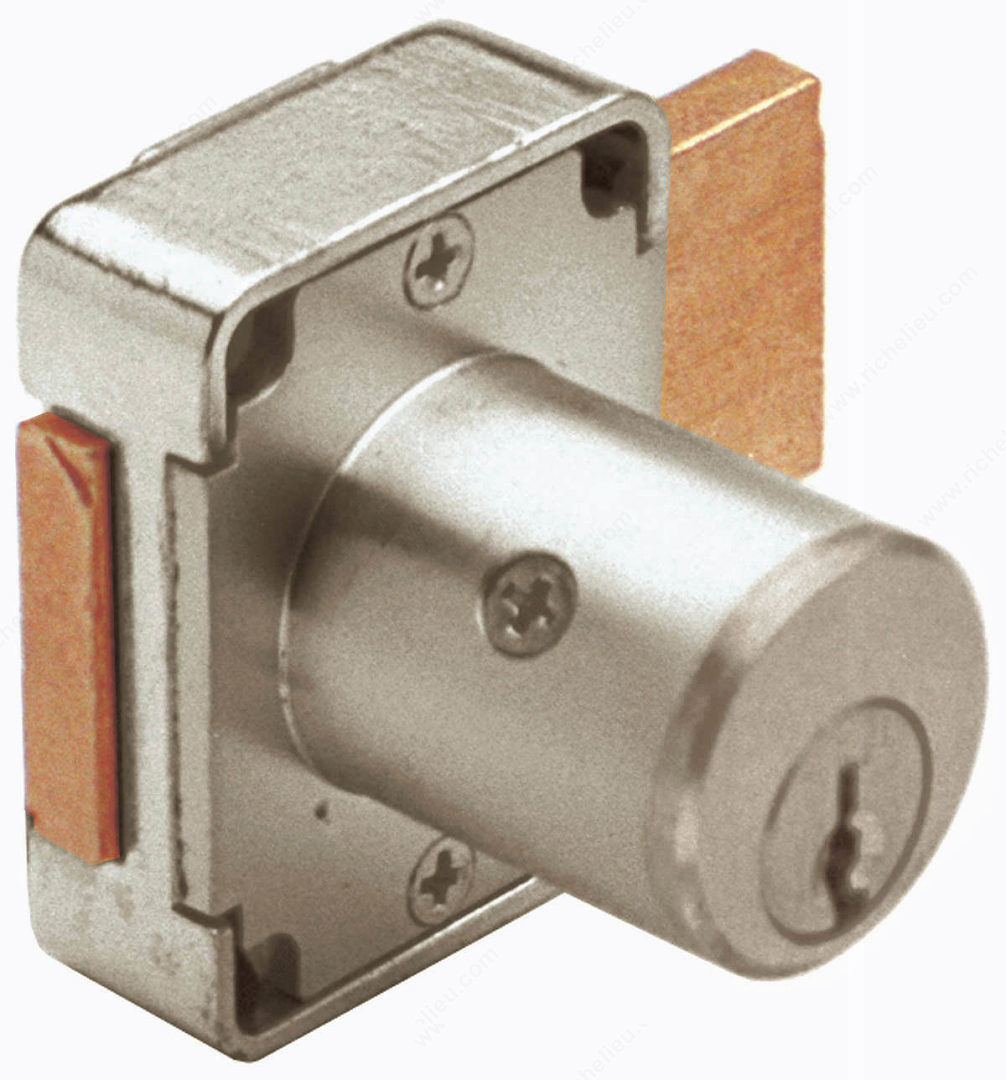

Richelieu OL107810326D Deadbolt Door Cabinet Lock offers an exceptional blend of security and convenience for cabinet doors. Designed for use with Olympus 100DR doors, this lock features a robust zinc die-cast body, ensuring durability and longevity. The solid brass pin tumbler mechanism provides a high-security level, certified to ANSI/BHMA Grade 1 standards, making it an ideal choice for both residential and commercial applications. With a cylinder diameter of 7/8 inch and a cylinder length of 7/8 inch, this lock fits panel thicknesses ranging from 0.00394 to 0.875 inches, allowing for versatile installation options. Its sophisticated satin chrome finish not only enhances its aesthetic appeal but also adds an extra layer of protection against wear and tear. The OL107810326D is easily rekeyable, featuring forwardly removable cylinders that allow for quick rekeying without disassembling the entire lock body. Each lock comes with two keys and can be configured to be keyed alike, keyed differently, or master keyed as per your requirements. Suitable for left and right positions, this deadbolt lock is the ultimate solution for securing your cabinet doors effectively.
Deadbolt Door Cabinet Lock 7/8" or 1-3/8"
Application: Door Lock
Body Material: Zinc Die-Cast
Brand: Olympus Lock Inc.
Cylinder Diameter: 7/8 in
Cylinder Length: 7/8 in
Cylinder Material: Brass
Cylinder Type: Solid Brass, Pin Tumbler
Finish: Satin Chrome
Furniture Material: Wood
Key Turn Degree: 90°
Key Type: Keyed Alike #103
Material: Zinc die cast
Mechanism Type: Pin
Panel Thickness: Max. 7/8 in
Position: Left & Right
Product #: OL107810326D
Product number: OL107810326D
Product №: OL107810326D
Security Level: Very High
Series: DCP
Standards and Certifications: ANSI/BHMA Grade 1
Types of Locks: Deadbolt Locks
Use: Cabinet Doors
