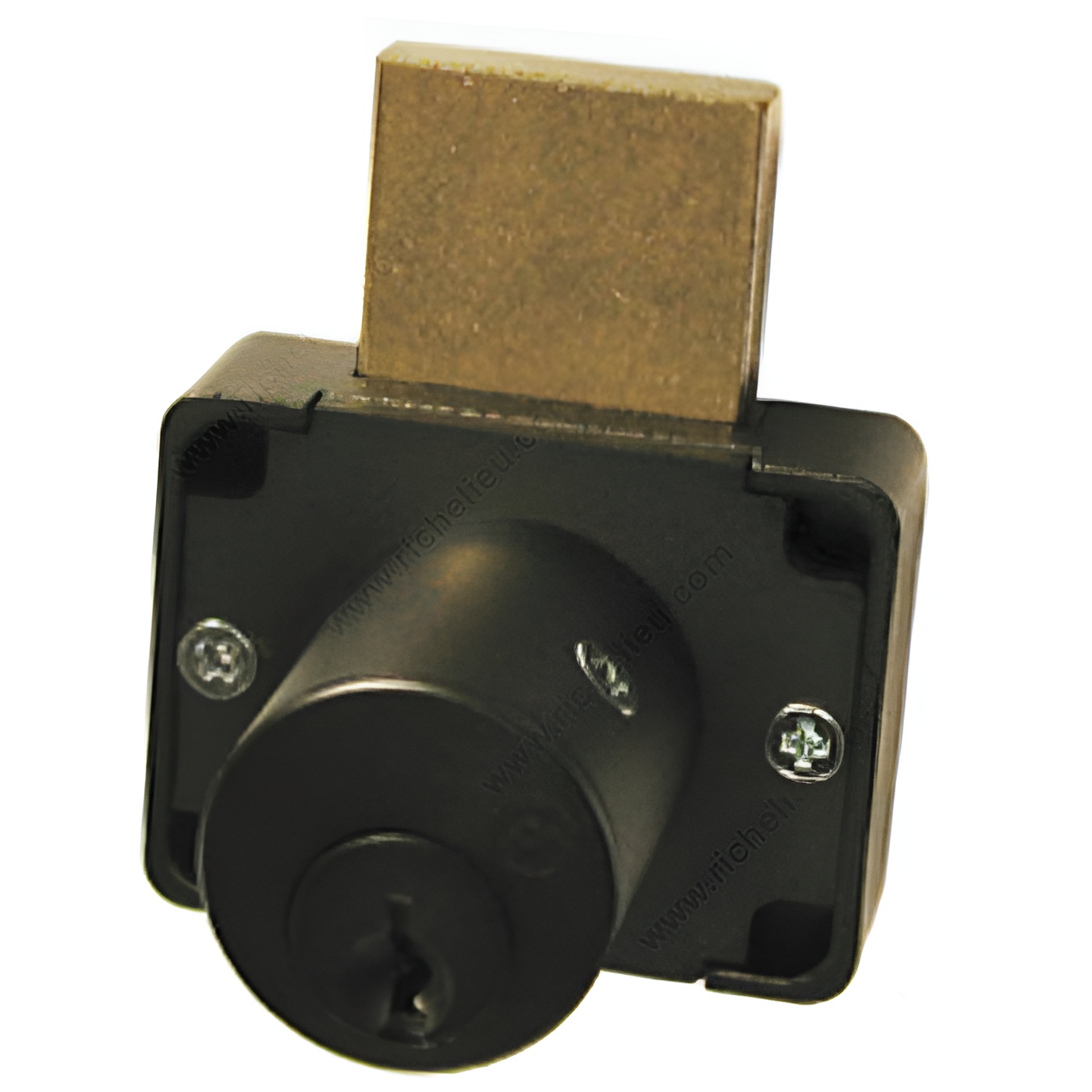

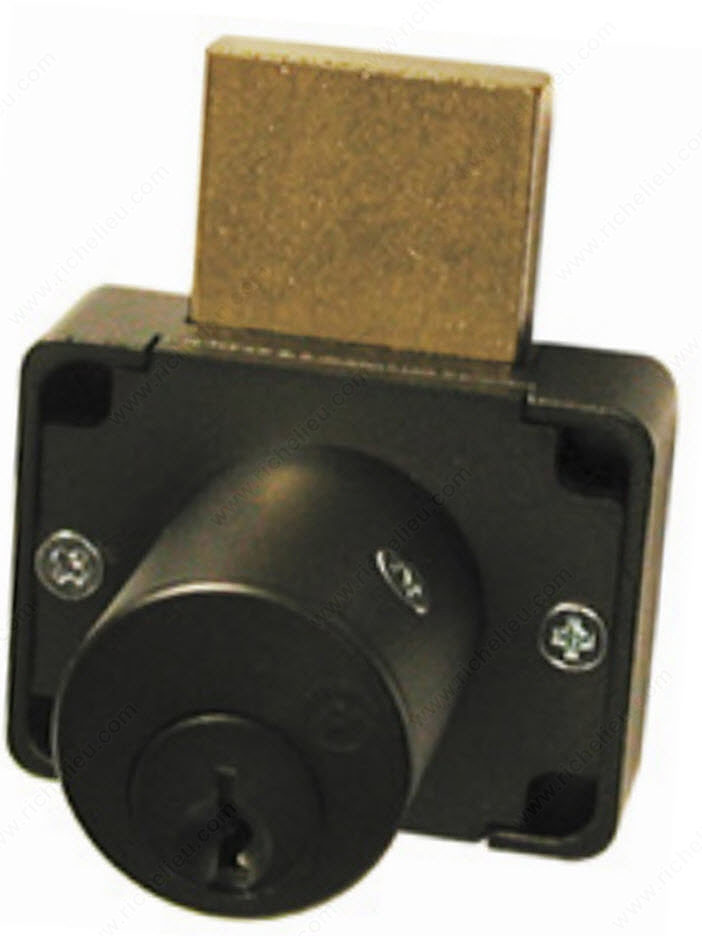

Richelieu OL207810110B Deadbolt Drawer Lock is designed specifically for Olympus 200DW drawers, providing exceptional security for your cabinetry. Crafted from durable zinc die-cast material, this lock is built to withstand daily use while maintaining a sleek appearance with its oil-rubbed bronze finish. The solid brass, pin tumbler cylinder ensures enhanced durability and a very high security level, meeting ANSI/BHMA Grade 1 standards. This deadbolt lock features a cylinder diameter and length of 7/8 inch, accommodating panel thicknesses ranging from 0.00394 to 0.875 inches, making it suitable for various drawer applications. Installation is hassle-free, as the lock includes working cylinder slides and forwardly removable cylinders that allow for rekeying without the need to disassemble the entire lock body. Each lock comes with two keys and options for being keyed alike, keyed differently, or master keyed based on your requirements. With a key turn degree of 90° and compatibility for both left and right positions, the Richelieu OL207810110B offers versatility and convenience. Whether you are a building professional or a discerning homeowner, this lock provides a reliable and secure solution for your drawer security needs.
Deadbolt Drawer Lock 7/8" and 1-3/8"
Application: Single Drawer
Body Material: Zinc Die-Cast
Brand: Olympus Lock Inc.
Cylinder Diameter: 7/8 in
Cylinder Length: 7/8 in
Cylinder Material: Brass
Cylinder Type: Solid Brass, Pin Tumbler
Finish: Oil-Rubbed Bronze
Furniture Material: Wood
Key Turn Degree: 90°
Key Type: Keyed Alike #101
Mechanism Type: Pin
Panel Thickness: 0 to 3/32 in
Position: Left & Right
Product #: OL207810110B
Product number: OL207810110B
Product №: OL207810110B
Security Level: Very High
Series: 200
Standards and Certifications: ANSI/BHMA Grade 1
Types of Locks: Deadbolt Locks
Unit 1: carton - 10
Use: Single Drawer
