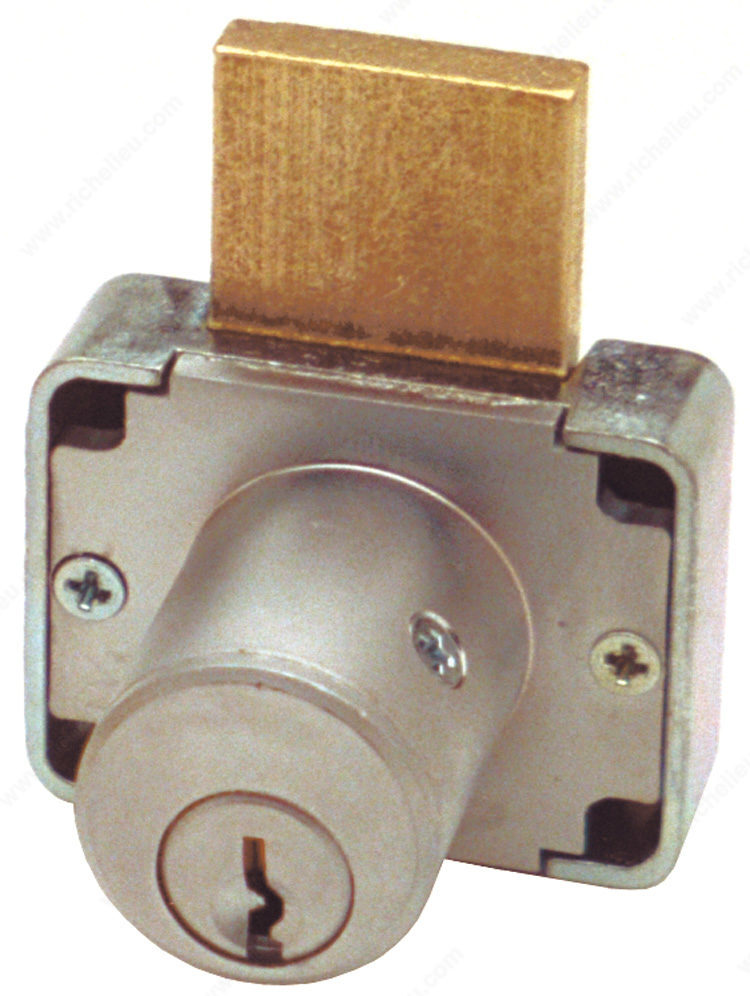

Richelieu OL207810326D Deadbolt Drawer Lock offers an exceptional locking solution designed specifically for Olympus 200DW drawer applications. Constructed from durable zinc die-cast material, this lock ensures robust security while maintaining an appealing satin chrome finish that complements wooden furniture. With a cylinder diameter and length of 7/8 inches, the solid brass pin tumbler mechanism provides a high-security rating, classified as ANSI/BHMA Grade 1. This deadbolt lock is not only easy to install but also features forwardly removable cylinders, allowing for convenient rekeying without the need to disassemble the entire lock body. Each lock comes with two keys and offers the flexibility to be keyed alike, keyed differently, or master keyed according to your specific requirements. The key turn degree of 90° ensures smooth operation, while the lock is suitable for panel thicknesses ranging from 0.00394 to 0.875 inches. Designed for both left and right positions, the Richelieu OL207810326D is the ideal choice for professionals seeking a reliable and secure locking mechanism for single drawer applications. Upgrade your cabinetry with this high-security deadbolt lock, perfect for enhancing safety and functionality in any space.
Deadbolt Drawer Lock 7/8" and 1-3/8"
Application: Drawer Lock
Body Material: Zinc Die-Cast
Brand: Olympus Lock Inc.
Cylinder Diameter: 7/8 in
Cylinder Length: 7/8 in
Cylinder Material: Brass
Cylinder Type: Solid Brass, Pin Tumbler
Finish: Satin Chrome
Furniture Material: Wood
Key Turn Degree: 90°
Key Type: Keyed Alike #103
Material: Zinc die cast
Mechanism Type: Pin
Panel Thickness: Max. 7/8 in
Position: Left & Right
Product #: OL207810326D
Product number: OL207810326D
Product №: OL207810326D
Security Level: Very High
Series: 200
Standards and Certifications: ANSI/BHMA Grade 1
Types of Locks: Deadbolt Locks
Use: Single Drawer
