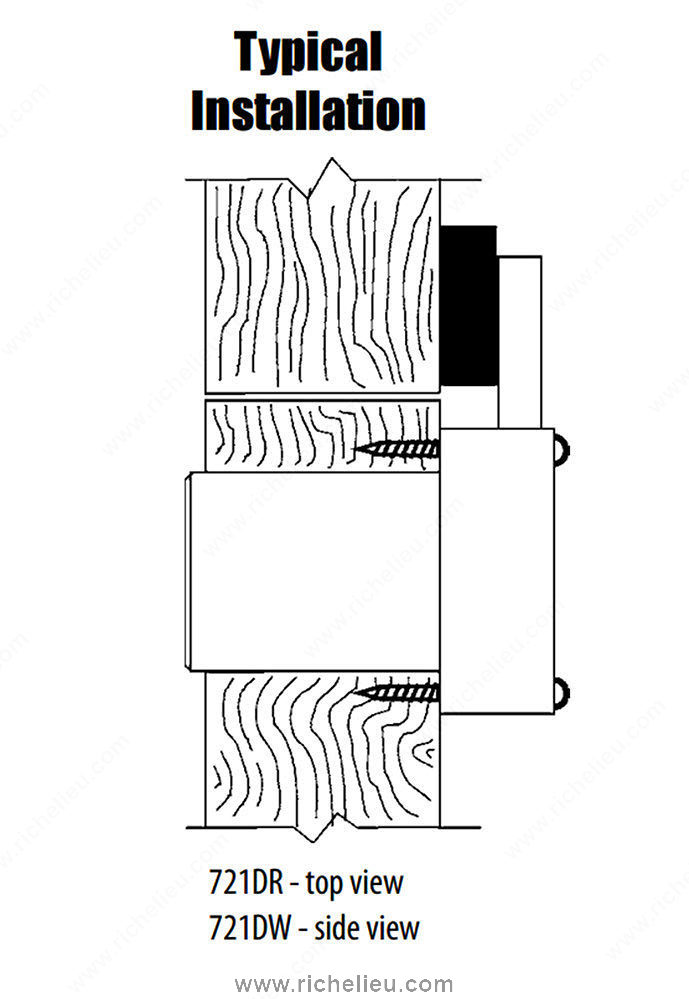

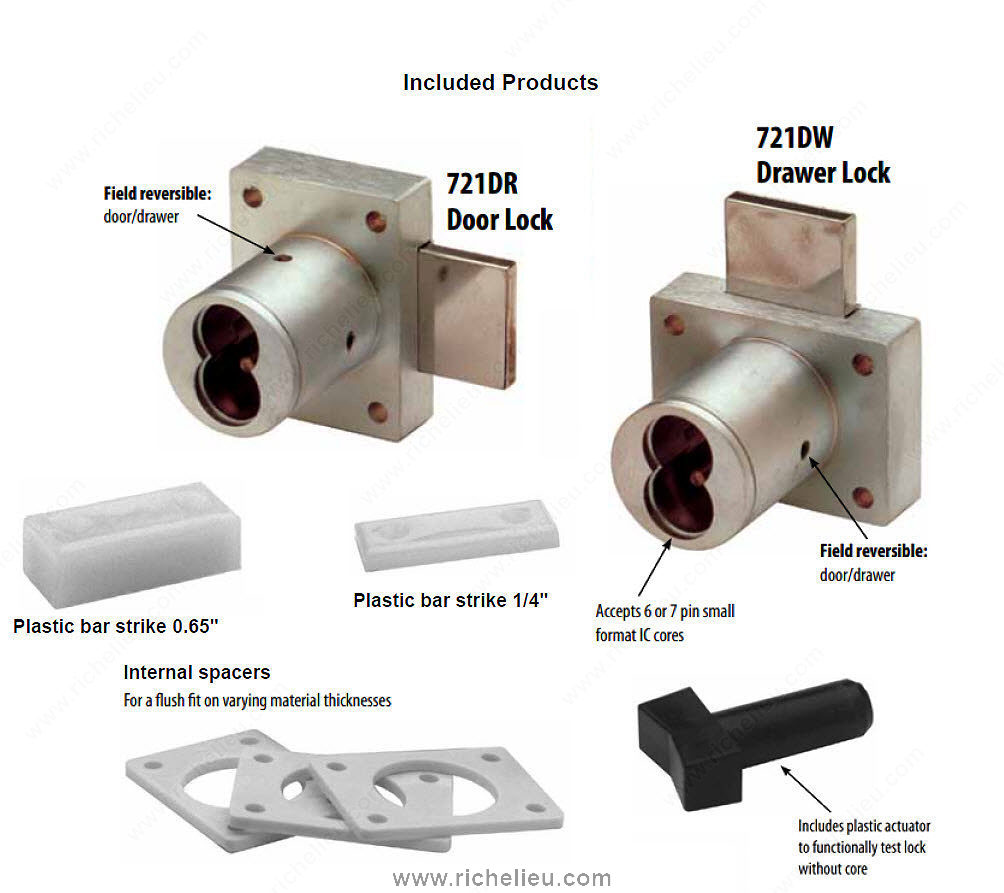

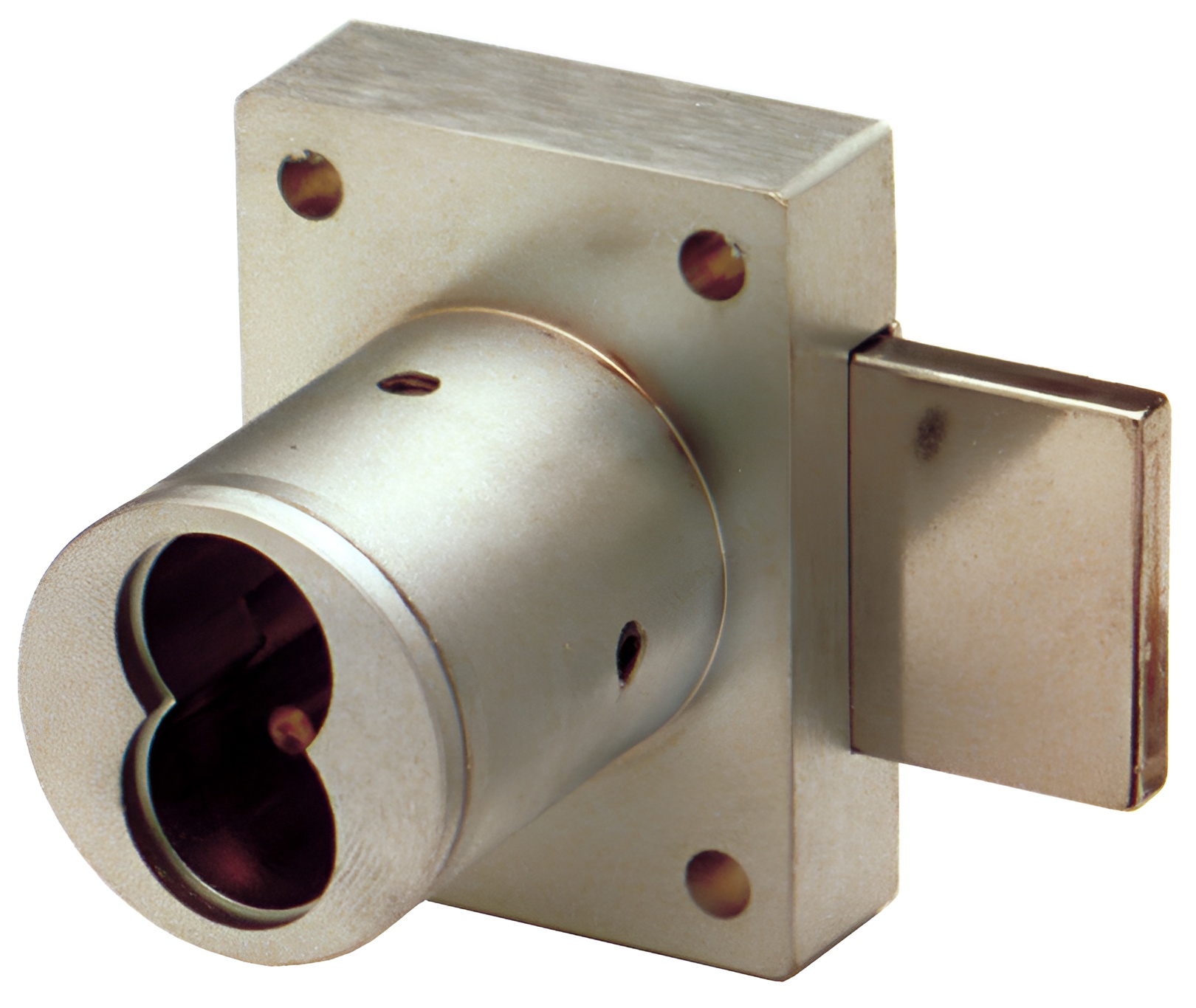

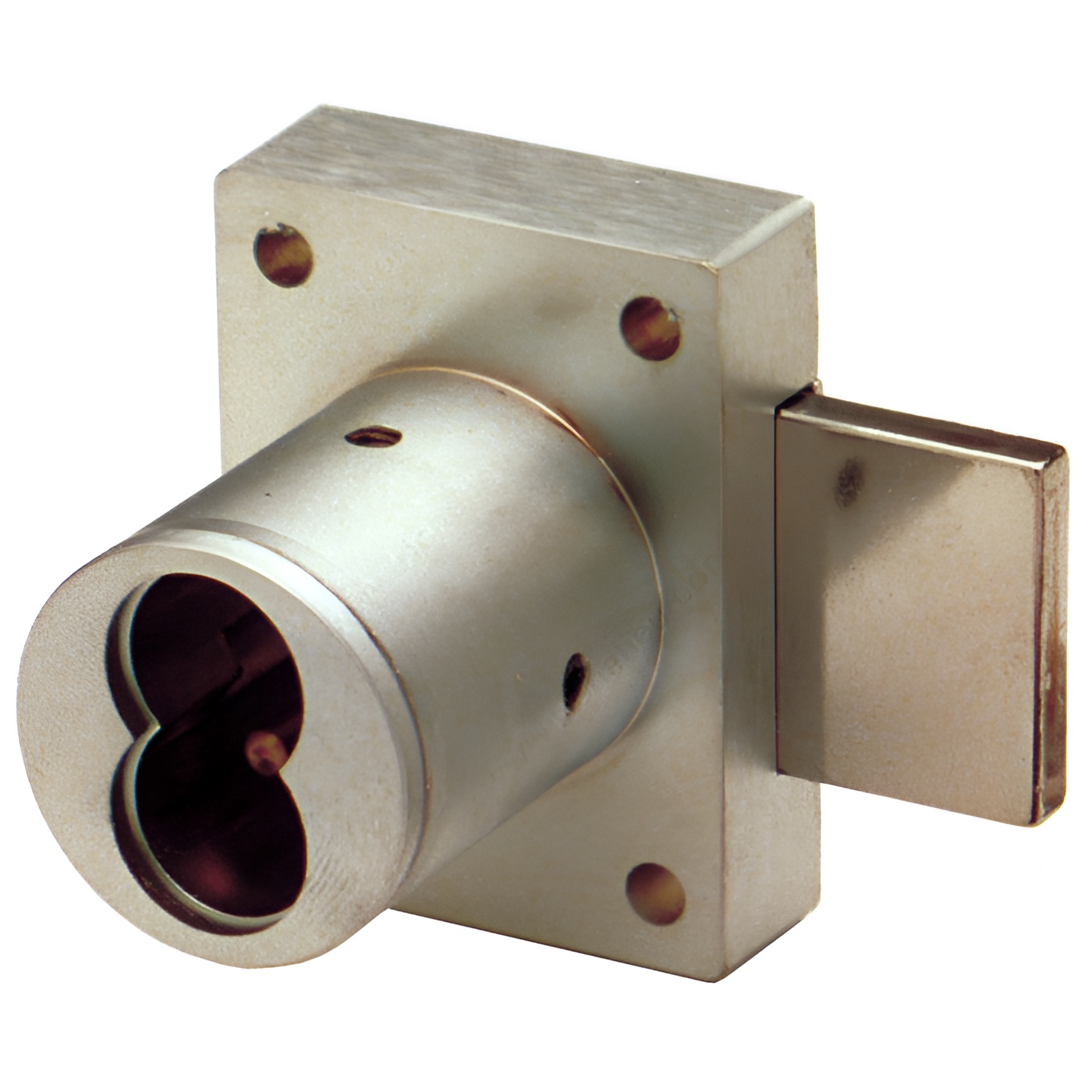

Richelieu OL721DR26D Small Format IC Core for Door and Drawer Cabinet Locks is designed for seamless integration into both cabinet doors and drawers, specifically compatible with Olympus 721DR and 721DW models from Olympus Lock, Inc. This innovative lock accepts 6- or 7-pin small format interchangeable core cylinders, ensuring enhanced security and flexibility. Engineered for practicality, the OL721DR26D features a reversible design that allows for easy installation while maintaining keyway verticality. It is built with a solid brass pin tumbler cylinder, offering durability and reliability. The satin chrome finish not only provides an elegant aesthetic but also enhances resistance to wear and corrosion. This lock is constructed from zinc die cast material, ensuring robust performance in various environments. Included with the lock are strikes and spacers, ensuring a flush fit with the casework material, which simplifies the installation process. With a maximum panel thickness of 1 1/4 inches, it caters to a range of cabinetry applications. Additionally, its disassembly and reassembly features facilitate on-the-job maintenance, making it a practical choice for building professionals and knowledgeable homeowners alike. The OL721DR26D meets ANSI/BHMA Grade 1 standards, guaranteeing superior quality and performance.
Small Format IC Core for Door and Drawer Cabinet Locks
Application: Door Lock
Brand: Olympus Lock Inc.
Cylinder Diameter: 1 1/8 in
Cylinder Length: 1 1/4 in
Cylinder Type: Solid Brass, Pin Tumbler
Finish: Satin Chrome
Furniture Material: Wood, Metal
Key Type: Interchangeable core not included
Material: Zinc die cast
Panel Thickness: Max. 1 1/4 in
Position: Reversible
Product #: OL721DR26D
Product number: OL721DR26D
Product №: OL721DR26D
Security Level: Very High
Series: Small Format IC Core
Standards and Certifications: ANSI/BHMA Grade 1
Types of Locks: Deadbolt Locks
Unit 1: carton - 10
Use: Cabinet Doors, Single Drawer
