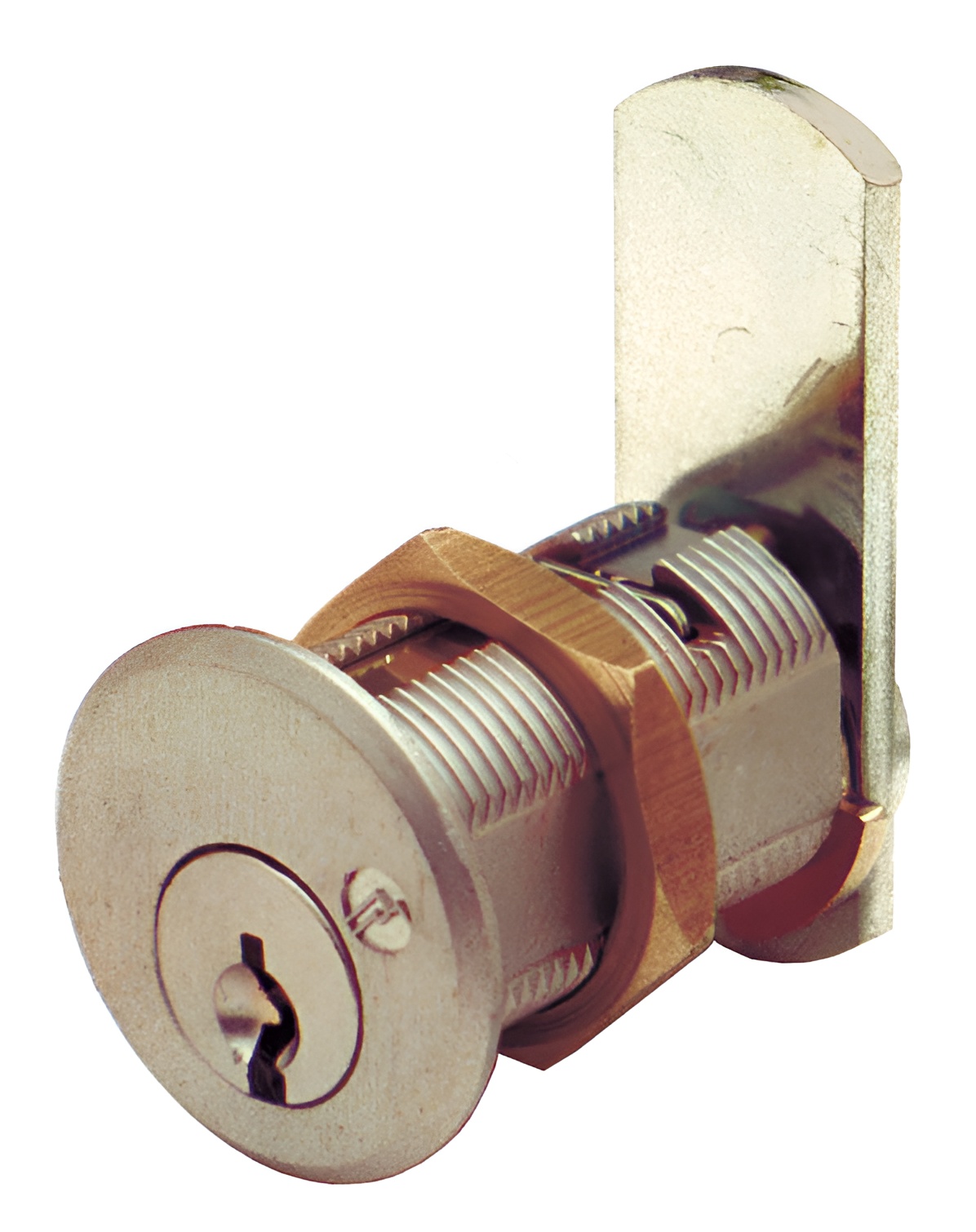

Richelieu OLDCN3KD26D DCN Cam Lock combines security and versatility in one reliable solution. Designed by Olympus Lock Inc., this cam lock features a robust zinc die-cast body and an elegant satin chrome finish, ensuring both durability and aesthetic appeal. With a face diameter of 1 inch and a cam length of 1 1/4 inches, it fits seamlessly into a variety of applications, particularly single drawers and cabinet doors. The OLDCN3KD26D cam lock is easily rekeyable and field reversible, allowing for hassle-free maintenance and customization. Its unique design includes a working top slide mechanism and a retainer staple, simplifying the rekeying process. An anti-rotation plate prevents the lock from twisting during use, enhancing security and reliability. With a cylinder diameter of 3/4 inches and a length of 1 3/8 inches, this cam lock accommodates panel thicknesses ranging from 1 1/8 to 1 3/4 inches. This lock operates with a key turn degree of 180° and is keyed different for added security. Meeting ANSI/BHMA Grade 1 standards, the OLDCN3KD26D offers a very high level of security, making it an excellent choice for homeowners and building professionals alike. Secure your cabinets and drawers with confidence using Richelieu's dependable cam lock solution.
DCN Cam Lock 1", 1-1/8", 1-3/8" or 1-3/4"
Application: Drawer Lock, Cabinet Doors
Body Material: Zinc Die-Cast
Brand: Olympus Lock Inc.
Cam Length (from center): 1 1/4 in
Cylinder Diameter: 3/4 in
Cylinder Length: 1 3/8 in
Cylinder Type: Zinc die cast, Pin Tumbler
Finish: Satin Chrome
Furniture Material: Wood
Key Turn Degree: 180°
Key Type: Keyed Different
Material: Zinc die cast
Mechanism Type: Pin
Panel Thickness: Max. 1 1/8 in
Position: Left & Right
Product #: OLDCN3KD26D
Product number: OLDCN3KD26D
Product №: OLDCN3KD26D
Security Level: Very High
Series: DCN
Standards and Certifications: ANSI/BHMA Grade 1
Types of Locks: Cam Locks
Use: Cabinet Doors, Single Drawer
