Richelieu PS23A2DR90 CINETTO PS23 Bifold KitRichelieu PS23A2DR90 CINETTO PS23 Bifold Kits are expertly crafted to accommodate two or four tall woodboard panel doors, offering flexibility in design with the option to bifold to the left or right. Each kit supports a substantial weight capacity of up to 110 lb (50 kg) per pair, ensuring durability and reliability in demanding applications. Designed for panel materials ranging from 3/4" to 1-9/16" (19 mm to 40 mm) thick, the two-door kits come with 47" (1.19 m) of upper track, while the four-door kits include an impressive 78-1/2" (1.99 m). Customers can choose from sleek silver or anodized black finishes to match their aesthetic. The upper concealed hinges and trolleys provide a seamless look, while asymmetric hinges allow for smooth panel joining. With the ability to handle panel widths up to 17-5/8" (450 mm) without a bottom guide track, the system remains adaptable. For enhanced stability, an add-on bottom guide rail is available separately, accommodating widths of up to 23-5/8" (600 mm). Ideal for closets, wardrobes, pantries, and large storage units, this top-hung installation system promises ease of use and straightforward installation.
CINETTO PS23 Bifold Kits
CINETTO PS23 Bifold Kits with track are designed for two or four tall woodboard panel doors bifolding to the left or right, with a weight capacity of up to 110 lb (50 kg) per pair.
Features:
- For panel material 3/4" to 1-9/16" (19 mm to 40 mm) thick, depending on the type of anchor hinge you use
- Two-door kits include 47" (1.19 m) of upper track
- Four-door kits include 78-1/2" (1.99 m) of upper track
- Select from silver and anodized black tracks
- Upper concealed hinges with trolleys and covers
- Asymmetric hinges to join panels
- For widths of up to 17-5/8" (450 mm) per panel without a bottom guide track
- Add SELF OPENING for push-to-open feature
- Add-on bottom guide rail available (sold separately) for greater stability when working with widths of up to 23-5/8" (600 mm) per panel
- Works with common euro-type concealed cabinet hinges of your choice (sold separately) to anchor the first door panel
- Smooth operation
- Simple and flexible low-cost installation

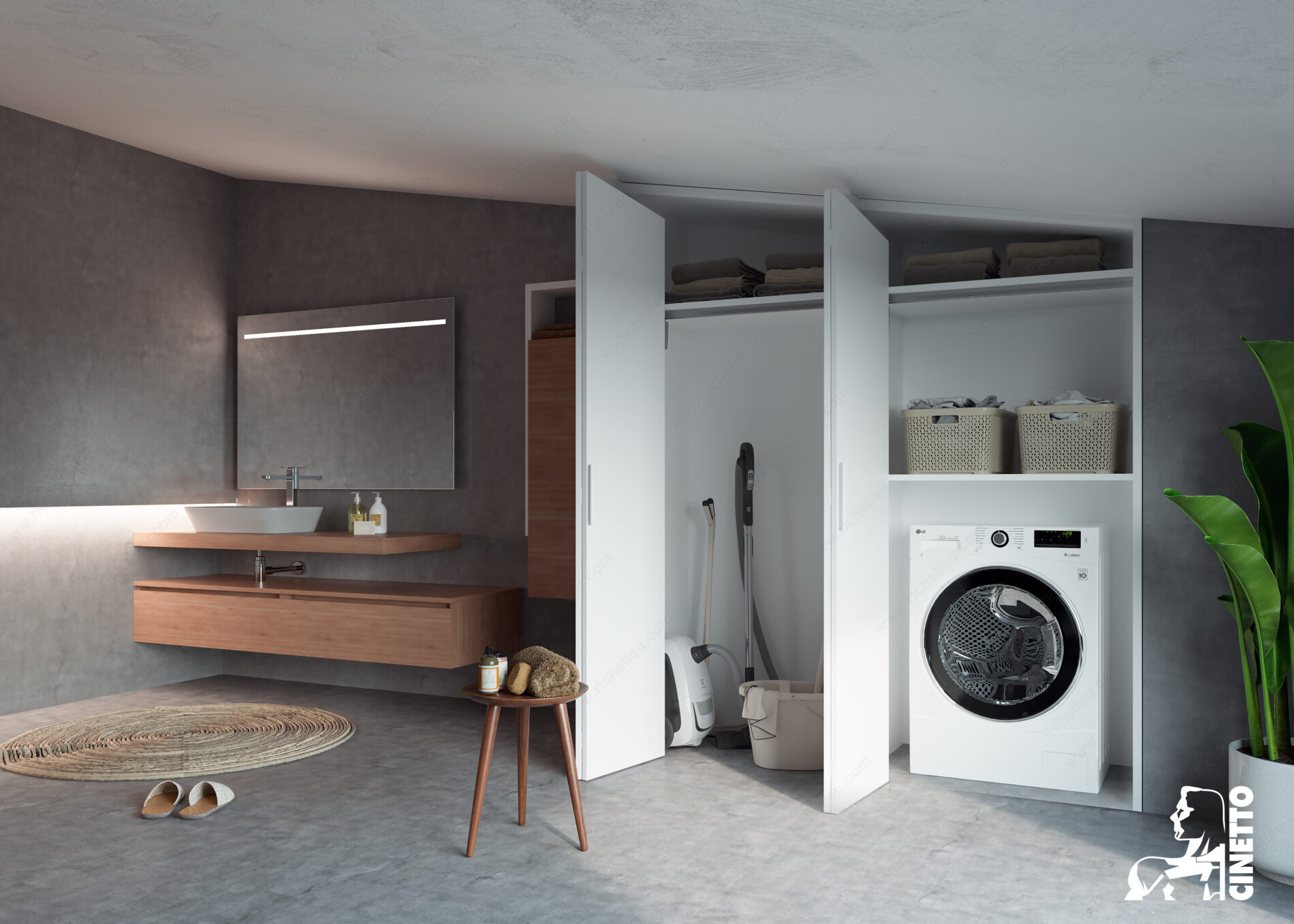

Ideal for closets, wardrobes, pantries, and large storage units.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Wardrobe, Pantry, Storage
Brand: CINETTO
Detailed Door Movement: Bifolding
Displayed in These Showrooms: Toronto, Mississauga
Door Height: 29 1/2 to 94 1/2 in*
Door Installation: Top Hung
Door Material: Wood
Door Movement: Folding
Door Thickness: 3/4 to 1 9/16 in*
Door Width: 11 3/4 to 17 3/4 in*
Finish: Anodized Black
Load Capacity: 110 lb*
Manufacturing Material: Metal, Aluminum, Plastic
Number of Doors: 2
Opening: Right-Hand Opening
Overall Length: 47 1/8 in*
Packaging format: Set
Product #: PS23A2DR90
Product type: Bifolding Door
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Mounting: Ceiling Mount
