Richelieu PS23B2DL CINETTO PS23 Bifold Kit InstructionsRichelieu PS23B2DL CINETTO PS23 Bifold Kits are expertly designed to accommodate two or four tall woodboard panel doors, providing a stylish and practical solution for space management. Capable of supporting a weight capacity of up to 110 lb (50 kg) per pair, these bifold kits are perfect for closets, wardrobes, pantries, and large storage units. Constructed for panel thicknesses ranging from 3/4" to 1-9/16" (19 mm to 40 mm), the kits come complete with an upper track. The two-door version includes 47" (1.19 m) of track, while the four-door version features 78-1/2" (1.99 m). Users can choose between sleek anodized silver or black finishes to complement their design scheme. The upper concealed hinges come equipped with trolleys and covers for a seamless appearance. The PS23 kits allow for widths of up to 17-5/8" (450 mm) per panel without the need for a bottom guide track, while an add-on bottom guide rail (sold separately) provides added stability for wider panels up to 23-5/8" (600 mm). The smooth operation and flexible installation make these kits an ideal choice for enhancing any space with elegance and efficiency.
CINETTO PS23 Bifold Kits

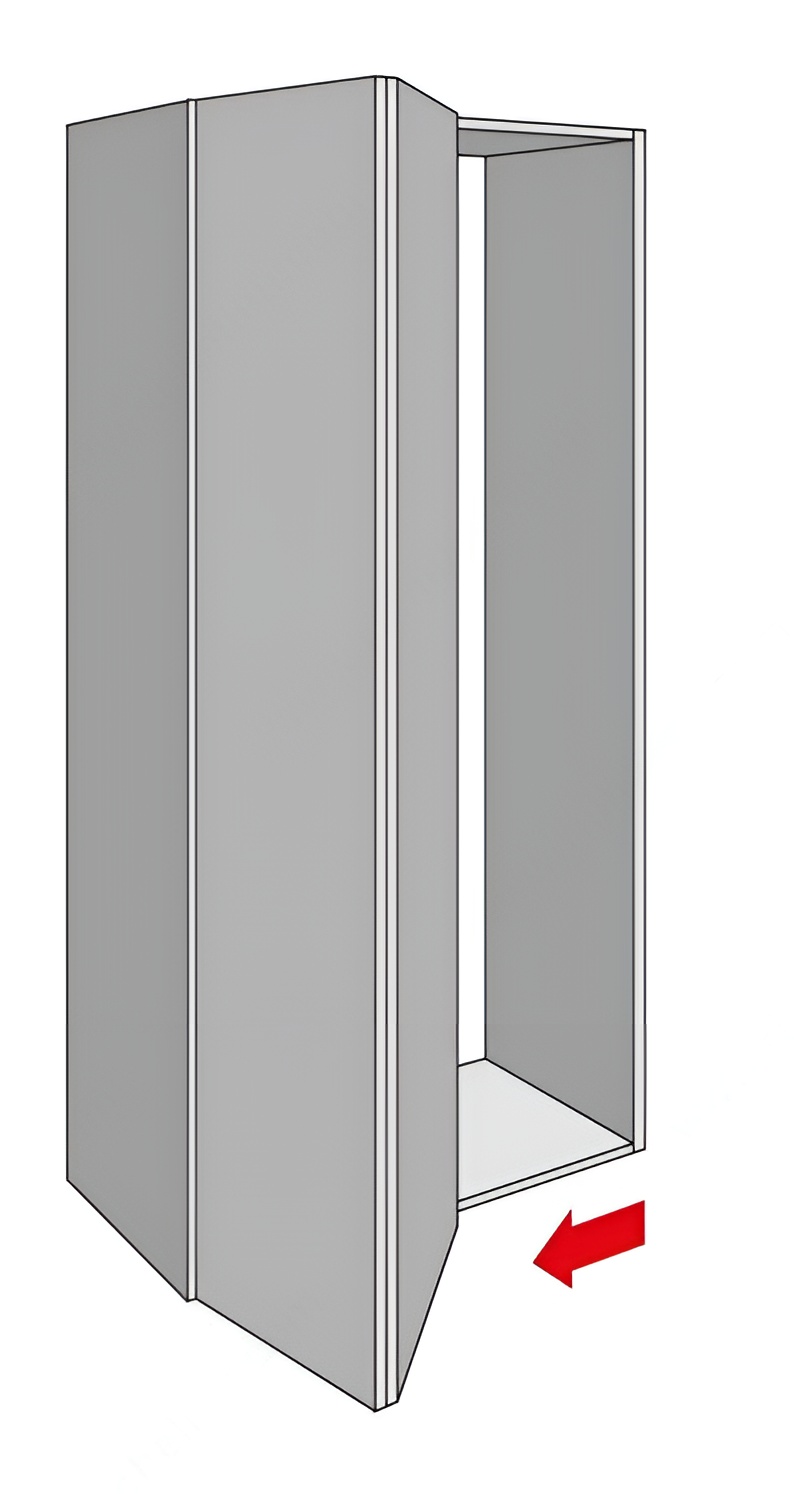

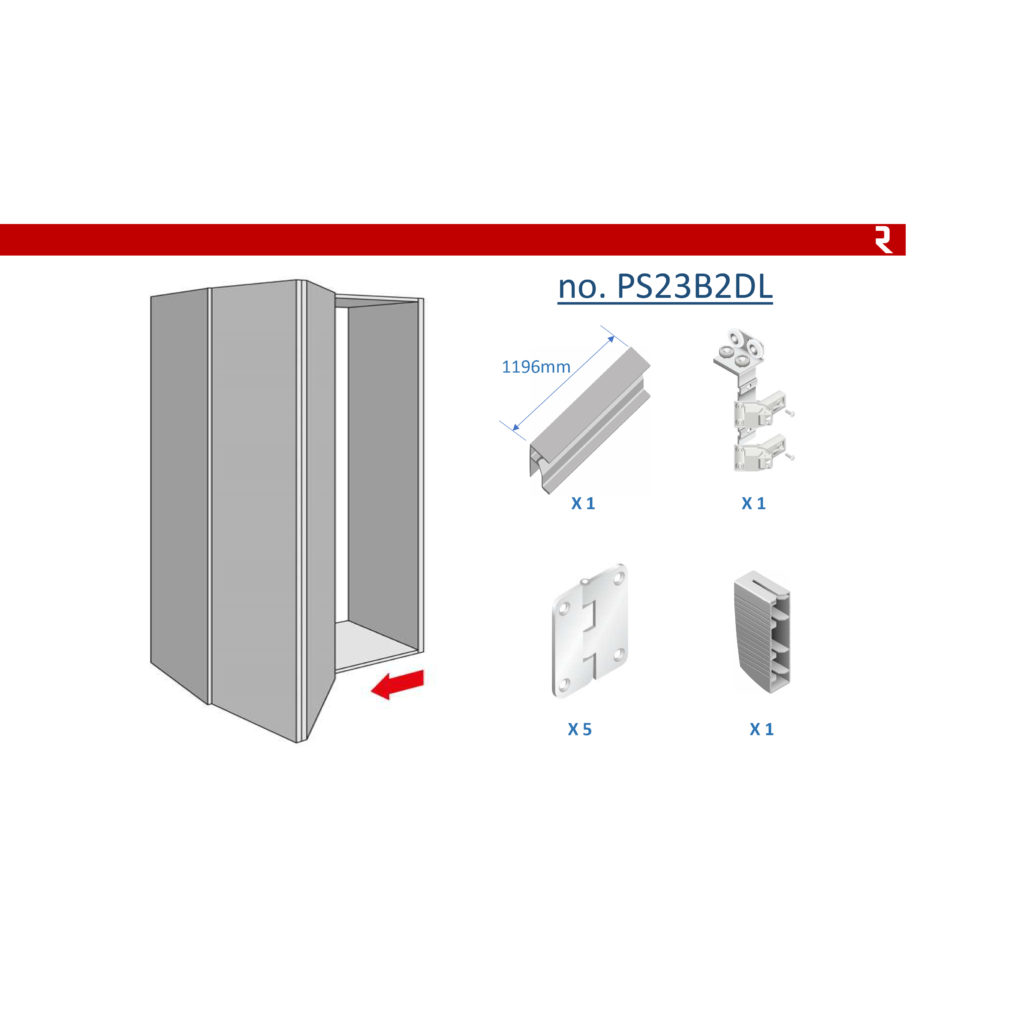

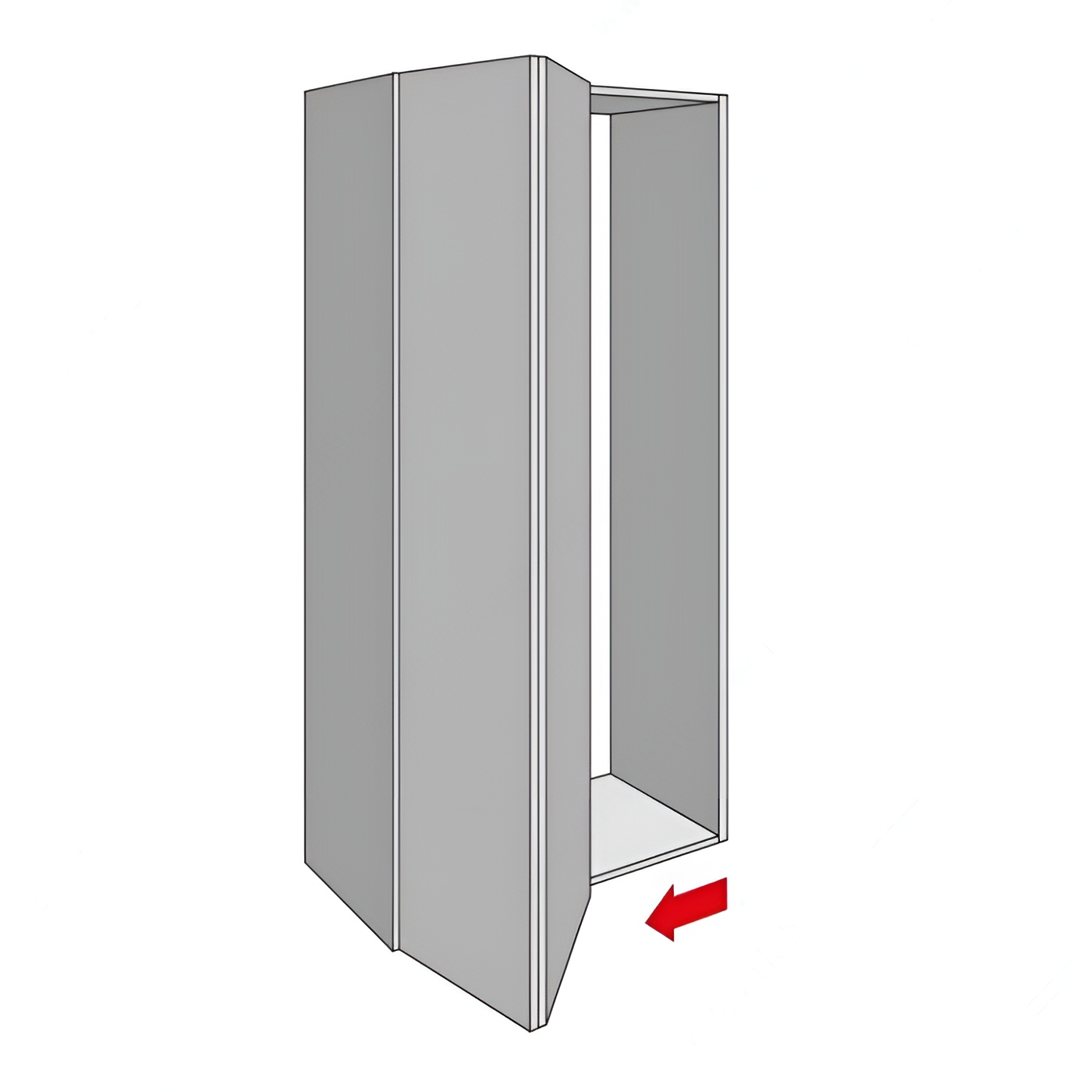

CINETTO PS23 Bifold Kits with track are designed for two or four tall woodboard panel doors bifolding to the left or right, with a weight capacity of up to 110 lb (50 kg) per pair.
Features:
- For panel material 3/4" to 1-9/16" (19 mm to 40 mm) thick, depending on the type of anchor hinge you use
- Two-door kits include 47" (1.19 m) of upper track
- Four-door kits include 78-1/2" (1.99 m) of upper track
- Select from silver and anodized black tracks
- Upper concealed hinges with trolleys and covers
- Asymmetric hinges to join panels
- For widths of up to 17-5/8" (450 mm) per panel without a bottom guide track
- Add SELF OPENING for push-to-open feature
- Add-on bottom guide rail available (sold separately) for greater stability when working with widths of up to 23-5/8" (600 mm) per panel
- Works with common euro-type concealed cabinet hinges of your choice (sold separately) to anchor the first door panel
- Smooth operation
- Simple and flexible low-cost installation

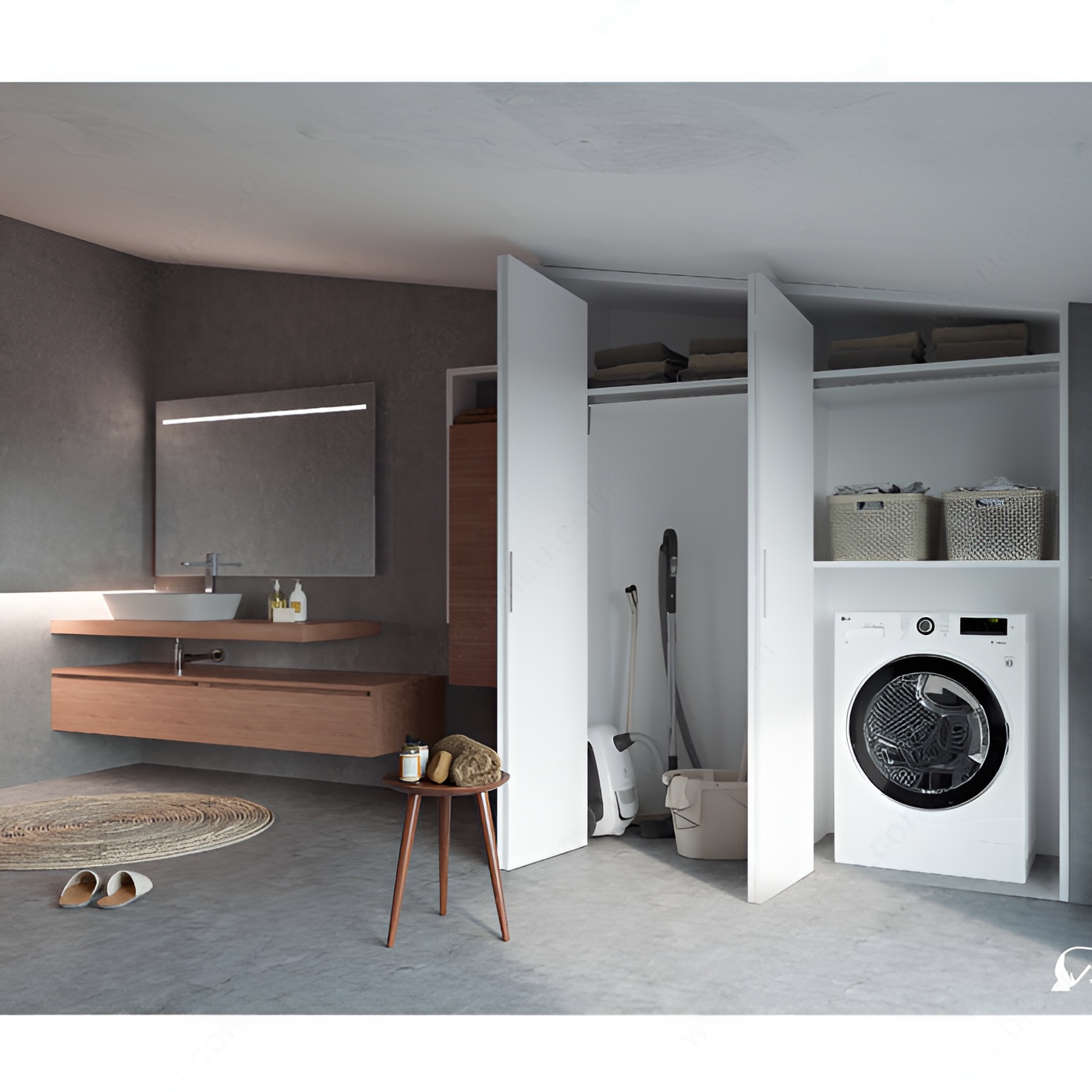

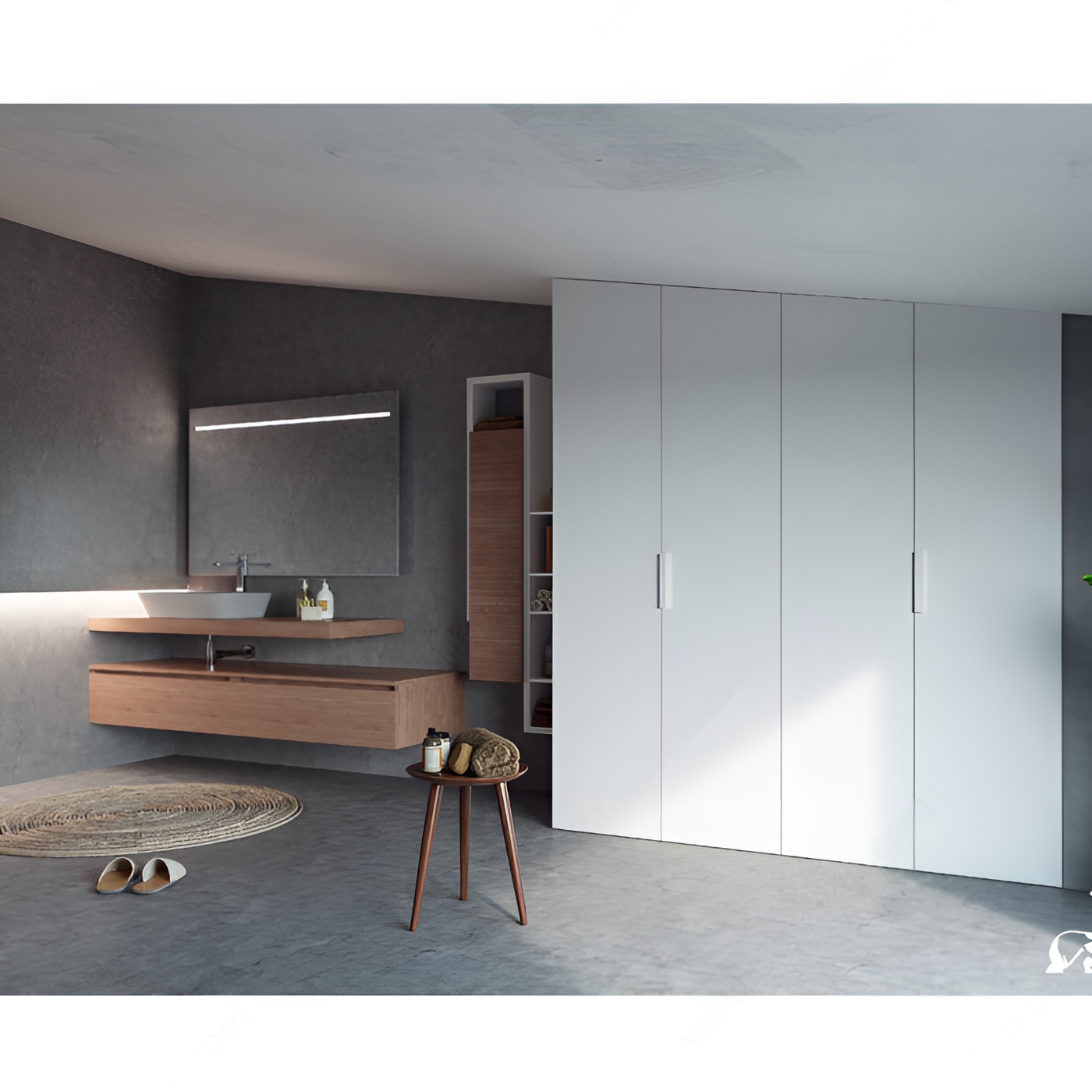

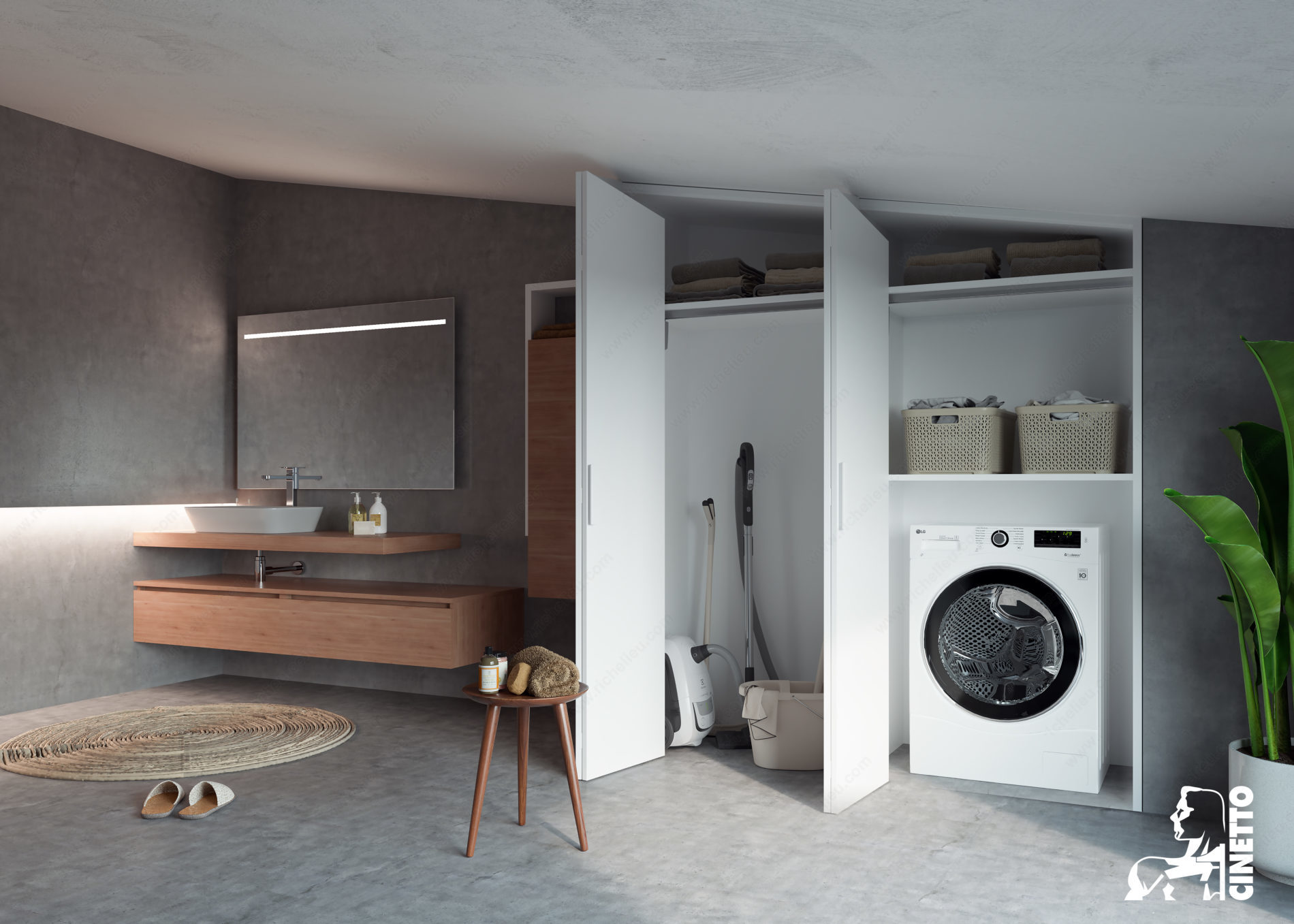

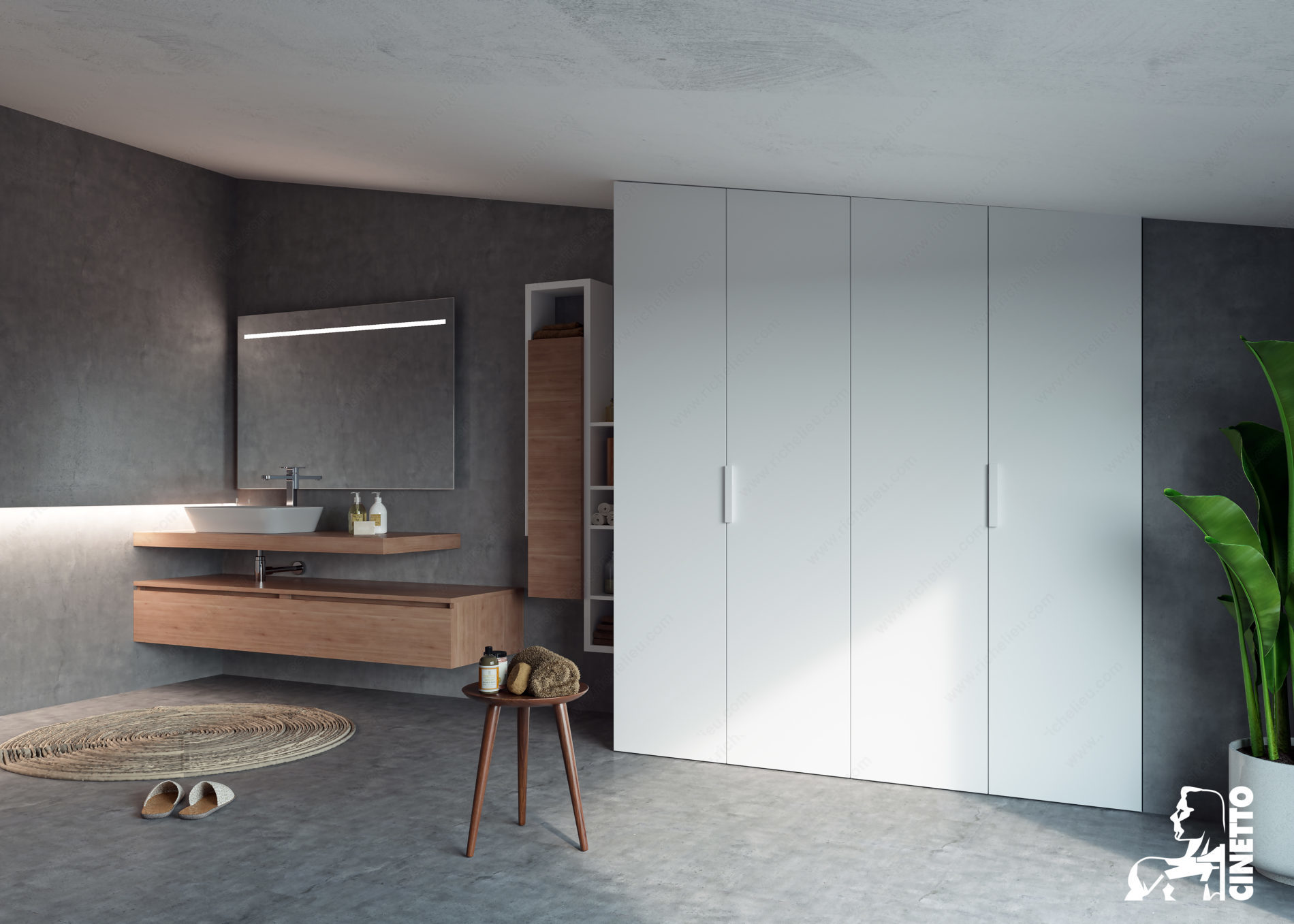

Ideal for closets, wardrobes, pantries, and large storage units.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Wardrobe, Pantry, Storage
Brand: CINETTO
Detailed Door Movement: Bifolding
Displayed in These Showrooms: Toronto, Mississauga
Door Height: 750 to 2 400 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Folding
Door Thickness: 19 to 25 mm
Door Width: 300 to 450 mm
Finish: Anodized Silver
Length - Overall Dimensions: 47 1/8 in*
Load Capacity: 110 lb*
Manufacturing Material: Metal, Aluminum, Plastic
Material: Plastic, Aluminum, Metal
Number of Doors: 2
Opening: Left-Hand Opening
Overall Length: 1 196 mm
Packaging format: Set
Product #: PS23B2DL
Product Type: Bifolding Door
Product number: PS23B2DL
Product type: Bifolding Door
Product №: PS23B2DL
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Length: 1 196 mm
Track Material: Anodized Aluminum
Track Mounting: Ceiling Mount
Unit: Set
Weight Capacity per Door: 50 kg
Weight Capacity per Panel: 25 kg
