Richelieu WEBKIT1216647 Pro Series Robust Strap Mount Sliding SystemRichelieu WEBKIT1216647 Pro Series Robuste Strap Mount Sliding System offers a robust solution for wood doors weighing up to 220 lb (100 kg), making it ideal for high-use hospitality and commercial applications. This professional-grade system features a steel flat bar track set that includes direct mount wall fasteners and standoffs, ensuring a reliable installation. The strap mount ball bearing wheels are equipped with through-bolt fasteners, promoting smooth operation and stability. Safety and functionality are paramount in this design, featuring a built-in anti-derailing device and adjustable wall mount bottom guide. For those looking to enhance their setup, the pre-drilled tracks allow for the installation of a soft-close mechanism, compatible with doors up to 176 lb (80 kg), sold separately. Designed to accommodate doors ranging from 23 7/8 to 50 inches wide and 9 ft 10 in tall, the system is suited for various architectural styles. The contemporary finish in stainless steel not only enhances durability but also complements modern aesthetics. With its single sliding door movement and drywall anti-compression discs, the Richelieu Pro Series Robuste System is a reliable choice for any project requiring both style and performance.
Pro Series Robuste Strap Mount Sliding System
The professional grade Pro Series Robuste System is made for wood doors up to 220 lb (100 kg).

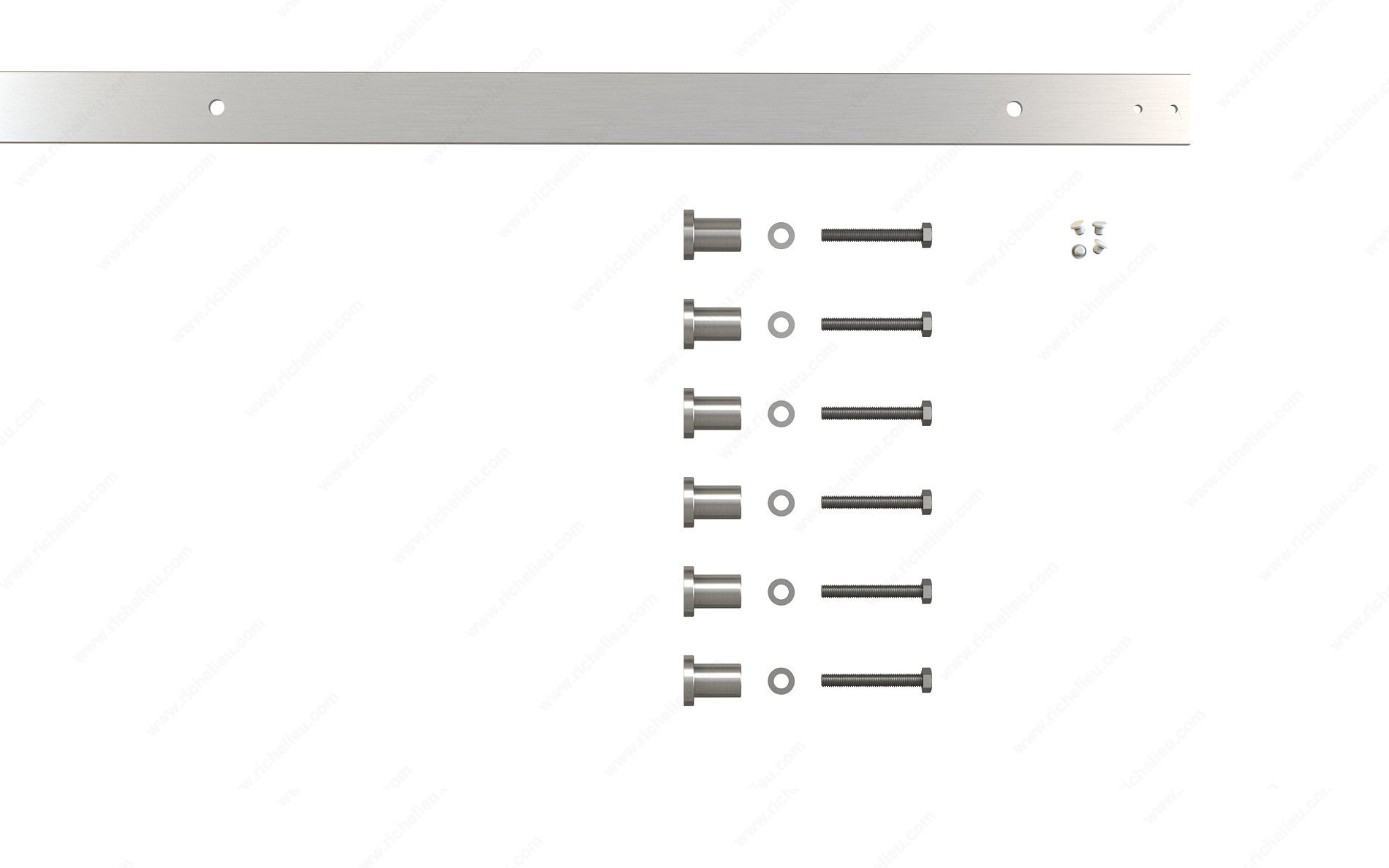

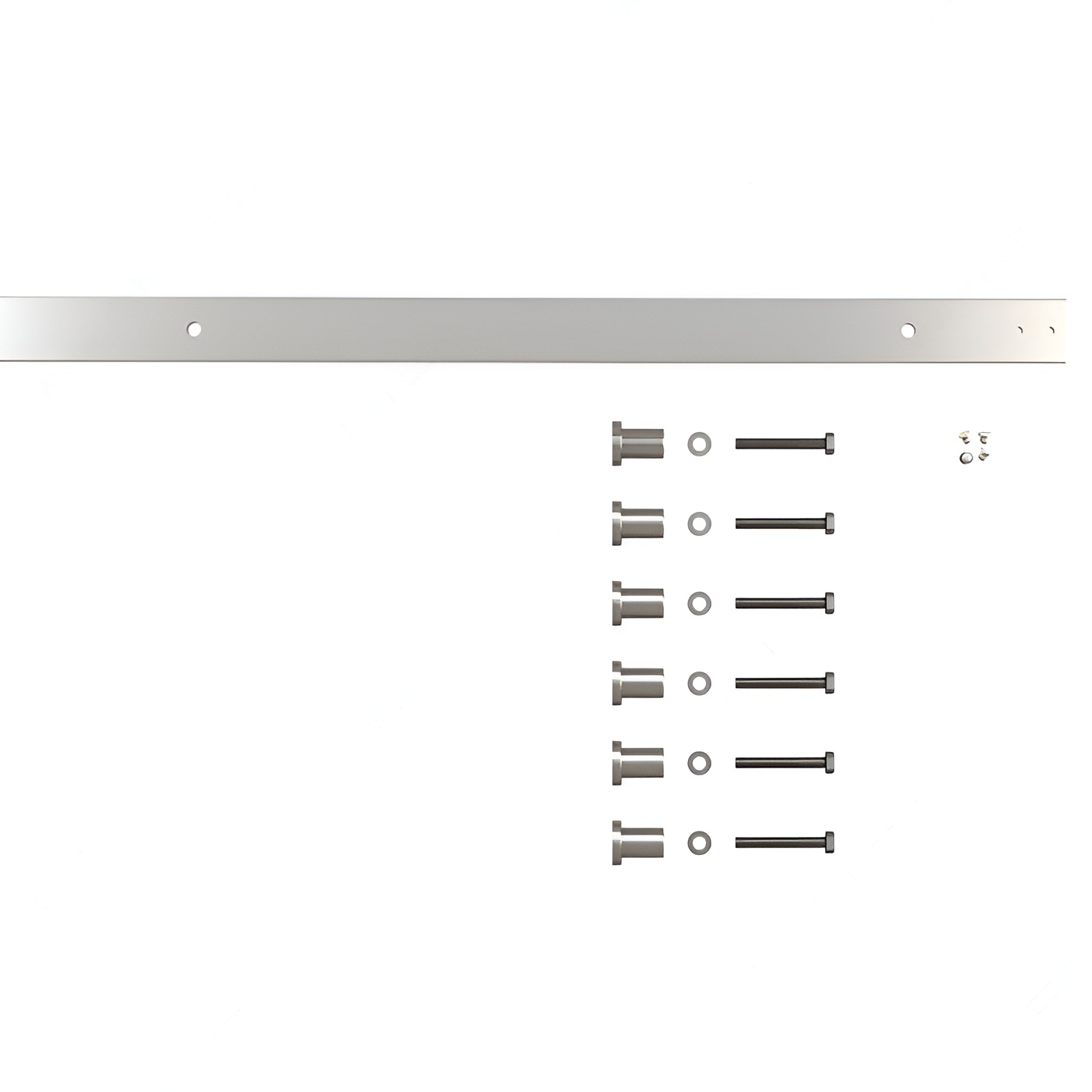

- Steel flat bar track set with direct mount wall fasteners and standoffs

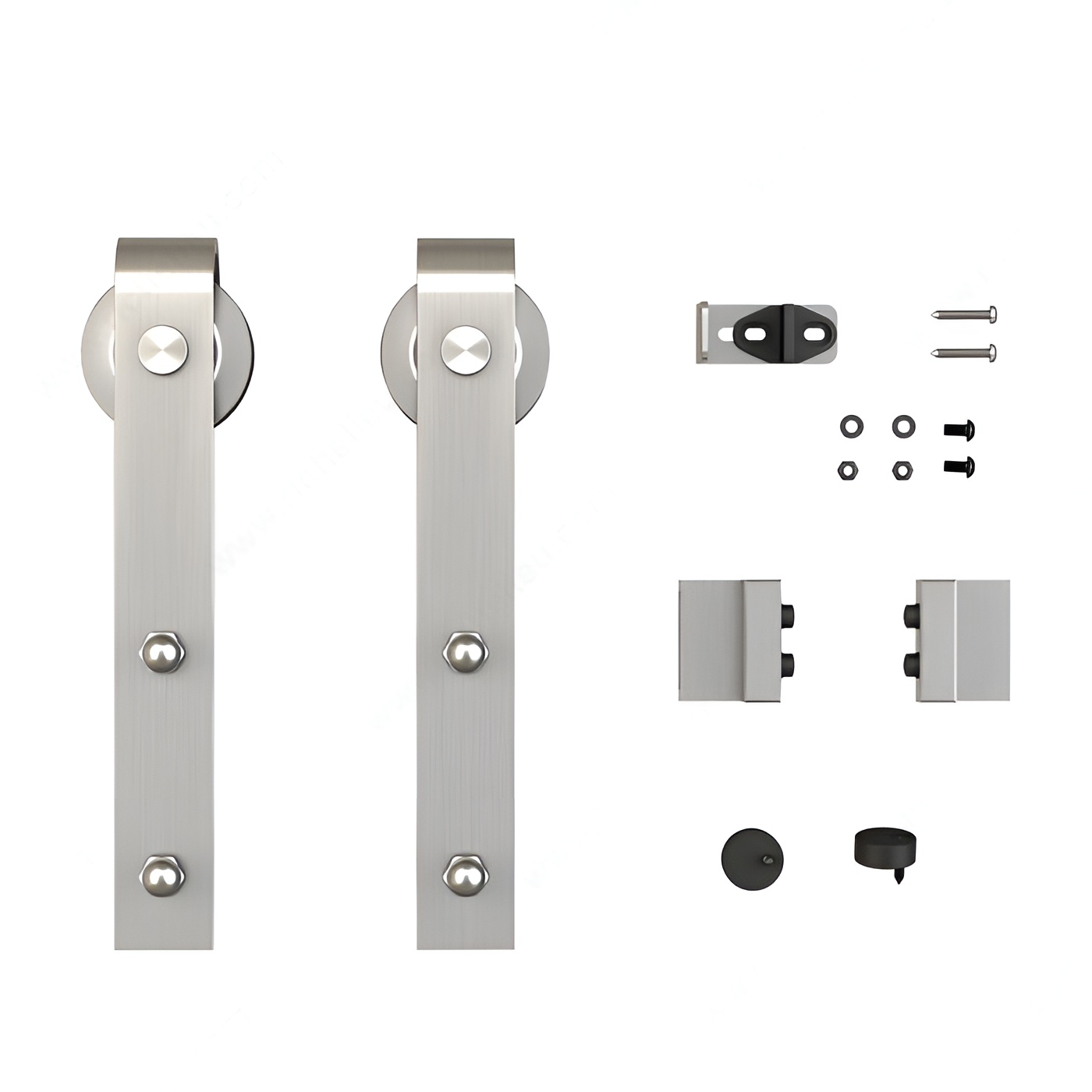

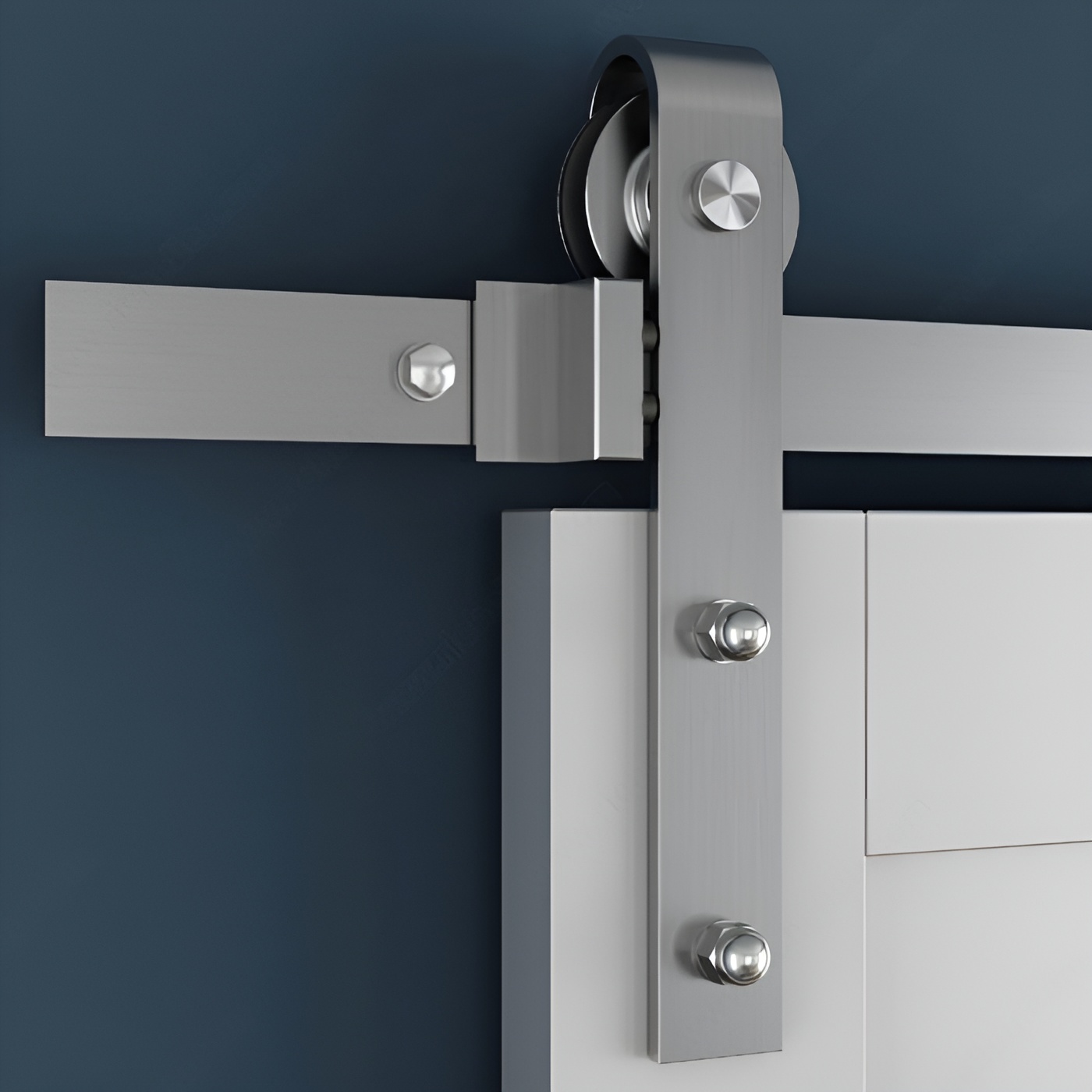

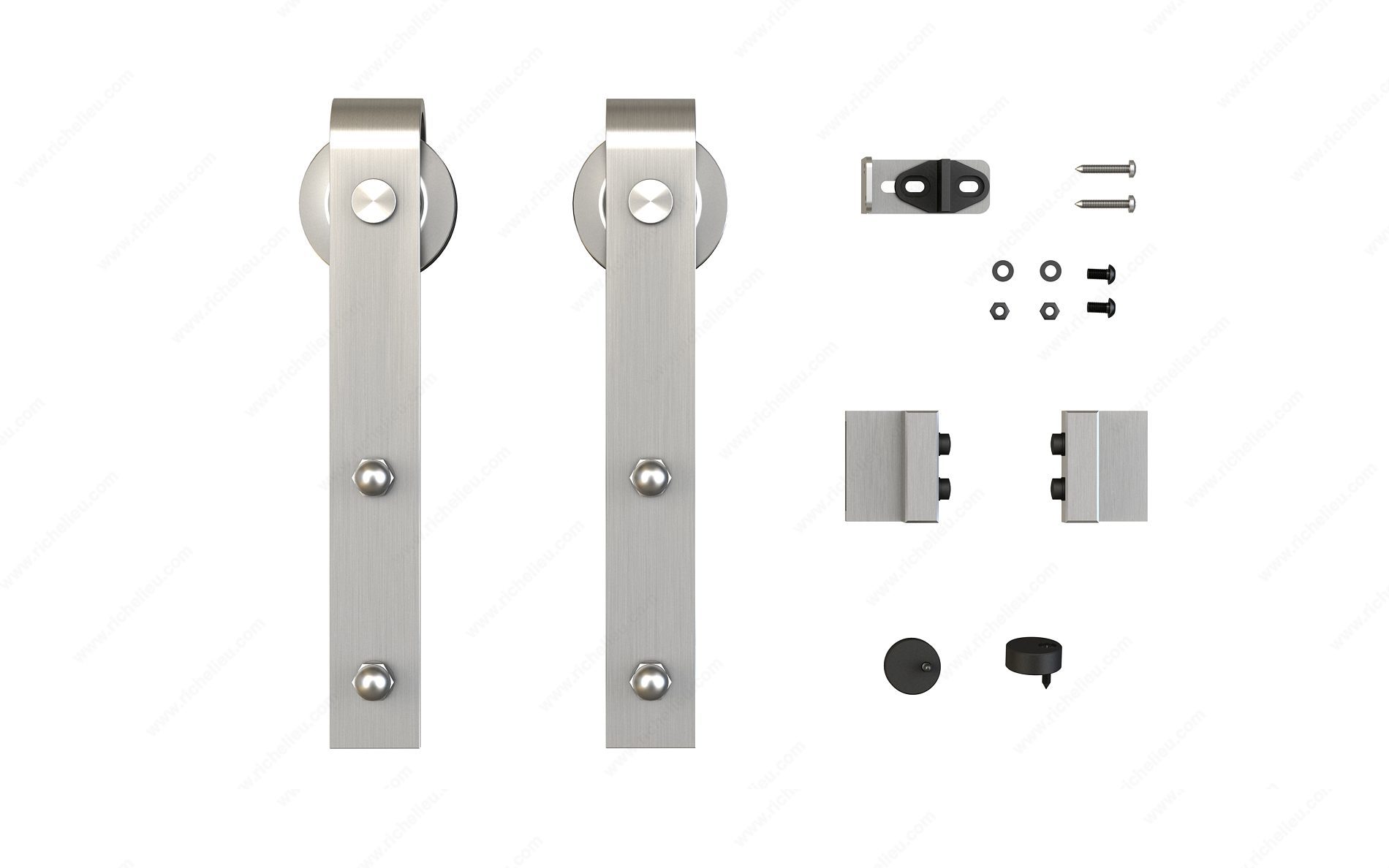

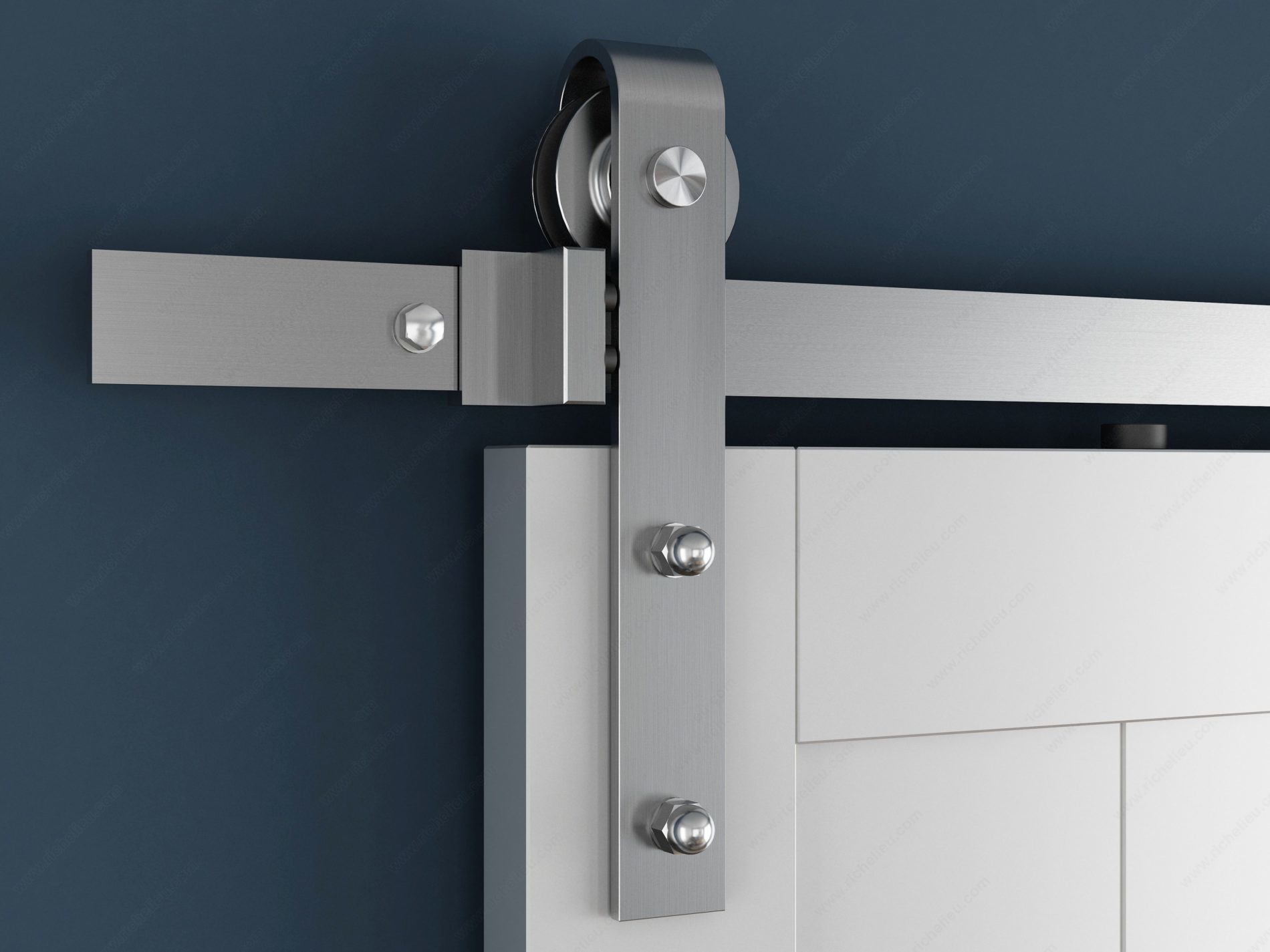

- Strap mount ball bearing wheels with through-bolt fastener
- Built-in anti-derailing device
- Pre-drilled tracks for installation of soft-close mechanism, 176 lb (80 kg) capacity (sold separately)
- Drywall anti-compression discs
- Adjustable wall mount bottom guide
This barn door system is designed for high-use hospitality and commercial applications.
IMPORTANT: The minimum door width is 36 in (914 mm) when using a soft-close mechanism, and the maximum door weight is 176 lb (80 kg).
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door, Barn Door
Brand: Richelieu
Detailed Door Movement: Single Sliding
Displayed in These Showrooms: Toronto
Door Height: 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 35 to 45 mm
Door Width: 608 to 1 270 mm
Finish: Stainless Steel (170)
Length - Overall Dimensions: 98 3/8 in*
Load Capacity: Max. 220 lb*
Number of Doors: 1
Overall Length: 2.5 m
Product #: WEBKIT1216647
Product number: WEBKIT1216647
Product №: WEBKIT1216647
Roller Position: Upper
Roller Type: Ball Bearing, Axle (Bushing)
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Style: Contemporary
Track Length: 2.5 m
Track Mounting: Wall Mount
Weight Capacity per Door: Max. 100 kg
