Richelieu WEBKIT1216648 Pro Series Robust Strap Mount Sliding SystemRichelieu WEBKIT1216648 Pro Series Robuste Strap Mount Sliding System is engineered for durability and performance, accommodating wood doors weighing up to 220 lb (100 kg). This professional-grade system features a robust steel flat bar track set, complete with direct mount wall fasteners and standoffs, ensuring a stable and secure installation. The strap mount ball bearing wheels allow for smooth operation, enhanced by a through-bolt fastener for added reliability. Designed for high-use environments, such as hospitality and commercial applications, this system includes a built-in anti-derailing device, providing peace of mind during operation. Pre-drilled tracks facilitate the optional installation of a soft-close mechanism, capable of handling doors up to 176 lb (80 kg), which can enhance the user experience. The adjustable wall mount bottom guide and drywall anti-compression discs further optimize functionality. With a door height of up to 9 ft 10 in and a thickness range of 1 3/8 to 1 25/32 in, this system accommodates various door sizes, with a minimum width requirement of 36 in when using a soft-close. Finished in stainless steel, the contemporary style of the Richelieu Pro Series Robuste System makes it a perfect fit for modern interiors, blending aesthetics with practicality.
Pro Series Robuste Strap Mount Sliding System
The professional grade Pro Series Robuste System is made for wood doors up to 220 lb (100 kg).

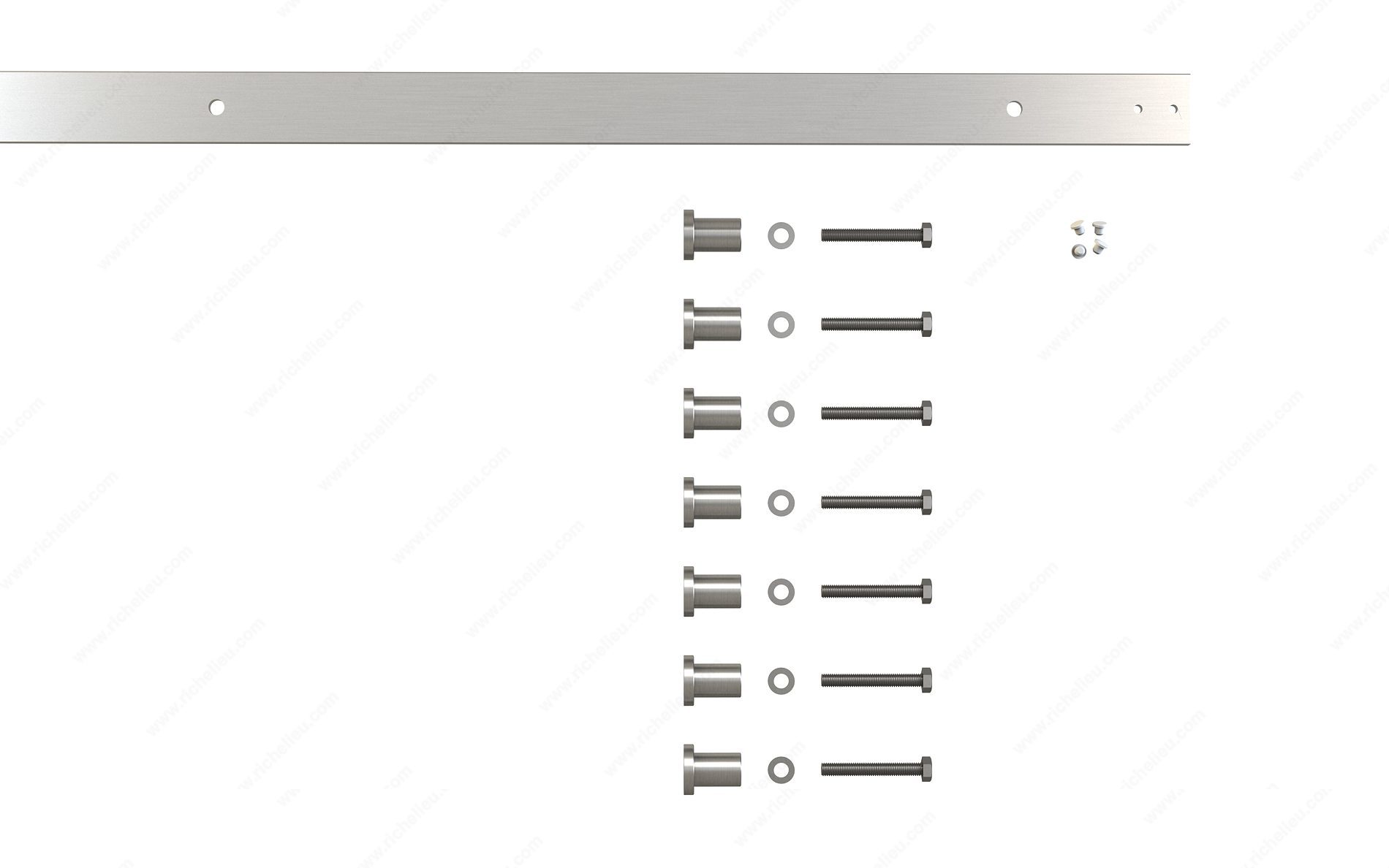

- Steel flat bar track set with direct mount wall fasteners and standoffs

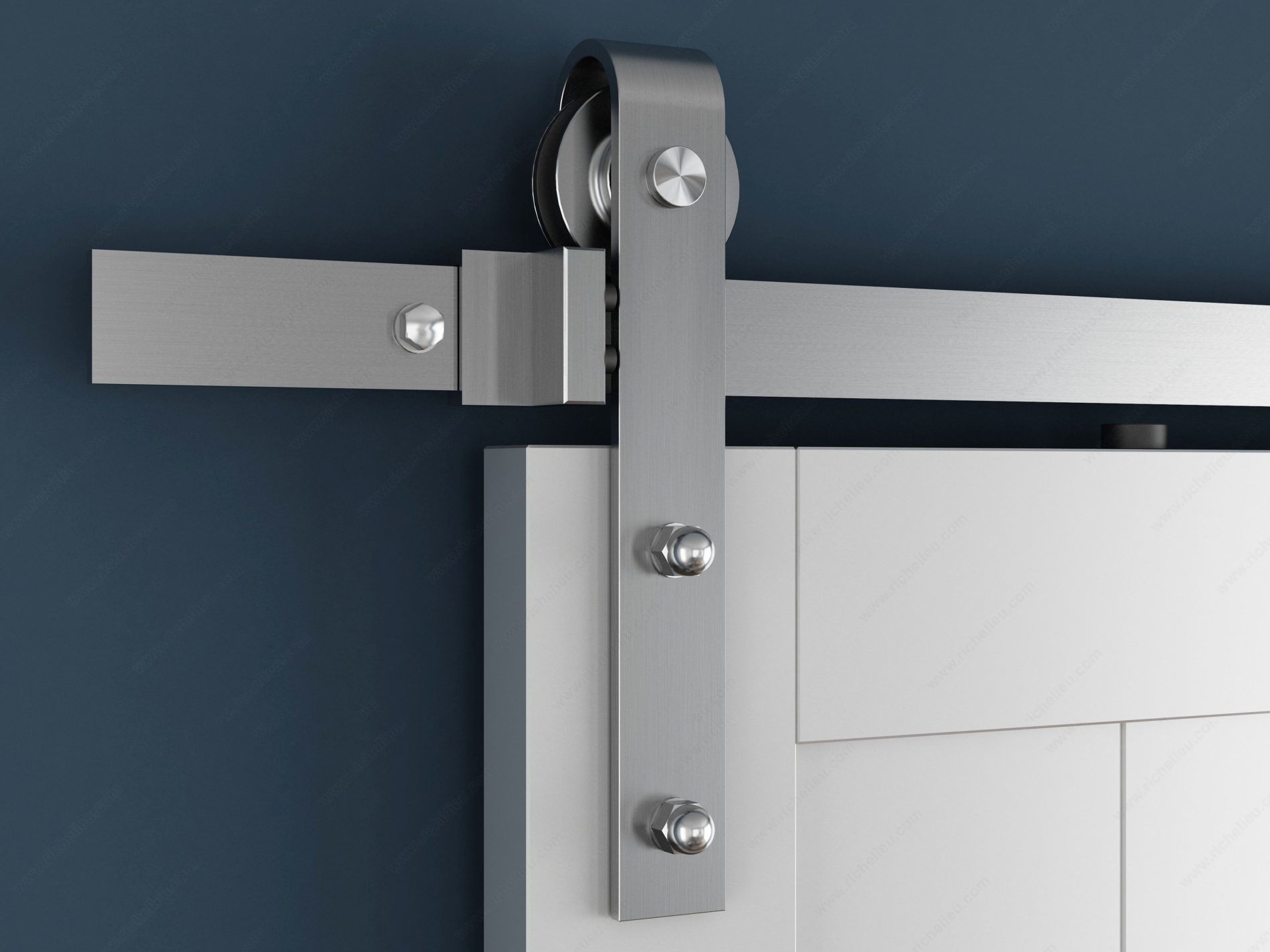

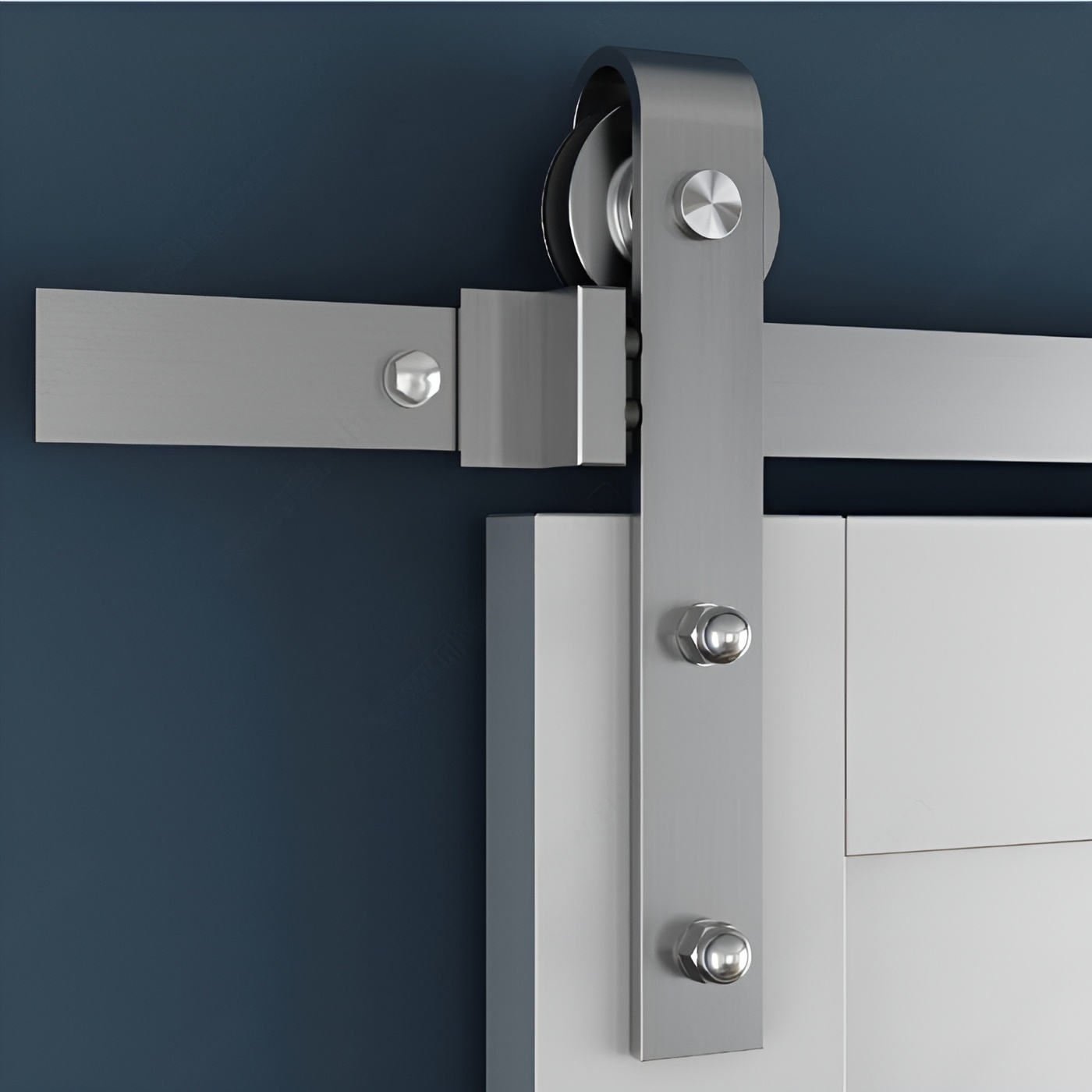

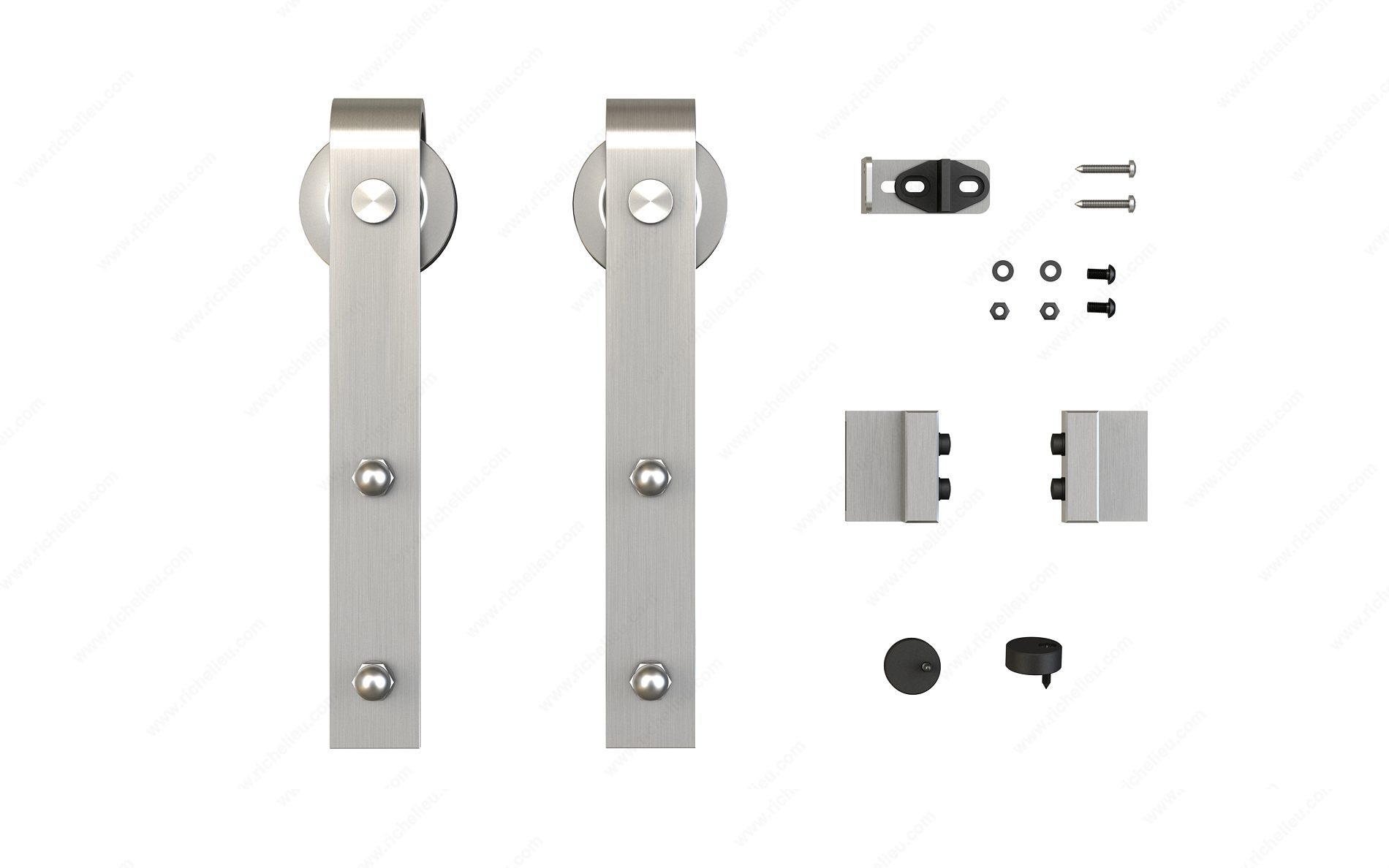

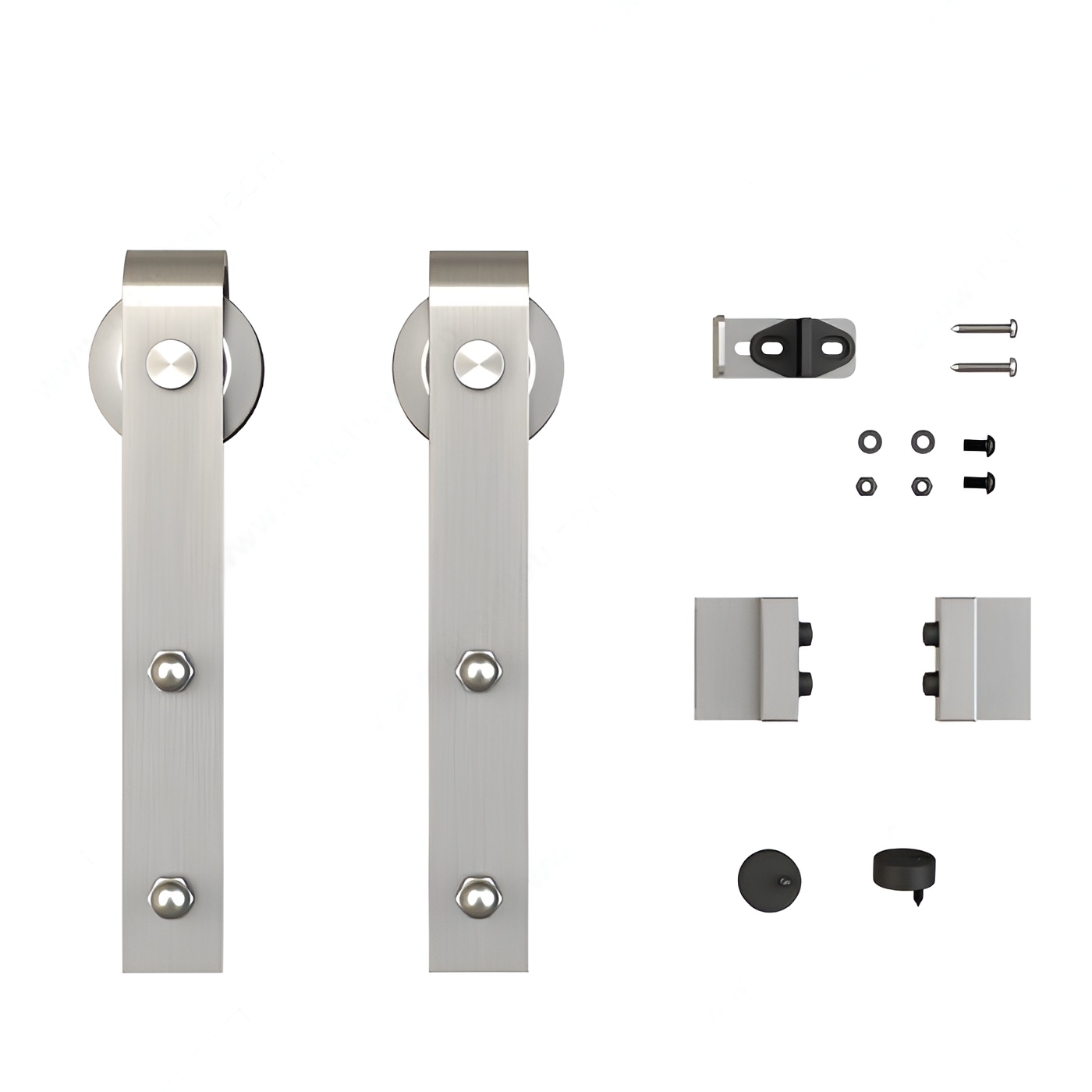

- Strap mount ball bearing wheels with through-bolt fastener
- Built-in anti-derailing device
- Pre-drilled tracks for installation of soft-close mechanism, 176 lb (80 kg) capacity (sold separately)
- Drywall anti-compression discs
- Adjustable wall mount bottom guide

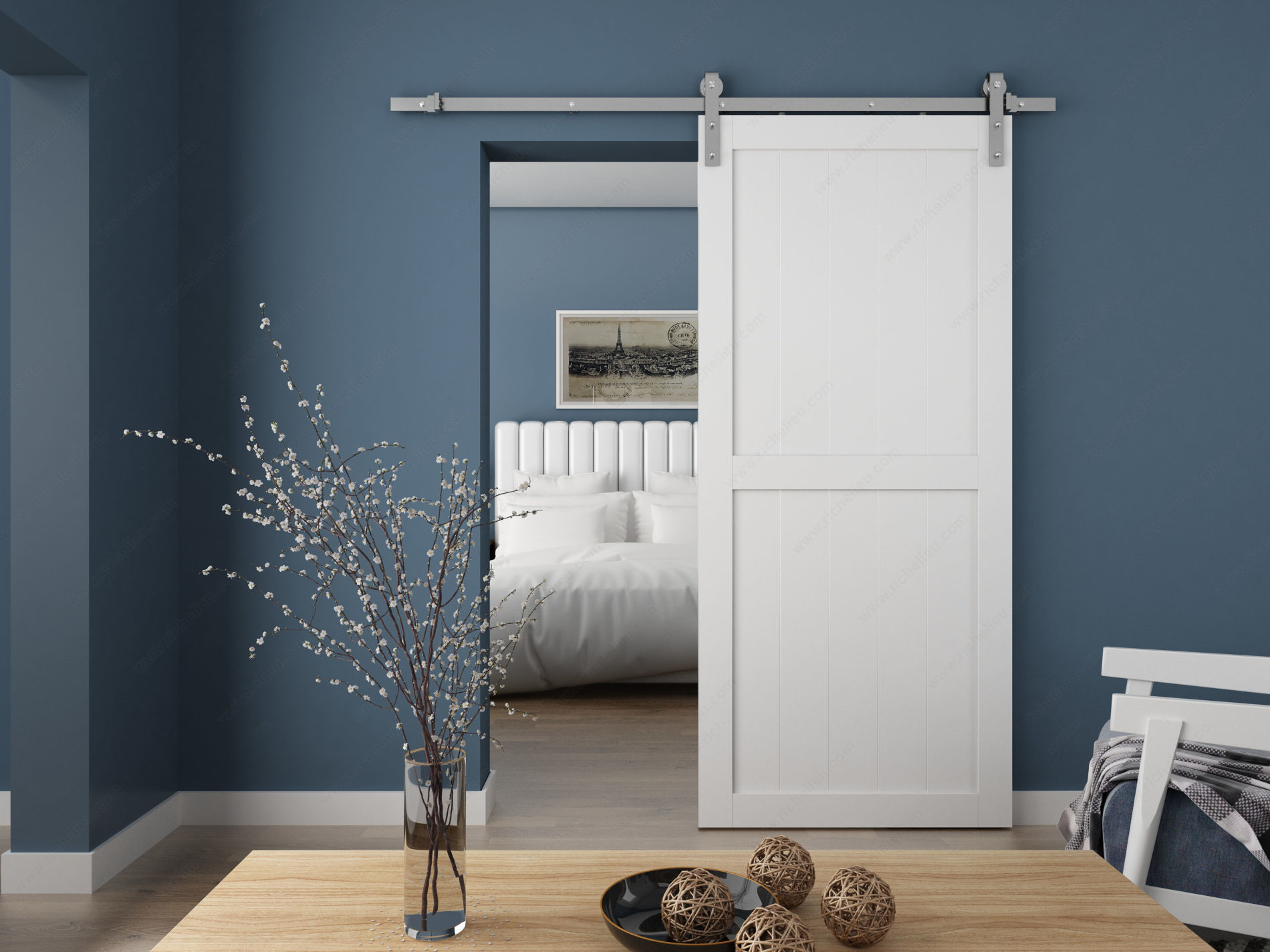

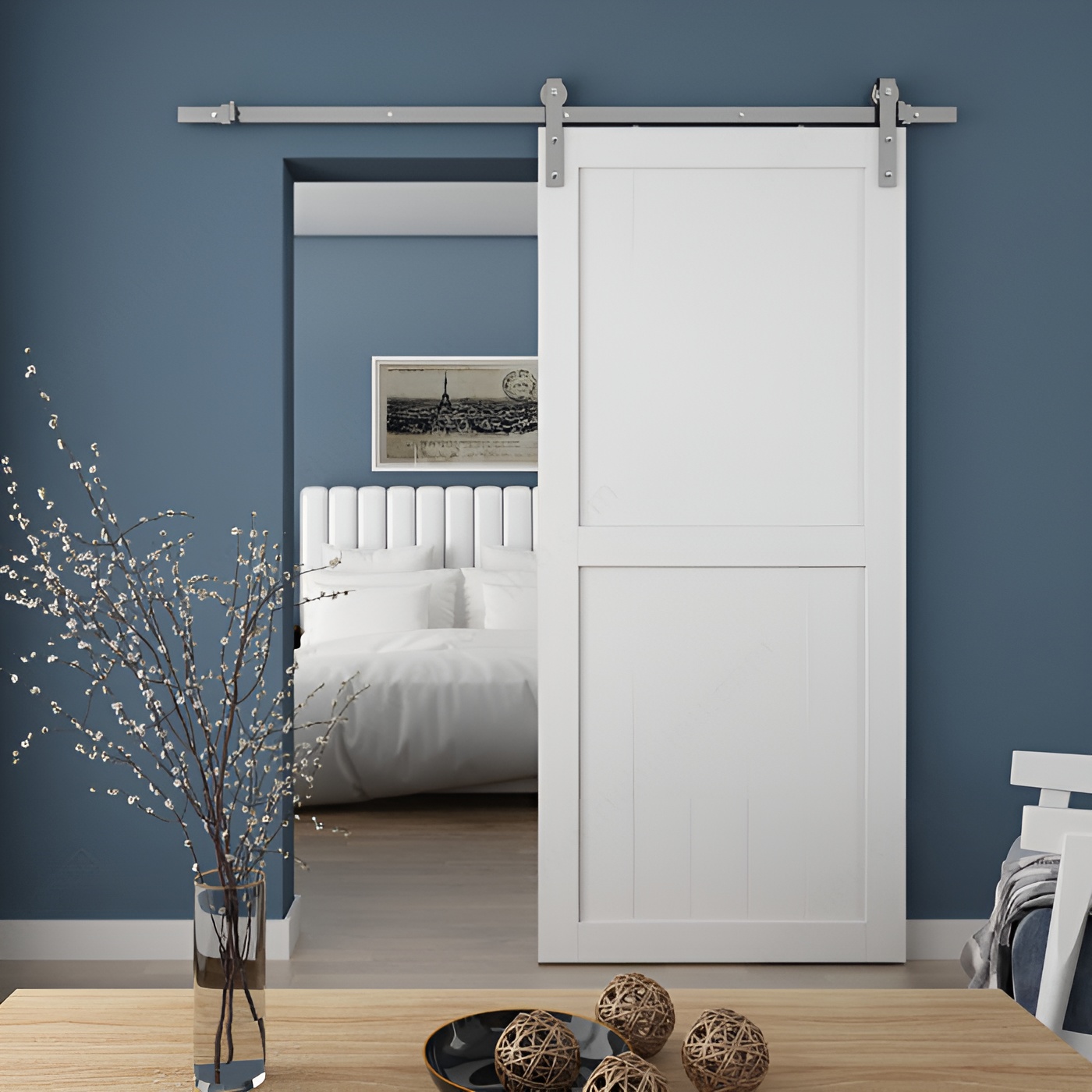

This barn door system is designed for high-use hospitality and commercial applications.
IMPORTANT: The minimum door width is 36 in (914 mm) when using a soft-close mechanism, and the maximum door weight is 176 lb (80 kg).
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door, Barn Door
Brand: Richelieu
Detailed Door Movement: Single Sliding
Displayed in These Showrooms: Toronto
Door Height: 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 35 to 45 mm
Door Width: 608 to 1 270 mm
Finish: Stainless Steel (170)
Length - Overall Dimensions: 9 ft 10 in*
Load Capacity: Max. 220 lb*
Number of Doors: 1
Overall Length: 3 m
Product #: WEBKIT1216648
Product number: WEBKIT1216648
Product №: WEBKIT1216648
Roller Position: Upper
Roller Type: Ball Bearing, Axle (Bushing)
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Style: Contemporary
Track Length: 3 m
Track Mounting: Wall Mount
Weight Capacity per Door: Max. 100 kg
