Richelieu WEBKIT1216650 Pro Series Robust Strap Mount Sliding SystemRichelieu WEBKIT1216650 Pro Series Robuste Strap Mount Sliding System offers a robust solution for wood doors weighing up to 220 lb (100 kg), making it ideal for high-use hospitality and commercial environments. This professional-grade sliding system features a durable steel flat bar track set, equipped with direct mount wall fasteners and standoffs for easy installation. The strap mount ball bearing wheels ensure smooth operation, while the built-in anti-derailing device adds an extra layer of safety. Pre-drilled tracks accommodate a soft-close mechanism with a capacity of 176 lb (80 kg), which can be purchased separately for enhanced functionality. The system also includes drywall anti-compression discs and an adjustable wall mount bottom guide for added convenience. Designed for a single sliding door movement, the Pro Series Robuste System supports door dimensions ranging from 23 7/8 to 50 inches in width and 1 3/8 to 1 25/32 inches in thickness. Finished in a stylish matte black, this rustic-style system complements any décor. For optimal performance, the minimum door width is 36 inches when using a soft-close mechanism, and the overall length of the track is 98 3/8 inches. Experience seamless functionality with Richelieu's Pro Series Robuste System, where quality meets versatility.
Pro Series Robuste Strap Mount Sliding System
The professional grade Pro Series Robuste System is made for wood doors up to 220 lb (100 kg).

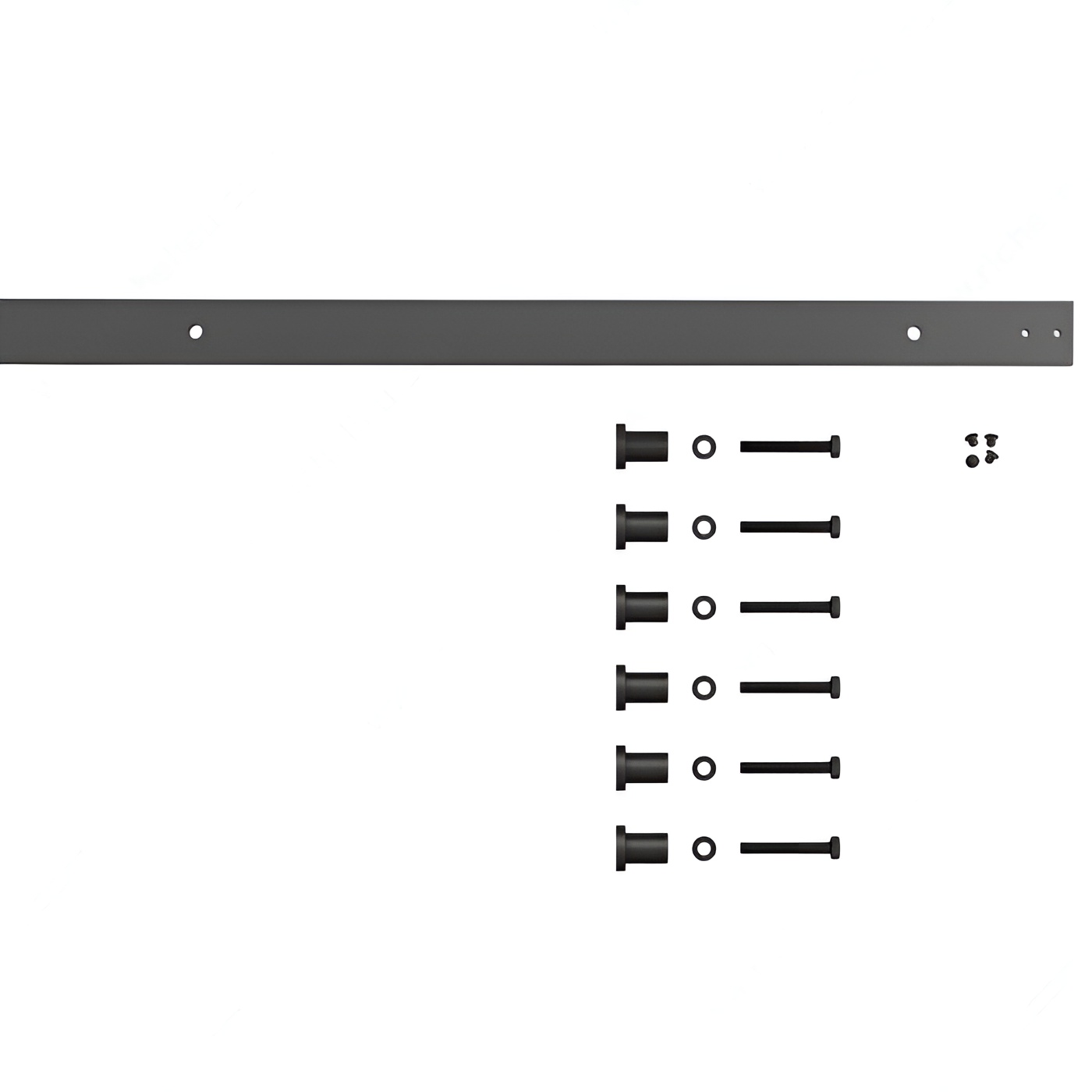

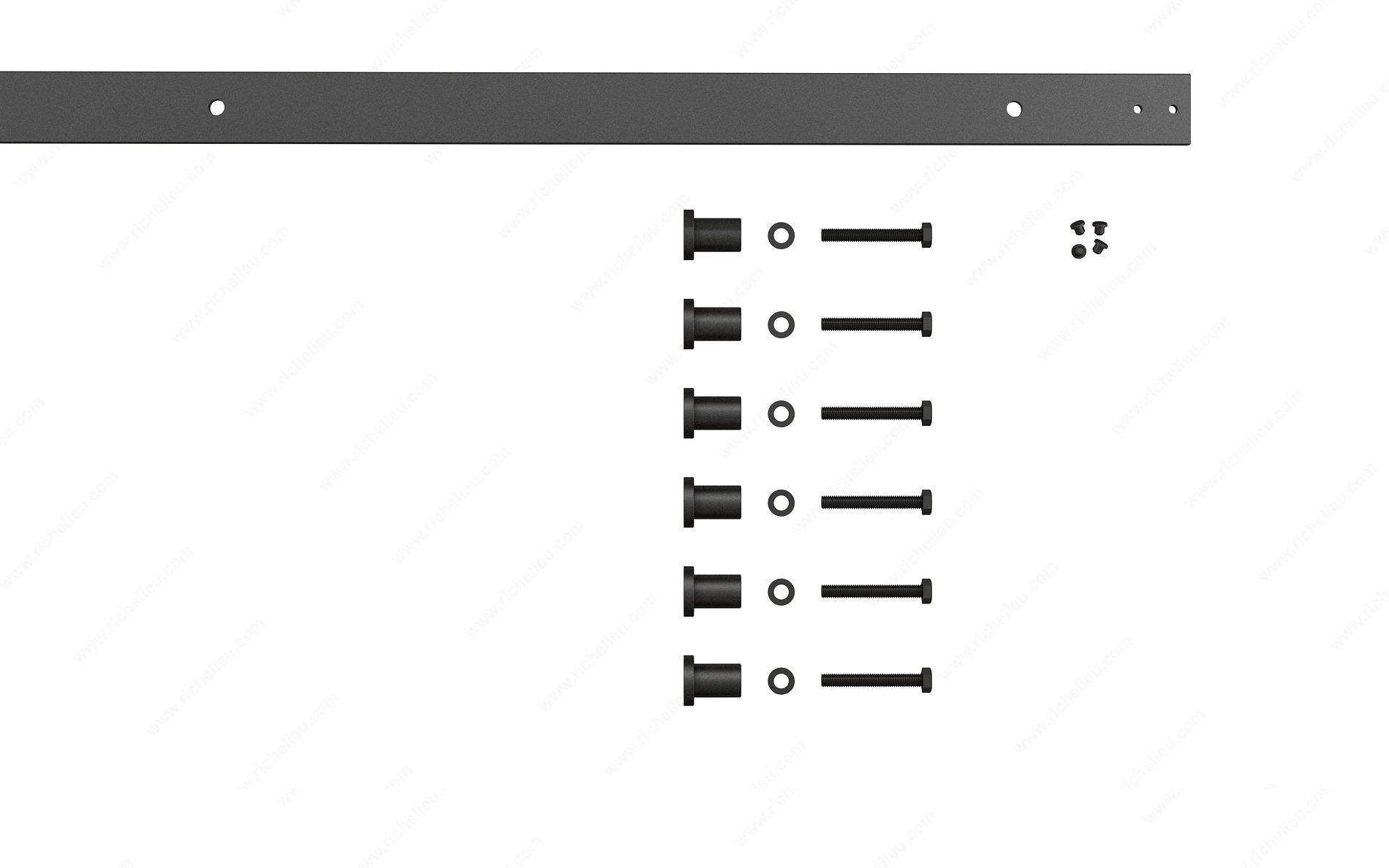

- Steel flat bar track set with direct mount wall fasteners and standoffs

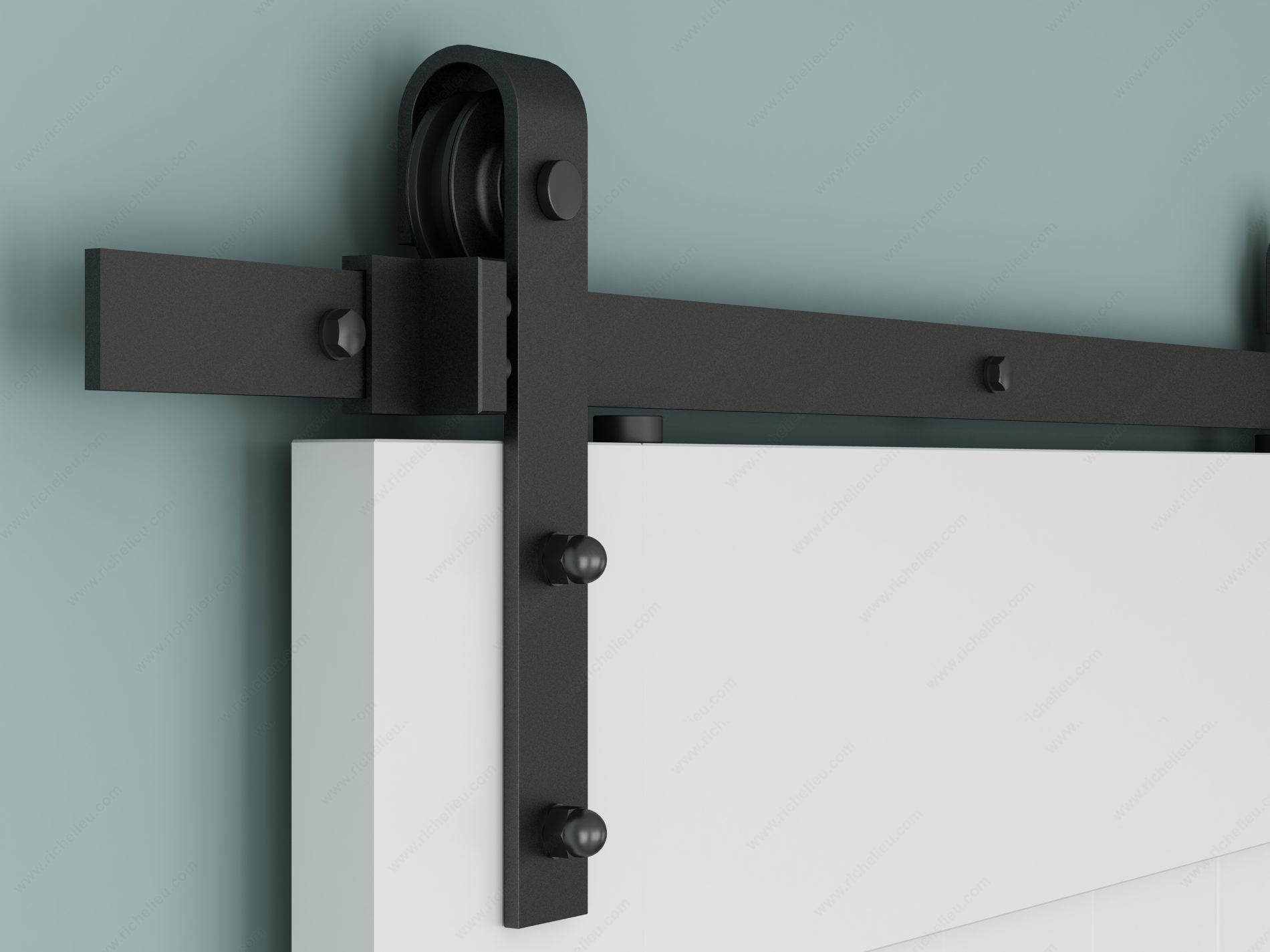

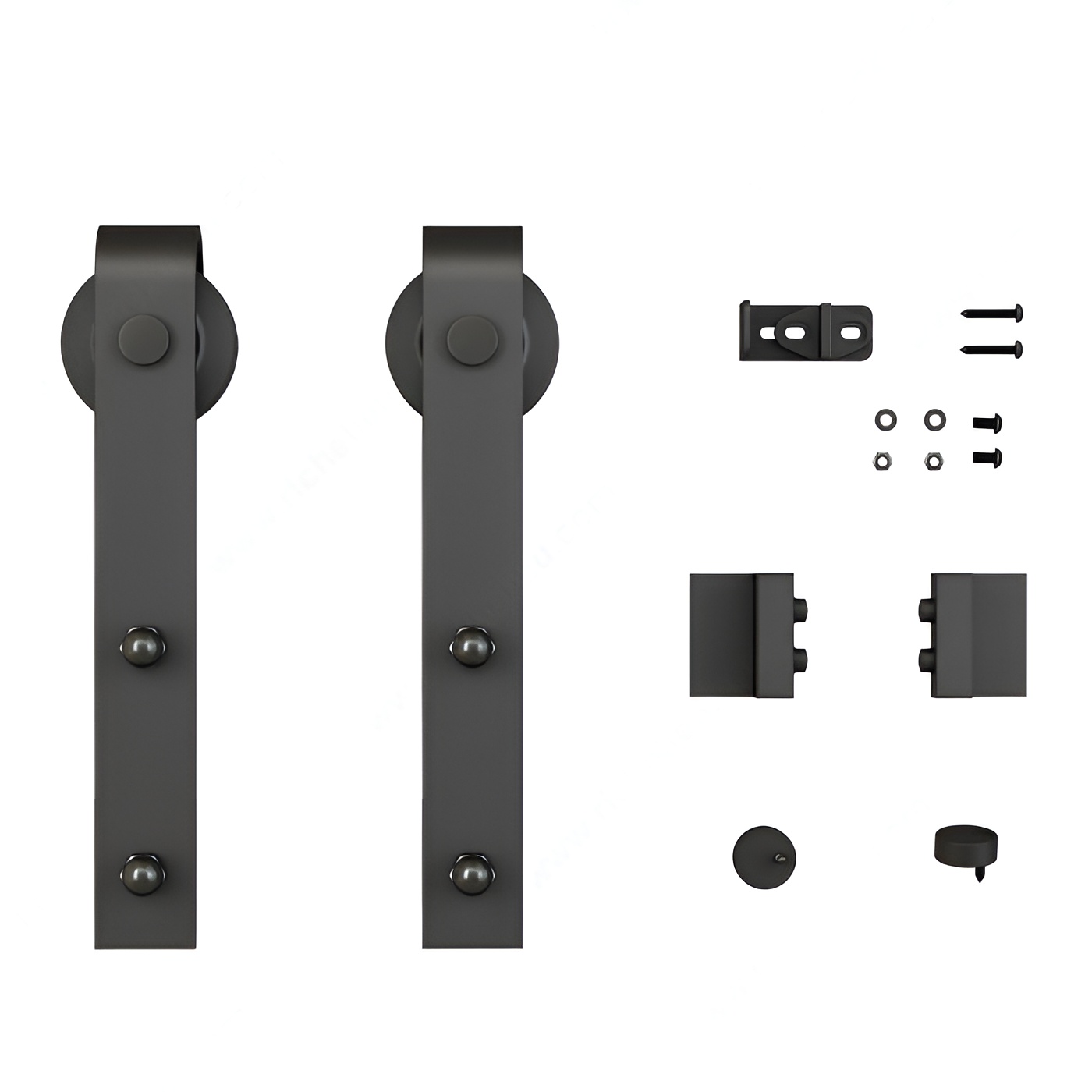

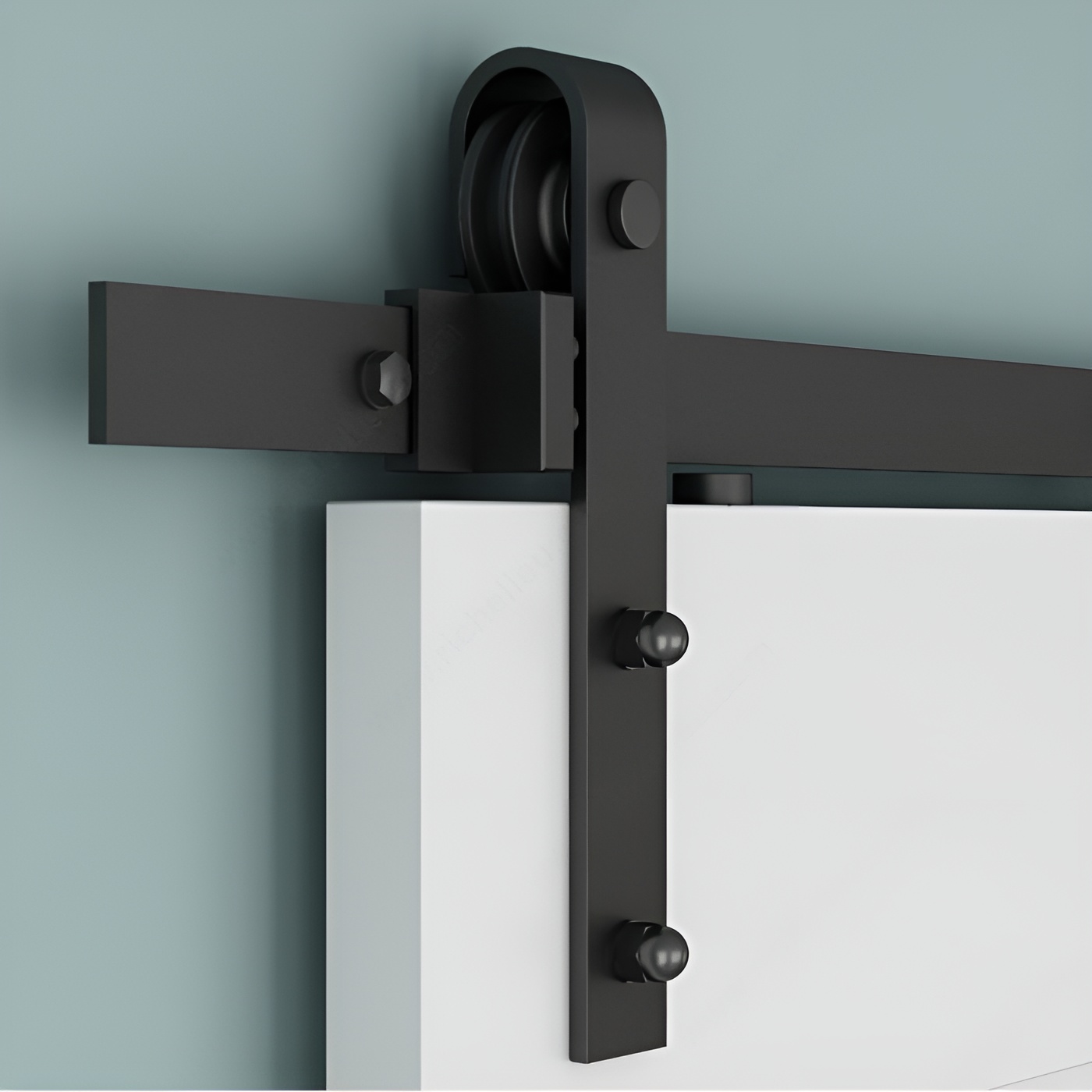

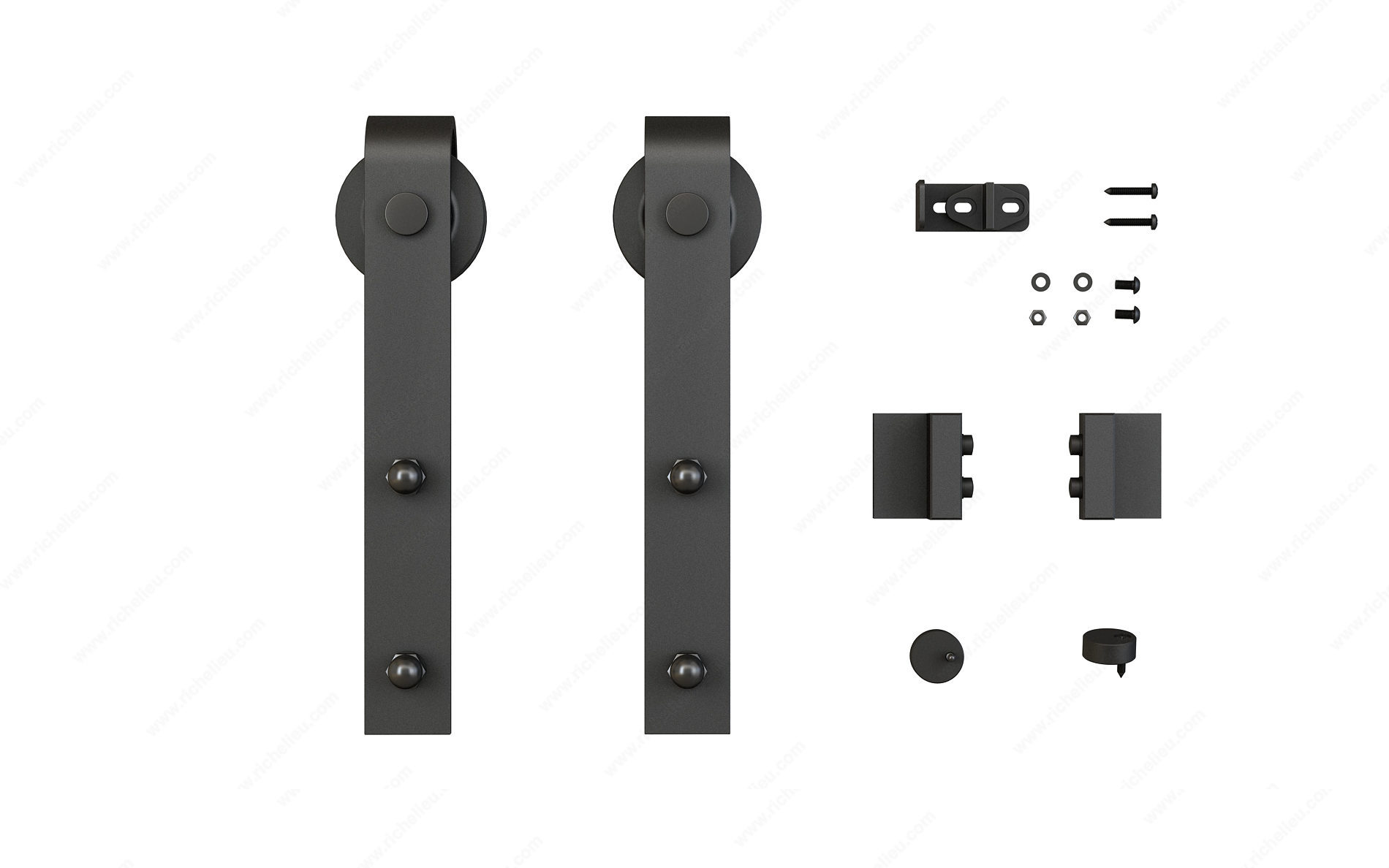

- Strap mount ball bearing wheels with through-bolt fastener
- Built-in anti-derailing device
- Pre-drilled tracks for installation of soft-close mechanism, 176 lb (80 kg) capacity (sold separately)
- Drywall anti-compression discs
- Adjustable wall mount bottom guide
This barn door system is designed for high-use hospitality and commercial applications.
IMPORTANT: The minimum door width is 36 in (914 mm) when using a soft-close mechanism, and the maximum door weight is 176 lb (80 kg).
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door, Barn Door
Brand: Richelieu
Detailed Door Movement: Single Sliding
Displayed in These Showrooms: Toronto
Door Height: 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 35 to 45 mm
Door Width: 608 to 1 270 mm
Finish: Matte Black
Length - Overall Dimensions: 98 3/8 in*
Load Capacity: Max. 220 lb*
Number of Doors: 1
Overall Length: 2.5 m
Product #: WEBKIT1216650
Product number: WEBKIT1216650
Product №: WEBKIT1216650
Roller Position: Upper
Roller Type: Ball Bearing, Axle (Bushing)
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Style: Rustic
Track Length: 2.5 m
Track Mounting: Wall Mount
Weight Capacity per Door: Max. 100 kg
