Richelieu WEBKIT1216653 Pro Series Robust Strap Mount Sliding SystemRichelieu WEBKIT1216653 Pro Series Robuste Strap Mount Sliding System offers a robust solution for sliding wood doors, accommodating weights up to 220 lb (100 kg). Crafted for high-use hospitality and commercial applications, this system features a steel flat bar track set, complete with direct mount wall fasteners and standoffs, ensuring a secure and durable installation. The strap mount ball bearing wheels, equipped with through-bolt fasteners, provide smooth operation, while the built-in anti-derailing device enhances safety during use. Designed for versatility, the pre-drilled tracks allow for the integration of a soft-close mechanism, supporting doors weighing up to 176 lb (80 kg) when used. Drywall anti-compression discs and an adjustable wall mount bottom guide further contribute to its functionality. This system is tailored for standard access and barn doors, requiring a minimum door width of 36 inches when a soft-close mechanism is installed. With a door height capacity of up to 9 ft 10 in and a thickness between 1 3/8 to 1 25/32 inches, it fits a variety of designs. Finished in bronze, the rustic style of the Pro Series Robuste system is both functional and visually appealing, making it an excellent choice for discerning builders and homeowners alike.

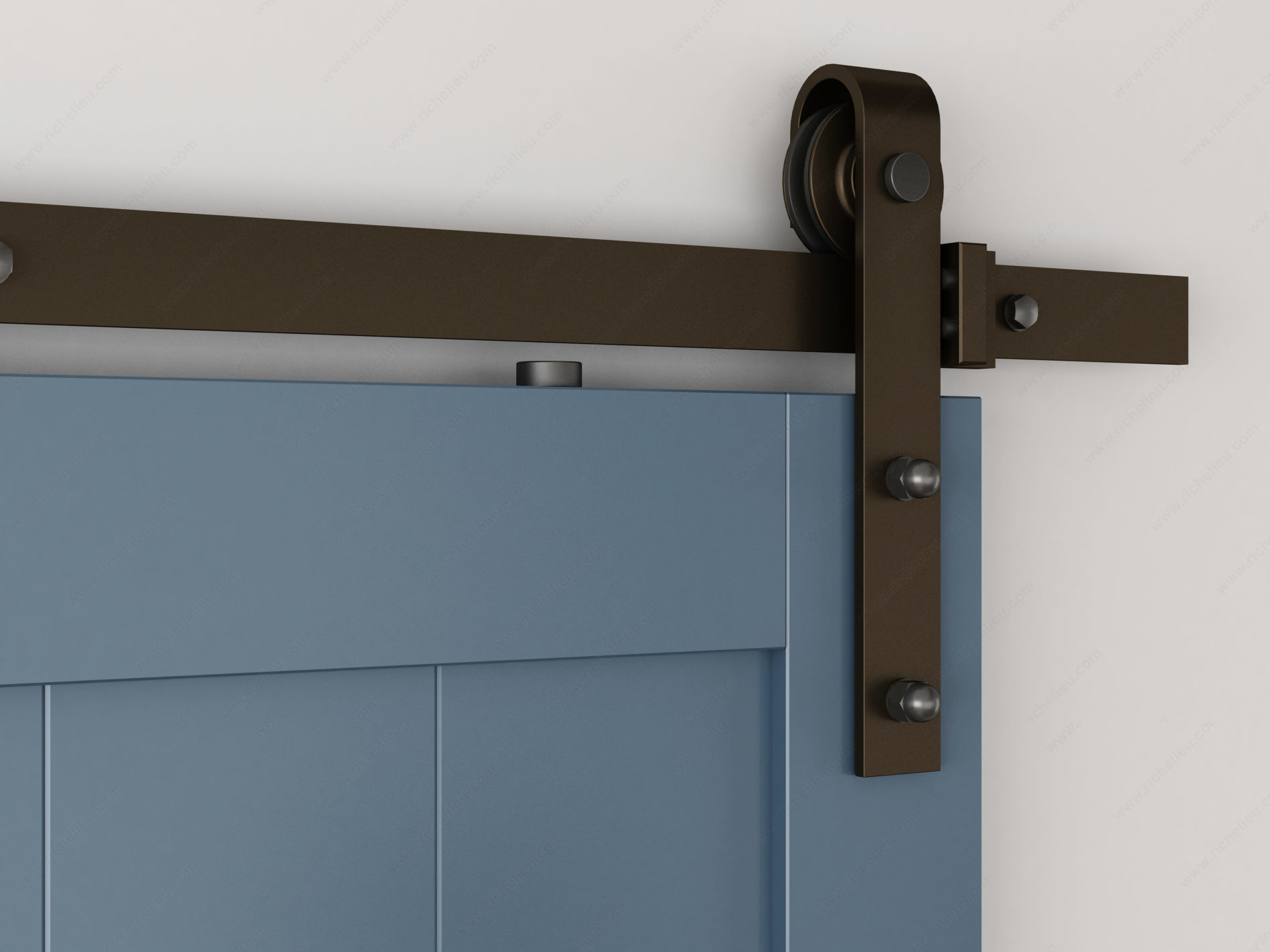

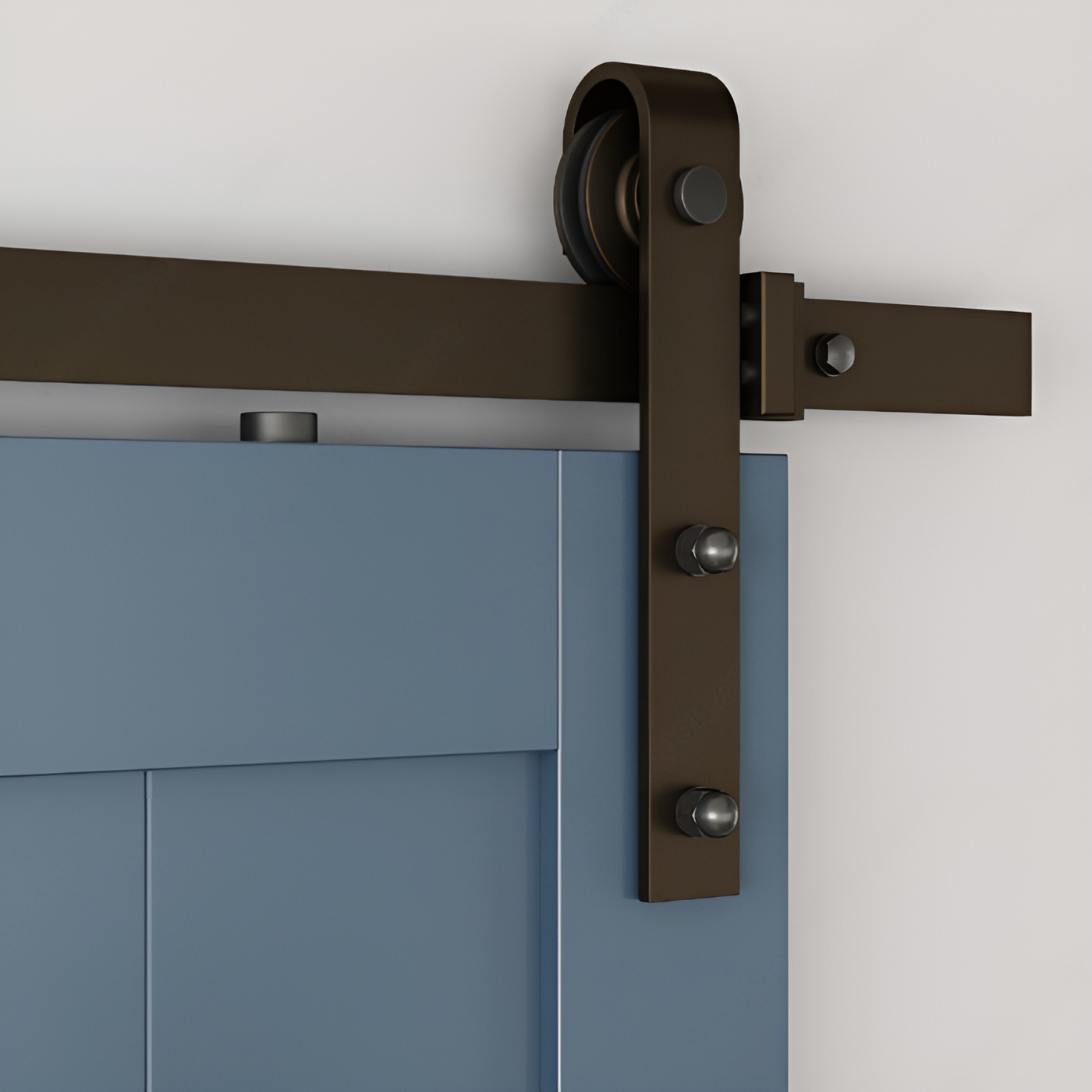

Pro Series Robuste Strap Mount Sliding System
The professional grade Pro Series Robuste System is made for wood doors up to 220 lb (100 kg).

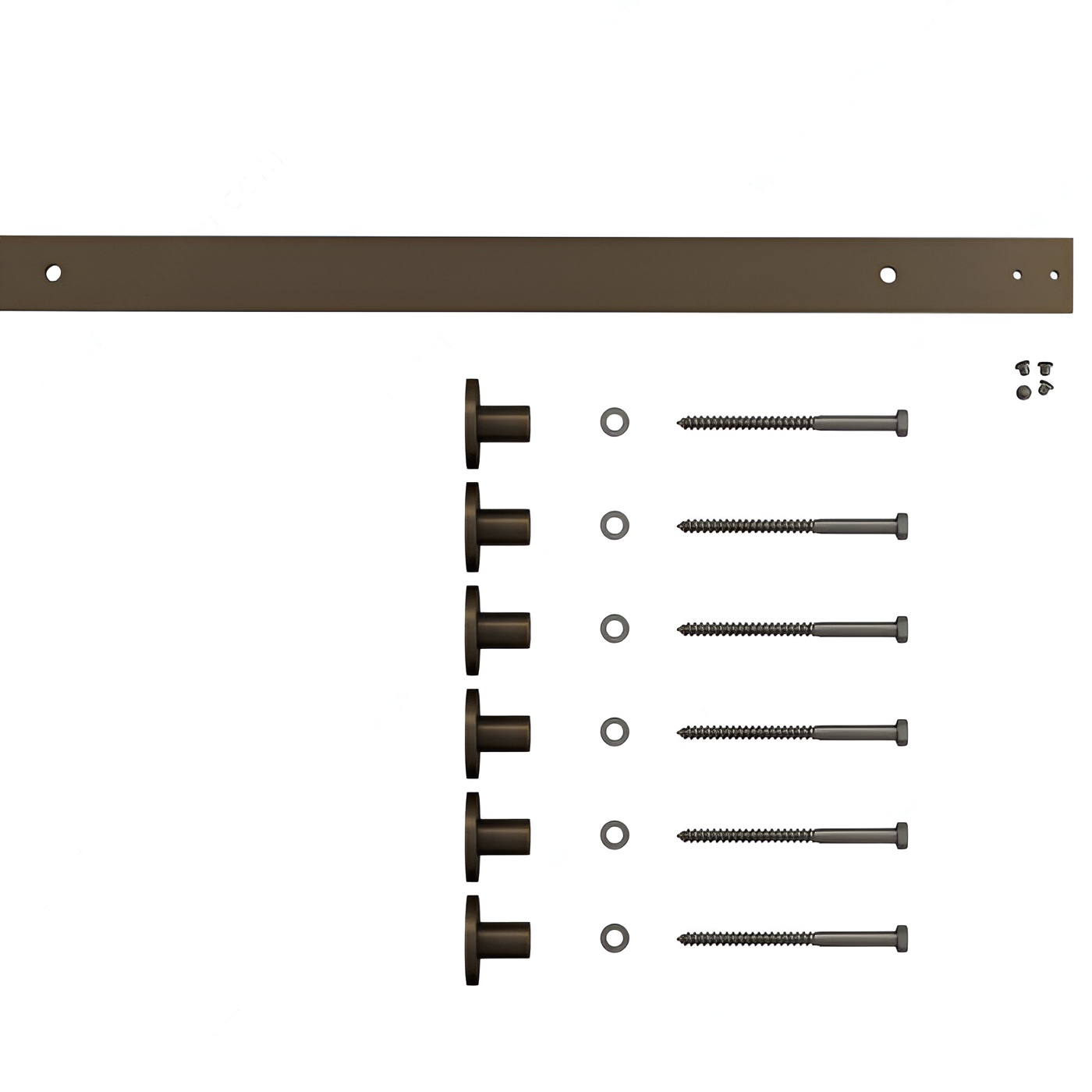

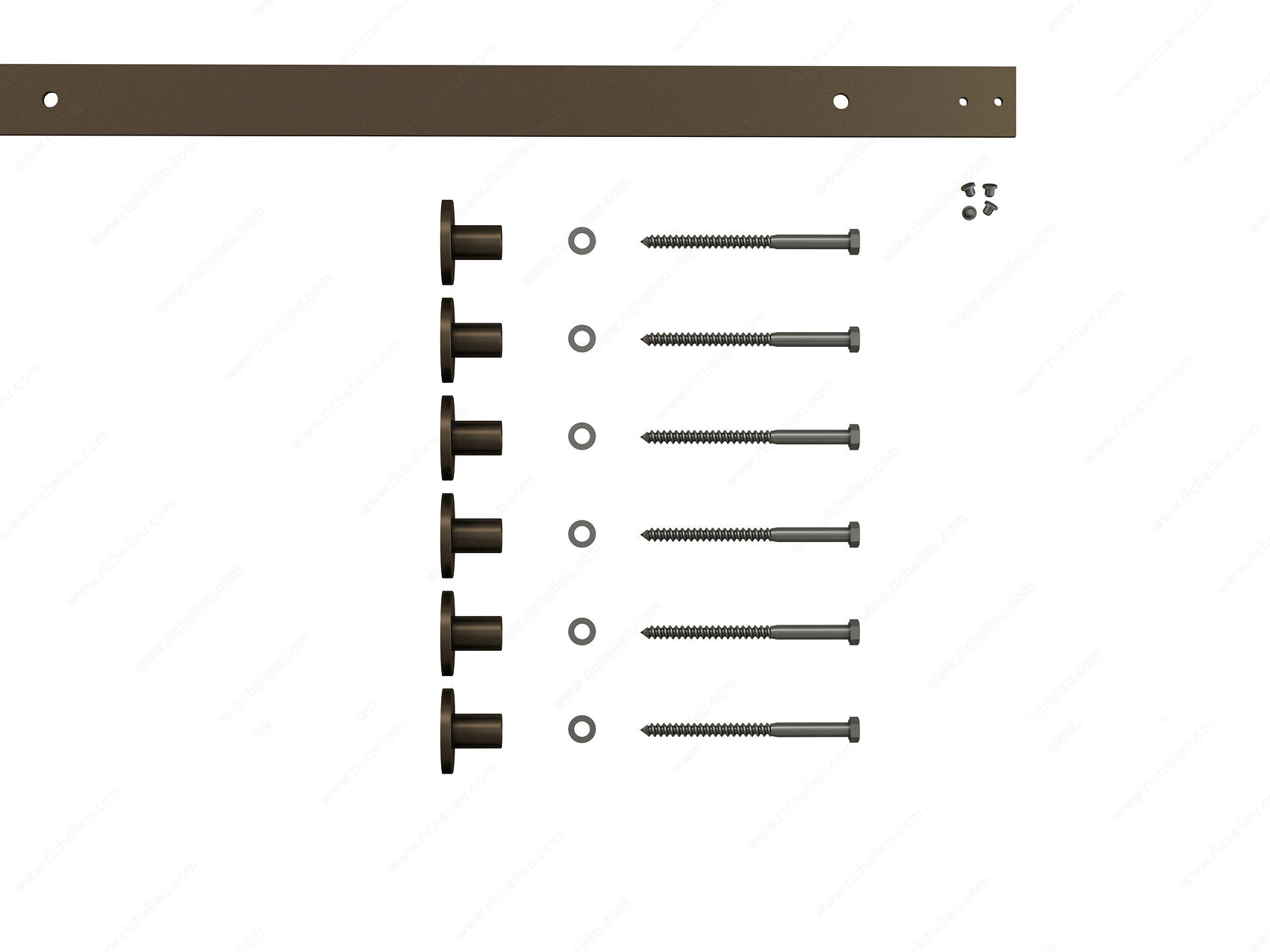

- Steel flat bar track set with direct mount wall fasteners and standoffs

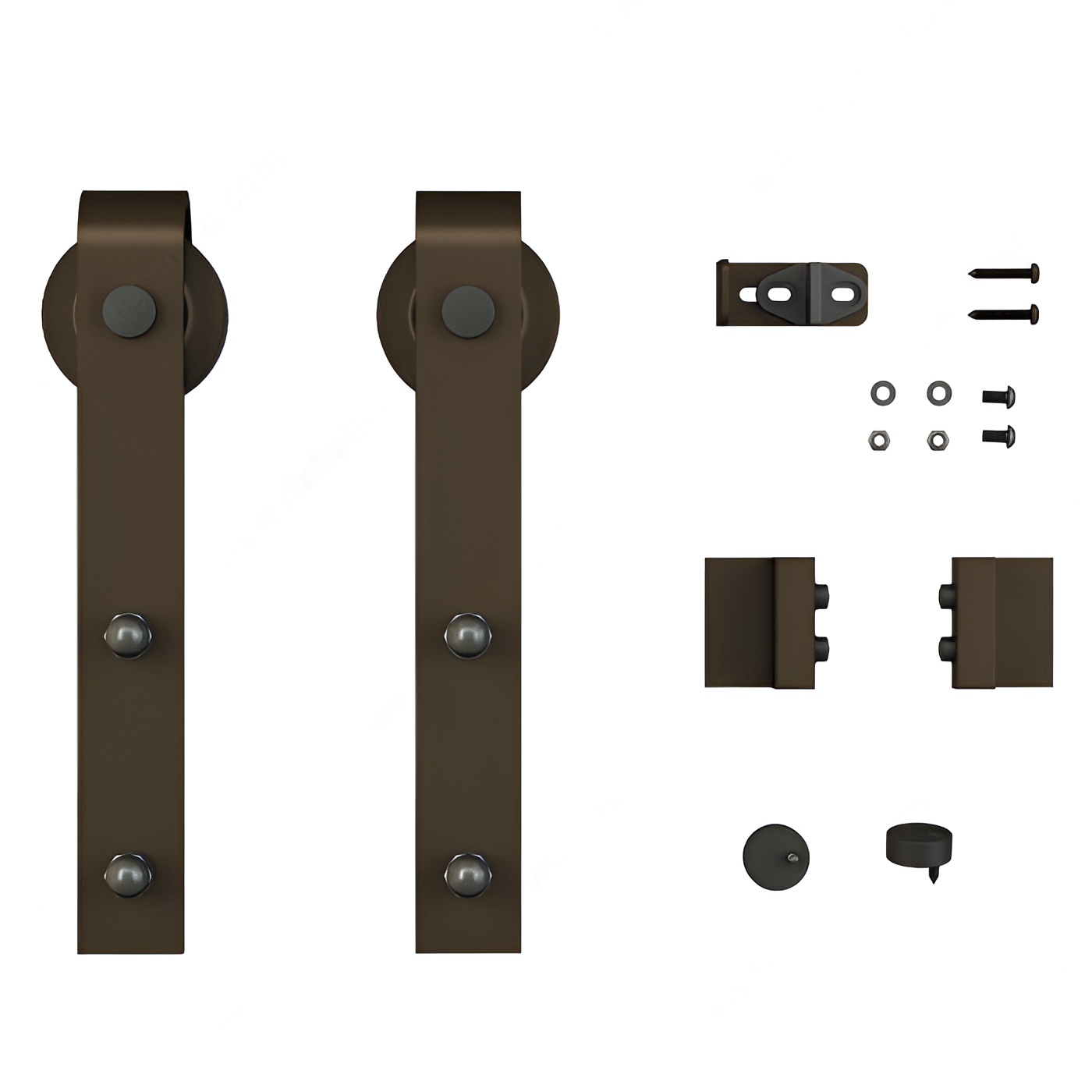

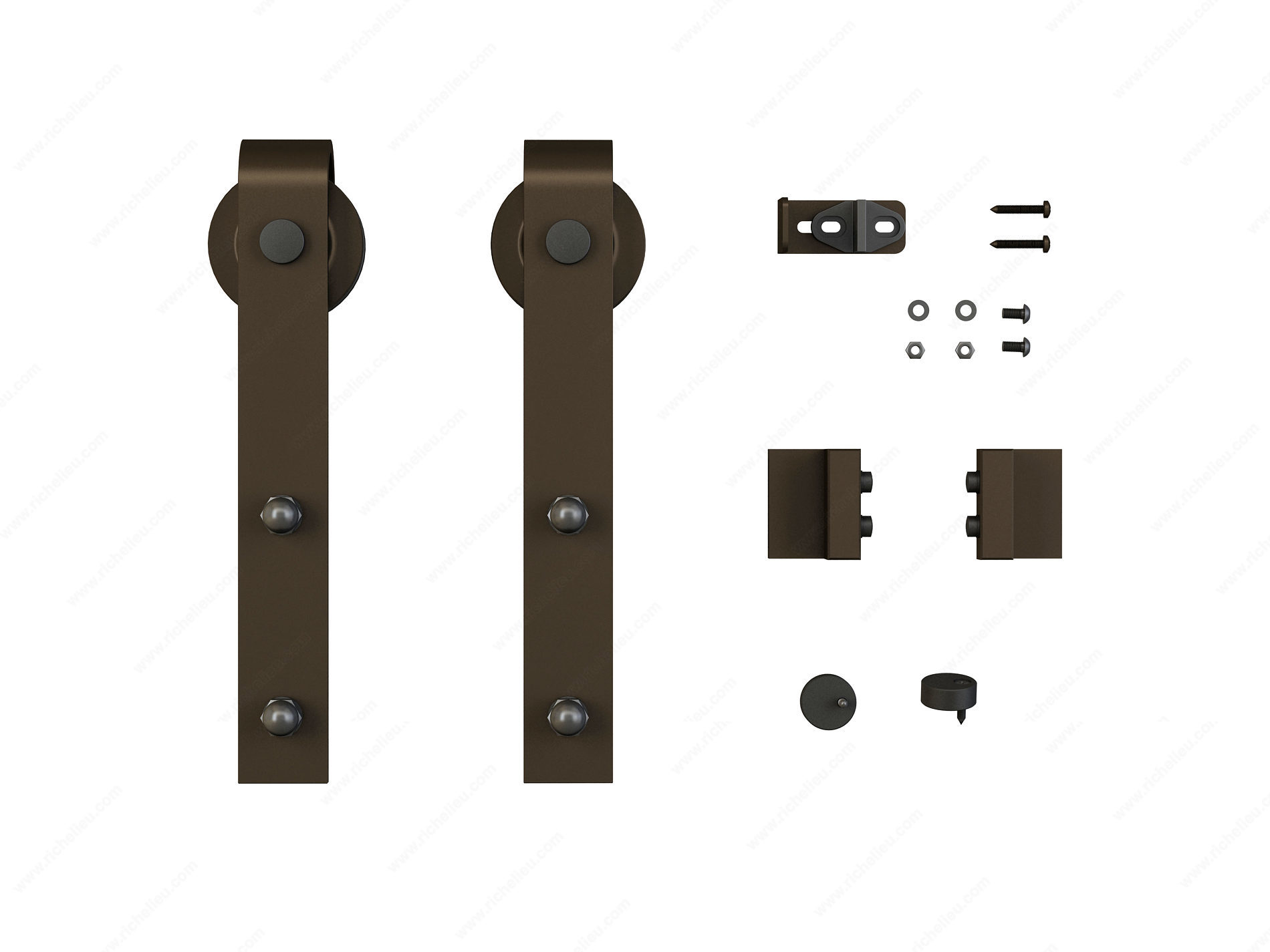

- Strap mount ball bearing wheels with through-bolt fastener
- Built-in anti-derailing device
- Pre-drilled tracks for installation of soft-close mechanism, 176 lb (80 kg) capacity (sold separately)
- Drywall anti-compression discs
- Adjustable wall mount bottom guide
This barn door system is designed for high-use hospitality and commercial applications.
IMPORTANT: The minimum door width is 36 in (914 mm) when using a soft-close mechanism, and the maximum door weight is 176 lb (80 kg).
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door, Barn Door
Brand: Richelieu
Detailed Door Movement: Single Sliding
Displayed in These Showrooms: Toronto
Door Height: 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 35 to 45 mm
Door Width: 608 to 1 270 mm
Finish: Bronze
Length - Overall Dimensions: 98 3/8 in*
Load Capacity: Max. 220 lb*
Number of Doors: 1
Overall Length: 2.5 m
Product #: WEBKIT1216653
Product number: WEBKIT1216653
Product №: WEBKIT1216653
Roller Position: Upper
Roller Type: Ball Bearing, Axle (Bushing)
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Style: Rustic
Track Length: 2.5 m
Track Mounting: Wall Mount
Weight Capacity per Door: Max. 100 kg
