Richelieu WEBKIT1216654 Pro Series Robust Strap Mount Sliding SystemRichelieu WEBKIT1216654 Pro Series Robuste Strap Mount Sliding System is engineered for demanding environments, accommodating wood doors weighing up to 220 lb (100 kg). This robust system features a steel flat bar track set that comes with direct mount wall fasteners and standoffs, ensuring a reliable and secure installation. The strap mount ball bearing wheels utilize a through-bolt fastener for enhanced durability, while a built-in anti-derailing device adds an extra layer of safety. Pre-drilled tracks allow for the optional installation of a soft-close mechanism, supporting doors up to 176 lb (80 kg) (sold separately). It also includes drywall anti-compression discs and an adjustable wall mount bottom guide to facilitate smooth operation. Ideal for high-use hospitality and commercial applications, this sliding system is designed for straight sliding movement, accommodating a door height of 9 ft 10 in and thickness between 1 3/8 to 1 25/32 in. The door width ranges from 23 7/8 to 50 in, with a stylish bronze finish that complements rustic aesthetics. Importantly, the minimum door width required when using a soft-close mechanism is 36 in (914 mm). Experience seamless functionality and elegance with Richelieu's Pro Series Robuste System.
Pro Series Robuste Strap Mount Sliding System
The professional grade Pro Series Robuste System is made for wood doors up to 220 lb (100 kg).

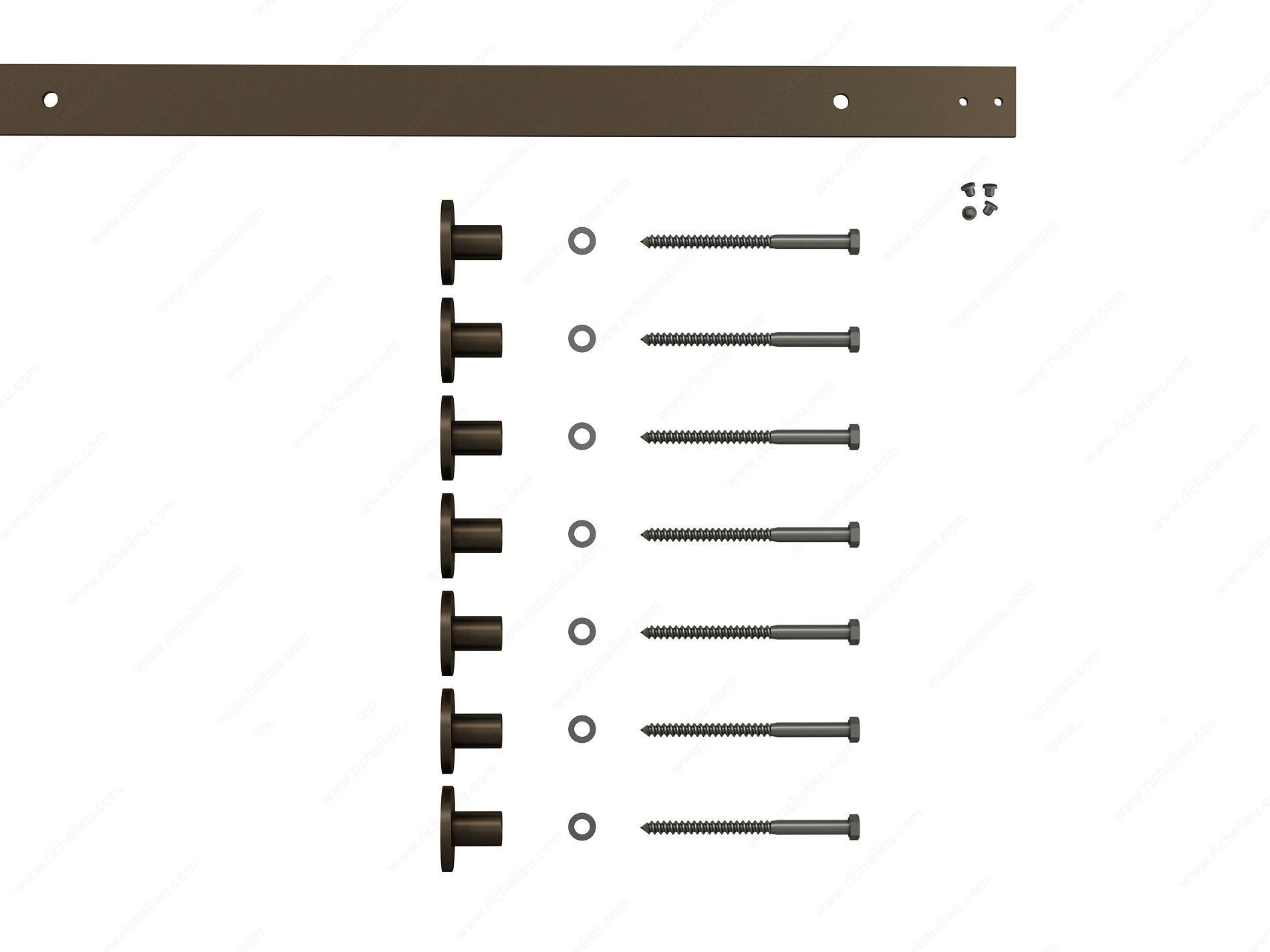

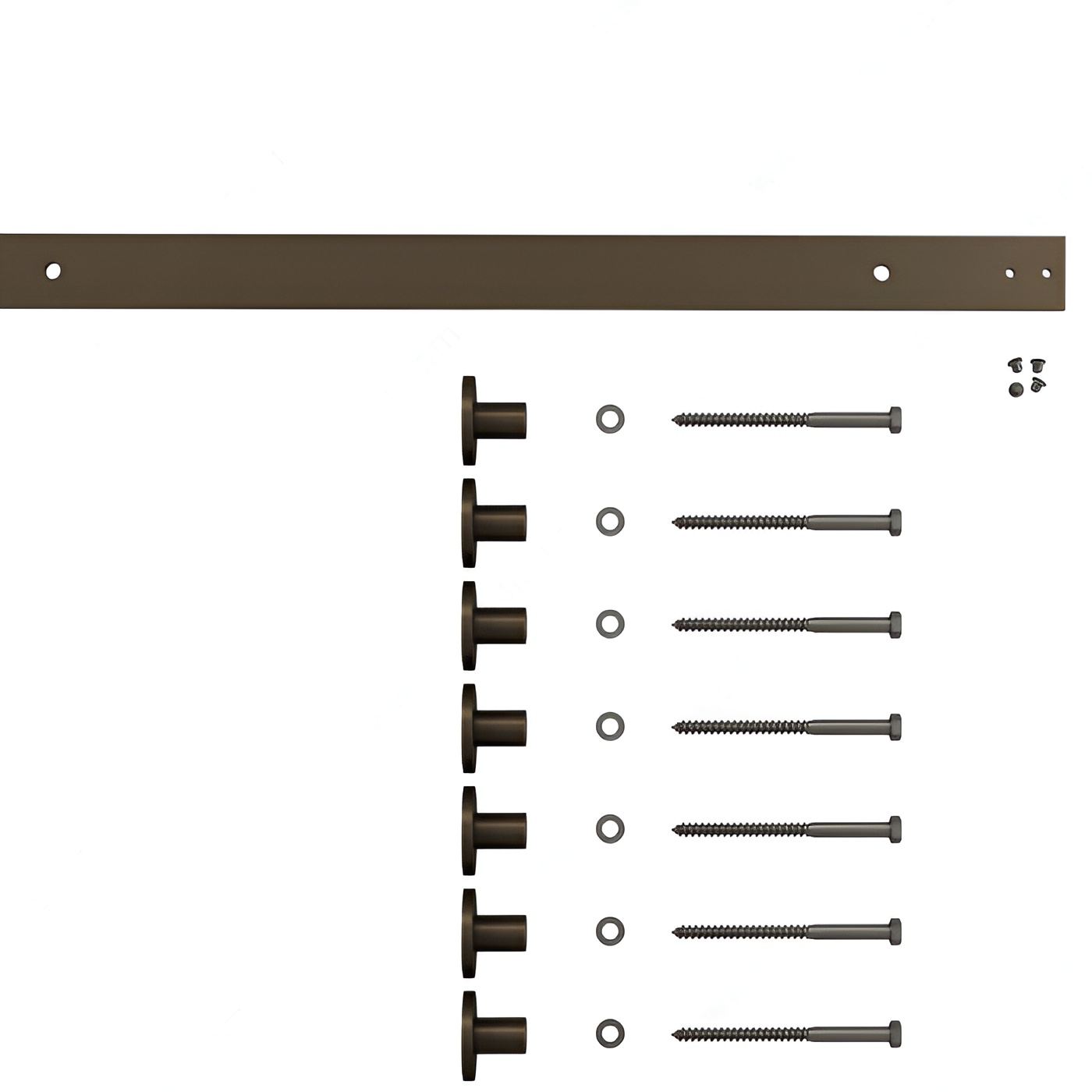

- Steel flat bar track set with direct mount wall fasteners and standoffs

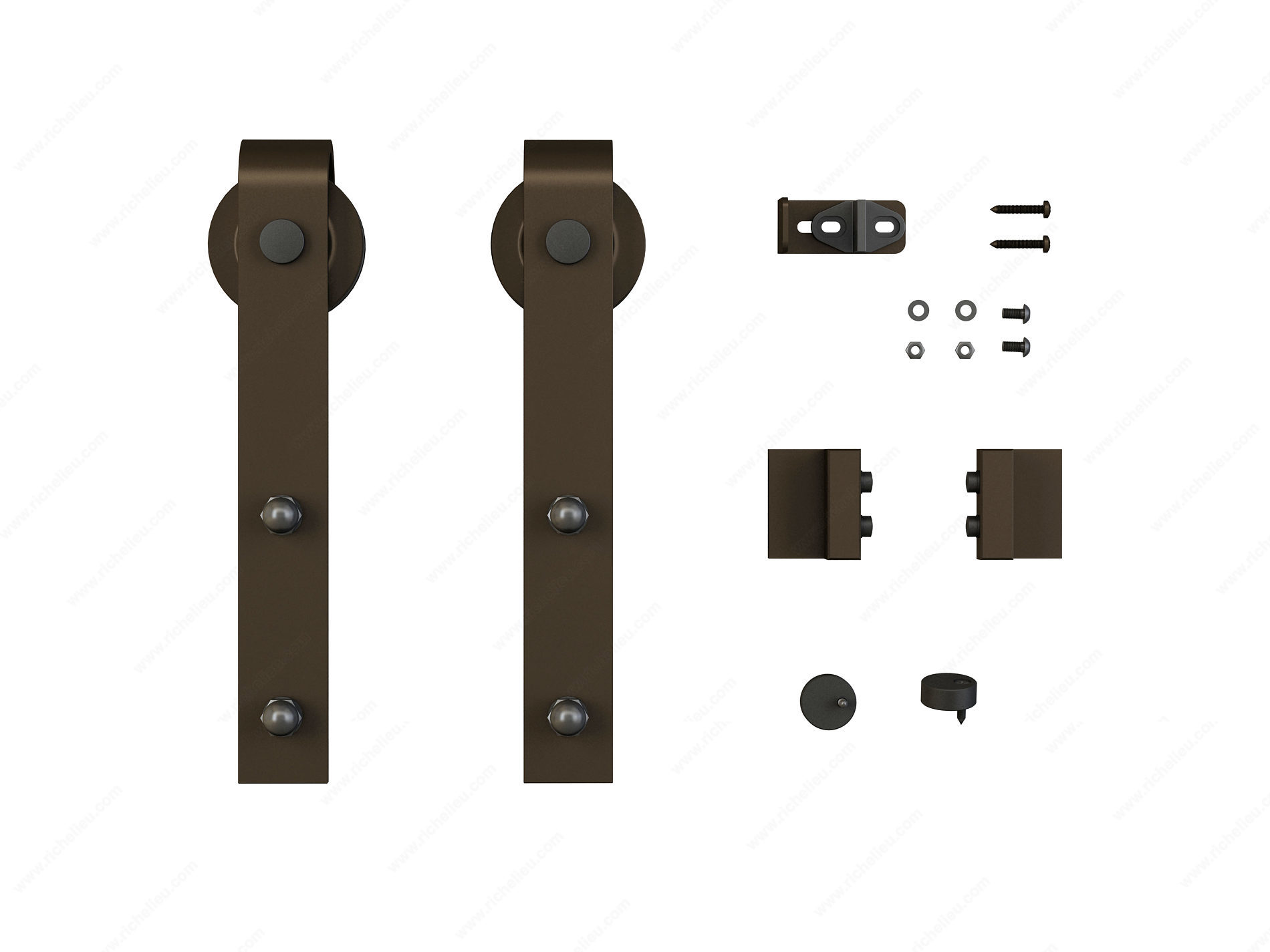

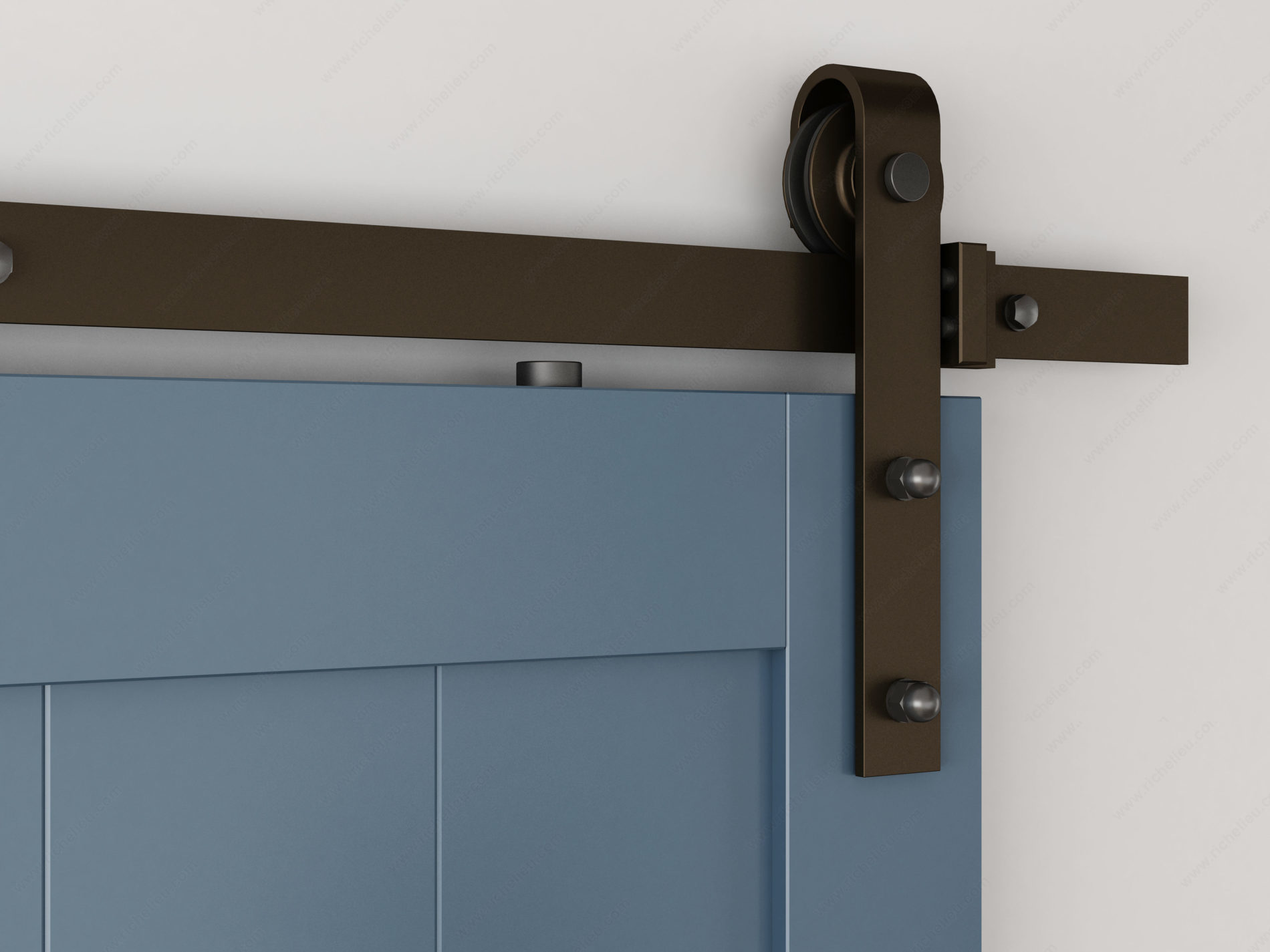

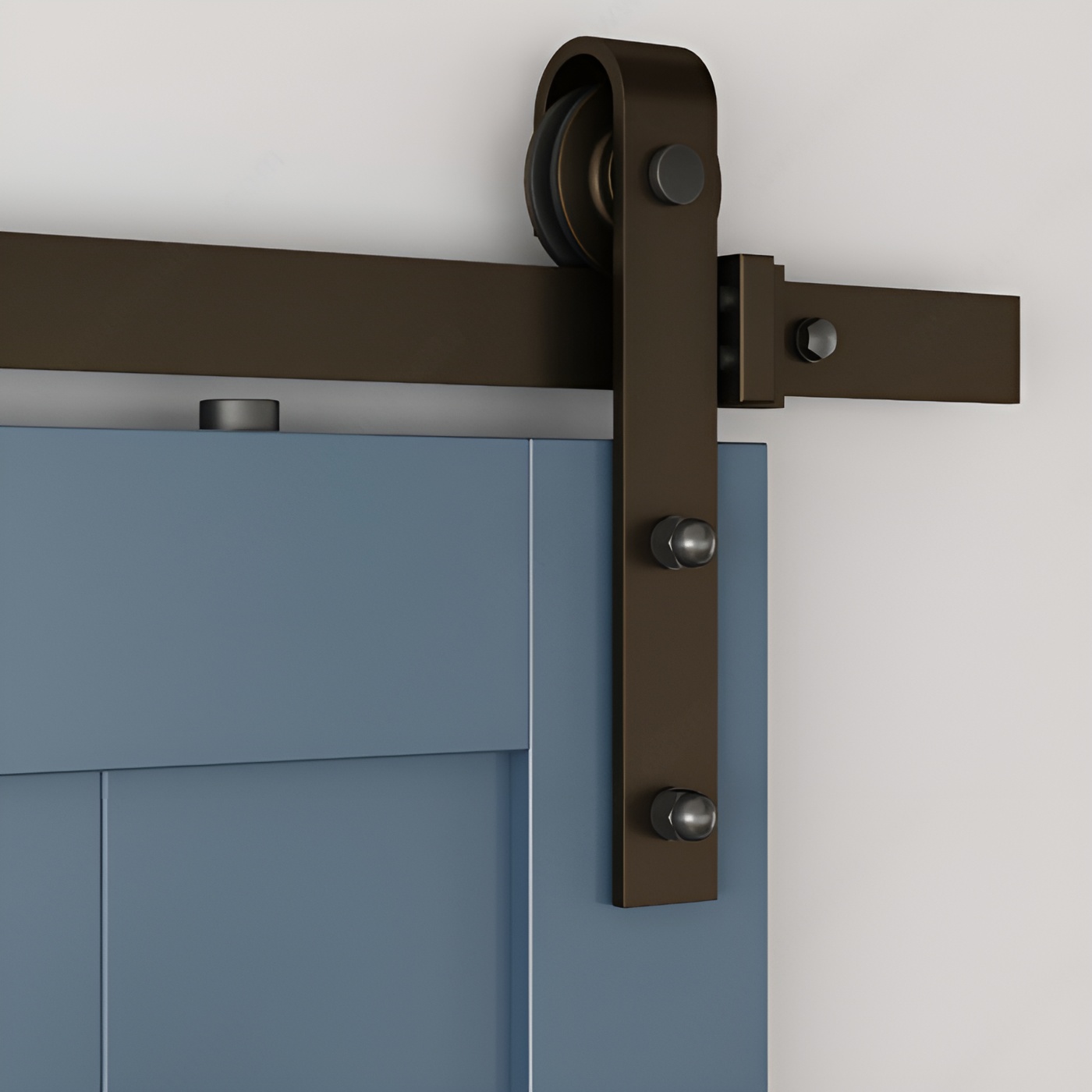

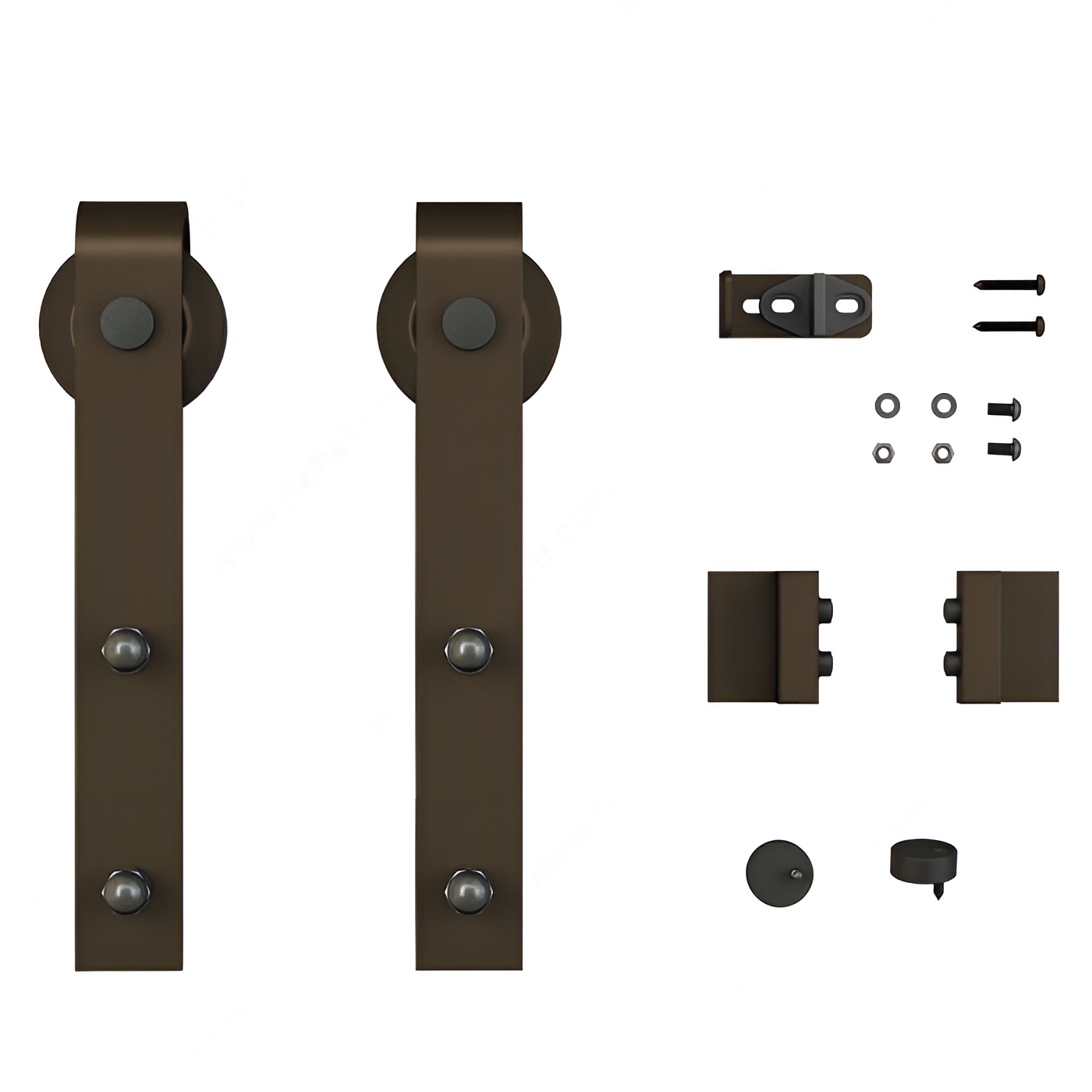

- Strap mount ball bearing wheels with through-bolt fastener
- Built-in anti-derailing device
- Pre-drilled tracks for installation of soft-close mechanism, 176 lb (80 kg) capacity (sold separately)
- Drywall anti-compression discs
- Adjustable wall mount bottom guide
This barn door system is designed for high-use hospitality and commercial applications.
IMPORTANT: The minimum door width is 36 in (914 mm) when using a soft-close mechanism, and the maximum door weight is 176 lb (80 kg).
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door, Barn Door
Brand: Richelieu
Detailed Door Movement: Single Sliding
Displayed in These Showrooms: Toronto
Door Height: 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 35 to 45 mm
Door Width: 608 to 1 270 mm
Finish: Bronze
Length - Overall Dimensions: 9 ft 10 in*
Load Capacity: Max. 220 lb*
Number of Doors: 1
Overall Length: 3 m
Product #: WEBKIT1216654
Product number: WEBKIT1216654
Product №: WEBKIT1216654
Roller Position: Upper
Roller Type: Ball Bearing, Axle (Bushing)
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Style: Rustic
Track Length: 3 m
Track Mounting: Wall Mount
Weight Capacity per Door: Max. 100 kg
