Richelieu 89TSQ04190 Pro Series Robust Strap Mount Hardware SetRichelieu 89TSQ04190 Pro Series Robuste Strap Mount Hardware Set offers a robust solution for your sliding door needs, accommodating wood doors weighing up to 220 lb (100 kg). This hardware set is ideal for diverse applications, including sliding walls, pantry doors, standard access doors, and rustic barn doors. Designed for top-hung installation, it features a matching trolley cover and a 50 mm diameter standoff, ensuring a stylish and functional setup. The longer fastening lag bolts enhance stability, while the wall/floor mount lower guide provides seamless operation. The minimum door width for optimal use is 36 in (914 mm) when incorporating a soft-close mechanism, with a maximum weight capacity of 176 lb (80 kg) when that feature is utilized. Constructed from durable nylon and steel, this hardware set is both reliable and aesthetically pleasing, available in a sophisticated matte black finish. It is designed for a door thickness between 1 3/8 to 1 25/32 in, with a height clearance of 5 11/32 in. The set supports a maximum door width of 70 7/8 in and overall lengths ranging from 78 3/4 to 118 in. Elevate your space with this exceptional sliding door hardware set from Richelieu, blending functionality with rustic charm.

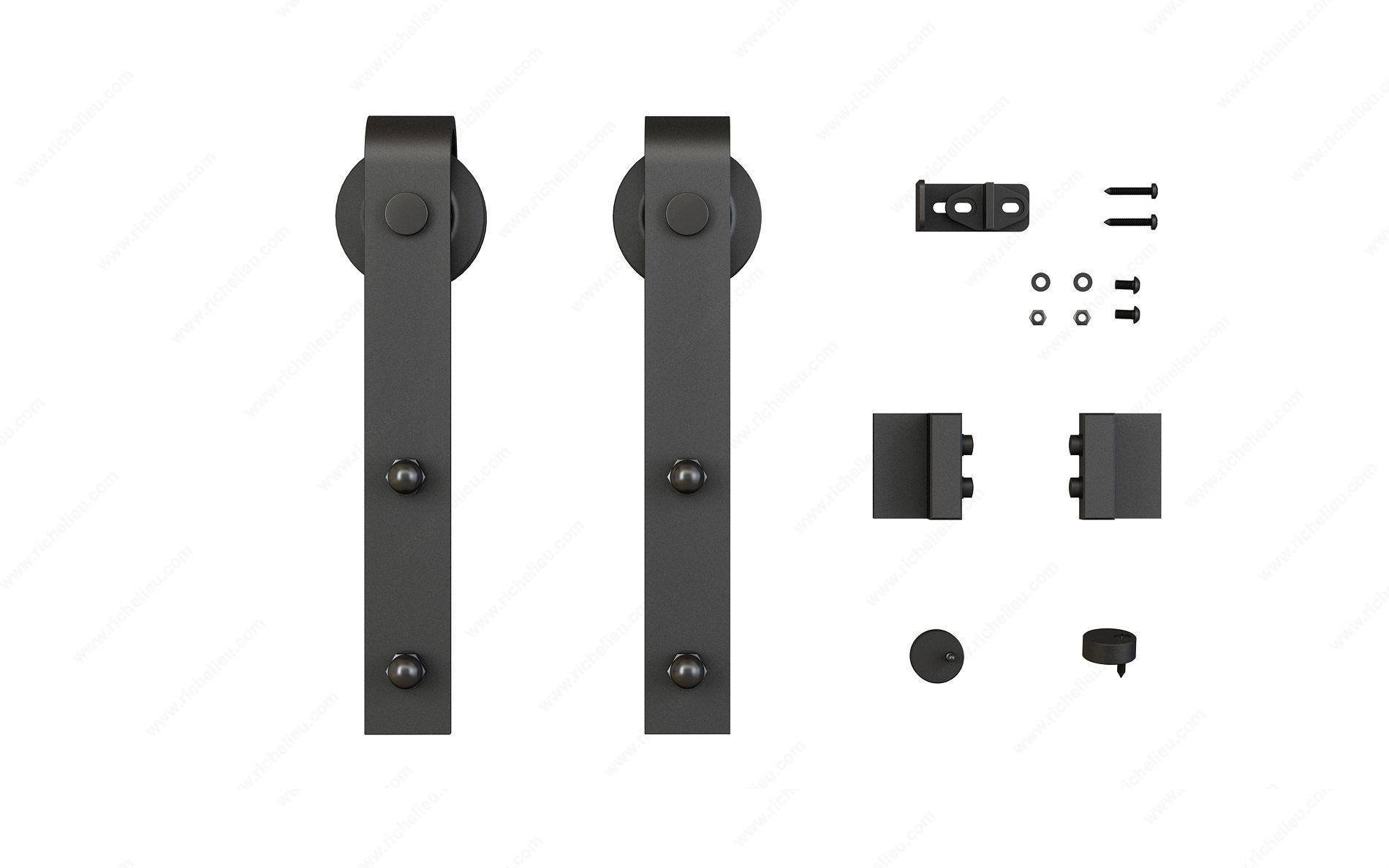

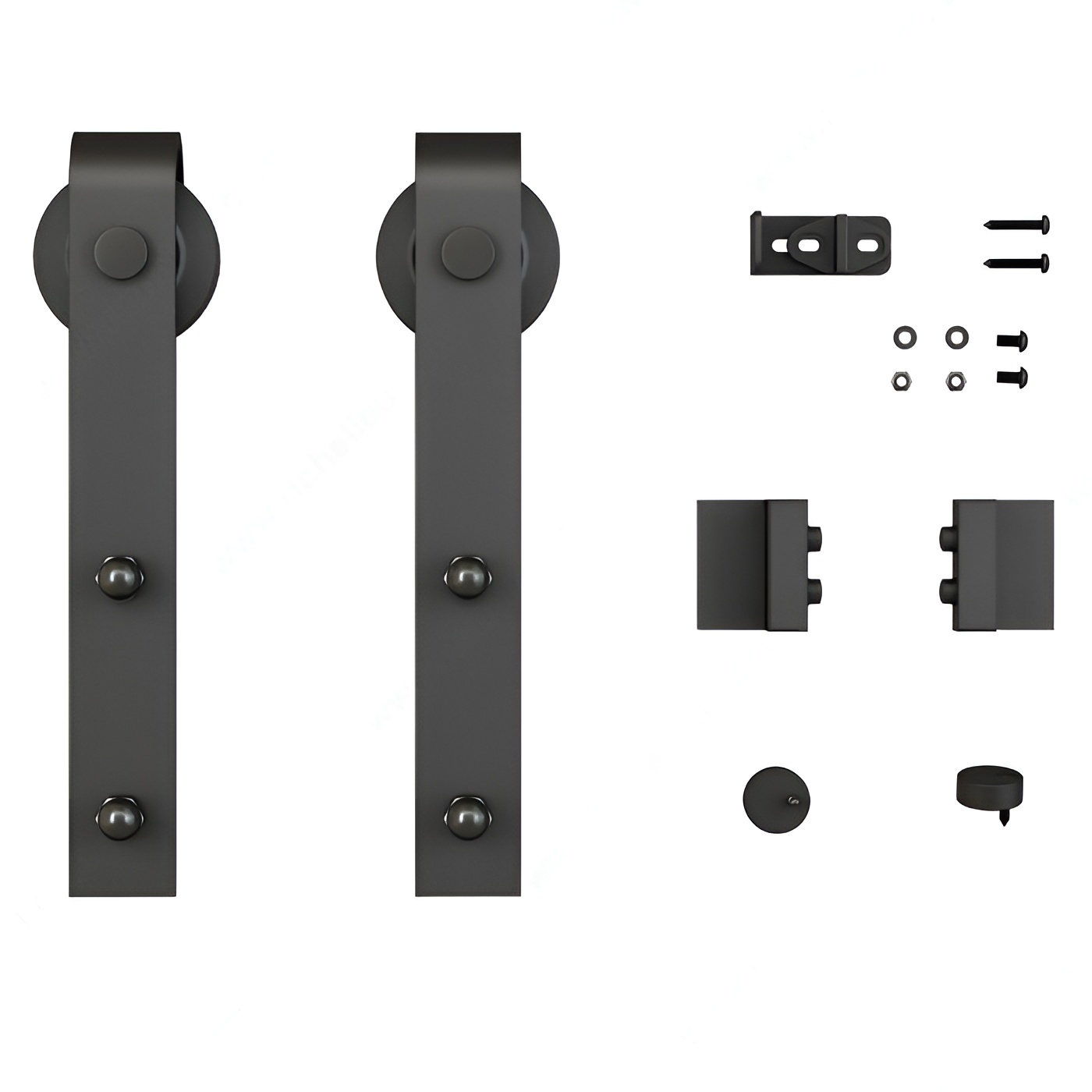

Pro Series Robuste Strap Mount Hardware Set
Hardware set for one wood door up to 220 lb (100 kg).
- Matching trolley cover
- 50 mm diameter standoff
- Longer fastening lag bolts
- Wall/floor mount lower guide
IMPORTANT: The minimum door width is 36 in (914 mm) when using a soft-close mechanism, and the maximum door weight is 176 lb (80 kg).
Attributes
Ship via: No UPS - Common Carrier Only
Application: Sliding Wall, Pantry, Standard Access Door, Barn Door
Brand: Richelieu
Detailed Door Movement: Single sliding, Barn door
Door Height: 3 050 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 35 to 45 mm
Door Width: Min. 1 800 mm
Finish: Matte Black
Height Clearance: 136 mm
Length - Overall Dimensions: 78 3/4 to 118 in*
Load Capacity: Max. 220 lb*
Manufacturing Material: Steel
Material: Steel
Maximum Door Width: 1 800 mm
Overall Length: 2 000 to 3 000 mm
Packaging Format: Box
Product #: 89TSQ04190
Product Type: Hardware Set
Product number: 89TSQ04190
Product type: Hardware Set
Product №: 89TSQ04190
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Sold Separately
Style: Rustic
Track Material: Steel
Track Mounting: Wall Mount
Track type: Flat Bar
Unit: Box
Unit 1: carton - 5
Unit 2: carton - 5
Weight Capacity per Door: Max. 100 kg
Wheel Material: Nylon
Resources
