Richelieu 89TSQ131170 Pro Series Robust Strap Mount Hardware SetRichelieu 89TSQ131170 Pro Series Robuste Strap Mount Hardware Set is designed for professionals seeking a robust solution for sliding doors. This hardware set seamlessly accommodates a single wood door weighing up to 220 lb (100 kg), making it ideal for various applications, including sliding walls, pantry doors, and barn doors. The set includes a matching trolley cover, a 50 mm diameter standoff, and longer fastening lag bolts for enhanced stability. Additionally, it features a wall/floor mount lower guide to ensure smooth operation. With a minimum door width of 36 in (914 mm) when using a soft-close mechanism, this hardware is engineered for efficiency and ease of use. The Richelieu hardware set is suitable for doors with a height of up to 10 ft, a thickness between 1 3/8 to 1 25/32 in, and a maximum width of 70 7/8 in. Its stylish stainless steel finish not only adds a rustic charm but also ensures durability. The upper roller position with ball bearing type contributes to a quiet and smooth sliding movement. With its thoughtful design and high load capacity, the Richelieu Pro Series Robuste Strap Mount Hardware Set is a reliable choice for any professional or knowledgeable homeowner looking to enhance their space.

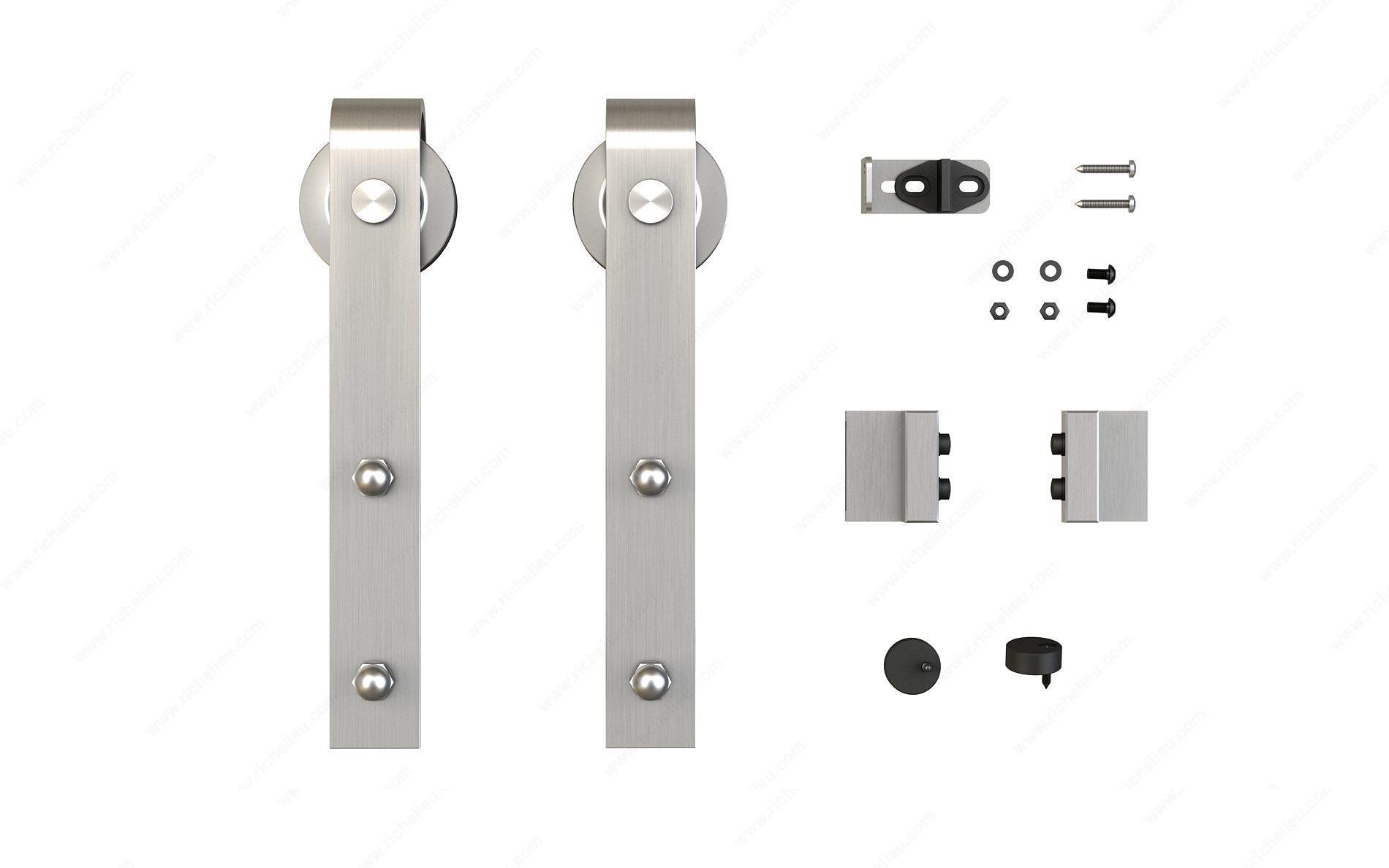

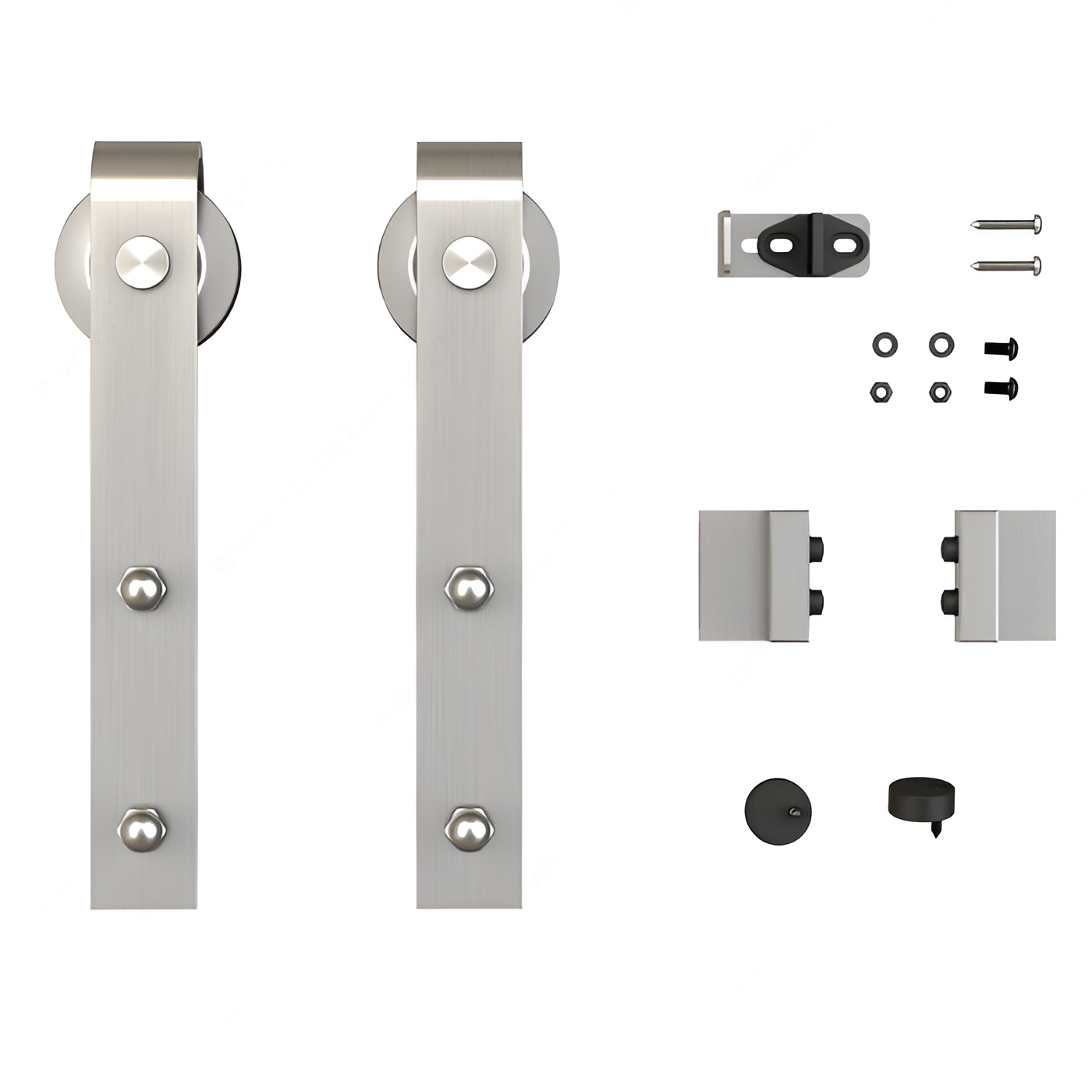

Pro Series Robuste Strap Mount Hardware Set
Hardware set for one wood door up to 220 lb (100 kg).
- Matching trolley cover
- 50 mm diameter standoff
- Longer fastening lag bolts
- Wall/floor mount lower guide
IMPORTANT: The minimum door width is 36 in (914 mm) when using a soft-close mechanism, and the maximum door weight is 176 lb (80 kg).
Attributes
Ship via: No UPS - Common Carrier Only
Application: Sliding Wall, Pantry, Standard Access Door, Barn Door
Brand: Richelieu
Detailed Door Movement: Single sliding, Barn door
Door Height: 3 050 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 35 to 45 mm
Door Width: Min. 1 800 mm
Finish: Stainless Steel (170)
Height Clearance: 136 mm
Length - Overall Dimensions: 78 3/4 to 118 in*
Load Capacity: Max. 220 lb*
Manufacturing Material: Steel
Material: Steel
Maximum Door Width: 1 800 mm
Overall Length: 2 000 to 3 000 mm
Packaging Format: Box
Product #: 89TSQ131170
Product Type: Hardware Set
Product number: 89TSQ131170
Product type: Hardware Set
Product №: 89TSQ131170
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Sold Separately
Style: Rustic
Track Material: Steel
Track Mounting: Wall Mount
Track type: Flat Bar
Unit: Box
Unit 1: carton - 5
Unit 2: carton - 5
Weight Capacity per Door: Max. 100 kg
Wheel Material: Nylon
