Richelieu 89TSQ631137 Pro Series Robust Strap Mount Hardware SetRichelieu 89TSQ631137 Pro Series Robuste Strap Mount Hardware Set offers a robust solution for sliding wood doors, accommodating weights up to 220 lb (100 kg). This hardware set is designed for single sliding applications, making it ideal for a variety of setups, including pantry doors, barn doors, and standard access doors. Crafted for durability, the set features a matching trolley cover and a 50 mm diameter standoff, ensuring a seamless and aesthetically pleasing installation. Longer fastening lag bolts provide added stability, while the wall and floor mount lower guide enhance the functionality of the system. For optimal performance, the minimum door width is 36 in (914 mm) when utilizing a soft-close mechanism, with a recommended maximum door weight of 176 lb (80 kg). The track is wall-mounted and accommodates doors with thicknesses ranging from 1 3/8 to 1 25/32 in. This stylish rustic hardware is finished in bronze, adding a touch of elegance to any space. Designed to support doors up to 10 ft tall, the Richelieu Pro Series Robuste is not only functional but also visually appealing, making it an excellent choice for building professionals and discerning homeowners.

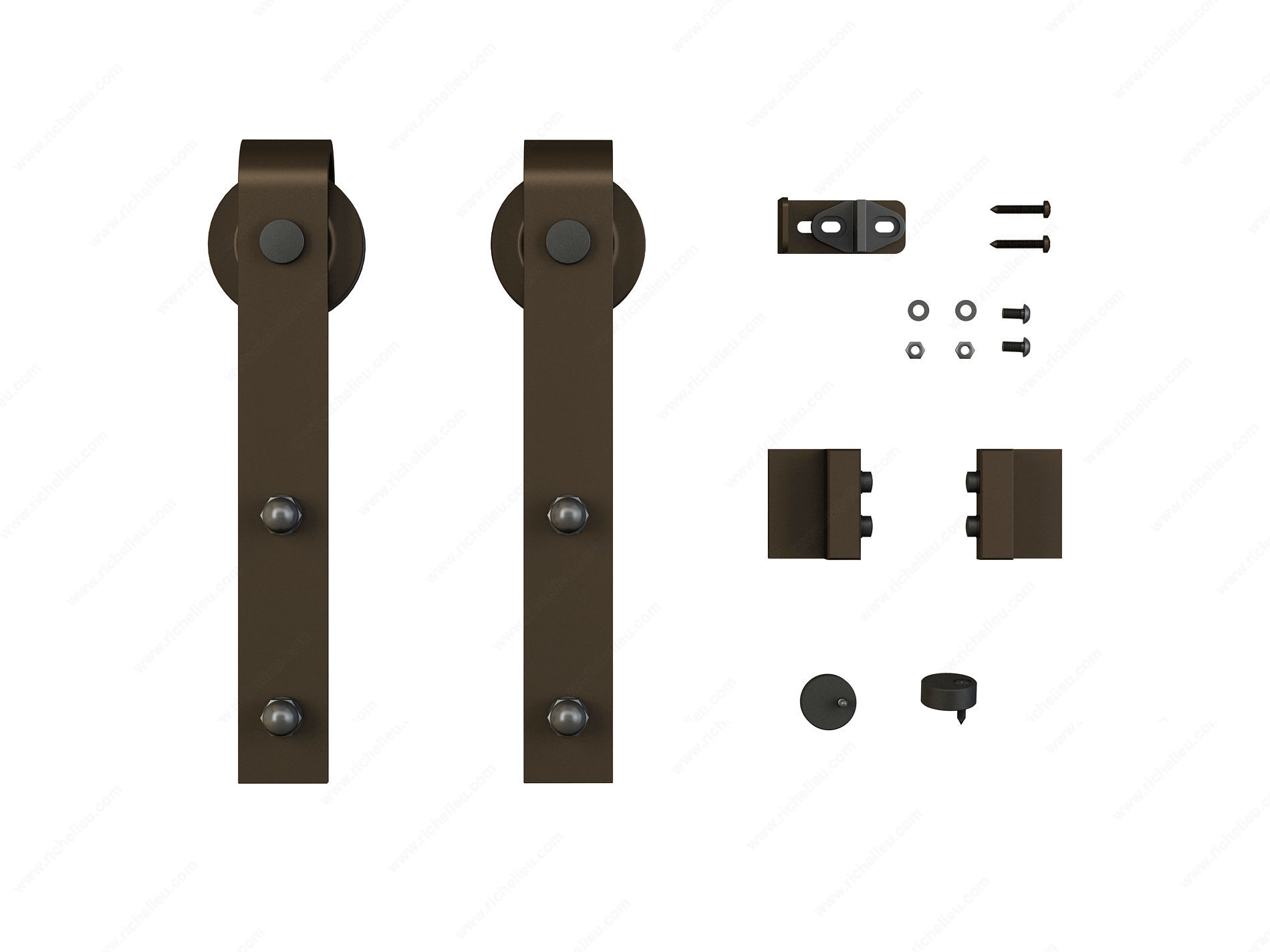

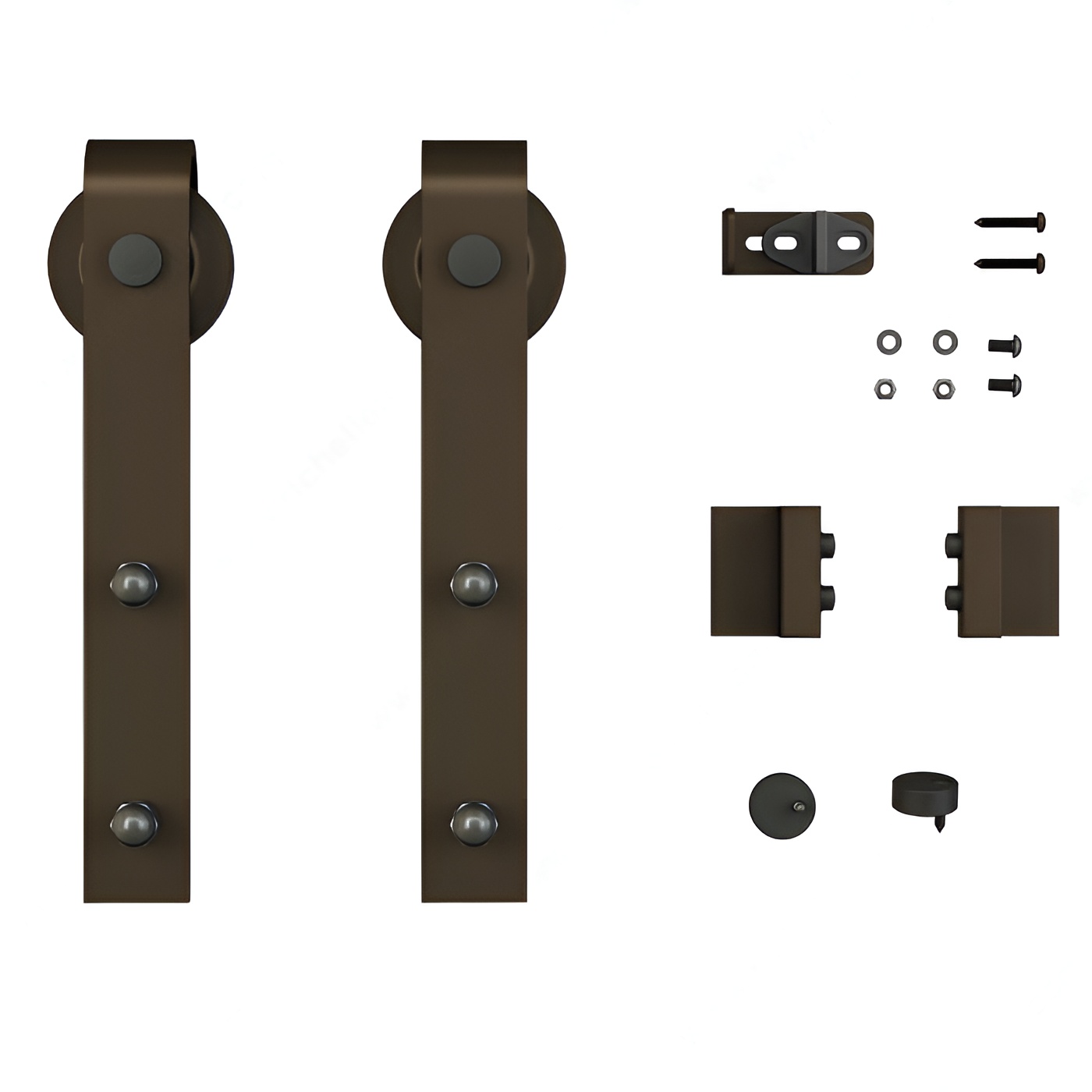

Pro Series Robuste Strap Mount Hardware Set
Hardware set for one wood door up to 220 lb (100 kg).
- Matching trolley cover
- 50 mm diameter standoff
- Longer fastening lag bolts
- Wall/floor mount lower guide
IMPORTANT: The minimum door width is 36 in (914 mm) when using a soft-close mechanism, and the maximum door weight is 176 lb (80 kg).
Attributes
Ship via: No UPS - Common Carrier Only
Application: Sliding Wall, Pantry, Standard Access Door, Barn Door
Brand: Richelieu
Detailed Door Movement: Single sliding, Barn door
Door Height: 3 050 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 35 to 45 mm
Door Width: Min. 1 800 mm
Finish: Bronze
Height Clearance: 136 mm
Length - Overall Dimensions: 78 3/4 to 118 in*
Load Capacity: Max. 220 lb*
Manufacturing Material: Steel
Material: Steel
Maximum Door Width: 1 800 mm
Overall Length: 2 000 to 3 000 mm
Packaging Format: Box
Product #: 89TSQ631137
Product Type: Hardware Set
Product number: 89TSQ631137
Product type: Hardware Set
Product №: 89TSQ631137
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Sold Separately
Style: Rustic
Track Material: Steel
Track Mounting: Wall Mount
Track type: Flat Bar
Unit: Box
Unit 1: carton - 5
Unit 2: carton - 5
Weight Capacity per Door: Max. 100 kg
Wheel Material: Nylon
