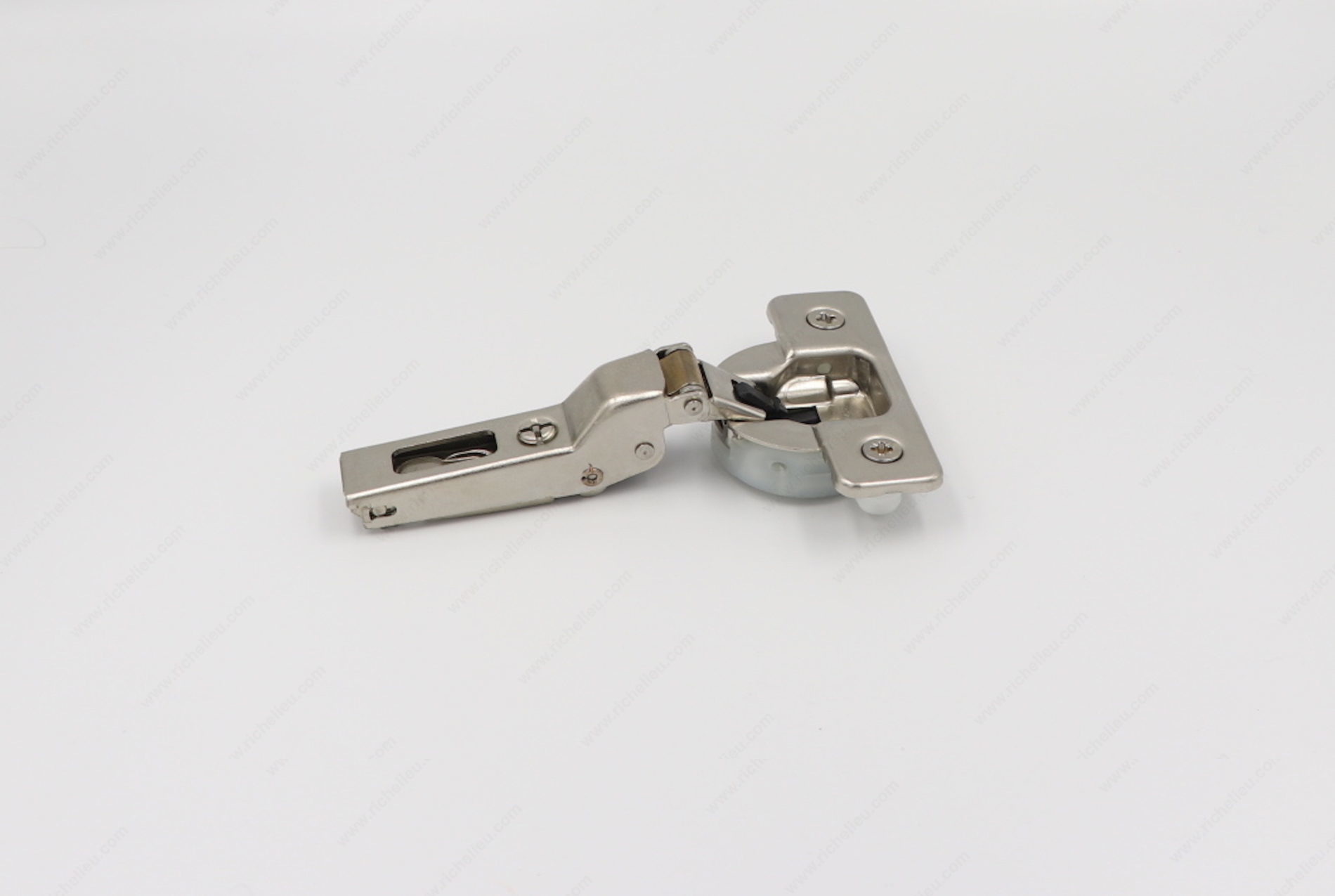

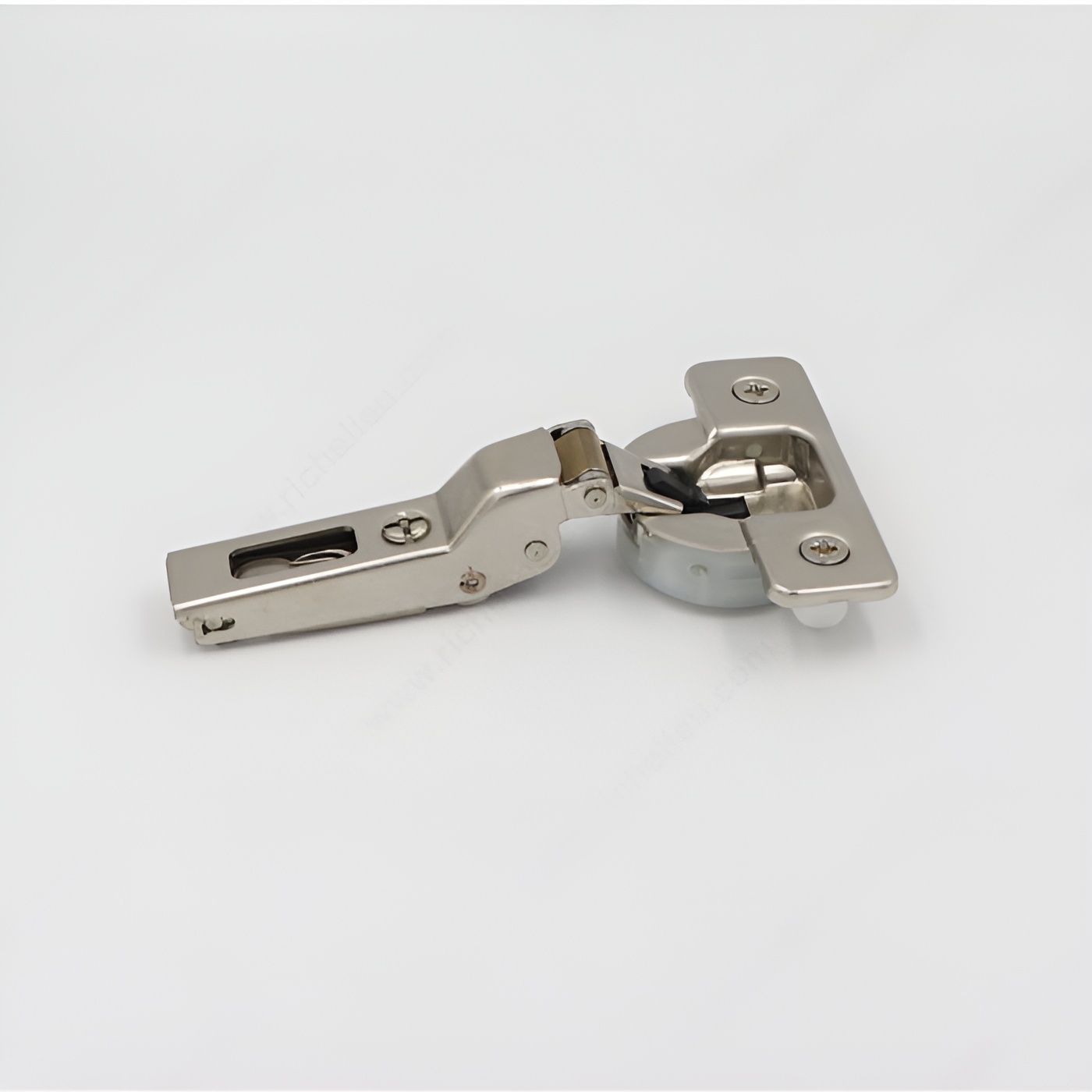

Richelieu H110C7P6GG9 Series 700 Concealed Hinge 110 offers a modern design solution that elevates both functionality and aesthetics in any space. This hinge is specifically crafted for half-overlay doors, making it an ideal choice for contemporary cabinetry. With a soft-closing mechanism, it ensures a gentle and quiet closure, enhancing user experience and prolonging the life of your furniture. The hinge features a nickel finish that not only adds a sleek, polished look but also provides durability against wear and tear. Designed with a drilling distance of 1/8 to 1/4 inch and a milling depth of 17/32 inch, installation is straightforward and efficient. The hinge opens to an impressive angle of +110°, allowing for maximum accessibility and convenience. Utilizing a screw-on fixing type, the Richelieu H110C7P6GG9 ensures a secure attachment, making it suitable for standard doors in various applications. With stock production time, this hinge is readily available for your projects. Choose the Richelieu H110C7P6GG9 Series 700 Concealed Hinge 110 for a reliable and stylish hardware solution that meets the demands of modern architecture while providing ease of use and installation.
700 Series - Silentia+ Concealed Hinges 110
Brand: Salice
Closing Mechanism: Soft-Closing
Crank: 11/32 in*
Diameter: 1 3/8 in*
Door Position: Half Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +110°
Mechanism: Soft-Closing
Milling Depth: 13.5 mm
Milling Diameter: 1 3/8 in*
Overlay: 0.375 in
Product #: H110C7P6GG9
Product number: H110C7P6GG9
Product №: H110C7P6GG9
Production Time: Stock
Silentia+ Series: 700 Series
Unit 1: case - 300
Use Type: Standard Door
