Richelieu WEBKIT1216630 ARROW Mini Barn Door Sliding SystemRichelieu WEBKIT1216630 ARROW Mini Barn Door Style Sliding System offers a stylish and functional solution for integrating sliding doors into your space. Designed for mini barn-style doors weighing up to 55 lb (25 kg), this top running decorative system ensures smooth operation with its quiet ball bearing wheels. The ARROW features anti-derail discs, providing added safety and stability. This system accommodates door thicknesses ranging from 3/4 in (20 mm) to 1 in (25 mm) and supports a maximum door height of 66 in and width of 36 in. The flat rail is available in two lengths, allowing for flexibility in installation. With a sleek matte black finish, the hardware and track beautifully complement various interiors, making it ideal for applications in kitchen islands, bathroom vanities, TV cabinets, bookshelves, and credenzas. The ARROW system is designed for single sliding door movement, installed as top hung, offering a full overlay position. For biparting applications, two tracks are necessary, as there is no connector included. Elevate your furniture or storage solutions with the Richelieu ARROW Mini Barn Door Style Sliding System, merging rustic charm with practical functionality.
ARROW Mini Barn Door Style Sliding System
The ARROW is a top running decorative sliding system for mini barn-style doors weighing up to 55 lb (25 kg) each.
- Quiet ball bearing wheels
- Anti-derail discs
- For door thicknesses of 3/4 in (20 mm) to 1 in (25 mm)
- Flat rail available in two lengths
- Hardware and track in matte black finish
Note: for biparting applications use two tracks, there is no connector.

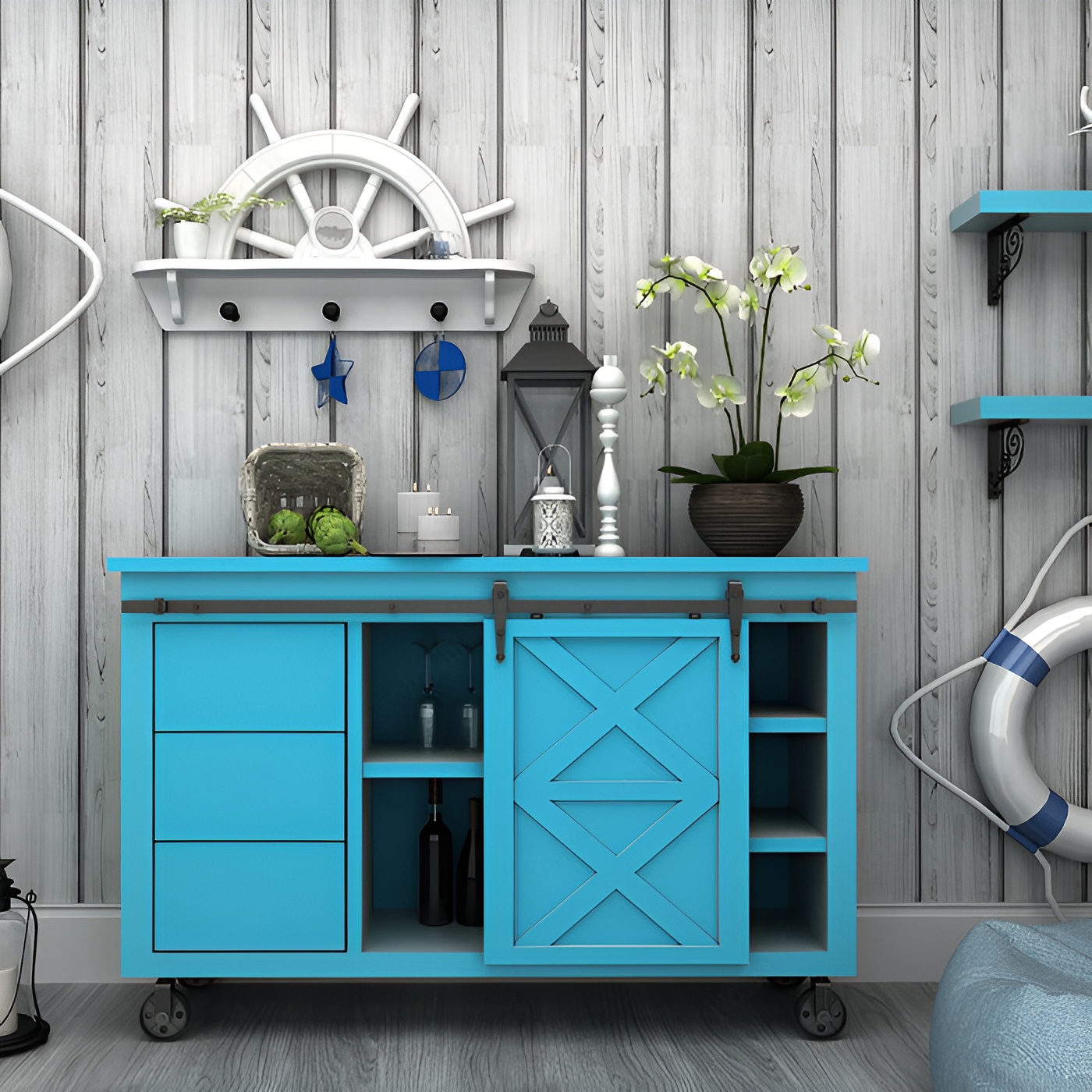

ARROW is an ideal solution for kitchen islands, bathroom vanities, TV cabinets, bookshelves, and credenzas/sideboards.
Attributes
Application: Furniture, Cabinet, Storage, Bathroom, Barn Door
Detailed Door Movement: Single Sliding
Door Height: Max. 1 677 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Full Overlay
Door Thickness: 20 to 25 mm
Door Width: Max. 914 mm
Finish: Matte Black
Length - Overall Dimensions: 60 in*
Load Capacity: Max. 55.1 lb*
Number of Doors: 1
Overall Length: 1 524 mm
Product #: WEBKIT1216630
Product number: WEBKIT1216630
Product №: WEBKIT1216630
Roller Type: Axle (Bushing)
Style: Rustic
Track Length: 1 524 mm
Track Type: Flat Bar
Track type: Flat Bar
Weight Capacity per Door: Max. 25 kg
