Richelieu WEBKIT1216637 ARROW Mini Barn Door Sliding SystemRichelieu WEBKIT1216637 ARROW Mini Barn Door Style Sliding System offers a stylish and functional solution for modern spaces. Designed for mini barn-style doors weighing up to 55 lb (25 kg), this top-running decorative sliding system features quiet ball bearing wheels that ensure smooth and silent operation. The anti-derail discs enhance stability, providing peace of mind during use. This system accommodates door thicknesses ranging from 3/4 in (20 mm) to 1 in (25 mm) and is available with a flat rail in two lengths, making it versatile for various applications. The matte black finish adds a contemporary touch, perfect for complementing kitchen islands, bathroom vanities, TV cabinets, bookshelves, and credenzas. Designed for single sliding movement, the ARROW system requires a top-hung installation for optimal performance. It supports a maximum door height of 66 in and a maximum width of 36 in, ensuring compatibility with many door styles. Moreover, for biparting applications, two tracks will be necessary as no connector is provided. With its rustic charm and robust design, the Richelieu ARROW Mini Barn Door Style Sliding System is an ideal choice for enhancing both functionality and aesthetic appeal in any space.
ARROW Mini Barn Door Style Sliding System

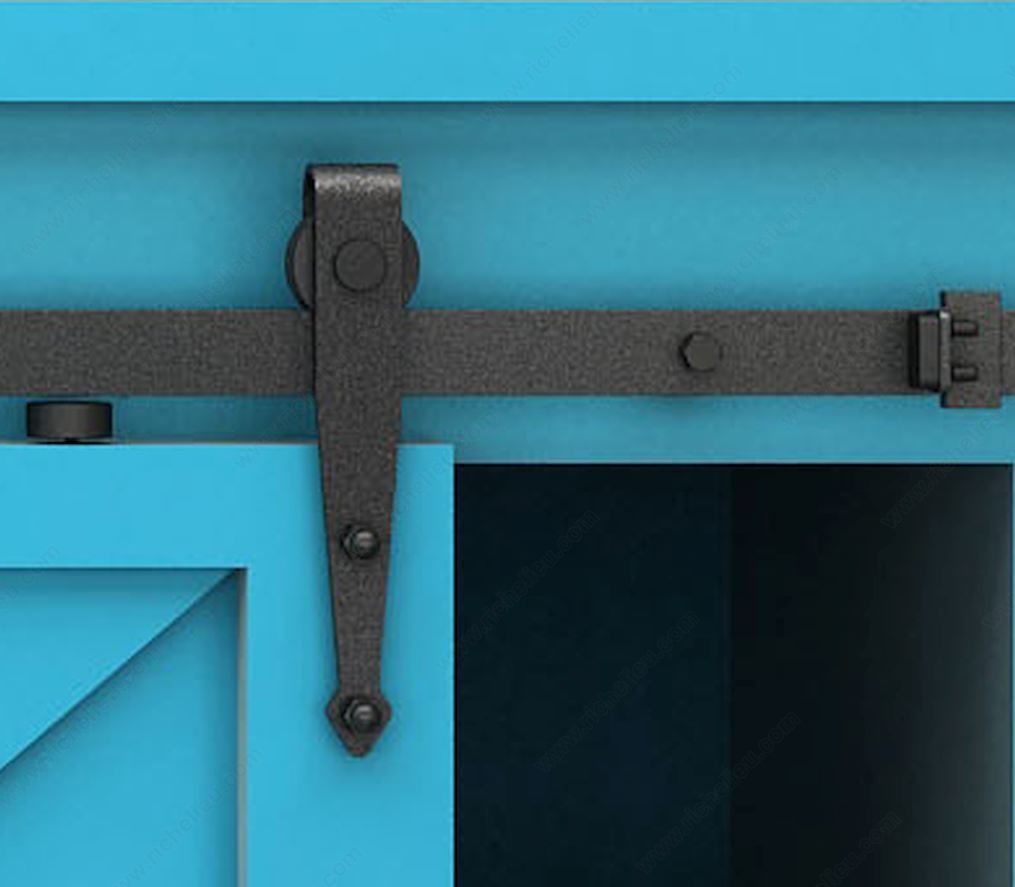

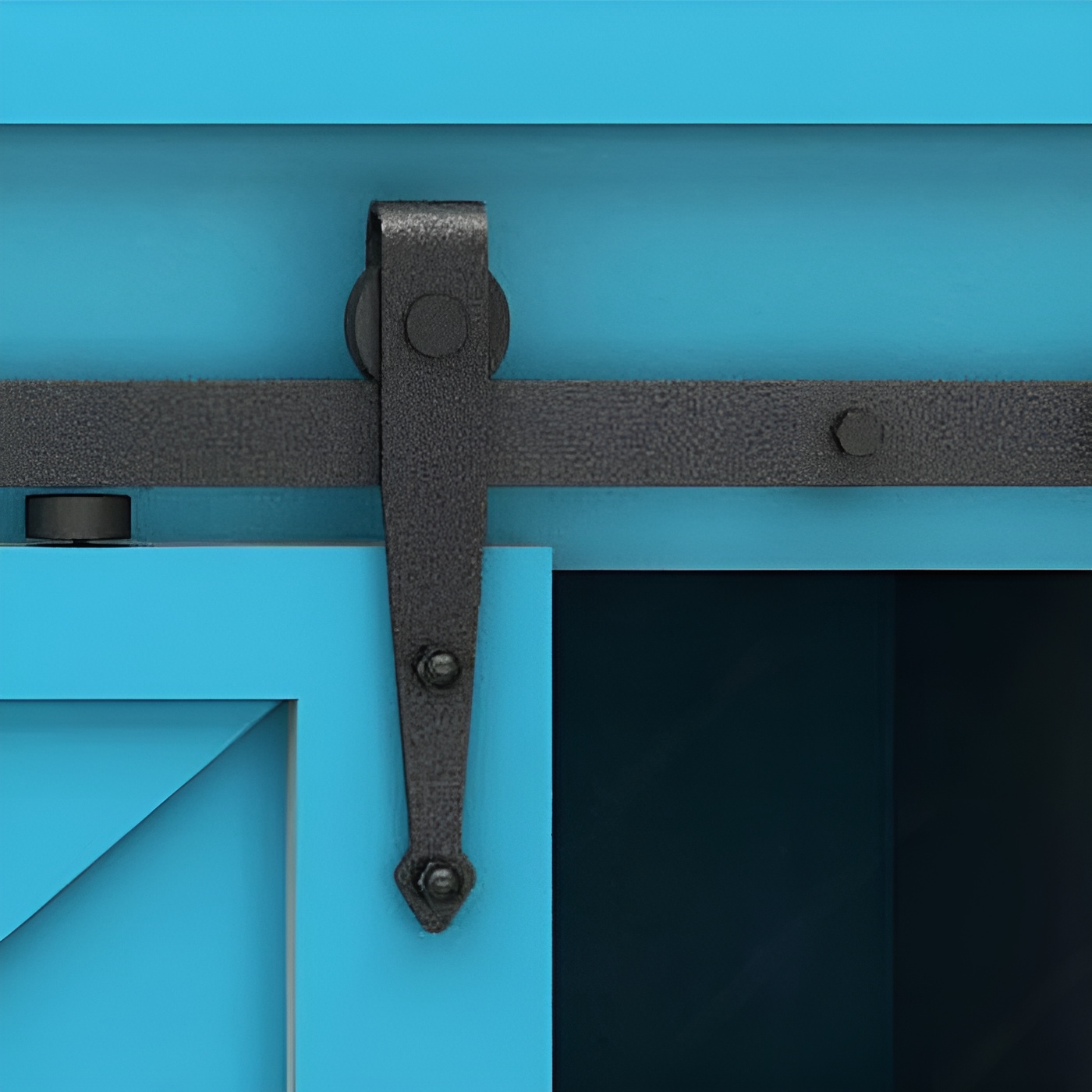

The ARROW is a top running decorative sliding system for mini barn-style doors weighing up to 55 lb (25 kg) each.
- Quiet ball bearing wheels
- Anti-derail discs
- For door thicknesses of 3/4 in (20 mm) to 1 in (25 mm)
- Flat rail available in two lengths
- Hardware and track in matte black finish
Note: for biparting applications use two tracks, there is no connector.
ARROW is an ideal solution for kitchen islands, bathroom vanities, TV cabinets, bookshelves, and credenzas/sideboards.
Attributes
Application: Furniture, Cabinet, Storage, Bathroom, Barn Door
Detailed Door Movement: Single Sliding
Door Height: Max. 1 677 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Full Overlay
Door Thickness: 20 to 25 mm
Door Width: Max. 914 mm
Finish: Matte Black
Length - Overall Dimensions: 72 in*
Load Capacity: Max. 55.1 lb*
Number of Doors: 1
Overall Length: 1 830 mm
Product #: WEBKIT1216637
Product number: WEBKIT1216637
Product №: WEBKIT1216637
Roller Type: Axle (Bushing)
Style: Rustic
Track Length: 1 830 mm
Track Type: Flat Bar
Track type: Flat Bar
Weight Capacity per Door: Max. 25 kg
