Richelieu WEBKIT1216638 LUNA Mini Barn Door Sliding SystemRichelieu WEBKIT1216638 LUNA Mini Barn Door Style Sliding System offers a stylish and efficient solution for your sliding door needs. Designed to support mini barn-style doors weighing up to 55 lb (25 kg), this top-running system ensures smooth operation with its quiet ball bearing wheels. The LUNA system is equipped with anti-derail discs, enhancing safety and stability during use. Compatible with door thicknesses ranging from 3/4 in (20 mm) to 1 in (25 mm), the LUNA system accommodates a variety of wood door materials. It features a matte black finish that adds a touch of modern elegance, making it suitable for various applications such as kitchen islands, bathroom vanities, TV cabinets, bookshelves, and credenzas. The flat rail is available in two lengths, with a maximum door height of 66 inches and a width of up to 36 inches. For biparting applications, simply use two tracks, as there is no connector included. With a load capacity of 55.1 lb and designed for top-hung, straight sliding movement, the LUNA system combines functionality with a rustic style, making it a perfect choice for both building professionals and discerning homeowners.
LUNA Mini Barn Door Style Sliding System

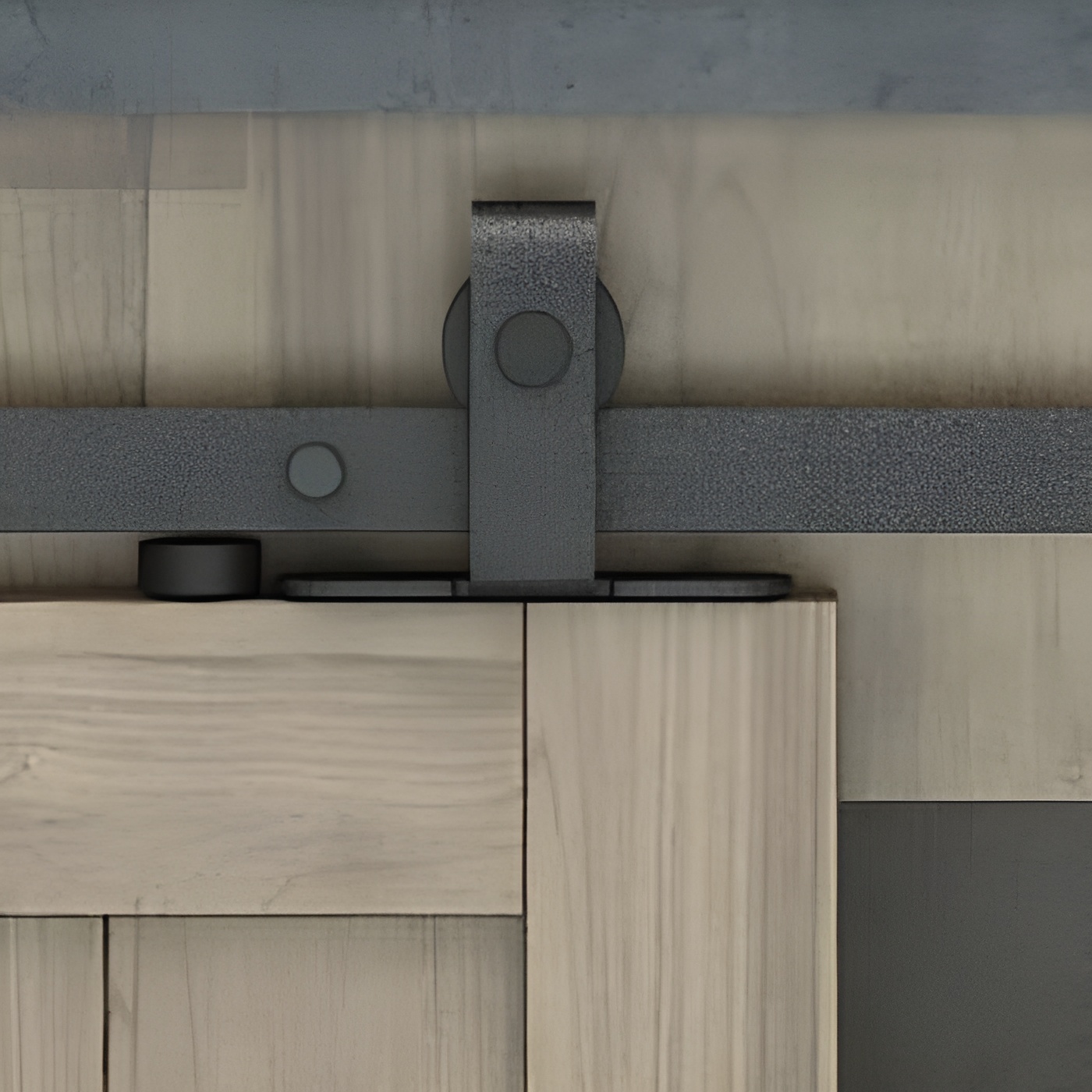

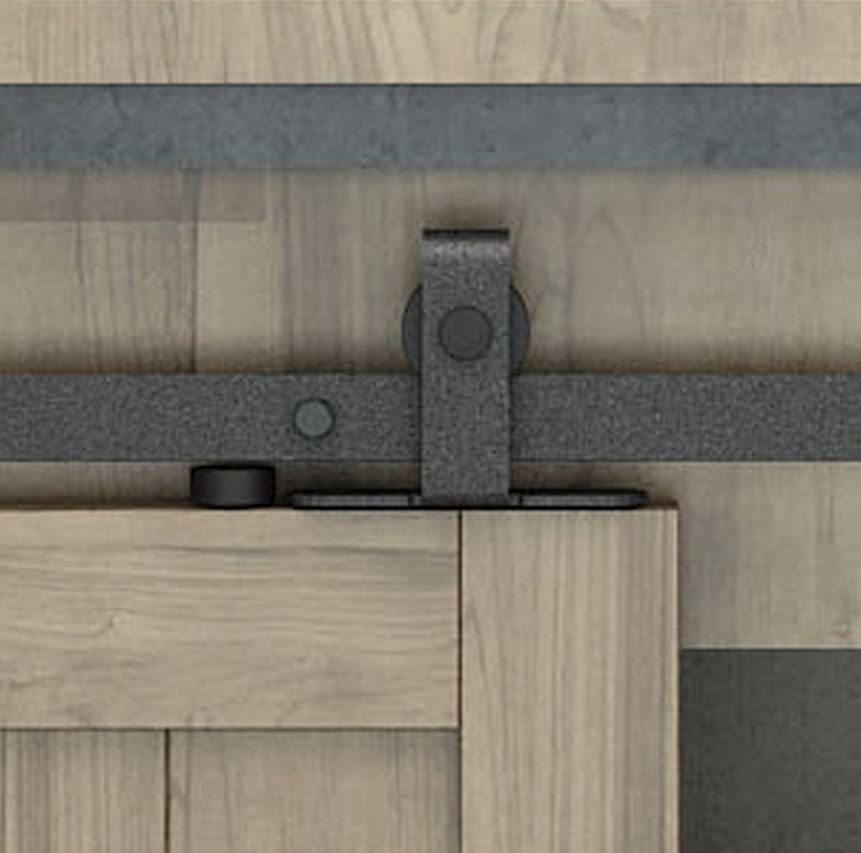

The LUNA is a top running decorative sliding system for mini barn-style doors weighing up to 55 lb (25 kg) each.
- Quiet ball bearing wheels
- Anti-derail discs
- For door thicknesses of 3/4 in (20 mm) to 1 in (25 mm)
- Flat rail available in two lengths
- Hardware and track in matte black finish
Note: for biparting applications use two tracks, there is no connector.
LUNA is an ideal solution for kitchen islands, bathroom vanities, TV cabinets, bookshelves, and credenzas/sideboards.
Attributes
Application: Furniture, Cabinet, Storage, Bathroom, Barn Door
Detailed Door Movement: Single Sliding
Door Height: Max. 1 677 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Full Overlay
Door Thickness: 20 to 25 mm
Door Width: Max. 914 mm
Finish: Matte Black
Length - Overall Dimensions: 72 in*
Load Capacity: Max. 55.1 lb*
Number of Doors: 1
Overall Length: 1 830 mm
Product #: WEBKIT1216638
Product number: WEBKIT1216638
Product №: WEBKIT1216638
Roller Type: Axle (Bushing)
Style: Rustic
Track Length: 1 830 mm
Track Type: Flat Bar
Track type: Flat Bar
Weight Capacity per Door: Max. 25 kg
