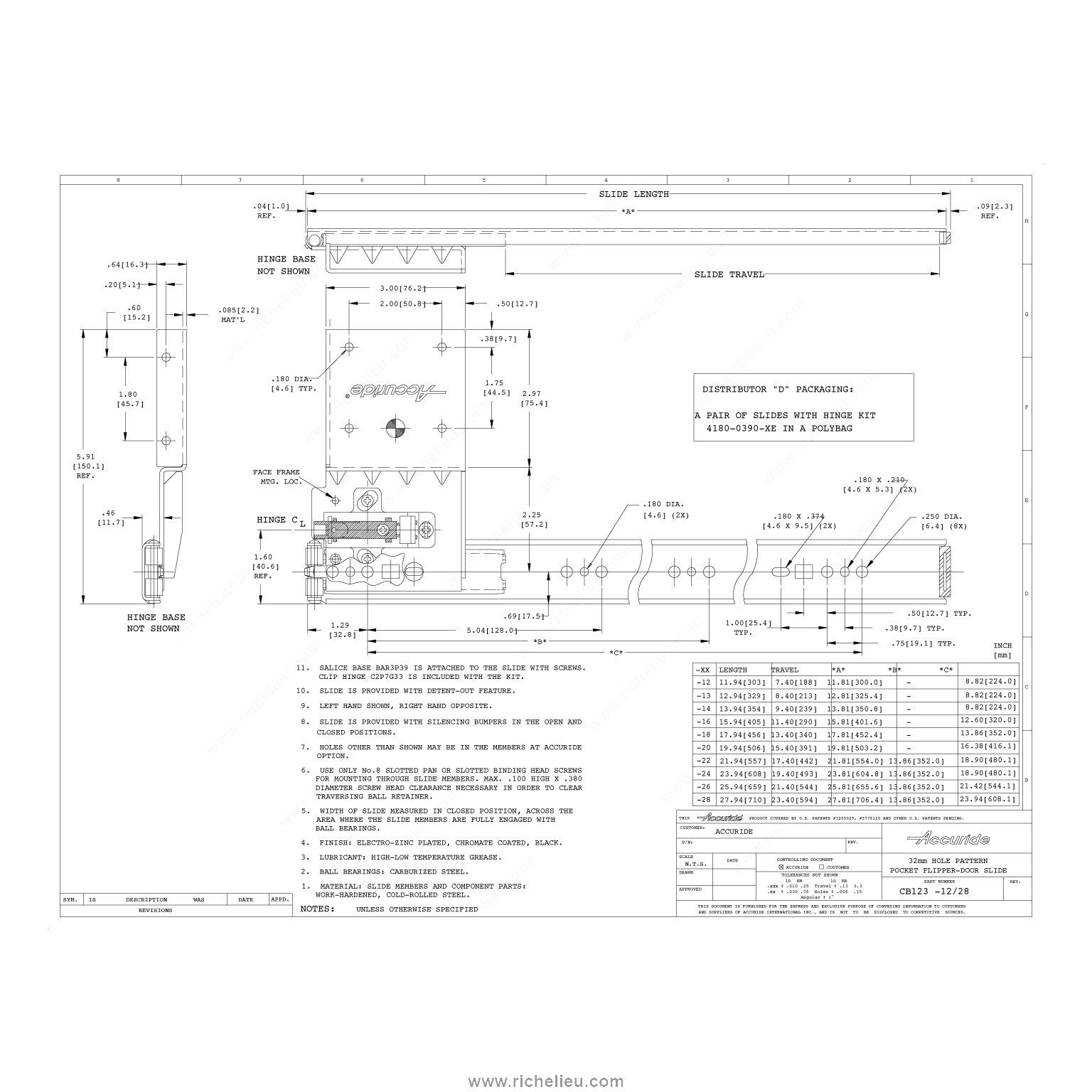

Richelieu T1239026 Series 123 Pocket Door Slide - 30 lb offers a seamless solution for concealed cabinet doors, combining innovative design with user-friendly installation. This pocket door slide features a self-aligning mechanism that guarantees smooth, reliable movement, making it an ideal choice for both residential and vehicular cabinetry. With a robust capacity of 30 lbs per door and accommodating maximum door dimensions of 42" x 24", this slide is engineered to handle a variety of applications. The horizontal and vertical mounting options, paired with 35 mm hinges, enhance its versatility, while the steel ball bearing action ensures durability and ease of use. The T1239026 is designed for inset doors up to 13/16" thick, providing a clean aesthetic as doors retract within the cabinet. For those requiring a different mounting solution, the CB1234 option is available without hinges. Crafted from high-quality metal and finished in sleek black, this slide not only functions exceptionally but also complements modern cabinetry designs. Enjoy the convenience of pocket doors with the reliability of Richelieu's innovative engineering. For further details, refer to the Accuride 123 Technical Sheet.

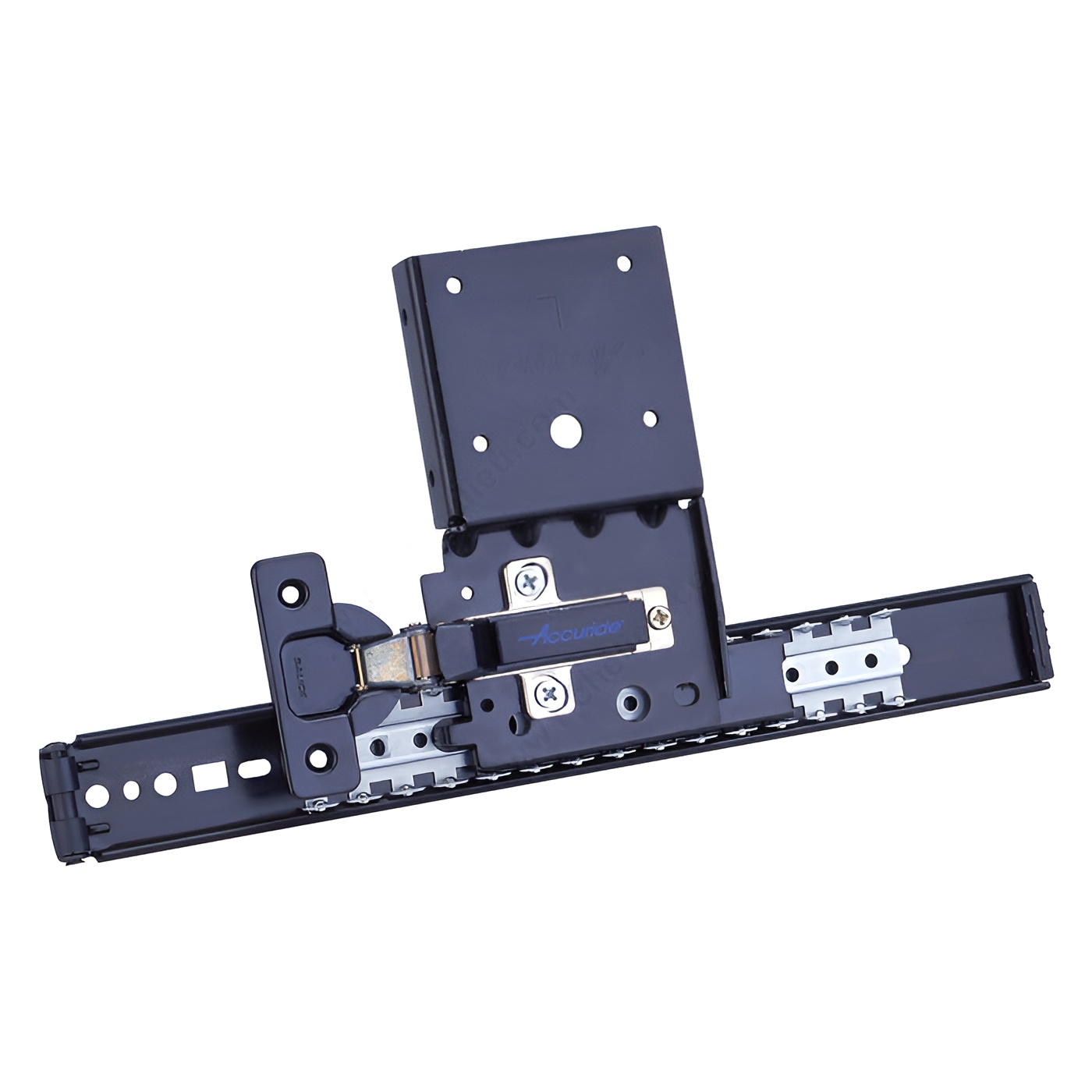

Series 123 Pocket Door Slide - 30 lb
Application: Pocket Door
Bearing Type: Ball Bearing
Brand: Accuride
Door Thickness: 13/16 in
Finish: Black
Length: 26 in
Load Capacity: 30 lb*
Material: Metal
Max. Door Height: 42 in
Max. Door Width: 24 in
Motion Technology: Tilt Track
Product #: T1239026
Side: Both
Slide Mounted: Retractable
