Richelieu TSCTSMBA6 CS CaviTrack Wall Mount KitRichelieu TSCTSMBA6 CS CaviTrack Wall Mount Track Kit offers a robust solution for your sliding door systems, available in three pre-cut lengths of 72 in (1.8 m), 96 in (2.4 m), and 144 in (3.6 m). Designed for easy installation, this wall mount track features a direct mount system with a clip-on fascia, making setup straightforward and efficient. The kit includes end caps and is compatible with both M6 and M8 series hardware sets, as well as the SofStop series, ensuring versatility for various applications. Finished in either clear or bronze anodized aluminum, it seamlessly integrates into any décor while providing durability and style. With a load capacity of 500 lb, this track is ideal for standard access and barn doors. This product is tailored for single sliding door movement and is suitable for doors made of wood with a thickness ranging from 1 3/8 to 1 3/4 inches and a maximum width of 38 inches. The overall height of the track is 2 29/32 inches, with a width of 2 13/32 inches, ensuring a compact yet sturdy installation. The Richelieu TSCTSMBA6 brings both functionality and elegance to your space, making it the perfect choice for building professionals and discerning homeowners alike.

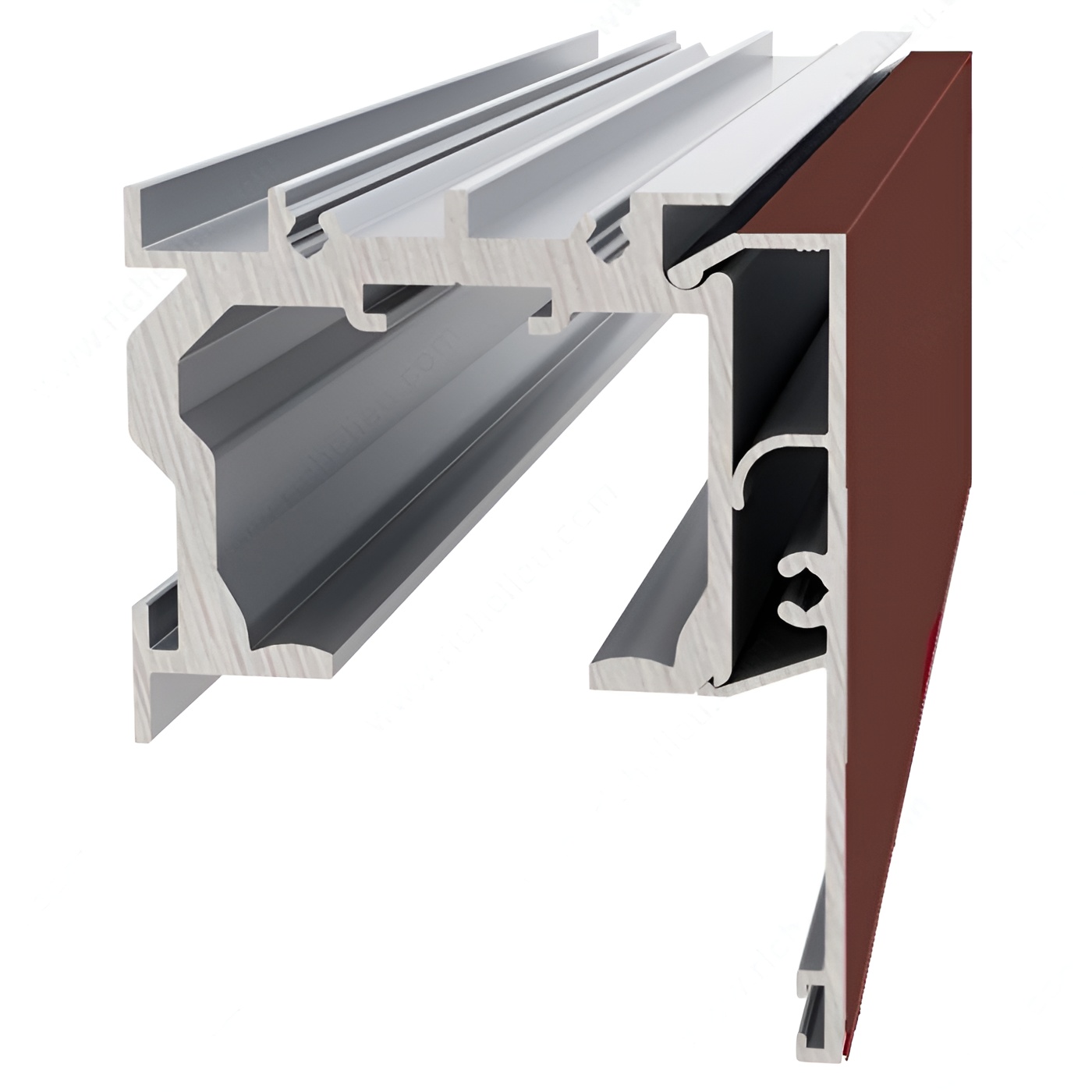

CS CaviTrack Wall Mount Track Kit
The CS CaviTrack Wall Mount Track Kit is offered in three popular pre-cut lengths of 72 in (1.8 m), 96 in (2.4 m), and 144 in (3.6 m) for CS sliding door systems.
Features:
- Choose from two anodized finishes: clear or bronze
- Direct wall mount track and clip-on fascia for simple installation
- Includes end caps
- Compatible with M6 and M8 series hardware sets
- Compatible with SofStop series hardware sets
Attributes
Application: Standard Access Door, Barn Door
Brand: Cavity Sliders
Compatible with: Cavity Sliders
Detailed Door Movement: Single Sliding
Door Installation: Side Mount
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: Max. 38 in
Finish: Bronze Anodized Aluminum
Length: 75 in
Length - Overall Dimensions: 72 in
Load Capacity: 500 lb
Manufacturing Material: Aluminum
Material: Aluminum
Overall Height: 2 29/32 in
Overall Length: 72 in
Packaging Format: Box
Product #: TSCTSMBA6
Product Type: Wall Mount Track Kit
Product number: TSCTSMBA6
Product type: Wall Mount Track Kit
Product №: TSCTSMBA6
Running Track Fixing: Surface Mount
Track Length: 72 in
Track Mounting: Wall Mount
Track Type: Box Track
Track type: Box Track
Unit: Length
Weight Capacity per Panel: 500 lb
Width: 2 13/32 in
