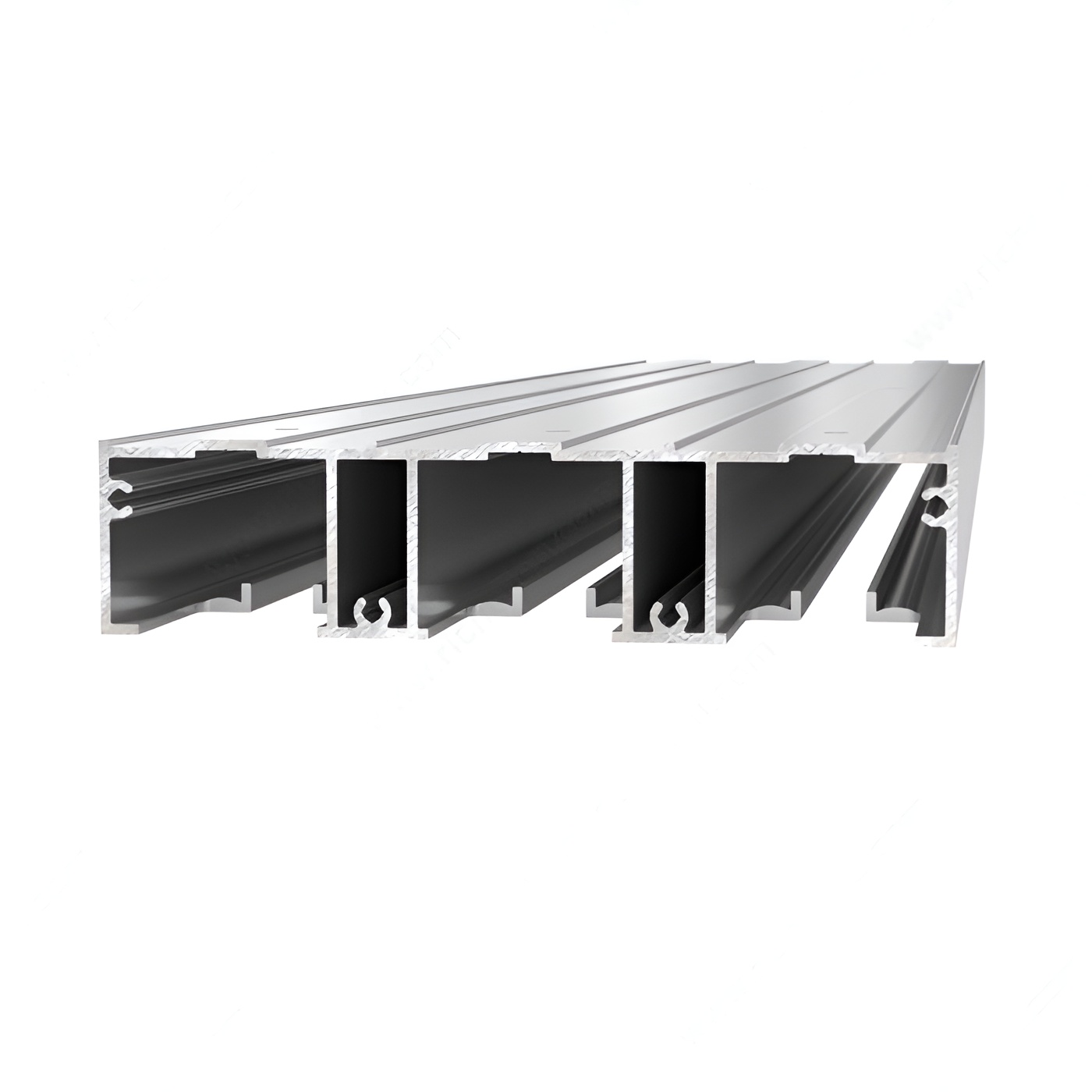

Richelieu TSTMT3MF6134 CS Double and Triple CaviTrack is a versatile ceiling mount track system designed specifically for the CS Door Collection. This product offers both double and triple sliding door capabilities, making it a perfect choice for spaces that require flexible configurations. Available in popular pre-cut lengths, the tracks can be conveniently surface or recess mounted to the ceiling, accommodating various installation preferences. Designed for doors with thicknesses of 1 3/8 inches (35 mm) and 1 3/4 inches (45 mm), the CaviTrack supports a substantial load capacity of 500 pounds, ensuring reliable performance for wooden doors. With an overall length of 72 inches and a width of 6 27/64 inches, the track system is engineered for optimal functionality, allowing for smooth straight sliding and movable wall applications. The upper roller position and pre-drilled holes simplify installation, while the anodized aluminum finish provides both durability and a sleek aesthetic. Whether you're working on a residential project or a commercial space, the Richelieu TSTMT3MF6134 offers a sophisticated solution for enhancing accessibility and design. Elevate your interior spaces with this high-quality architectural hardware, compatible with the CS Door Collection.
CS Double and Triple CaviTrack
Brand: Cavity Sliders
Compatible with: CS Door Collection
Detailed Door Movement: Single Sliding
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding, Movable Wall
Door Position: Inset/Inlay
Door Thickness: 1 3/4 in
Finish: Anodized Aluminum
Length - Overall Dimensions: 72 in
Load Capacity: 500 lb
Manufacturing Material: Aluminum
Material: Aluminum
Number of Doors: 3
Overall Height: 1 15/32 in
Overall Length: 72 in
Packaging Format: Bulk
Pre-drilled: Yes
Product #: TSTMT3MF6134
Product Type: Track
Product number: TSTMT3MF6134
Product type: Track
Product №: TSTMT3MF6134
Roller Position: Upper
Running Track Fixing: Surface and Recessed
Track Finish: Anodized
Track Length: 72 in
Track Material: Anodized Aluminum
Track Mounting: Ceiling Mount
Track Type: Box Track
Track type: Box Track
Unit: Length
Weight Capacity per Door: 500 lb
Weight Capacity per Panel: 500 lb
Width: 6 27/64 in
