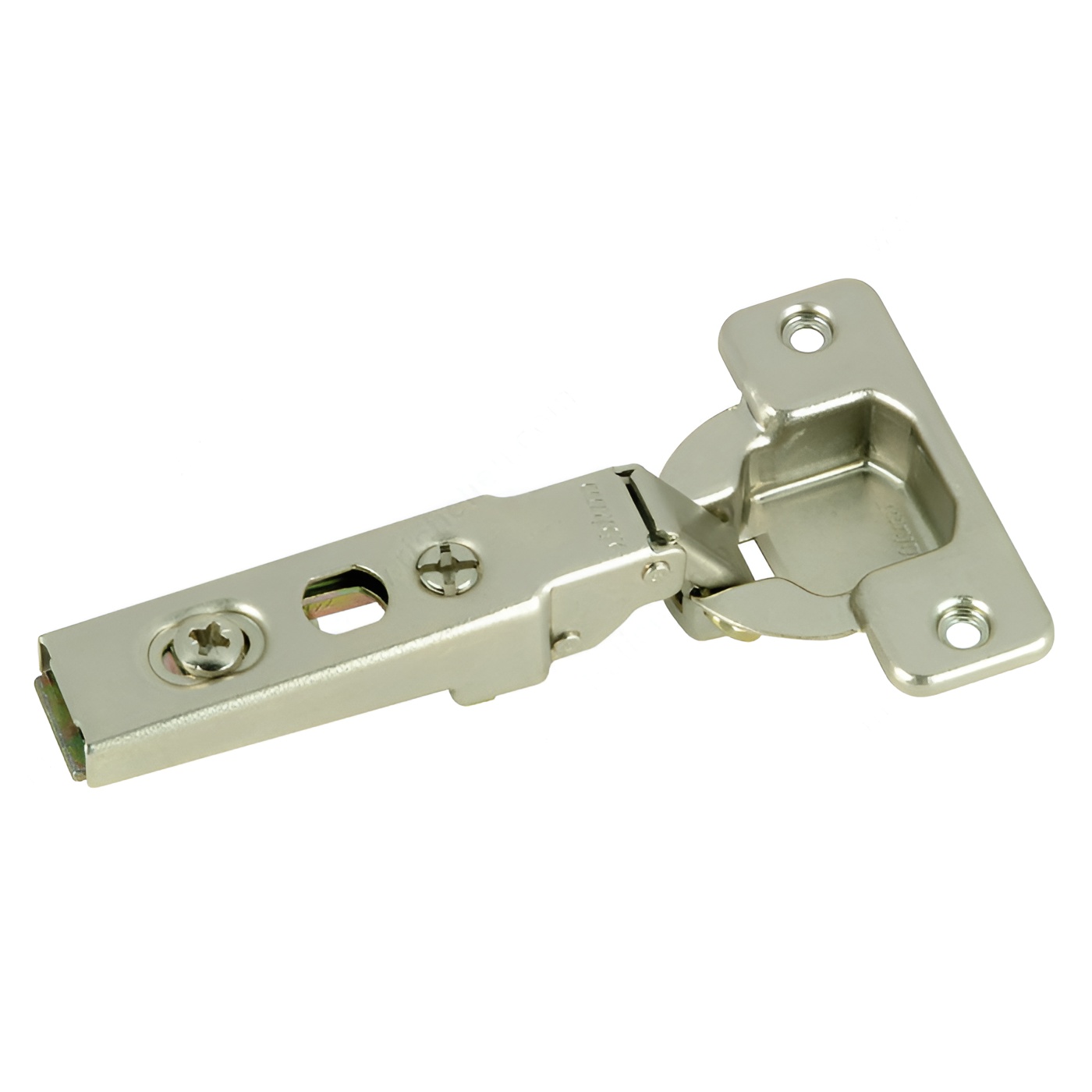

Richelieu UC71M255180 CLIP Hinge - 100 offers a perfect combination of functionality and ease of use for frameless cabinet installations. Designed ergonomically, this hinge ensures simple handling, while its innovative fixing mechanism allows for rapid and secure connections to the mounting plate, streamlining the installation process. This hinge is specifically crafted for cabinets with a thickness of 5/8 inch, accommodating doors of the same minimum thickness. With a full overlay door position and a hinge opening angle of +100°, it provides ample access to cabinet interiors. The screw-on fixing type ensures a robust attachment, while the spring closing mechanism enhances user convenience by allowing doors to close smoothly. The UC71M255180 features a milling depth of 13/32 inch and a milling diameter of 1 3/8 inches, which are essential specifications for precise installation. Packaged individually and ready to ship via UPS, this hinge is ideal for professionals seeking reliable solutions in standard door applications. Upgrade your cabinetry with the Richelieu UC71M255180 CLIP Hinge - 100, where quality craftsmanship meets practical design, delivering long-lasting performance for your projects.
CLIP Hinge - 100
Cabinet Thickness: 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +100°
Hinge Type: CLIP
Mechanism: Spring Closing

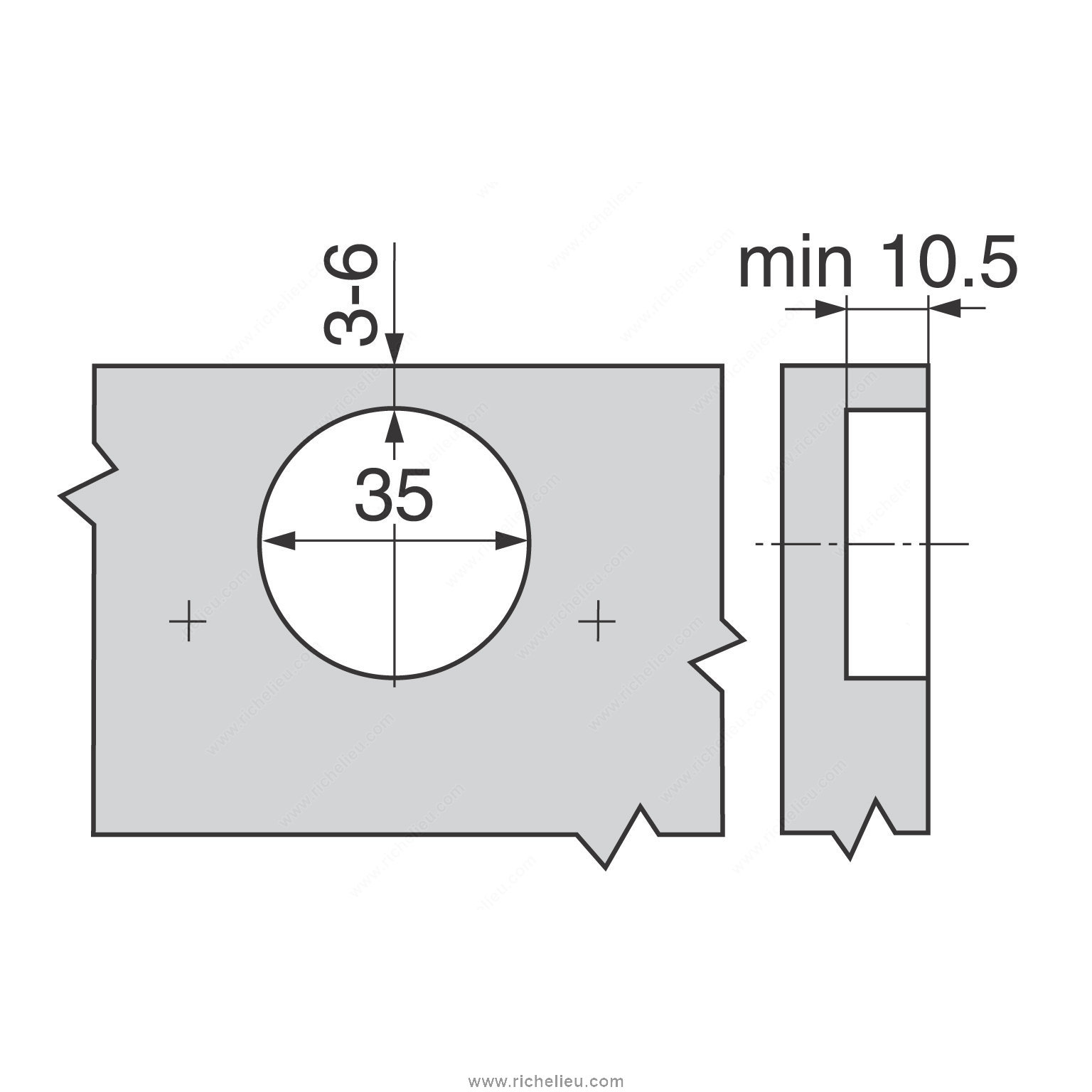

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging Specifications: UPC Code
Packaging format: Per unit
Product #: UC71M255180
Product number: UC71M255180
Screw/ Nail: Wood
Unit 1: package - 25
Unit 2: case - 250
Use Type: Standard Door
