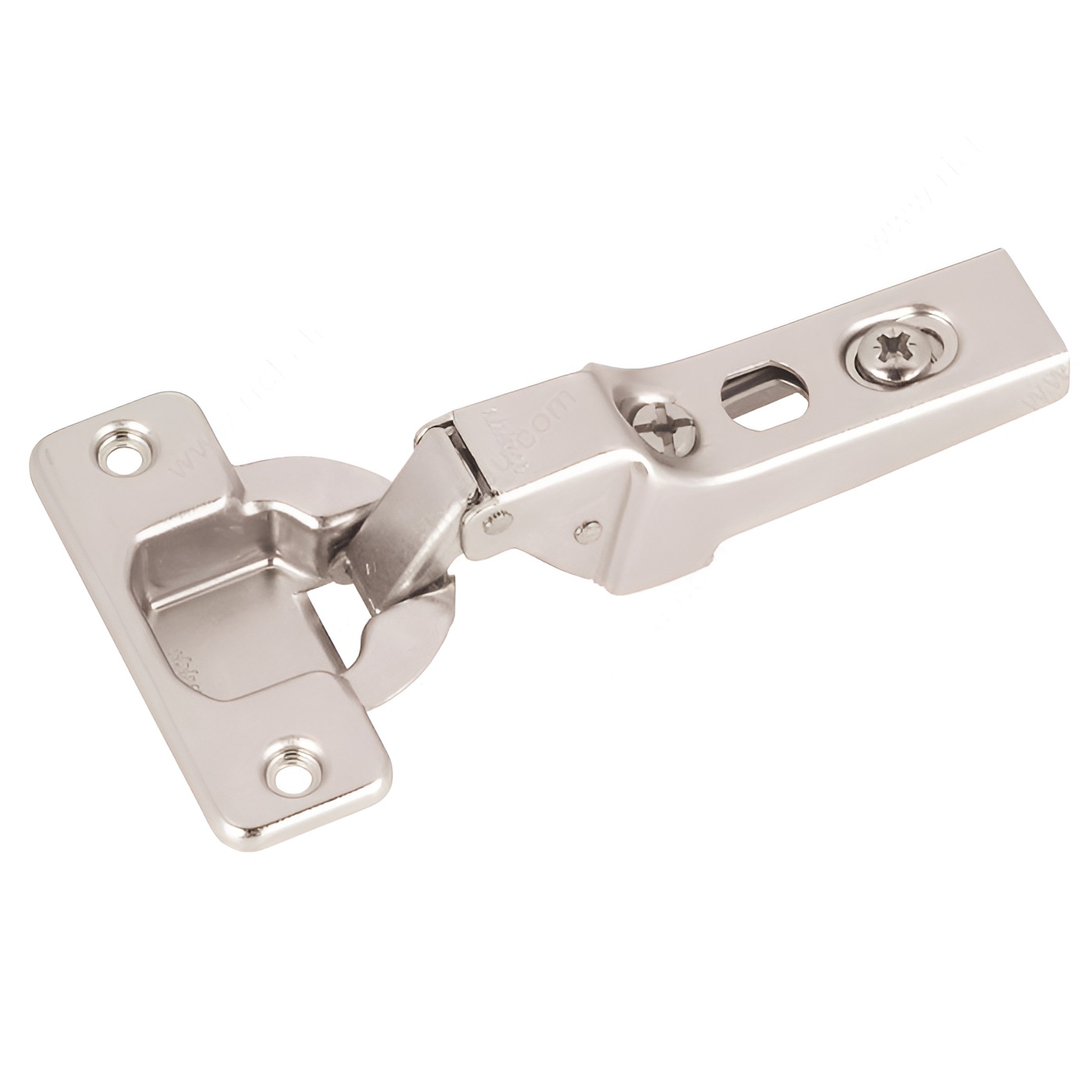

Richelieu UC71M265180 CLIP Hinge offers a perfect blend of functionality and convenience, specifically designed for frameless cabinets. Its ergonomic design ensures easy handling, making installation straightforward for professionals and DIY enthusiasts alike. The unique fixing mechanism allows for rapid and secure connections to the mounting plate, enhancing efficiency during assembly. This hinge accommodates cabinet thicknesses of 5/8 inch and is ideal for doors with a minimum thickness of 5/8 inch as well. With a hinge opening angle of +100°, it provides ample access to cabinet interiors, facilitating a smooth user experience. The spring closing mechanism ensures that doors close softly and securely, while the screw-on fixing type guarantees a reliable attachment. Milling requirements include a milling depth of 13/32 inch and a milling diameter of 1 3/8 inch, making it compatible with a range of applications. Each hinge is packaged per unit, and features a UPC code for easy inventory management. Designed specifically for standard doors, the Richelieu UC71M265180 CLIP Hinge stands out as a dependable choice for enhancing both functionality and aesthetics in modern cabinetry.
CLIP Hinge - 100
Cabinet Thickness: 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing

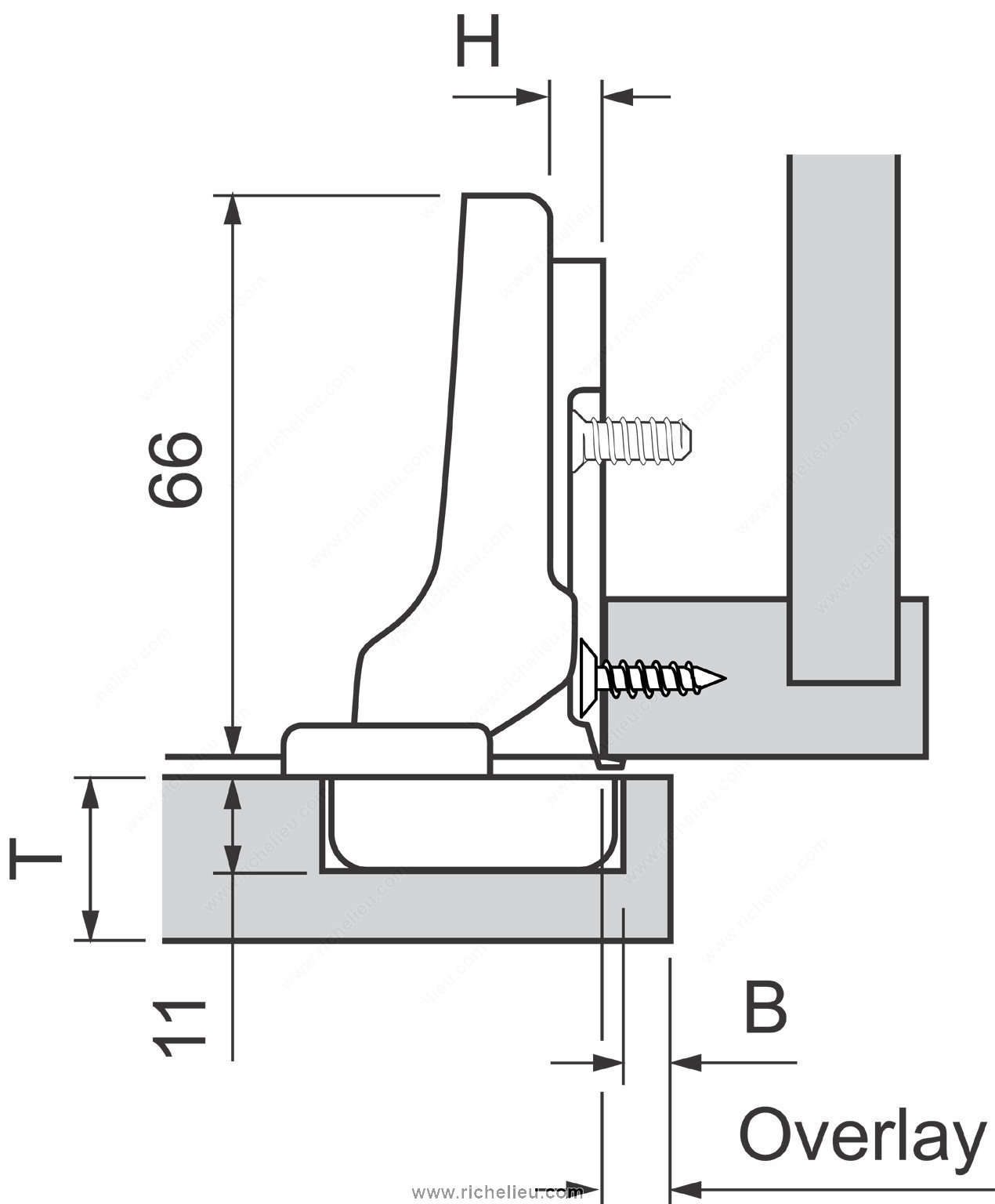

Door Position: Half Overlay
Door Thickness: Min. 16 mm
Fixing Type: Screw-On
Hinge Opening Angle: +100°
Hinge Type: CLIP
Mechanism: Spring Closing

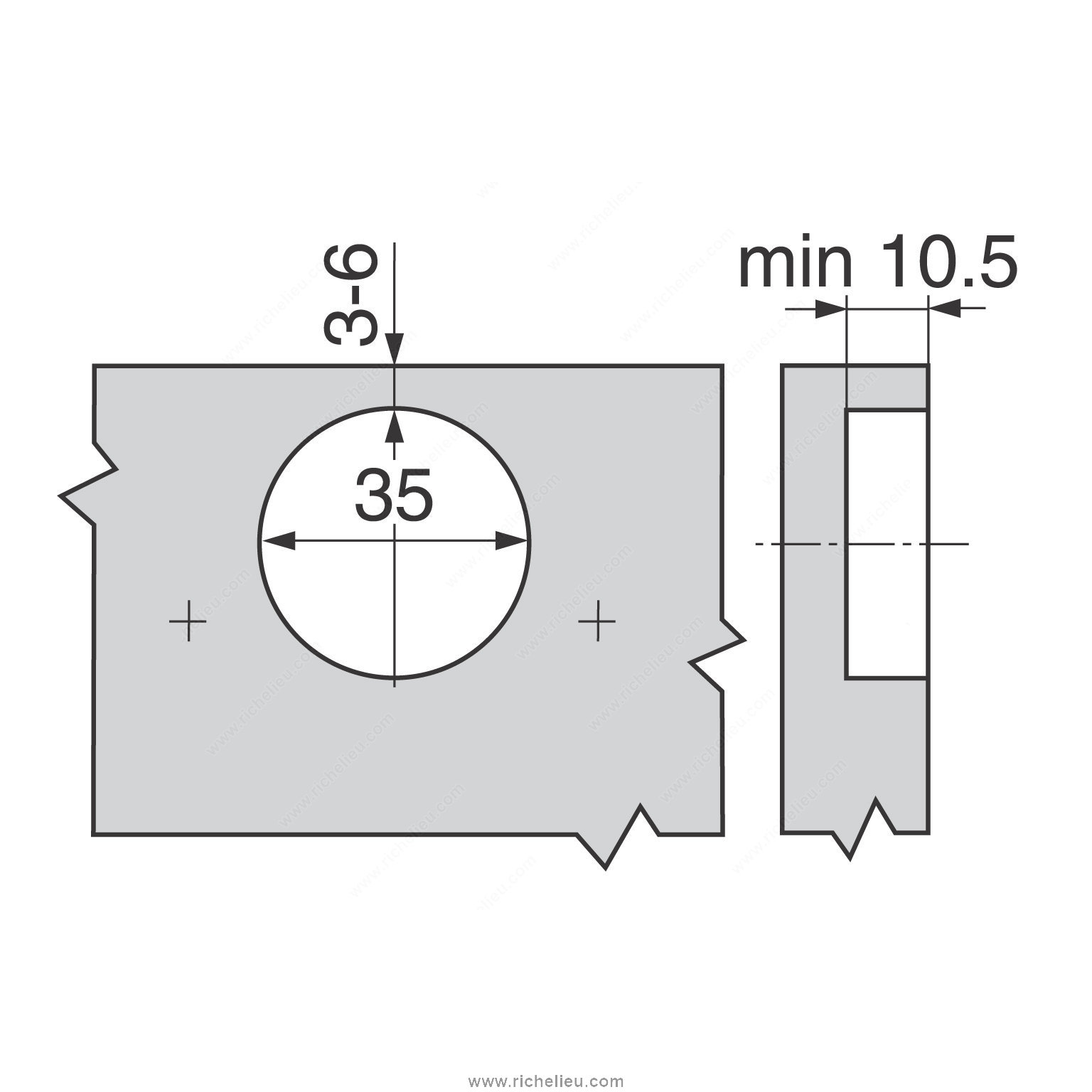

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging Specifications: UPC Code
Packaging format: Per unit
Product #: UC71M265180
Product number: UC71M265180
Screw/ Nail: Wood
Unit 1: package - 25
Unit 2: case - 250
Use Type: Standard Door
