Richelieu WEBKIT1004071 HAWA Porta 60/100 HMD SystemRichelieu WEBKIT1004071 HAWA Porta 60/100 HMD System offers a robust yet elegant solution for sliding wood doors, accommodating weights of up to 60 kg or 100 kg. Designed for versatility, this low-profile sliding system features a rebate/mortise mount suspension plate that allows for seamless integration at the top of the door. The system's low profile upper track ensures it fits comfortably in spaces with limited overhead clearance. Equipped with smooth, premium ball bearing trolleys, the HAWA Porta guarantees a quiet and effortless operation. An integrated track stopper with an adjustable retaining device minimizes door bounce back, enhancing safety and functionality. Installation is straightforward, as the track can be mounted directly to the wall, streamlining the setup process. For added convenience, an automatic soft close mechanism is available separately, allowing you to incorporate this feature even after installation. Ideal for premium residential and commercial projects, this system is perfect for single door openings, room dividers, and applications requiring low headroom. Important specifications include a maximum door height of 8 ft 10 in, accommodating door widths from 33 1/8 to 63 in, and a thickness range of 1 3/16 to 1 25/32 in. Ensure precise installation by using metric dimensions for optimal results.
HAWA Porta 60/100 HMD System
The HAWA PORTA 60/100HMD is a low-profile sliding system for wood doors weighing up to 60 kg or 100 kg each.

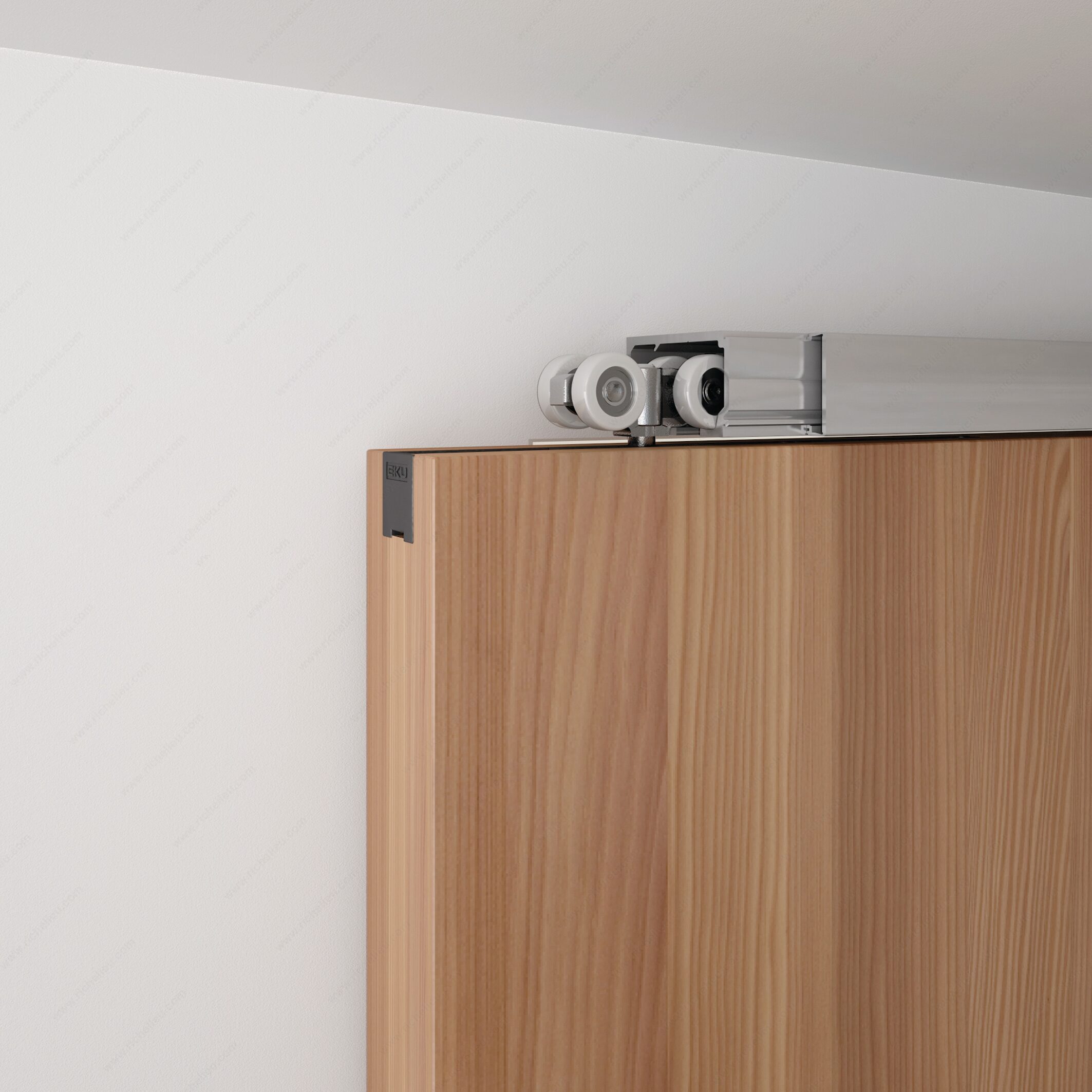

- Rebate/mortise mount suspension plate for the top of the door
- Low profile upper track for low overhead clearance
- Integrated track stopper with adjustable retaining device to resist door bounce back
- Mount track directly to the wall for simple installation
- Smooth and quiet premium ball bearing trolleys
- Automatic soft close mechanism available, sold separately
- Soft close mechanism can be added or removed after the track is installed

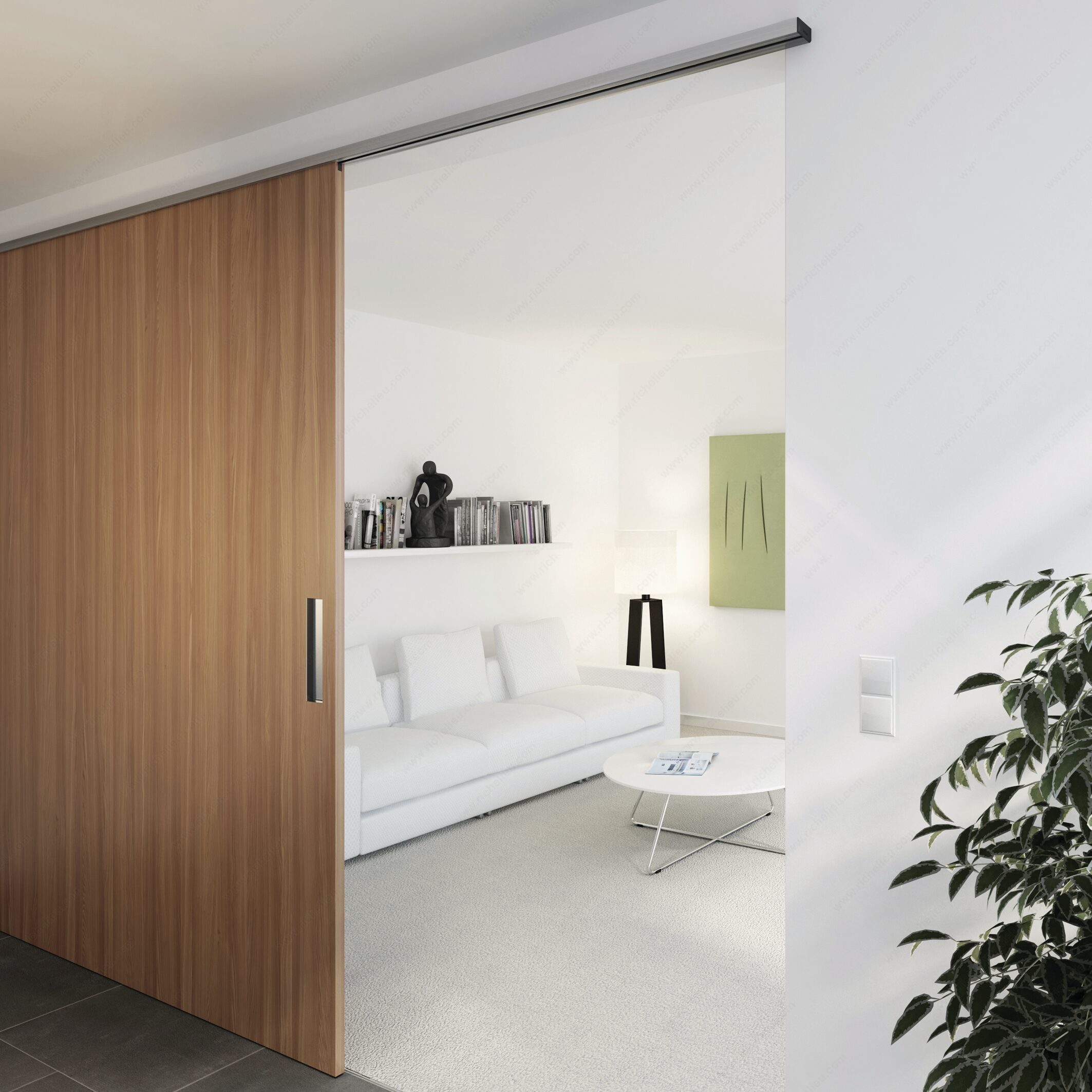

An ideal solution for premium commercial and residential projects, single door openings, room dividers, and applications with low headroom.
IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a groove 12 x 16 mm at the bottom of the door for floor guide. For door widths greater than 1200mm we suggest a bottom guide rail.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Storage, Screen Panel
Brand: Hawa
Brand Model: Hawa Porta
Detailed Door Movement: Single Sliding
Door Height: Max. 2 700 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Position: In Front of Wall
Door Thickness: 30 to 40 mm
Door Width: Max. 1 600 mm
Finish: Satin Aluminum
Groove Depth: 16 mm
Groove Needed for Guiding System: Yes
Groove Width at the Bottom of Door: 12 mm
Length - Overall Dimensions: 11 ft 5 in*
Load Capacity: 22 to 132 lb*
Manufacturing Material: Aluminum
Milling: 18 mm
Milling Depth: 23 mm
Number of Doors: 1
Overall Length: 3 500 mm
Product #: WEBKIT1004071
Product number: WEBKIT1004071
Product №: WEBKIT1004071
Roller Position: Upper
Roller Type: Axle (Bushing)
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Stopper: Two
Track Finish: Satin Aluminum
Track Length: 3.5 m
Track Material: Anodized Aluminum
Track Mounting: Wall Mount
Weight Capacity per Door: Max. 60 kg
