Richelieu WEBKIT1004075 HAWA PORTA HM Sliding System InstructionsRichelieu WEBKIT1004075 HAWA PORTA HM Sliding System provides a sophisticated solution for both commercial and residential environments, accommodating wood doors weighing up to 100 kg. This low-profile sliding system features a rebate or mortise mount suspension plate, offering versatility in installation. The upper track can be either recessed or surface mounted, ensuring a clean aesthetic that fits seamlessly into any design. Equipped with premium ball bearing trolleys, the HAWA PORTA HM guarantees smooth and quiet operation. The integrated track stopper with an adjustable retaining device effectively prevents door bounce-back, enhancing safety and usability. With various track configurations available for straight sliding, bypassing, and telescopic doors, this system caters to diverse architectural needs. The soft self-closing mechanism, available separately, can be installed or removed after the track is in place for added convenience. Ideal for single openings or room dividers, this system is particularly beneficial in low headroom applications. Important installation guidance includes using metric dimensions for accuracy and ensuring a groove of 12 x 16 mm at the bottom of the door for the floor guide. For wider doors exceeding 1200 mm, a bottom guide rail is recommended. The satin aluminum finish adds a modern touch to this functional yet stylish sliding door system.
HAWA PORTA HM Sliding System

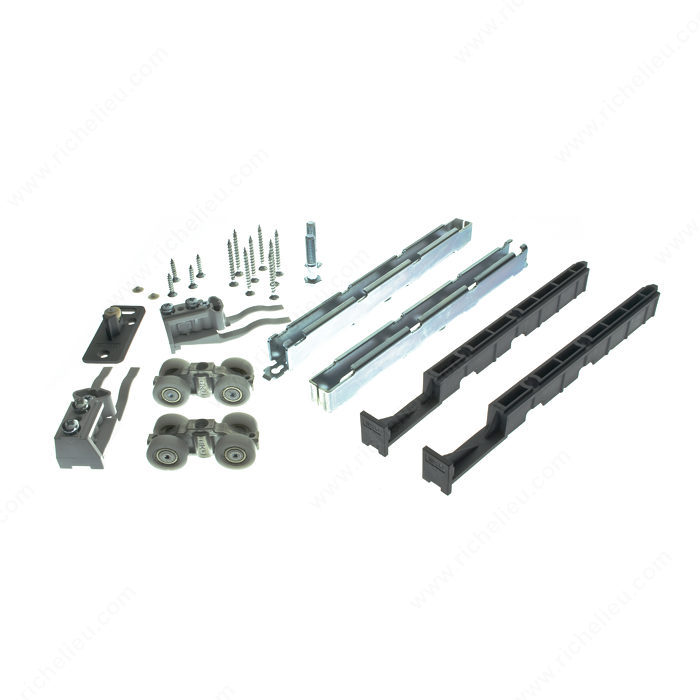

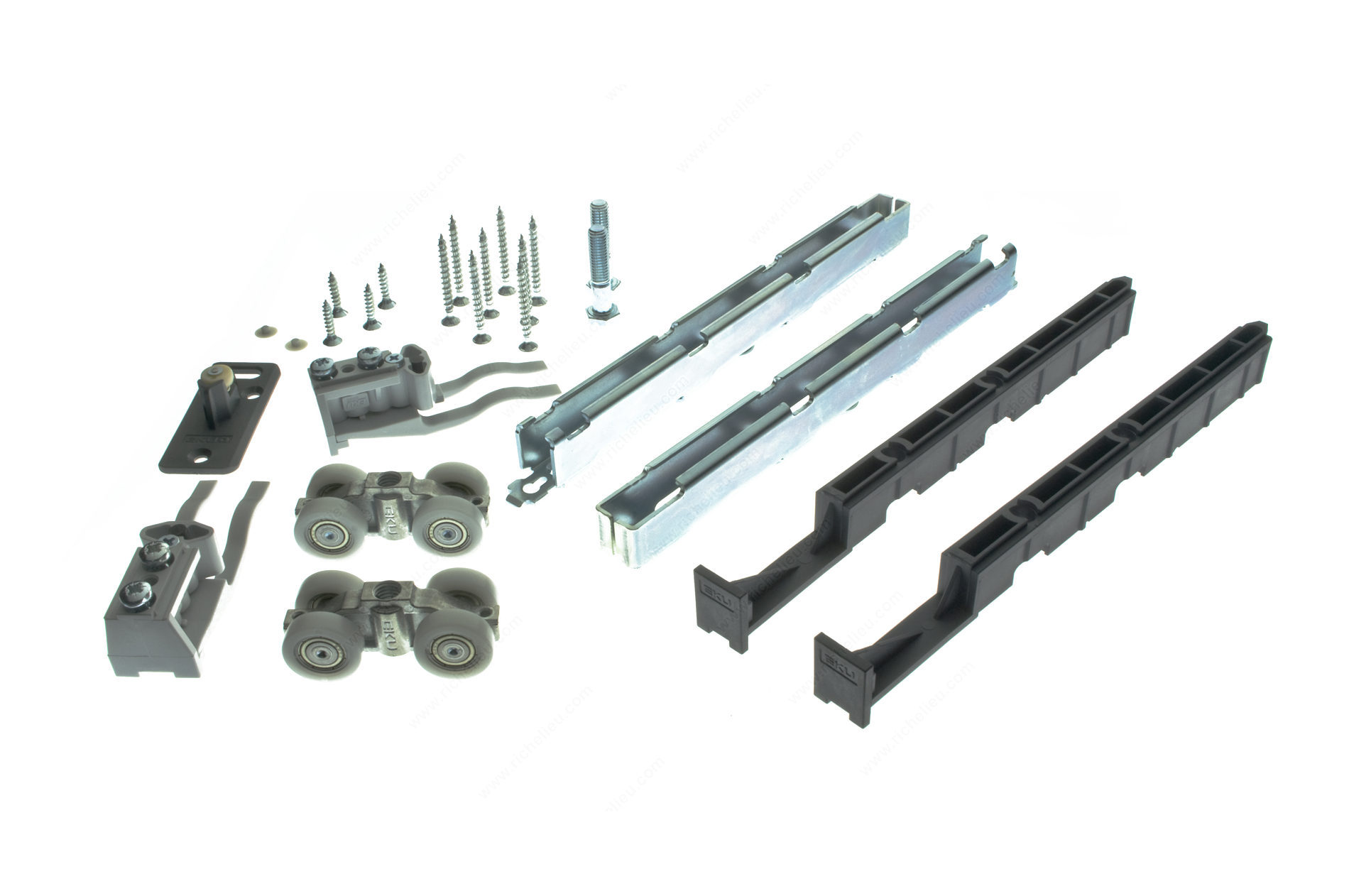

The HAWA PORTA HM is a low profile sliding system is for wood doors weighing up to 60 kg or 100 kg each.
- Rebate or mortise mount suspension plate for the top of the door
- Low profile upper track can be recessed or surface mounted
- Integrated track stopper with adjustable retaining device to resist door bounce back
- Variety of tracks to choose from for various types of configurations for straight sliding, bypassing and telescopic doors
- HM series for ceiling mount single, dual, triple
- Smooth and quiet premium ball bearing trolleys
- Available soft self-closing mechanism sold separately
- Soft-close can be loaded or removed after the track is installed.
- Telescopic operation possible for up to three doors with stacking set without bottom guide track, sold separately

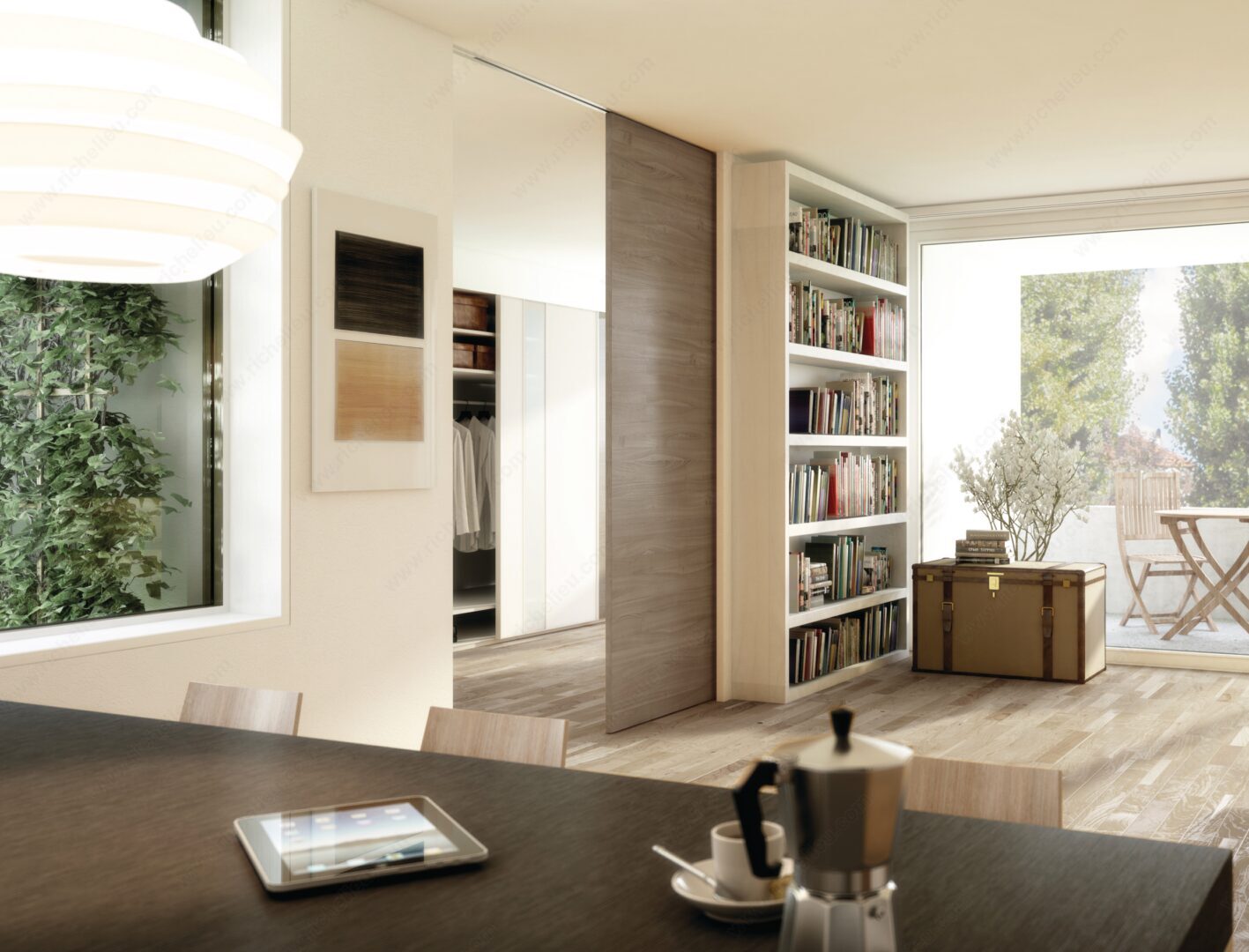

The HAWA PORTA HM is an ideal solution for premium commercial and residential projects, single door openings, room dividers, and low headroom applications.
IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a groove 12 x 16 mm at the bottom of the door for floor guide. For door widths greater than 1200mm we suggest a bottom guide rail.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door
Bottom Guide: Yes
Brand: Hawa
Brand Model: Hawa Porta
Detailed Door Movement: Single Sliding
Displayed in These Showrooms: Montreal
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Inside Frame
Door Thickness: 30 to 40 mm
Door Width: 840 to 1 250 mm
Finish: Satin Aluminum
Groove Depth: 16 mm
Groove Width at the Bottom of Door: 12 mm
Length - Overall Dimensions: 98 3/8 in*
Load Capacity: 134 to 220 lb*
Manufacturing Material: Aluminum
Milling: 18 mm
Milling Depth: 23 mm
Number of Doors: 1
Opening: Left arm / Right arm
Overall Length: 2 500 mm
Product #: WEBKIT1004075
Product number: WEBKIT1004075
Product №: WEBKIT1004075
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: One-Way Operation
Track Finish: Satin Aluminum
Track Length: 2.5 m
Track Material: Anodized Aluminum
Track Mounting: Ceiling Mount
Weight Capacity per Door: Max. 100 kg
