Richelieu WEBKIT1004078 HAWA PORTA 100 GWF Sliding Door Fixed Glass Partition SystemRichelieu WEBKIT1004078 HAWA PORTA 100 GWF Sliding Doors and Fixed Glass Partition System offers an elegant solution for modern spaces, accommodating frameless sliding and fixed glass panels weighing up to 220 lb (100 kg) each. This top-hung concealed system features clamping shoes discreetly integrated into the upper track, eliminating the need for drilling into the glass, which simplifies installation. Designed for versatility, the upper track can be surface or recess mounted, allowing for quick and cost-effective setup. Optional soft-close mechanisms are available separately, enhancing user experience by ensuring smooth and silent operation. The HAWA PORTA 100 GWF is ideal for both commercial and residential settings, including meeting rooms, office partitions, and transaction counters in public areas. With a maximum door height of 8 ft 10 in and a width of 63 in, this system supports glass thicknesses ranging from 5/16 to 1/2 in. Finished in satin aluminum, it combines durability with a contemporary aesthetic. Each package offers various configurations, including à-la-carte and complete kits, catering to diverse project needs. The overall length of the system measures 11 ft 5 in, providing ample coverage while maintaining a sleek profile.
HAWA PORTA 100 GWF Sliding Doors and Fixed Glass Partition System
The HAWA PORTA 100 GWF is a top-hung concealed glass partition system for frameless sliding and fixed glass panels weighing up to 220 lb (100 kg) each.

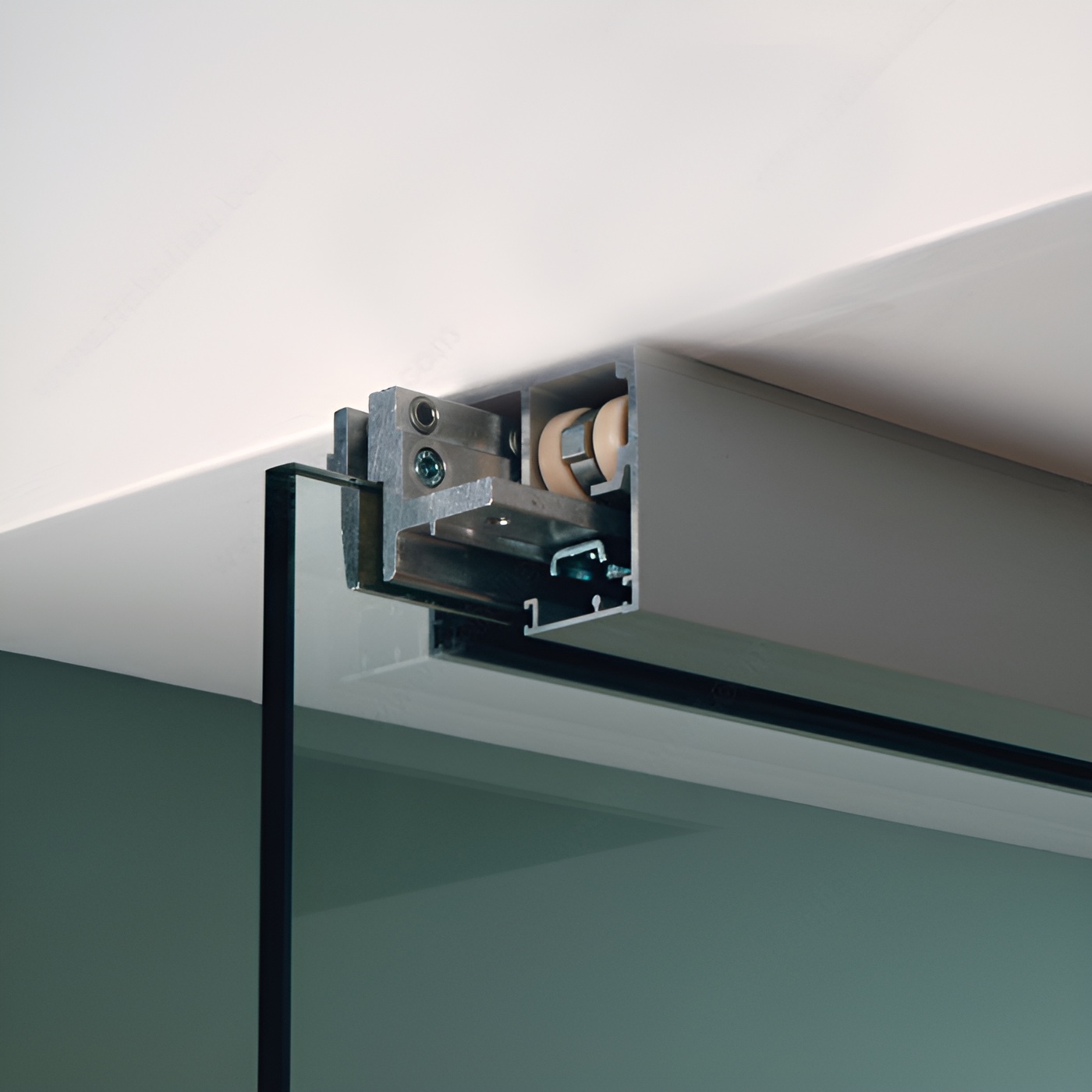

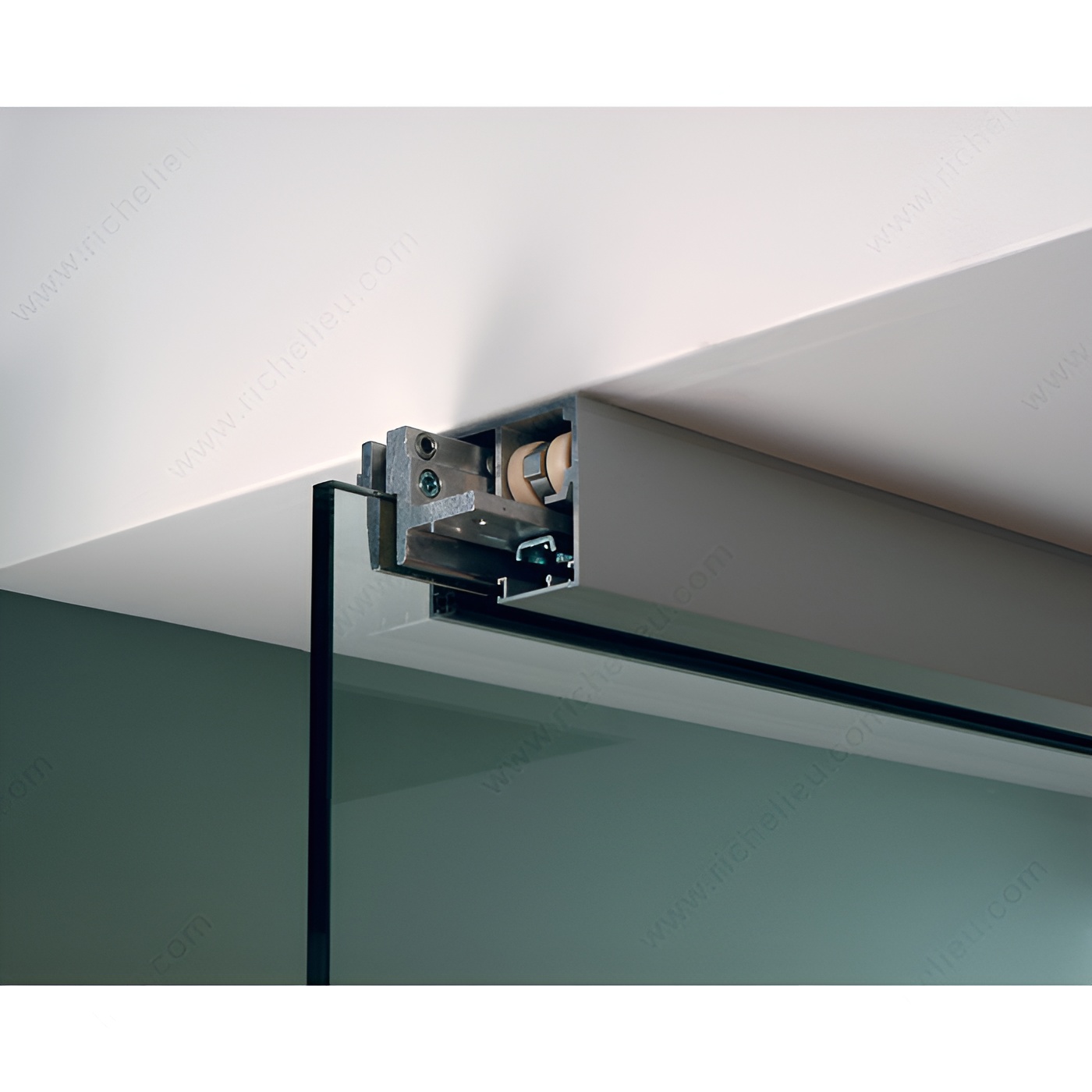

- Clamping shoes are concealed in the upper track, requires no drilling for glass
- Optional integrated soft-close mechanisms sold separately

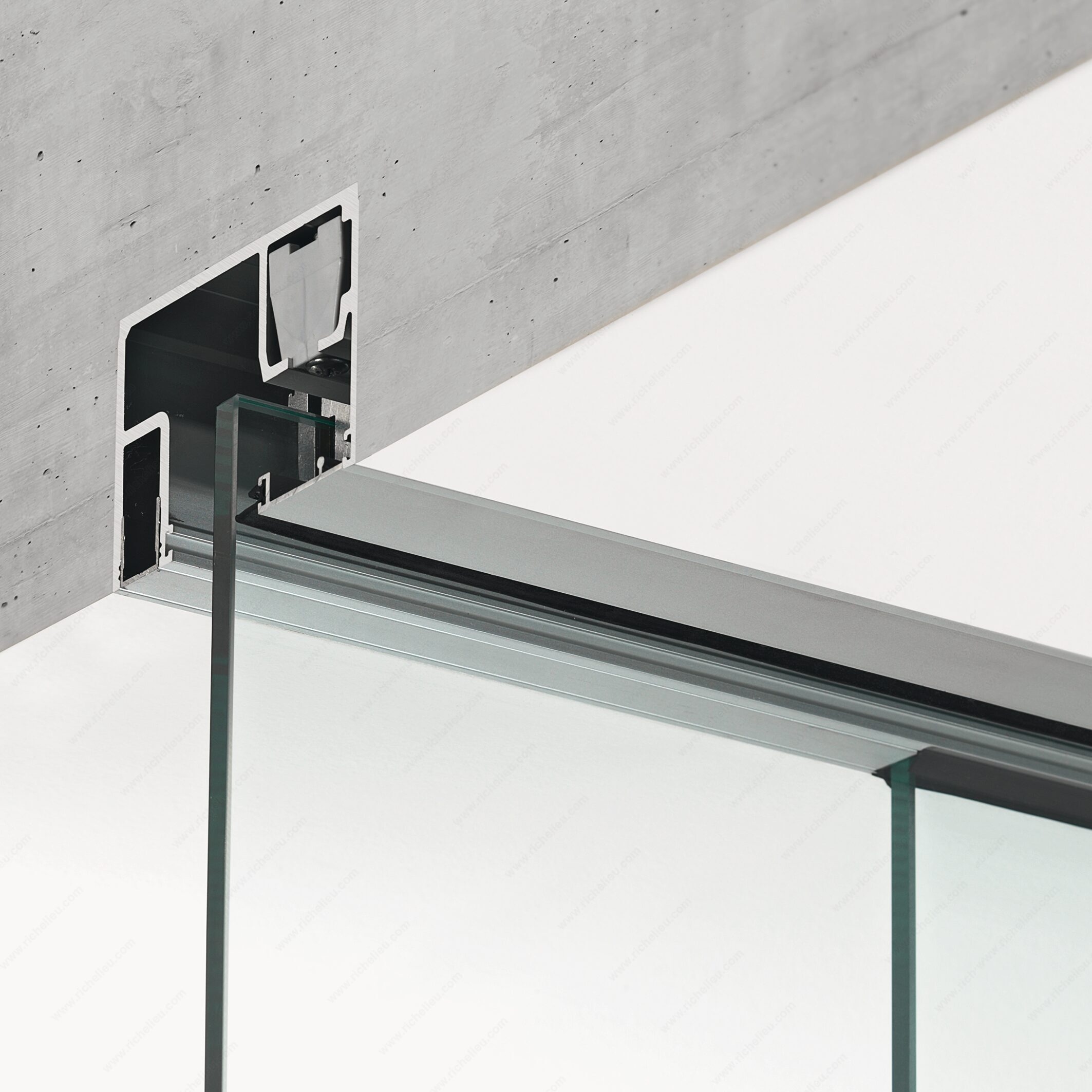

- Upper track can be surface or recess mounted
- Quick and simple low-cost installation

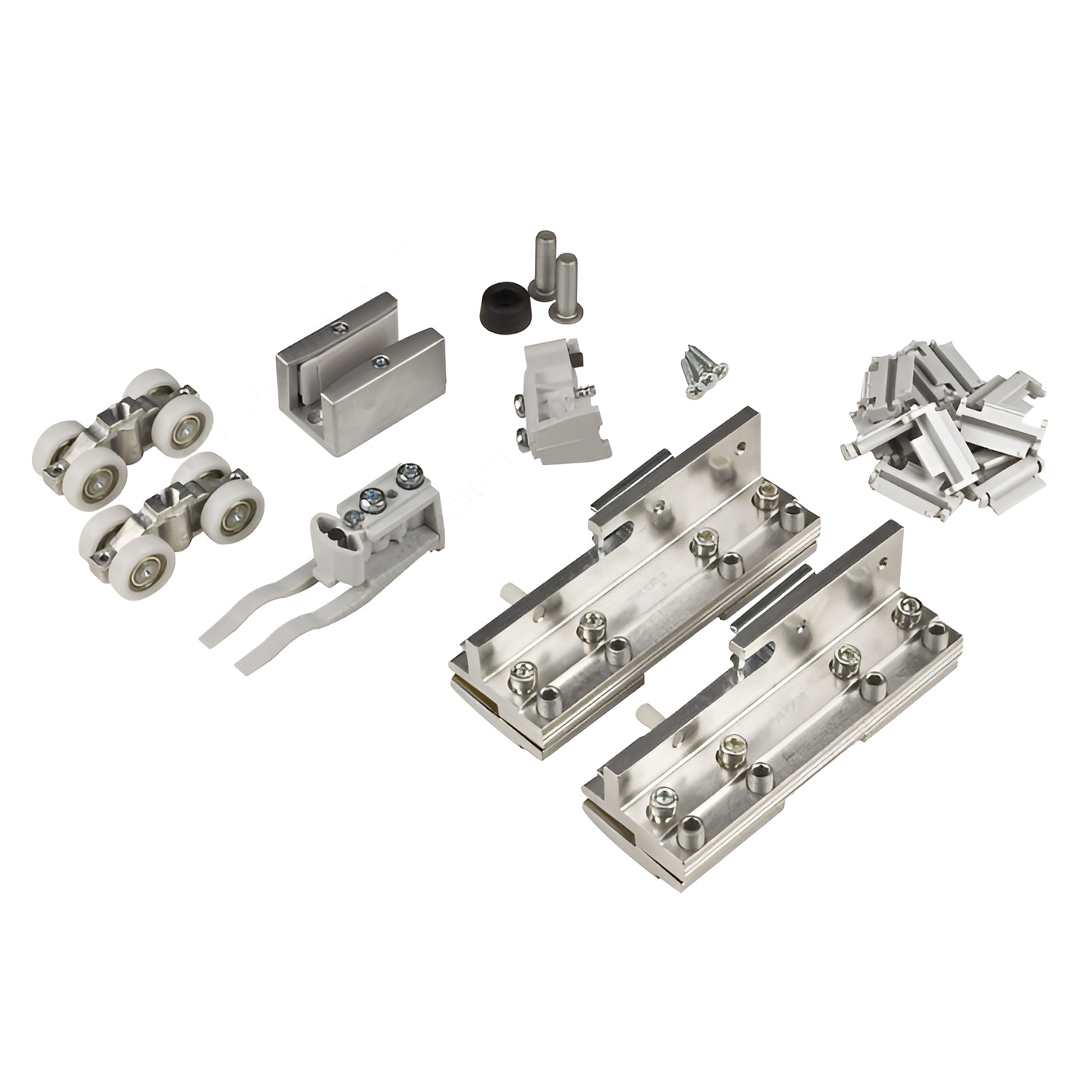

- Available in à-la-carte and complete kit formats

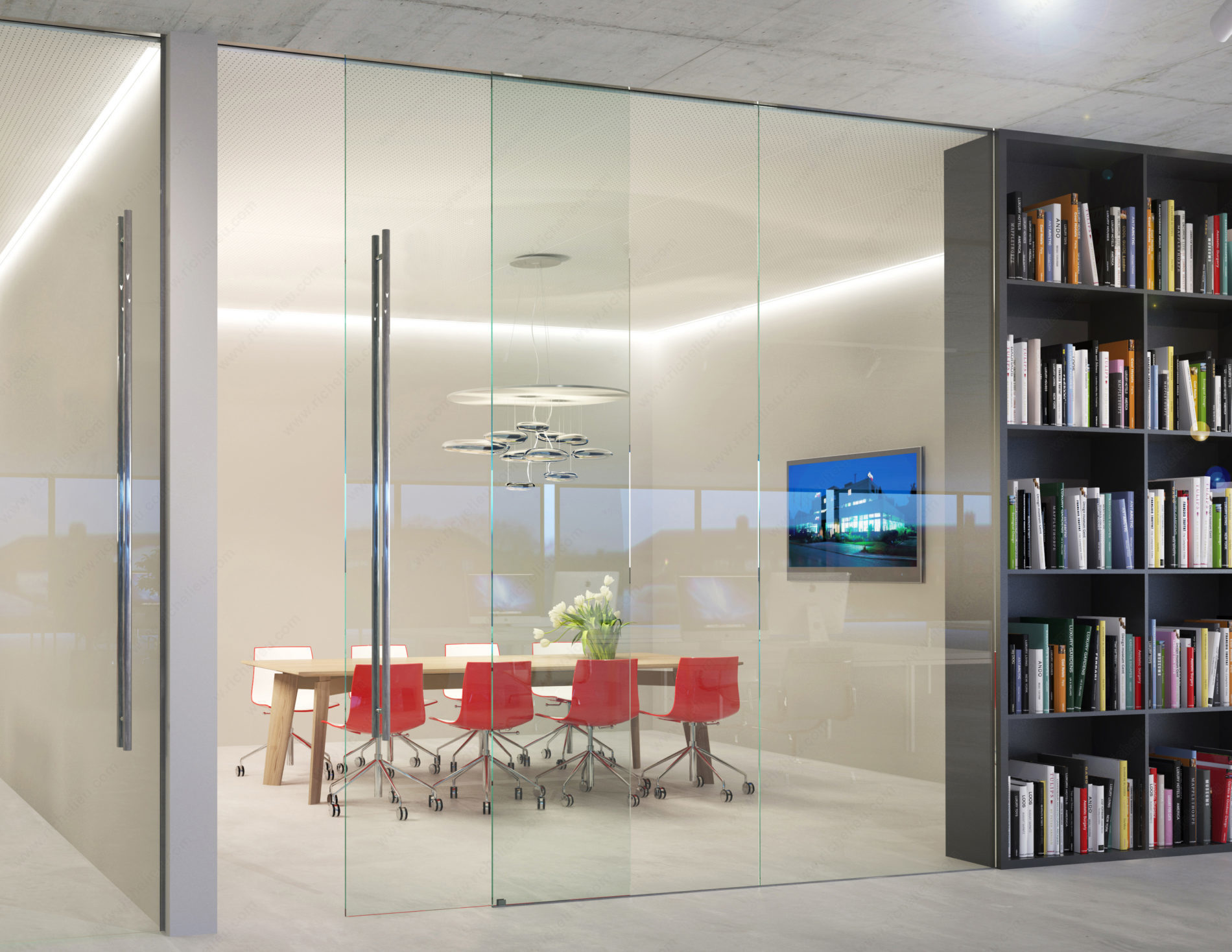

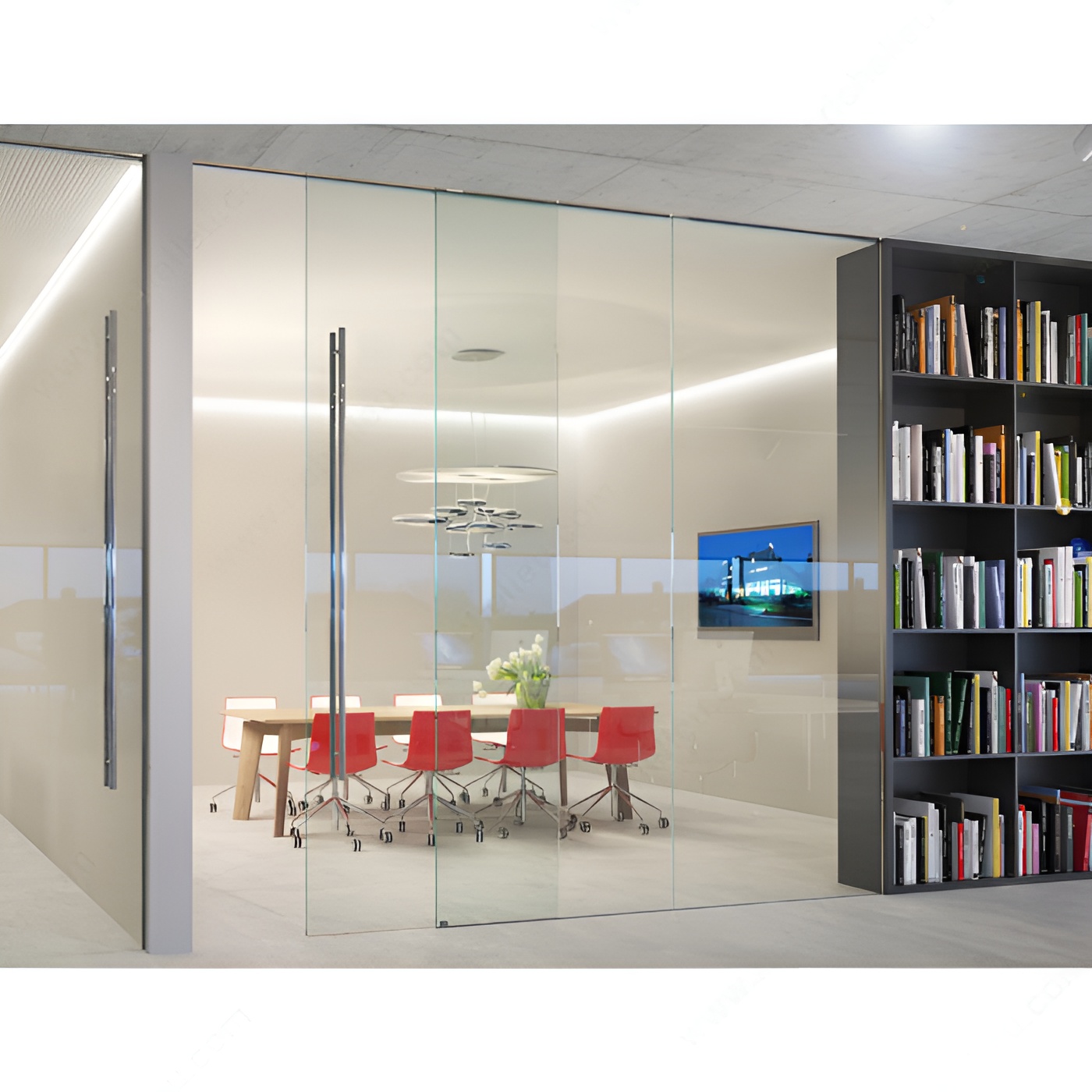

The HAWA PORTA 100 GWF is an ideal solution for commercial and residential applications, meeting rooms, office partitions, and transaction counters in public spaces.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Screen Panel, Glass Partition
Brand: Hawa
Detailed Door Movement: Single Sliding
Displayed in These Showrooms: Mississauga
Door Height: Max. 2 700 mm
Door Material: Glass
Door Movement: Straight Sliding
Door Position: Inside Frame
Door Thickness: 8 to 12.7 mm
Door Width: Max. 1 600 mm
Finish: Satin Aluminum
Length - Overall Dimensions: 11 ft 5 in*
Load Capacity: Max. 220 lb*
Manufacturing Material: Aluminum
Number of Doors: 1
Overall Length: 3 500 mm
Product #: WEBKIT1004078
Product number: WEBKIT1004078
Product №: WEBKIT1004078
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Track Finish: Satin Aluminum
Track Length: 3 500 mm
Track Material: Anodized Aluminum
Track Mounting: Ceiling Mount
Weight Capacity per Door: Max. 100 kg
