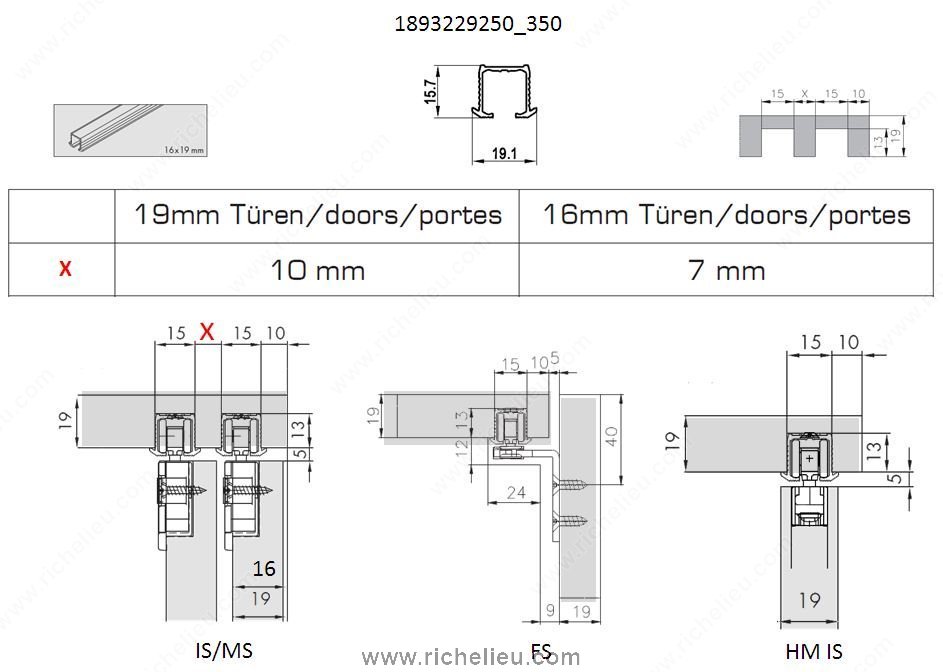

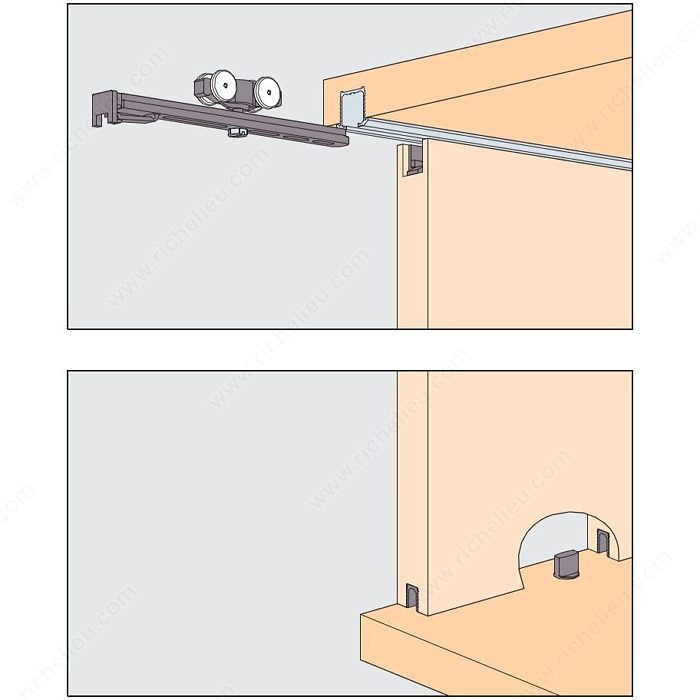

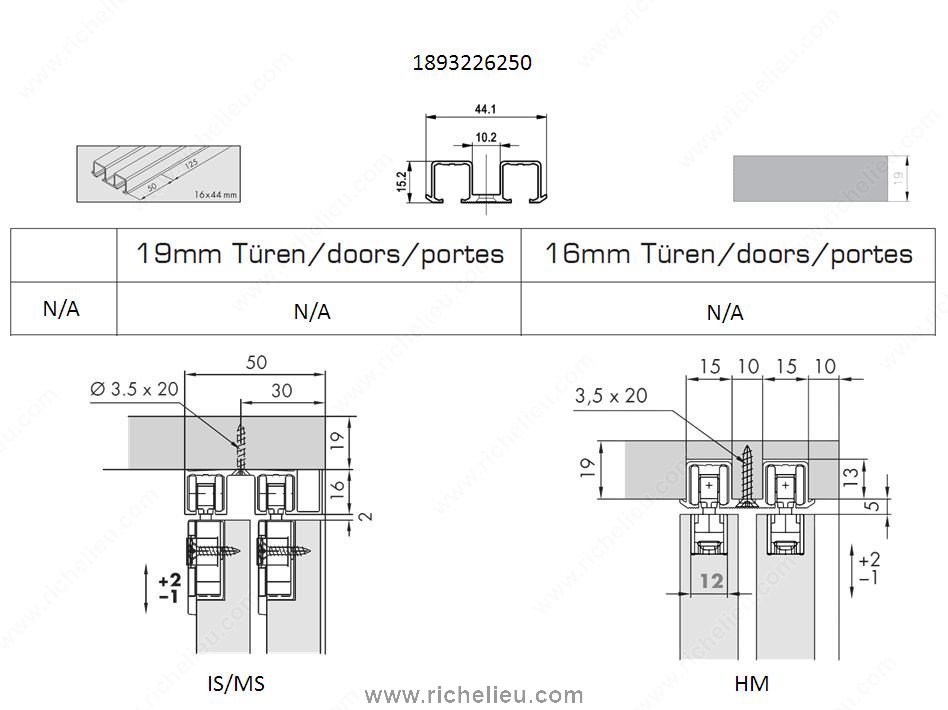

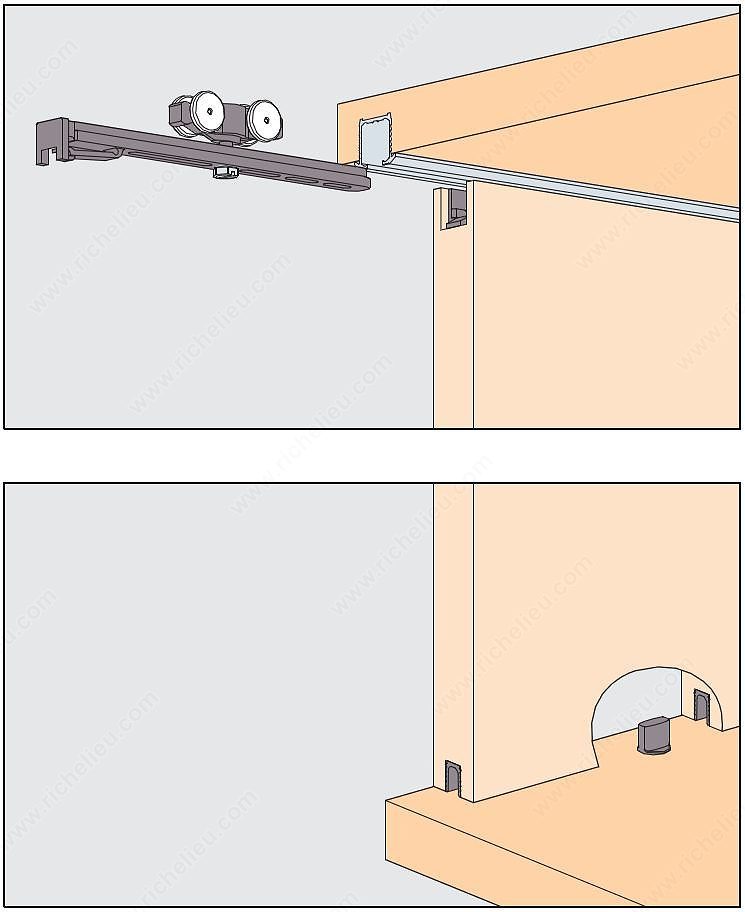

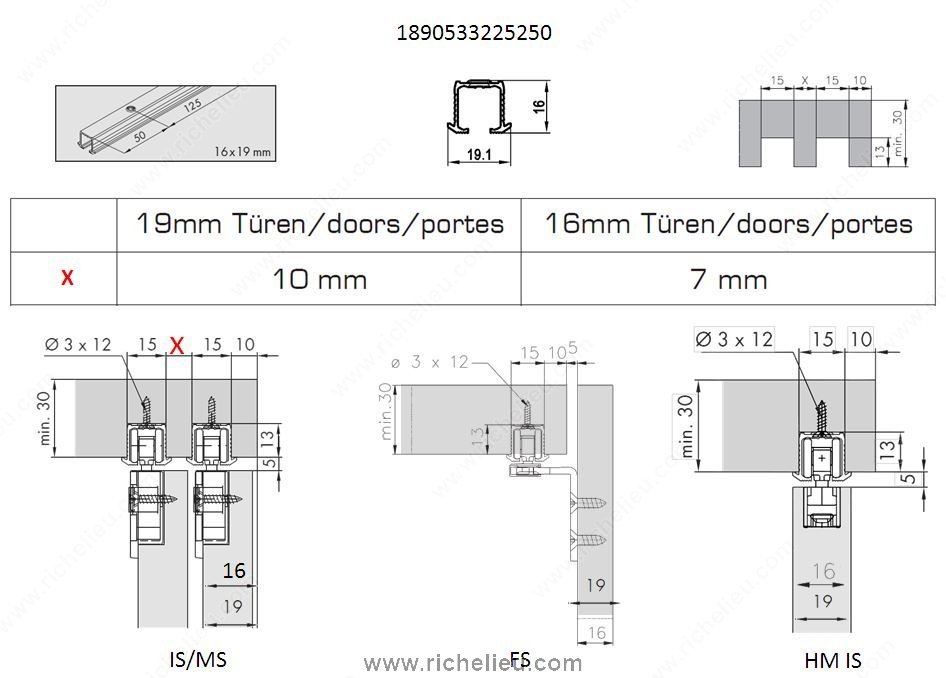

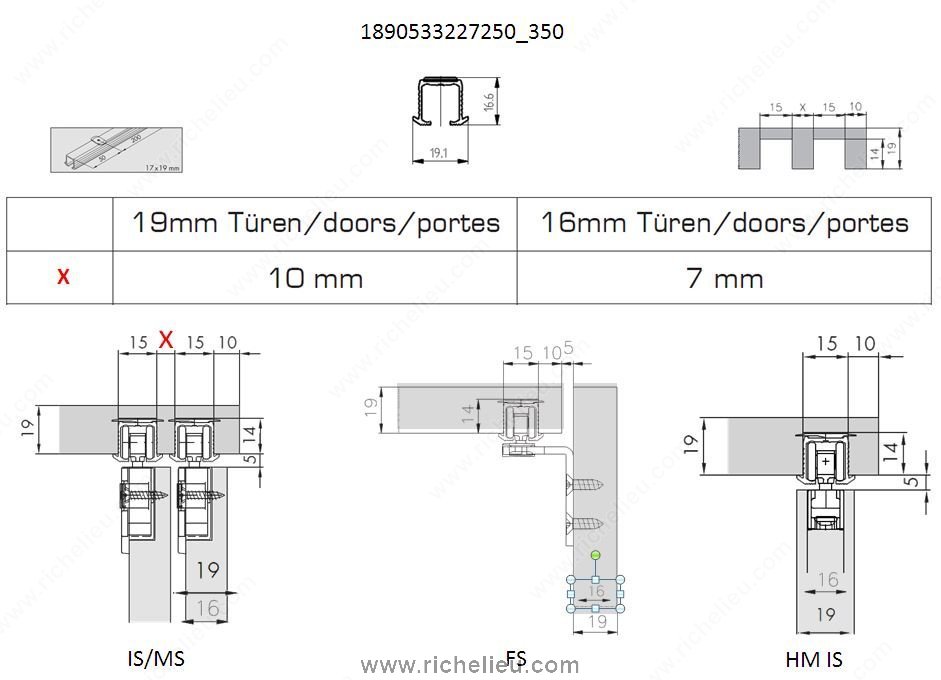

Richelieu WEBKIT1213524 HAWA CLIPO 16 HM IS Bypassing Sliding Door System offers a sophisticated solution for your interior design needs, accommodating two wooden doors with a maximum weight of 35 lb (16 kg) each. Ideal for inslide and inlay applications, this top running sliding system features running gear that is elegantly mortised into the door's top, ensuring a seamless aesthetic. The flexibility of the HAWA CLIPO system allows for various top track options, suitable for both single and double track applications. These tracks can be recessed or surface mounted to the cabinet top, giving you the versatility to adapt to different cabinet designs. Notably, the system does not require a lower guide track in the cabinet base, simplifying installation and maintenance. With a maximum door height of 55 1/8 inches and a width of 39 3/8 inches, this system can accommodate doors with a thickness ranging from 3/4 to 31/32 inches. Finished in satin aluminum, it combines durability with a modern look. Although a soft-close mechanism is available separately, the system operates smoothly and quietly, enhancing the overall user experience. Transform your cabinetry with the Richelieu HAWA CLIPO 16 HM IS for functional elegance.
HAWA CLIPO 16 HM IS Bypassing Sliding Door System
Ship via: No UPS - Common Carrier Only
Application: Furniture, Cabinet
Brand: Hawa
Detailed Door Movement: Bypassing
Door Height: Max. 1 400 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Inset/Inlay
Door Thickness: 16 to 19 mm
Door Width: Max. 1 000 mm
Finish: Satin Aluminum
Length - Overall Dimensions: 98 3/8 in*
Load Capacity: Max. 35.3 lb*
Manufacturing Material: Aluminum
Number of Doors: 2
Overall Length: 2.5 m
Product #: WEBKIT1213524
Product number: WEBKIT1213524
Product №: WEBKIT1213524
Roller Position: Upper
Roller Type: Axle (Bushing)
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Finish: Satin Aluminum
Track Length: 2.5 m
Track Material: Anodized Aluminum
Weight Capacity per Door: Max. 16 kg
