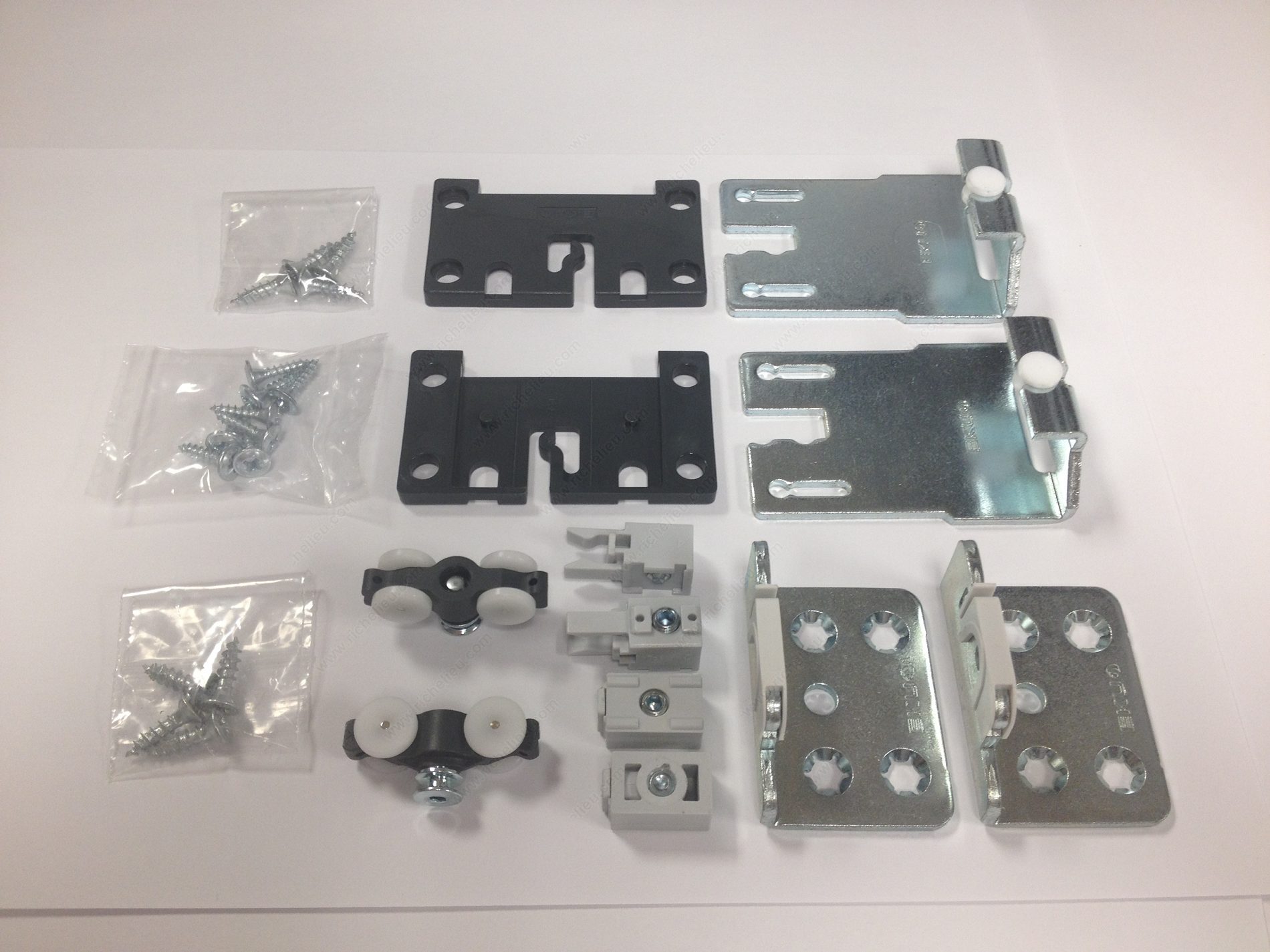

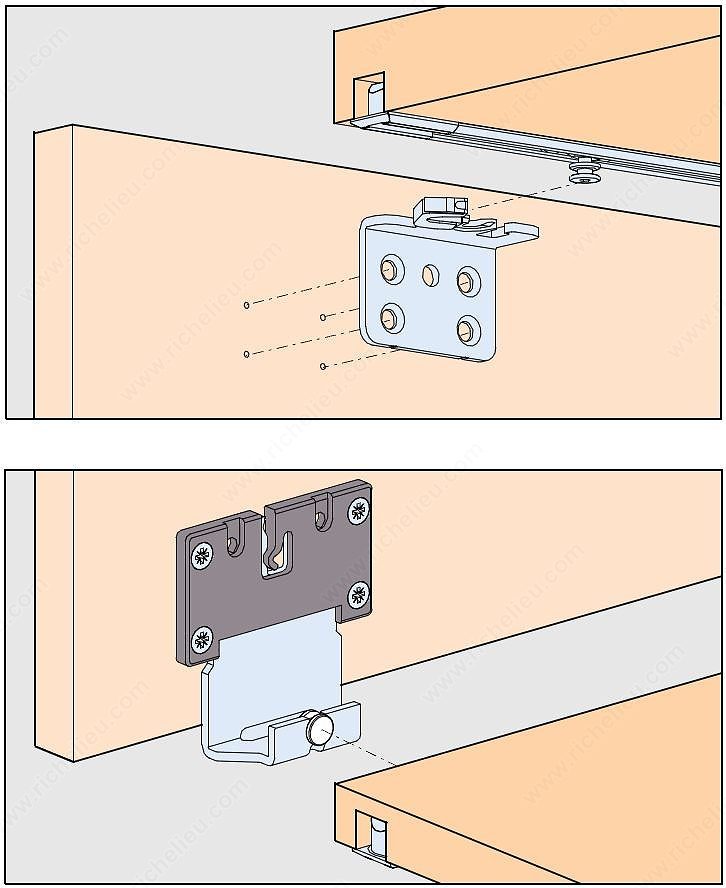

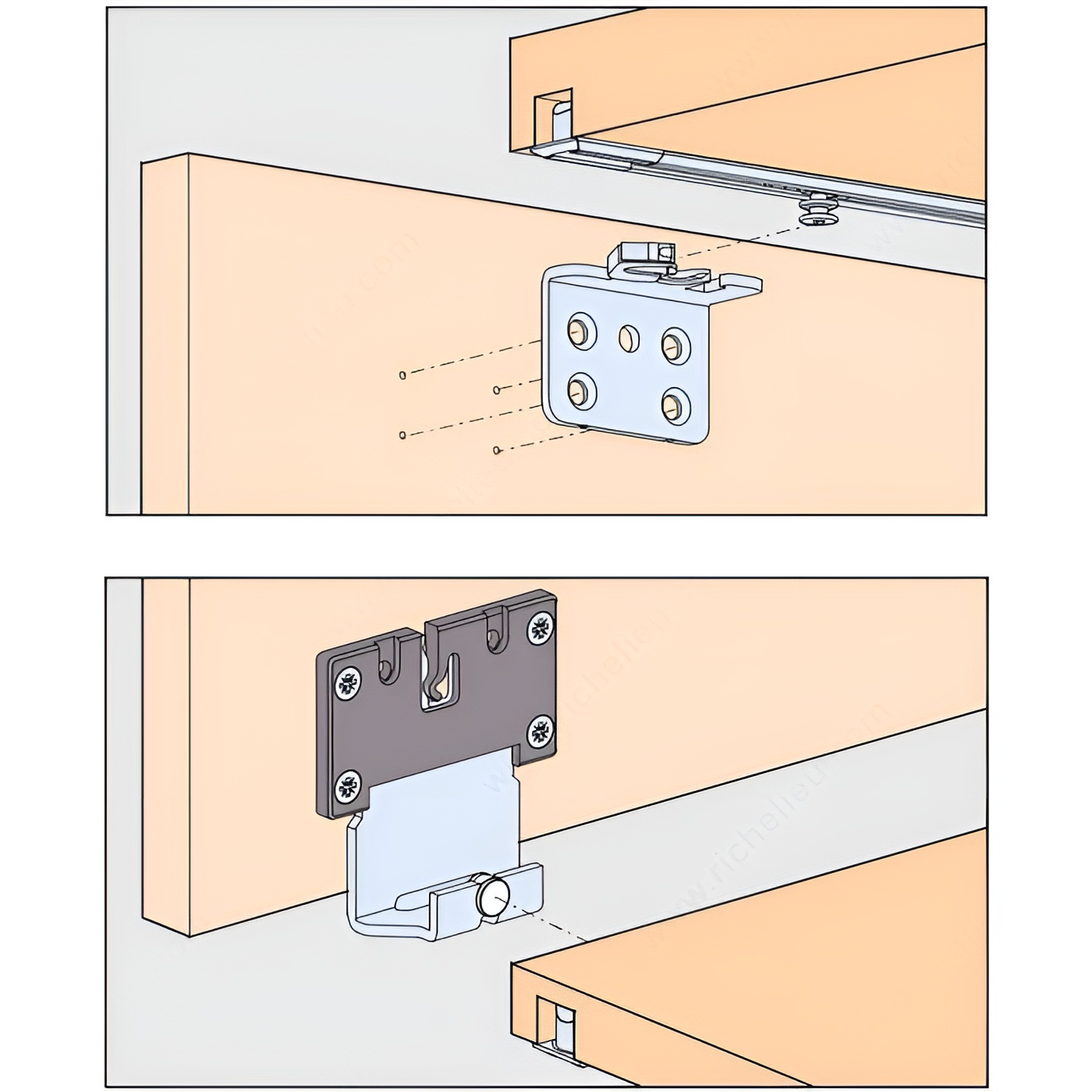

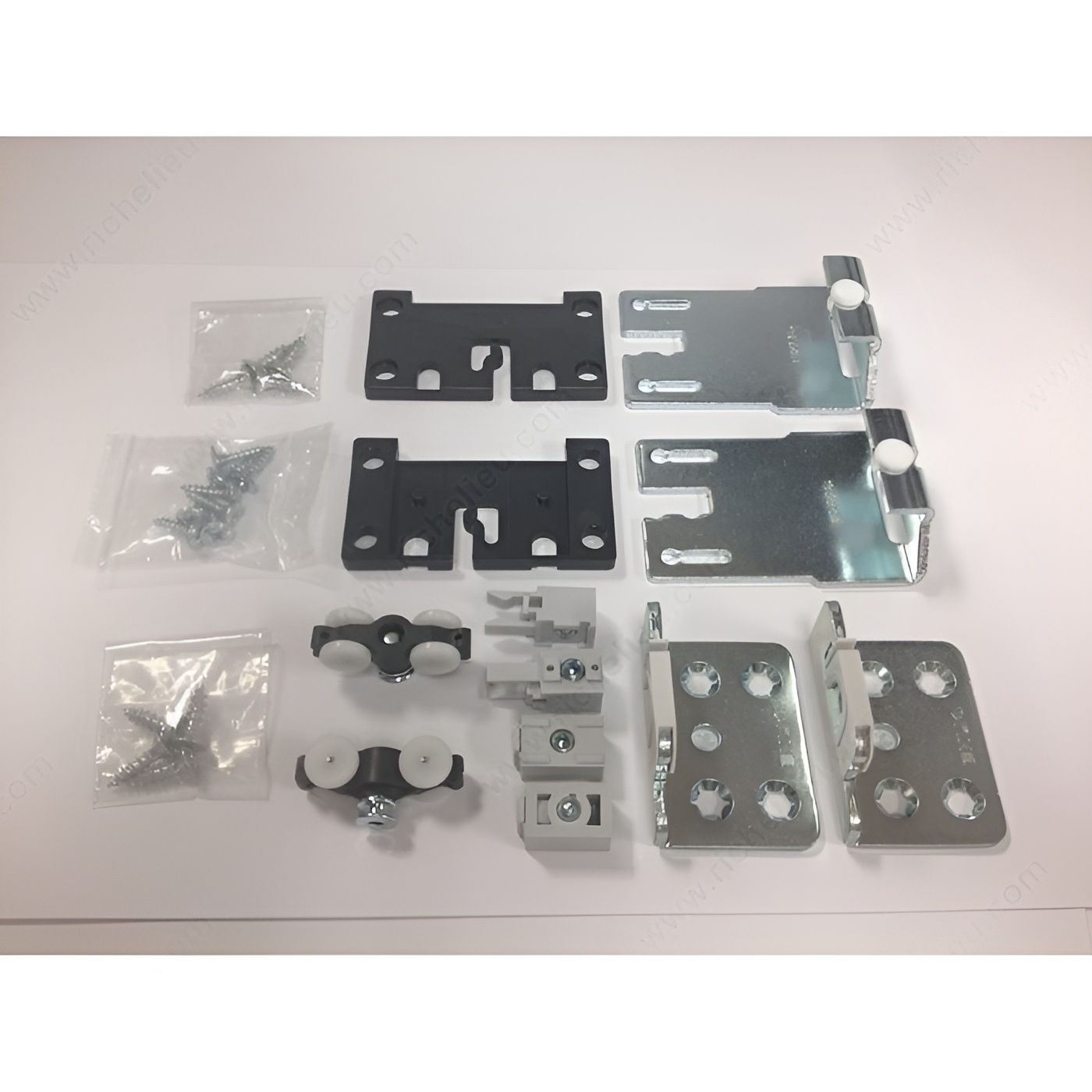

Richelieu WEBKIT1213525 HAWA CLIPO 16 H FS Full Overlay Sliding Cabinet Door System offers a sophisticated solution for modern cabinetry. This top-running sliding system supports a single wood door weighing up to 35 lb (16 kg), making it ideal for full overlay applications. The clever design features four guiding points and seamlessly integrates into your furniture or cabinet setup. The upper running gear and lower guide wheels are discreetly clipped into housings mounted at the back of the door, ensuring a clean and unobtrusive appearance. The tracks are recessed internally within the top of the cabinet and externally at the bottom, allowing for a streamlined aesthetic. For an added touch of luxury, an optional soft-close mechanism can be purchased separately, enhancing user experience. Designed for doors with a maximum height of 55 1/8 inches and a width of up to 39 3/8 inches, the system accommodates wood doors with a minimum thickness of 5/8 inches. The satin aluminum finish not only provides durability but also complements various design styles. With its upper roller position and axle bushing type roller, the HAWA CLIPO 16 H FS ensures smooth and reliable operation-perfect for both residential and commercial applications.
HAWA CLIPO 16 H FS Full Overlay Sliding Cabinet Door System
Application: Furniture, Cabinet
Brand: Hawa
Detailed Door Movement: Single Sliding
Door Height: Max. 1 400 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Full Overlay
Door Thickness: Min. 16 mm
Door Width: Max. 1 000 mm
Finish: Satin Aluminum
Load Capacity: Max. 35.3 lb*
Manufacturing Material: Aluminum
Number of Doors: 1
Product #: WEBKIT1213525
Product number: WEBKIT1213525
Product №: WEBKIT1213525
Roller Position: Upper
Roller Type: Axle (Bushing)
Soft- Closing: No
Track Finish: Satin Aluminum
Track Material: Anodized Aluminum
Weight Capacity per Door: Max. 16 kg
