Richelieu WEBKIT1213684 CINETTO PS40.1 Coplanar Sliding SystemRichelieu Cinetto PS40.1 Coplanar Sliding System offers an innovative solution for large cabinet doors, accommodating weights of up to 132 lb (60 kg) each. This versatile system supports the installation of one, two, or three wood doors, making it ideal for closets, pantries, and wardrobes in both residential and commercial settings. The Cinetto PS40.1 features recessed mount hardware that is fully adjustable, ensuring a perfect fit for various applications. It comes equipped with a soft-close mechanism for a seamless and quiet operation, enhancing the overall user experience. Notably, no special cabinet fabrication is required, simplifying the installation process. Available in two elegant track finishes-silver and stainless steel effect anodized aluminum-this system complements a wide range of design aesthetics. For those seeking advanced functionality, an optional B-moved electronic motor system can be added. Designed for top-hung installation, the system accommodates doors with a height of up to 9 ft 10 in* and a thickness ranging from 3/4 in to 1 9/16 in*. The coplanar movement allows for a clean and modern appearance, while the upper roller position with ball bearing type ensures smooth operation. For added rigidity, it is recommended to use a door straightener or stiffener.
CINETTO PS40.1 Coplanar Sliding System
Cinetto PS40.1 Coplanar Sliding System for large cabinet doors weighing up to 132 lb (60 kg) each.
Features:
- Flexible system for one, two, or three wood doors

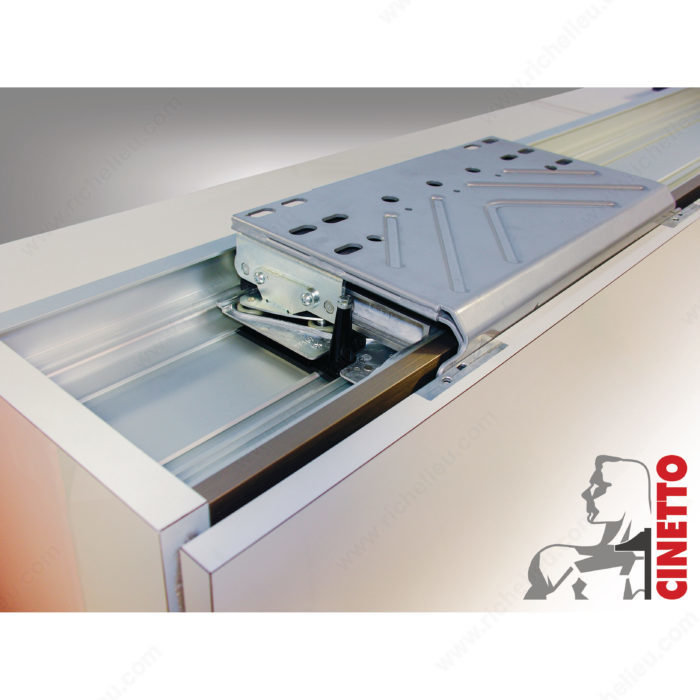

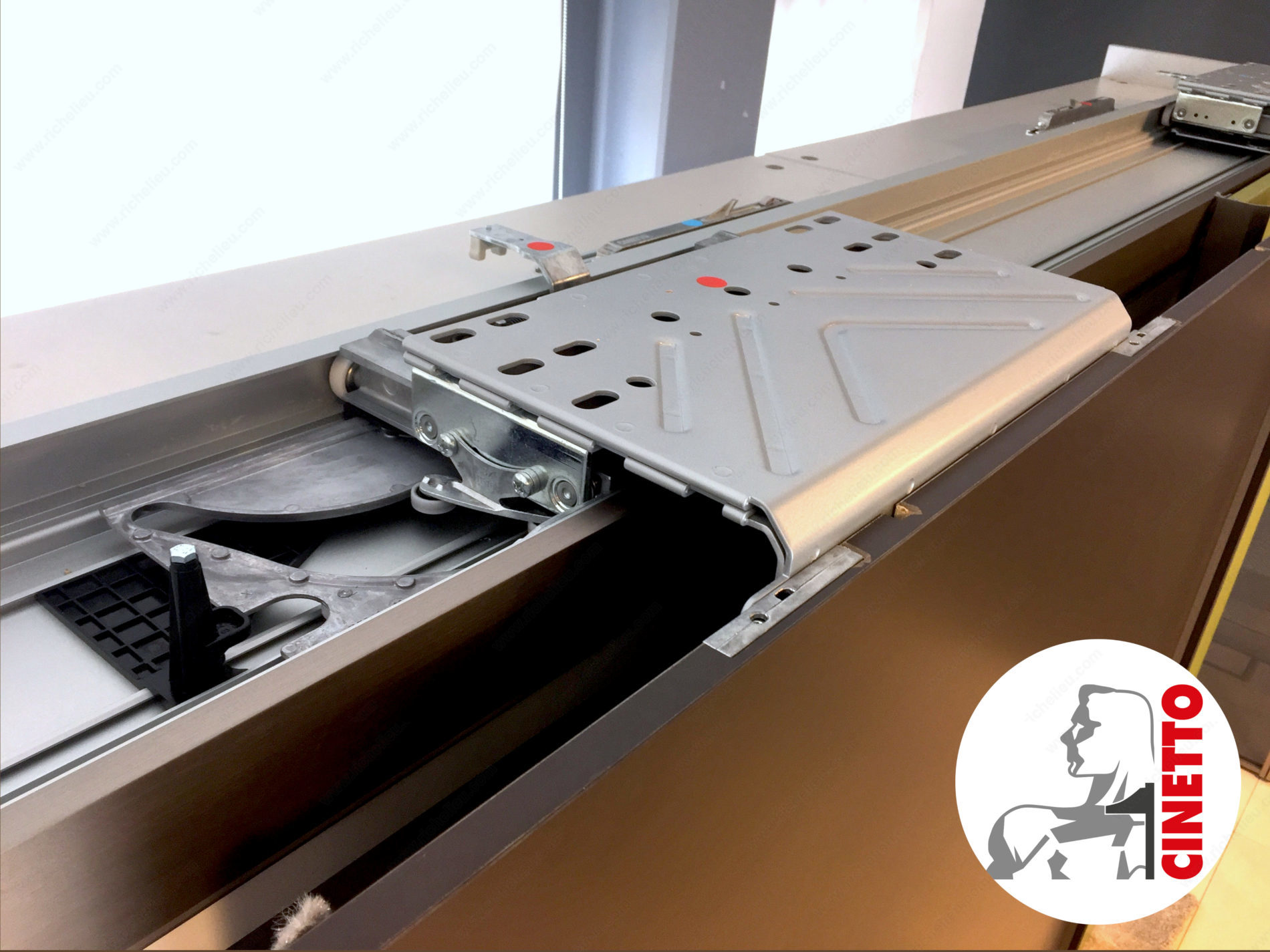

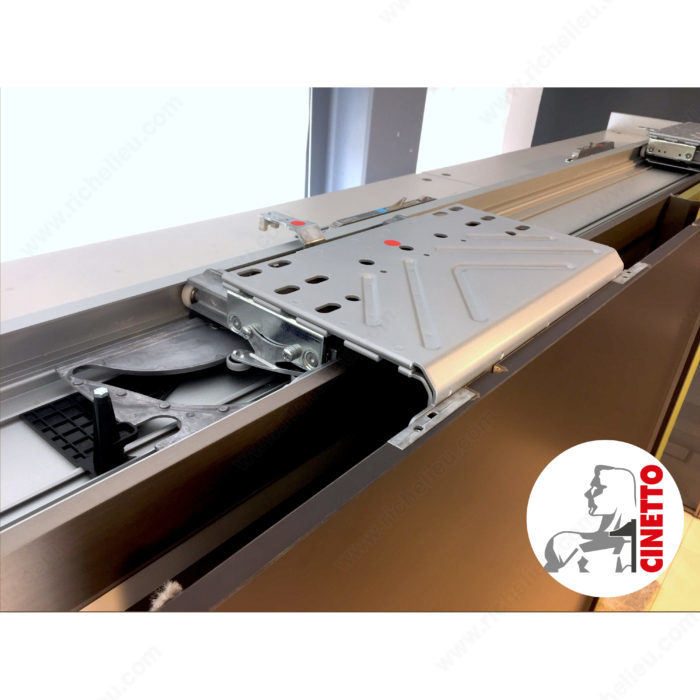

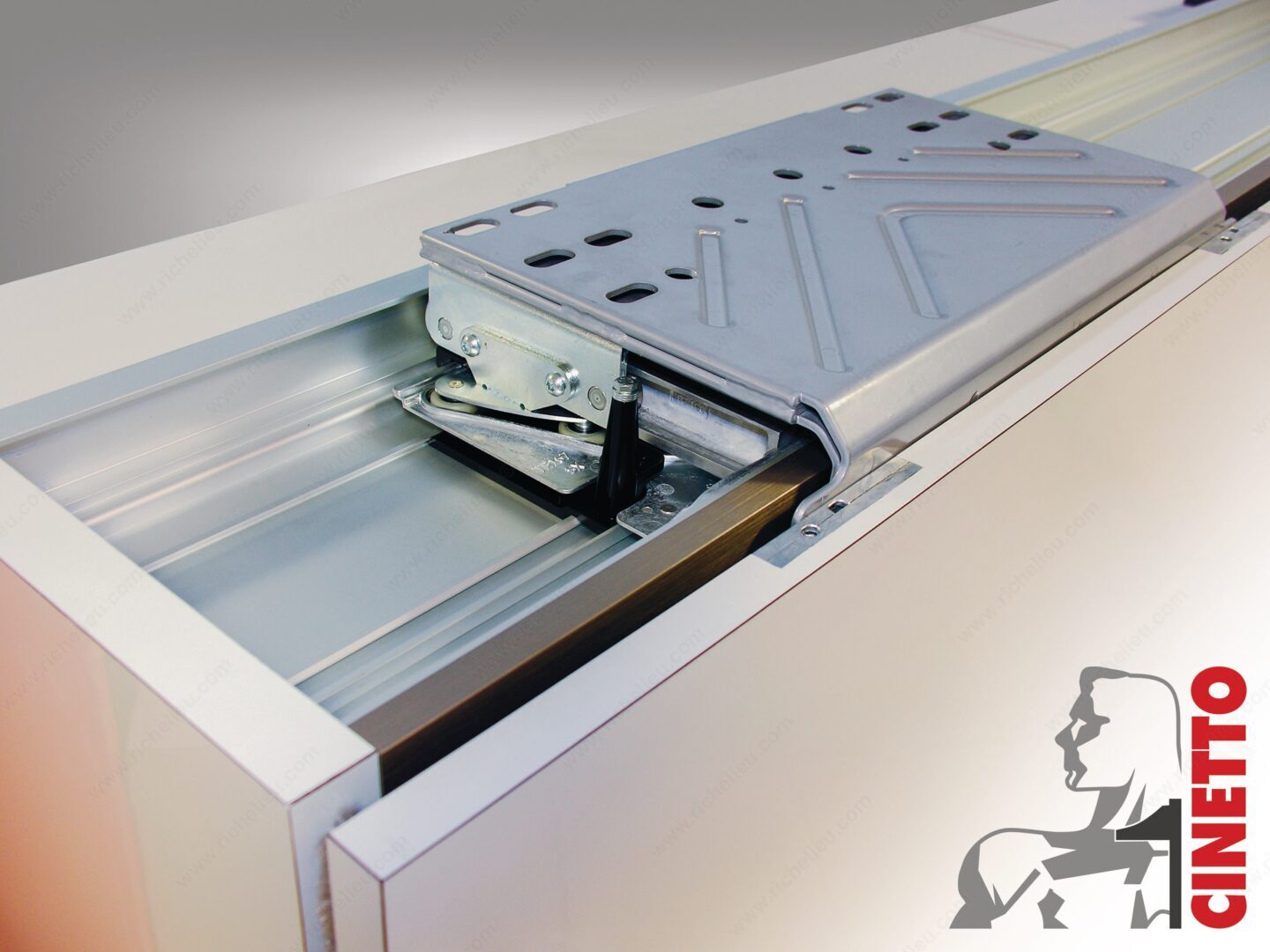

- Recessed mount hardware, adjustable
- Soft-close mechanism included
- No special cabinet fabrication is required
- Two types of track finishes: silver and stainless steel effect anodized aluminum
- Optional B-moved electronic motor system sold separately
This is an ideal solution for closets, pantries, large storage millwork, and wardrobes/armoires in residential and commercial applications.

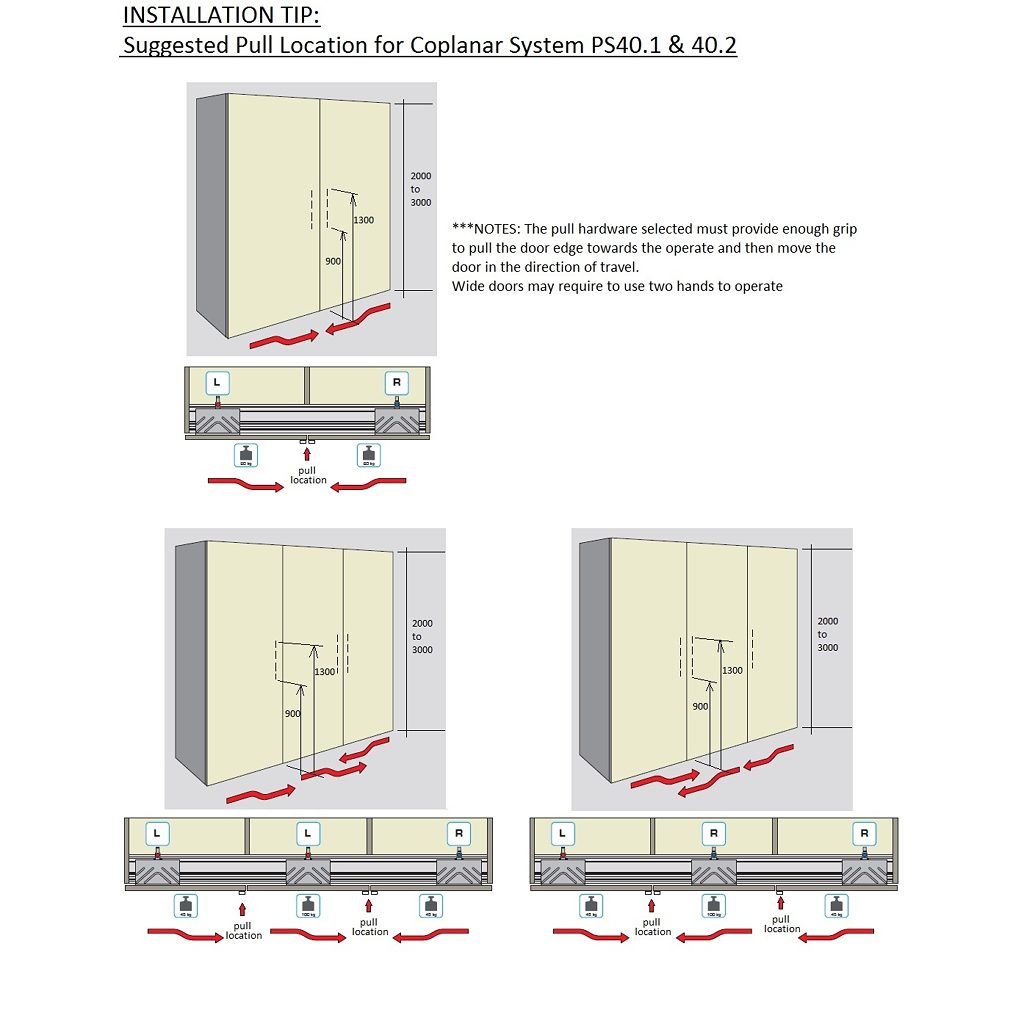

IMPORTANT: We recommend that you use a door straightener/stiffener to keep the door rigid.
Attributes
Ship via: No UPS - Common Carrier Only
" Optional" Door Width: 890 to 1 800 mm
Adjustable: Yes
Application: Wardrobe, Pantry, Cabinet, Storage
Brand: CINETTO
Brand Model: Cinetto PS40
Door Height: 3 000 mm
Door Installation: Top Hung
Door Material: Wood

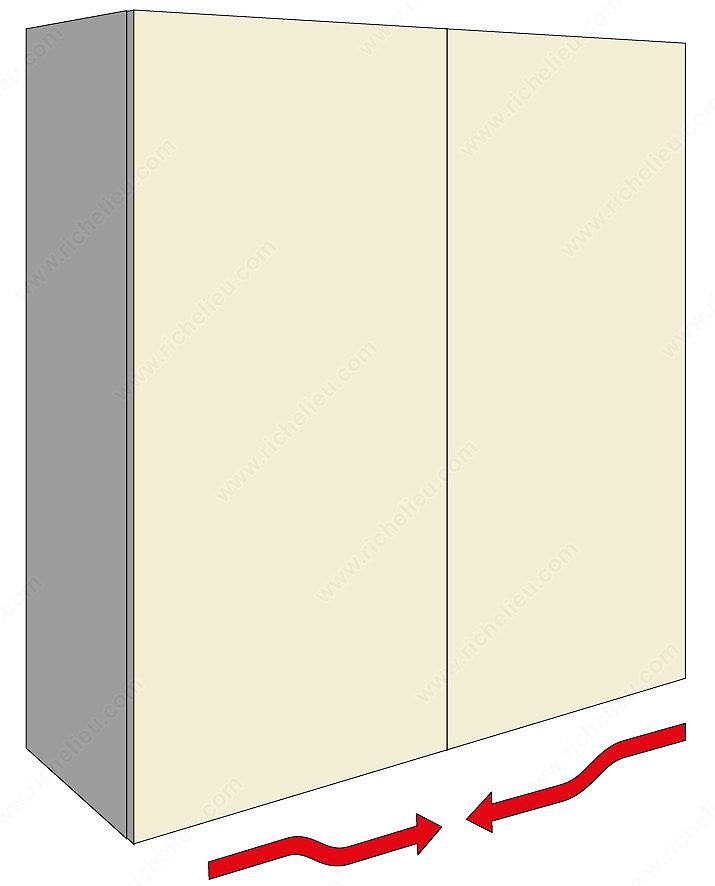

Door Movement: Coplanar
Door Position: Full Overlay, Inset/Inlay
Door Thickness: Min. 19 mm
Door Thickness Including the Handle: 19 to 55 mm
Door Width: 888 to 1 800 mm
Finish: Satin Aluminum
Height Clearance: 131 mm
Length - Overall Dimensions: 96 1/2 in*
Load Capacity: 132 lb*
Manufacturing Material: Aluminum
Number of Doors: 2
Opening: Towards the right / Towards the left
Overall Length: 2 450 mm
PS40 Opening: Towards the left / Towards the right
Product #: WEBKIT1213684
Product number: WEBKIT1213684
Product №: WEBKIT1213684
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: One-Way Operation
Soft- Closing: Yes
Track Finish: Satin Aluminum
Track Length: 2 450 mm
Track Material: Anodized Aluminum
Track Mounting: Recessed - Inside Ceiling
Weight Capacity per Door: 45 to 100 kg
