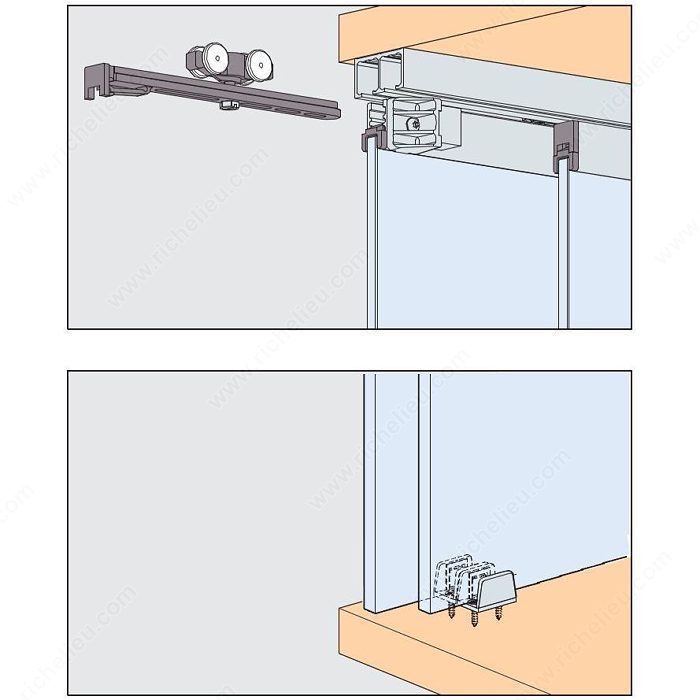

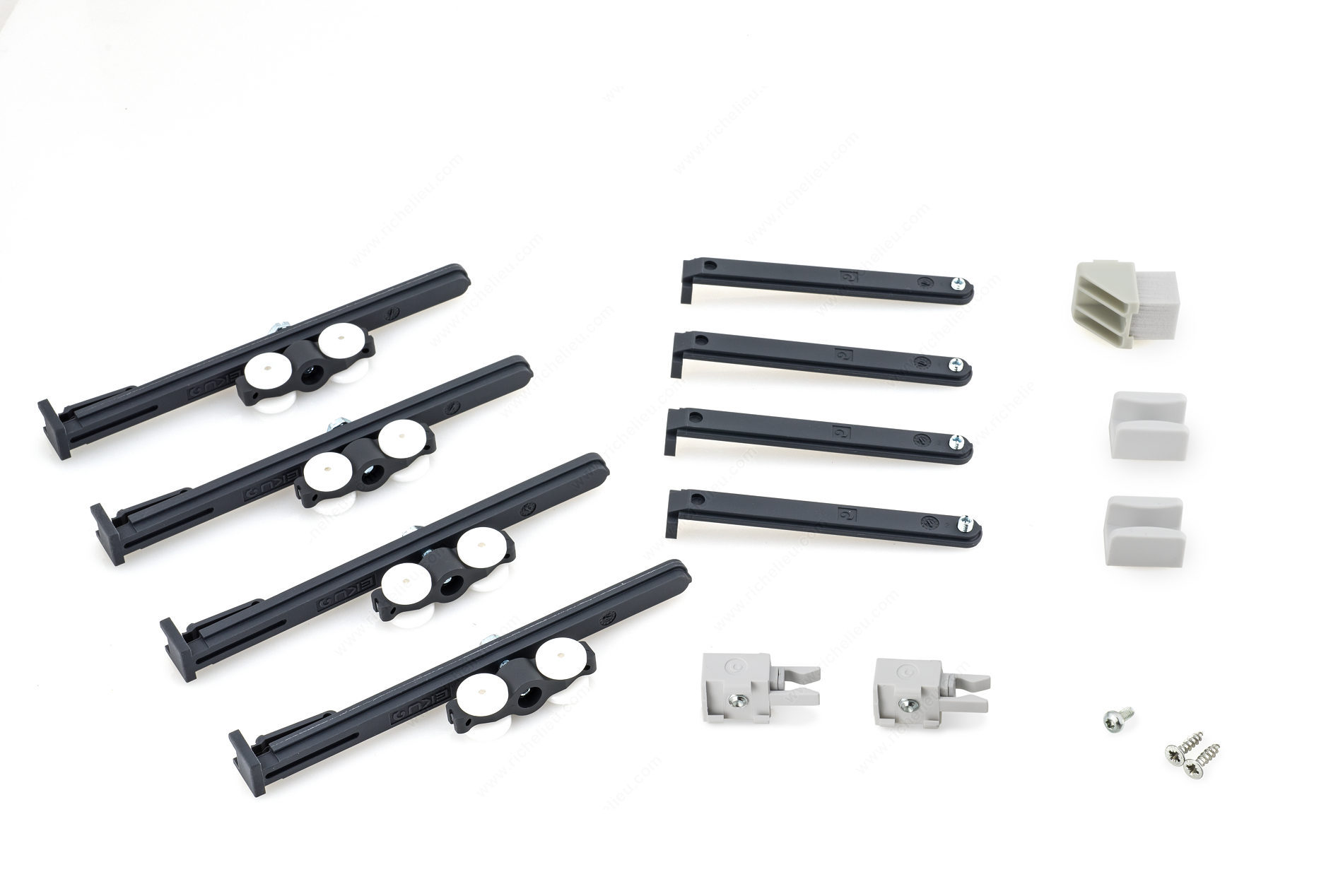

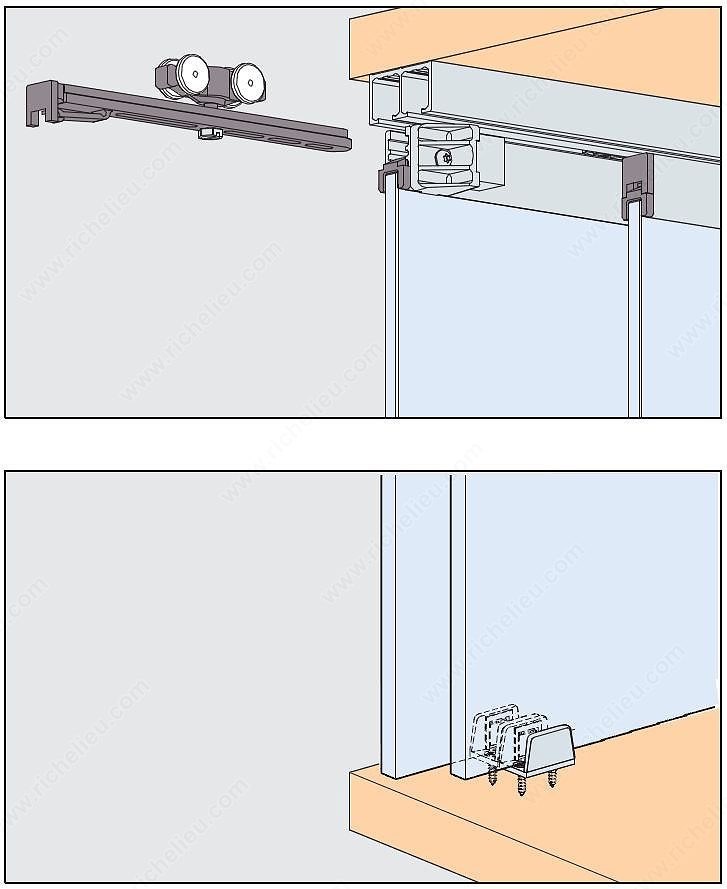

Richelieu WEBKIT1214291 HAWA CLIPO 16 GPK IS is a sophisticated bypassing sliding system tailored for two inset glass cabinet doors, each capable of supporting up to 35 lb (16 kg). Designed for inslide/inlay applications, this frameless system boasts a sleek, low-profile horizontal aluminum extrusion positioned only at the top of the glass, creating an elegant visual appeal. Installation is straightforward, with a modest floor mount guide affixed to the cabinet bottom and several top double track options available for either recess or surface mounting. For added convenience, an optional soft-close mechanism can be integrated within the track, enhancing the user experience (sold separately). This sliding system accommodates a maximum door height of 55 1/8 inches and a door width of up to 39 3/8 inches, with a thickness ranging from 1/4 to 1/4 inches. The satin aluminum finish lends a modern touch, while the upper roller position and axle (bushing) roller type ensure smooth operation. Ideal for cabinet and showcase applications, the HAWA CLIPO 16 GPK IS seamlessly combines functionality with style, making it an excellent choice for discerning professionals and homeowners alike.
HAWA CLIPO 16 GPK IS Bypassing Sliding System for Two Inset Glass Cabinet Doors
Adjustable: Yes
Application: Cabinet, Showcase
Brand: Hawa
Detailed Door Movement: Bypassing
Door Height: Max. 1 400 mm
Door Material: Glass
Door Movement: Straight Sliding
Door Position: Inset/Inlay
Door Thickness: 6 to 6.35 mm
Door Width: Max. 1 000 mm
Finish: Satin Aluminum
Load Capacity: 35.3 lb*
Number of Doors: 2
Product #: WEBKIT1214291
Product number: WEBKIT1214291
Product №: WEBKIT1214291
Roller Position: Upper
Roller Type: Axle (Bushing)
Running Track Fixing: Recessed
Soft- Closing: No
Track Finish: Satin Aluminum
Weight Capacity per Door: 16 kg
