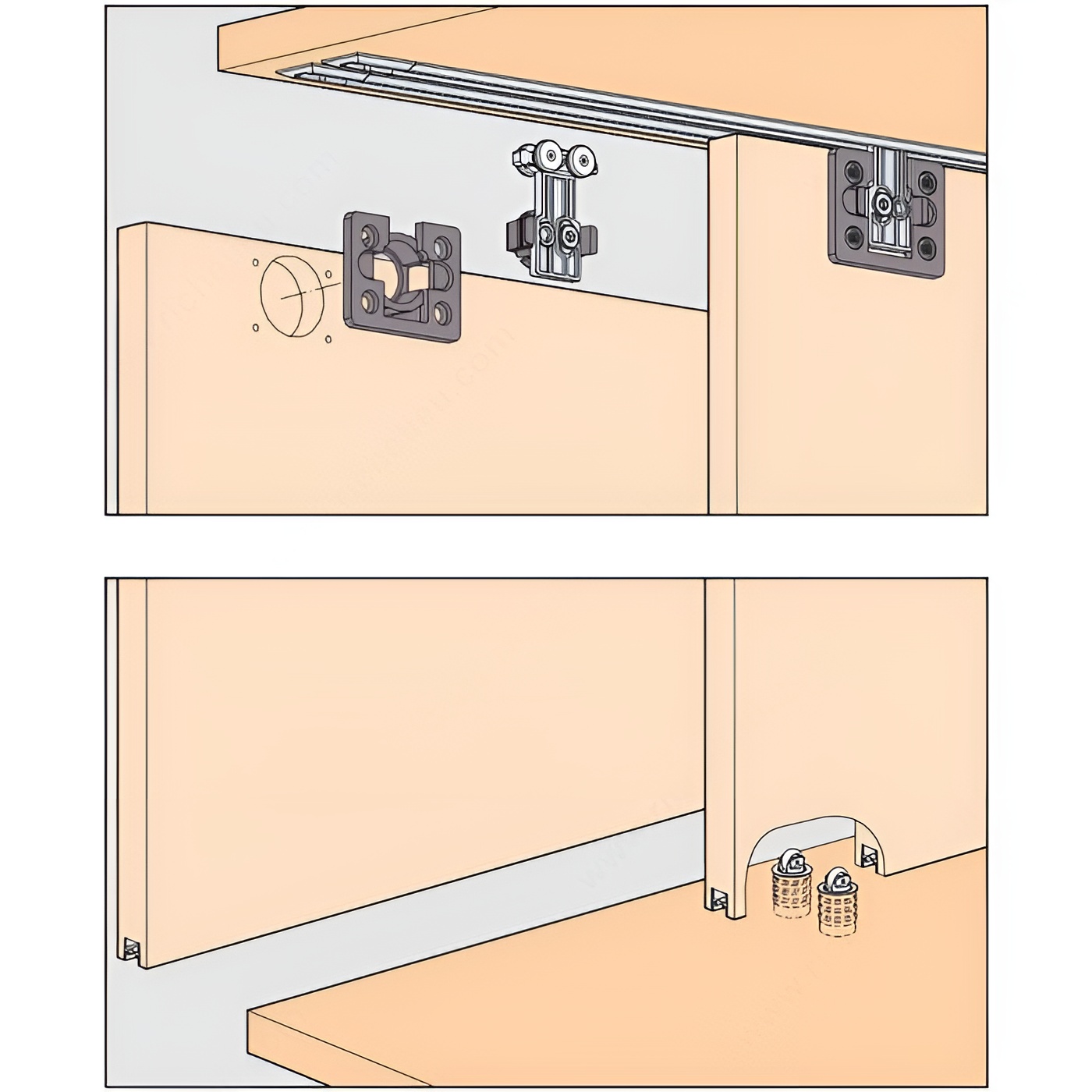

Richelieu WEBKIT1214438 HAWA CLIPO 36 H IS Bypassing Sliding Door System offers a sophisticated solution for seamlessly integrating wood doors into cabinetry. Designed for inslide/inset applications, this top-sliding system can support doors weighing up to 77 lb (36 kg), making it ideal for various settings, including pantries and furniture. The innovative design features a running gear that clips into a 35 mm diameter housing at the back of the door, allowing for easy adjustment with an Allen key. This system accommodates both single and double track applications, with options for recessed or surface mounting to meet your installation preferences. The unique spring-loaded lower guide wheel and guide rail insert automatically adjusts to the cabinet floor's contour, ensuring smooth door movement across the cabinet face. With a maximum door height of 86 5/8 in and a width of 39 3/8 in, the HAWA CLIPO system is versatile enough for various door sizes and thicknesses ranging from 3/4 to 31/32 in. While a soft-close mechanism is available separately, this system does not include it by default. Experience the perfect blend of functionality and style with Richelieu's HAWA CLIPO 36 H IS Bypassing Sliding Door System.
HAWA CLIPO 36 H IS Bypassing Sliding Door System
Adjustable: Yes
Application: Pantry, Furniture, Cabinet
Brand: Hawa
Detailed Door Movement: Bypassing
Door Height: Max. 2 200 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Inset/Inlay
Door Thickness: 19 to 25 mm
Door Width: Max. 1 000 mm
Load Capacity: Max. 79.4 lb*
Number of Doors: 2
Product #: WEBKIT1214438
Product number: WEBKIT1214438
Product №: WEBKIT1214438
Roller Type: Axle (Bushing)
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Type: Single
Track type: Single
Weight Capacity per Door: Max. 36 kg
