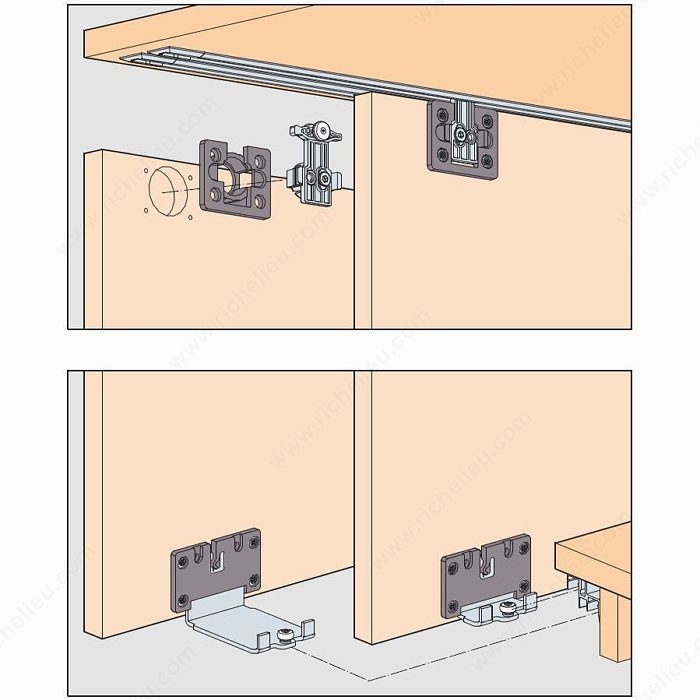

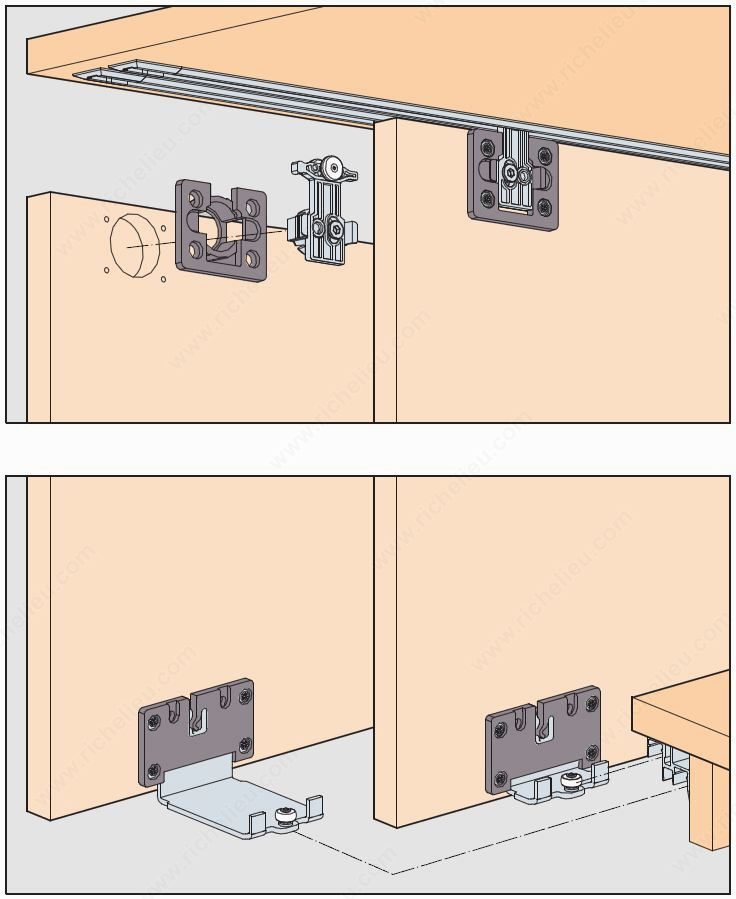

Richelieu WEBKIT1214442 HAWA CLIPO 26 H MS Bypassing Sliding System for Semi-Overlay Cabinet Doors is designed for seamless functionality in modern cabinetry. This top-sliding system accommodates two or three wood doors, each capable of supporting weights up to 57 lb (26 kg). Its innovative design features running gear that is clipped into a compact 1 3/8 in (35 mm) housing at the back of the door, ensuring easy installation and adjustment with a simple Hex key wrench. The HAWA CLIPO 26 H MS system is particularly suited for semi-overlay applications, where the top of the door is inset into the cabinet while the bottom overlays it. Stability is guaranteed with two guide arms and a double guide track supporting the bottom of the door, while the top track is conveniently recessed into the cabinet's top. Additionally, the system allows for a maximum door height of 86 5/8 in and a maximum width of 39 3/8 in, with a door thickness of 3/4 in. Although a soft-close mechanism is sold separately, the system’s straightforward sliding movement enhances ease of use in kitchens, pantries, and furniture applications. This product exemplifies reliability and elegance in cabinetry solutions.
HAWA CLIPO 26 H MS Bypassing Sliding System for Semi-Overlay Cabinet Doors
Adjustable: Yes
Application: Pantry, Furniture, Cabinet
Brand: Hawa
Detailed Door Movement: Bypassing
Door Height: Max. 2 200 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Full Overlay
Door Thickness: 19 mm
Door Width: Max. 1 000 mm
Load Capacity: 57.3 lb*
Number of Doors: 3
Product #: WEBKIT1214442
Product number: WEBKIT1214442
Product №: WEBKIT1214442
Roller Type: Axle (Bushing)
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Type: Single
Track type: Single
Weight Capacity per Door: 26 kg
