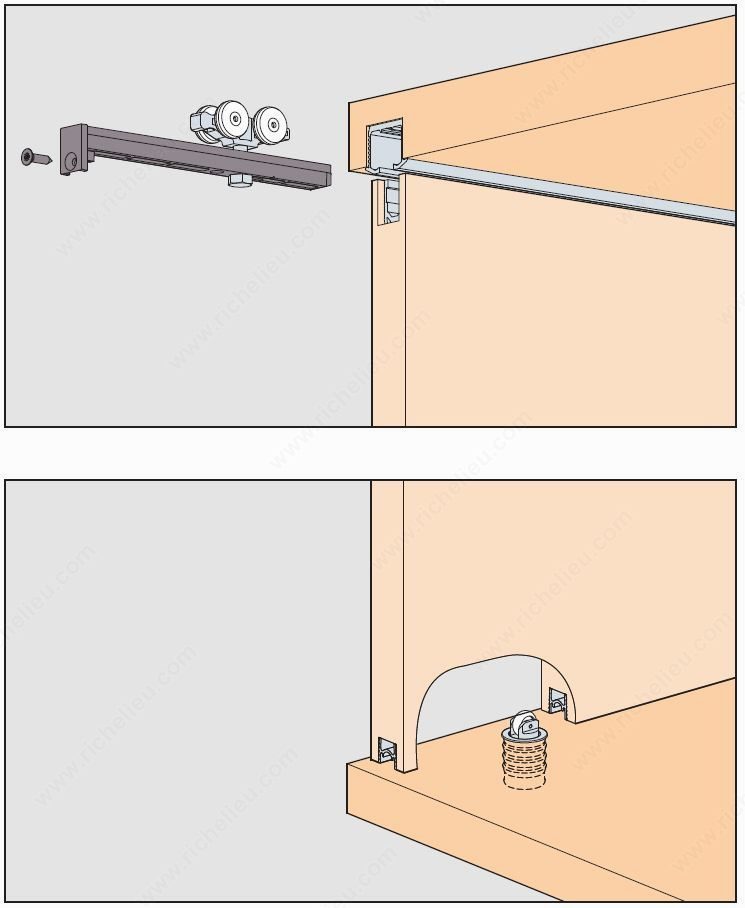

Richelieu WEBKIT1214587 HAWA CLIPO 36 HM IS Bypassing Sliding System offers a sophisticated solution for two wooden cabinet doors, each capable of supporting up to 77 lb (36 kg). This top-running sliding system is ideal for inslide/inlay applications, seamlessly integrating into your cabinetry for a clean, modern look. The running gear is cleverly mortised into the top of the door, providing a streamlined aesthetic. Designed with versatility in mind, the system accommodates varying top track options for both single and double track applications, allowing for recessed or surface mounting to the cabinet top. The unique spring-loaded lower guide wheel and guide rail insert system ensures smooth operation by adjusting to the contour of the cabinet floor as the doors glide effortlessly across the cabinet face. With a maximum door height of 94 1/2 inches and a width of up to 39 3/8 inches, this system suits a range of applications, including closets, walk-in closets, pantries, and furniture. The adjustable design and straight sliding movement enhance usability, while the option for an additional soft-close mechanism (sold separately) provides added convenience. Elevate your space with the Richelieu HAWA CLIPO sliding system, where functionality meets refined design.
HAWA CLIPO 36 HM IS Bypassing Sliding System for Two Cabinet Doors
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Application: Closet and Walk-In Closet, Pantry, Furniture, Cabinet, Storage
Brand: Hawa
Detailed Door Movement: Bypassing
Door Height: Max. 2 400 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 19 to 25 mm
Door Width: Max. 1 000 mm
Load Capacity: 79.4 lb*
Number of Doors: 2
Product #: WEBKIT1214587
Product number: WEBKIT1214587
Product №: WEBKIT1214587
Roller Position: Lower
Roller Type: Axle (Bushing)
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Mounting: Wall Mount, Recessed - Inside Ceiling
Track Type: Single
Track type: Single
Weight Capacity per Door: 36 kg
