Richelieu WEBKIT1216513 HAWA-Junior A Series Straight Sliding Door SystemAdjustable integrated track stopper
The HAWA-Junior A Series are standard straight sliding systems for wood doors weighing from 264 lb to 550 lb (120 kg to 250 kg) each.
Features:
- Series: Junior 120/A, 160/A, and 250/A
- Surface top mount galvanized suspension plate
- Integrated track stoppers with adjustable retaining device to resist door bounce back
- Versatile track options for single sliding, biparting, and bypassing applications
- Premium performance trolleys that are smooth and quiet
- Available SoftMove 120 soft-close mechanism for doors weighing 264 lb (120 kg)

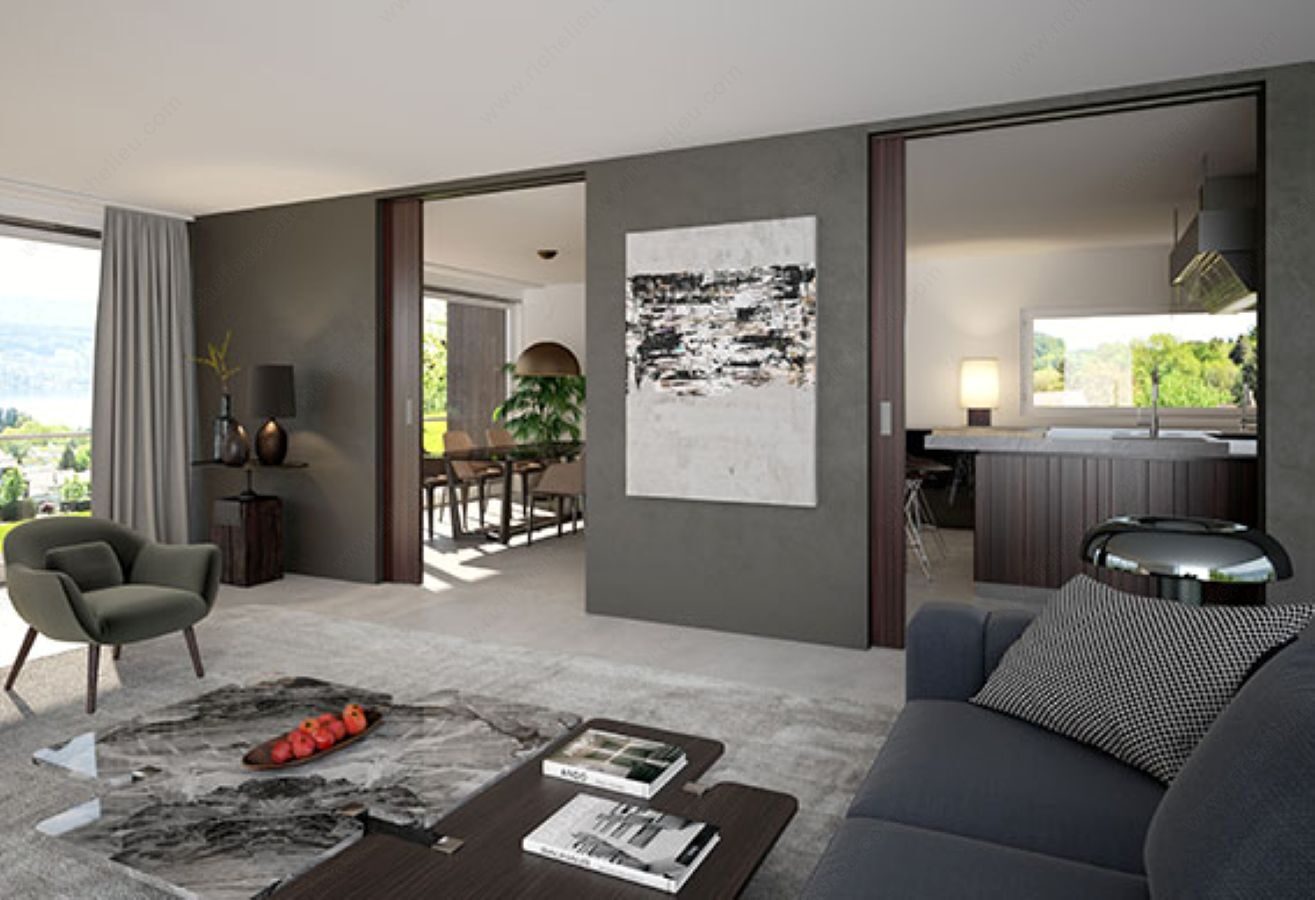

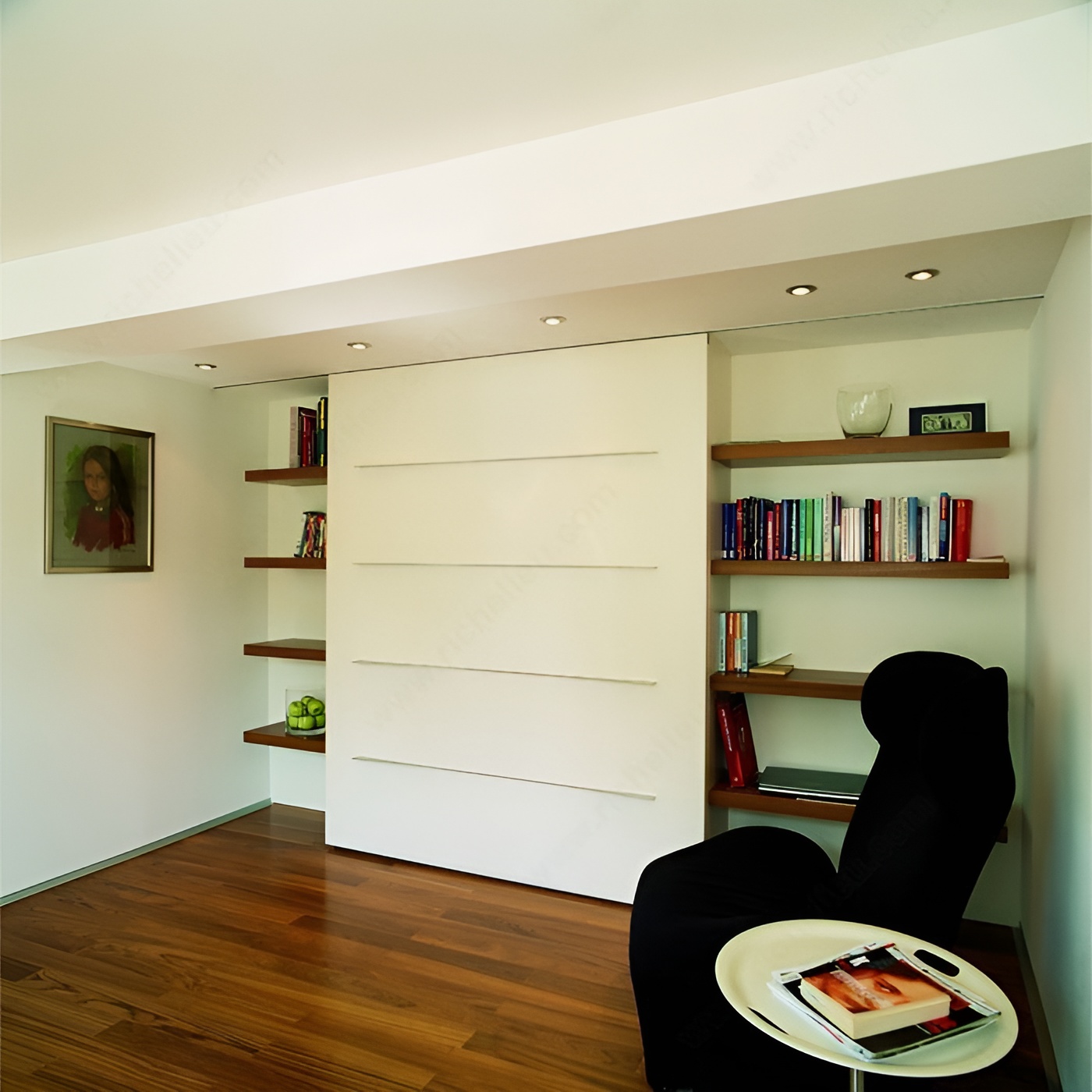

The HAWA-Junior A Series is an ideal solution for commercial and premium residential projects, wall partitions, and pocket doors.
Advantages and benefits
- Simple to install
- Secure suspension bracket
- Quiet action
Important information
- Pictures provided for visual reference only: actual product may vary.
- All required hardware should be ordered and obtained prior to initiating fabrication or installation work. Please verify that the parts and quantities listed in your order are correct before proceeding to checkout.
- Always use instructions provided by the manufacturer, as included with the product. Manufacturer reserves the right to amend, modify, or otherwise supplement any previously issued product and/or technical information, as deemed required from time to time, without prior notice.
- The documentation, drawings, and instructions on this page apply to the system described on this page only. Richelieu expressly declines all responsibility for any design or construction that combines this system with systems from this same manufacturer or systems from other manufacturers.
- Installation of the product shall be executed by qualified individuals only, always ensuring that each product is securely installed using proper fixation methods, as appropriate for each applicable substratum. We trust that anyone installing these products has the required skills, knowledge, and experience. Richelieu expressly disclaims any liabilities for results obtained through improper use or installation.
- Always remove debris/dust/residues (sawdust and/or aluminum) from all tracks and guide channels using a dry cloth during installation and before operating the system.
- Never spray lubricant.
Attributes
Adjustable: Yes
Application: Screen Panel, Standard Access Door, Pocket Door
Brand: Junior
Brand Model: Hawa Junior
Detailed Door Movement: Single Sliding
Door Height: Max. 3 650 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 0 to 40 mm
Door Width: 850 to 1 250 mm
Groove Needed for Guiding System: Yes
Load Capacity: 265 lb*
Number of Doors: 1
Overall Length: 2.5 m
Product #: WEBKIT1216513
Product number: WEBKIT1216513
Product №: WEBKIT1216513
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Stopper: Two
Track Length: 2.5 m
Track Mounting: Ceiling Mount
Weight Capacity per Door: 120 kg
