Richelieu WEBKIT1217268 Pro Series Robust Strap Mount Sliding SystemRichelieu WEBKIT1217268 Pro Series Robuste Strap Mount Sliding System offers a robust and professional-grade solution for wood doors weighing up to 220 lb (100 kg). This sliding system is specifically designed for high-use hospitality and commercial applications, ensuring durability and reliability in demanding environments. The system features a steel flat bar track set that includes direct mount wall fasteners and standoffs, providing a secure installation. Strap mount ball bearing wheels with through-bolt fasteners ensure smooth operation, while the built-in anti-derailing device enhances safety and functionality. For added convenience, the pre-drilled tracks allow for the installation of a soft-close mechanism (sold separately), accommodating doors weighing up to 176 lb (80 kg). This system is compatible with doors that range in thickness from 1 3/8 to 1 25/32 inches and in width from 23 7/8 to 50 inches. It supports a maximum door height of 9 ft 10 in, making it ideal for a variety of applications. The stainless steel finish not only adds a contemporary touch but also enhances durability. With adjustable wall mount bottom guides and drywall anti-compression discs, the Richelieu Pro Series ensures a seamless installation, making it the perfect choice for stylish and functional sliding door solutions.
Pro Series Robuste Strap Mount Sliding System
The professional grade Pro Series Robuste System is made for wood doors up to 220 lb (100 kg).

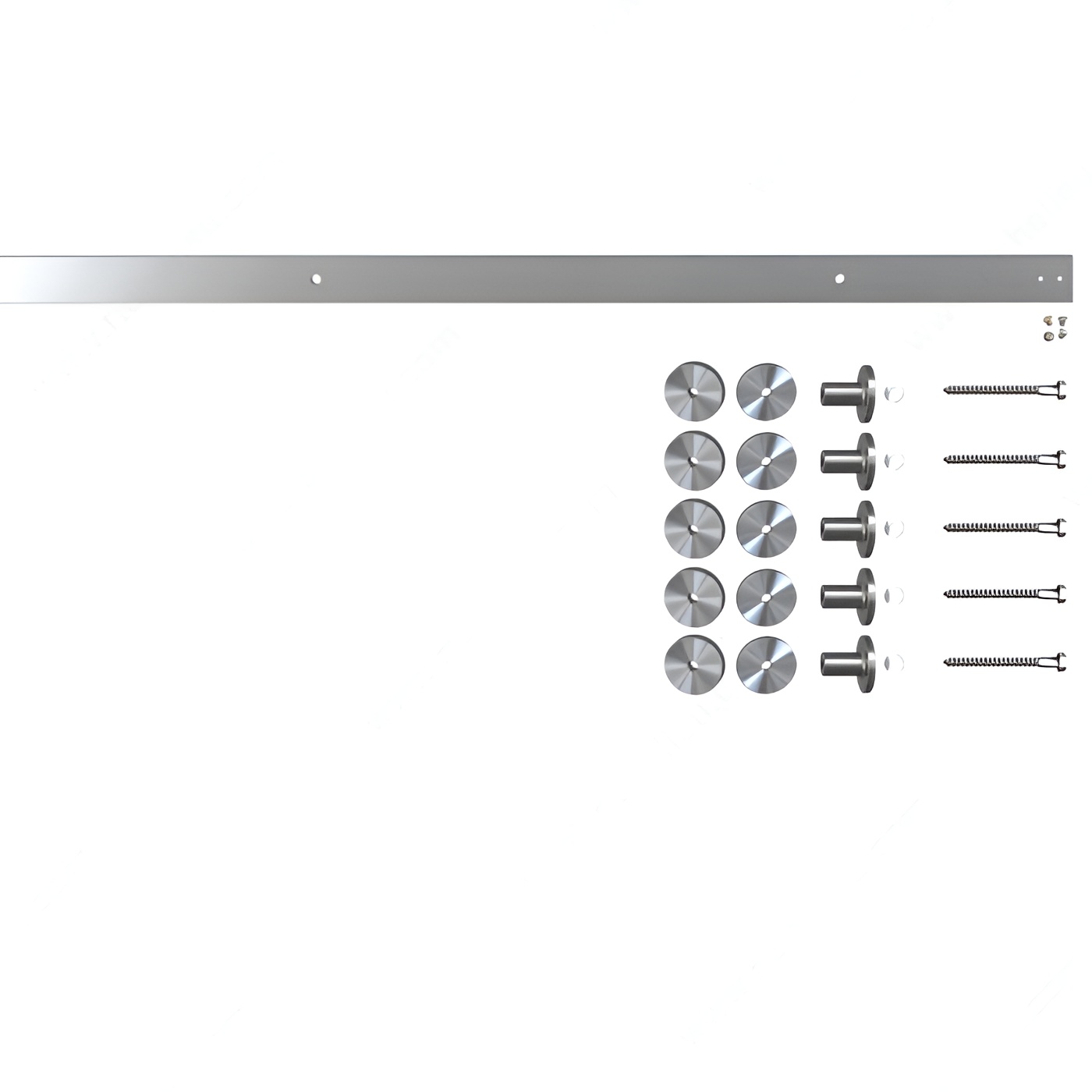

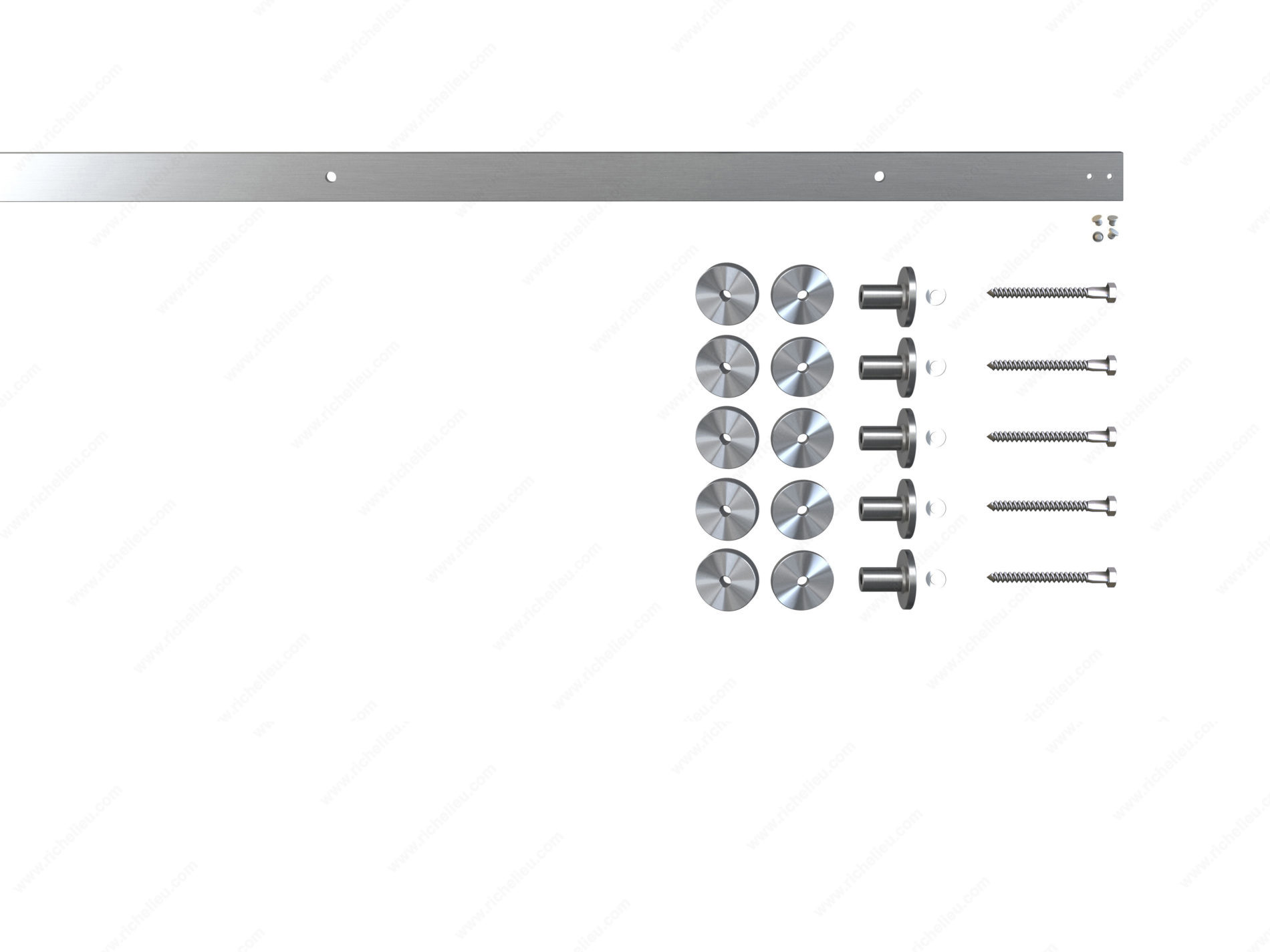

- Steel flat bar track set with direct mount wall fasteners and standoffs

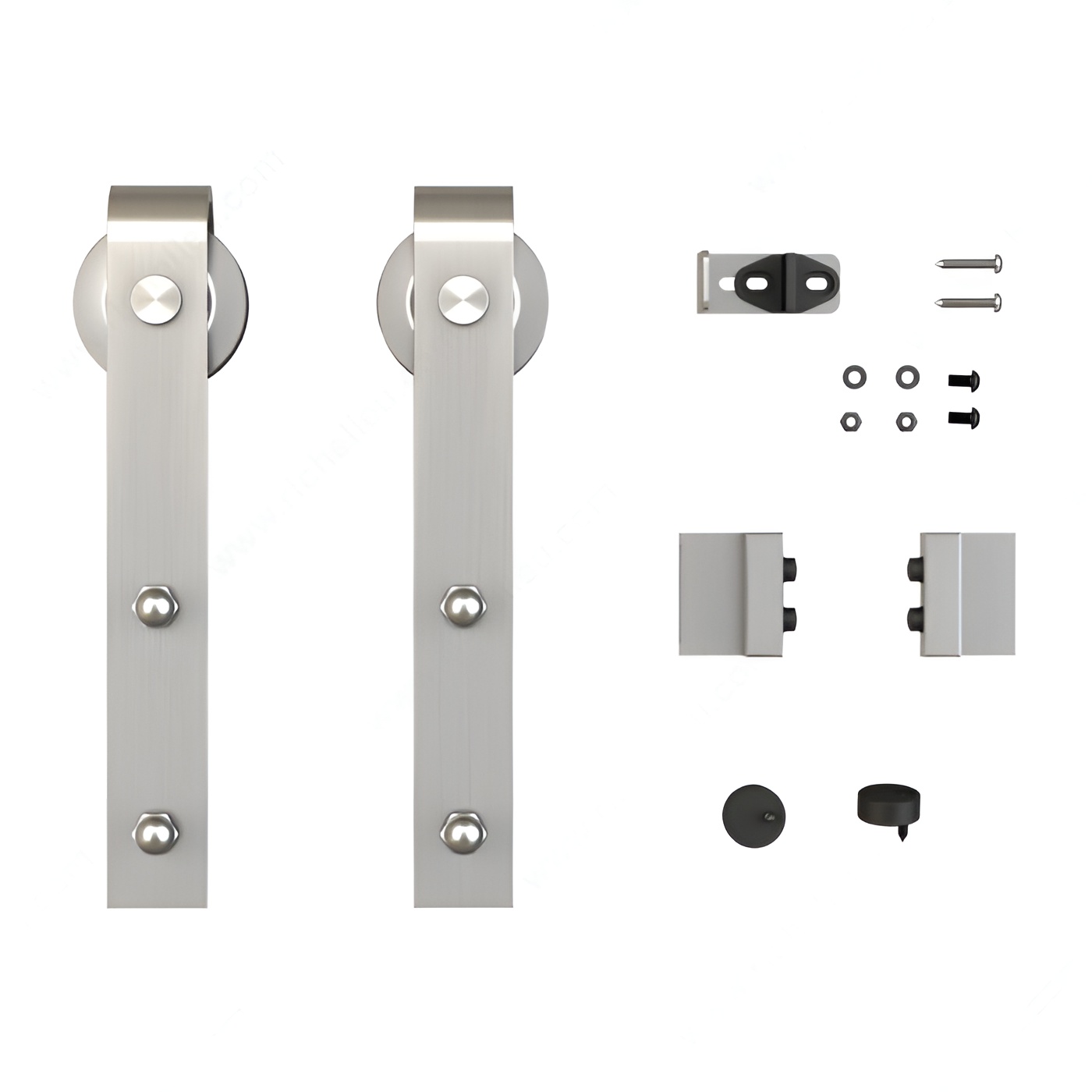

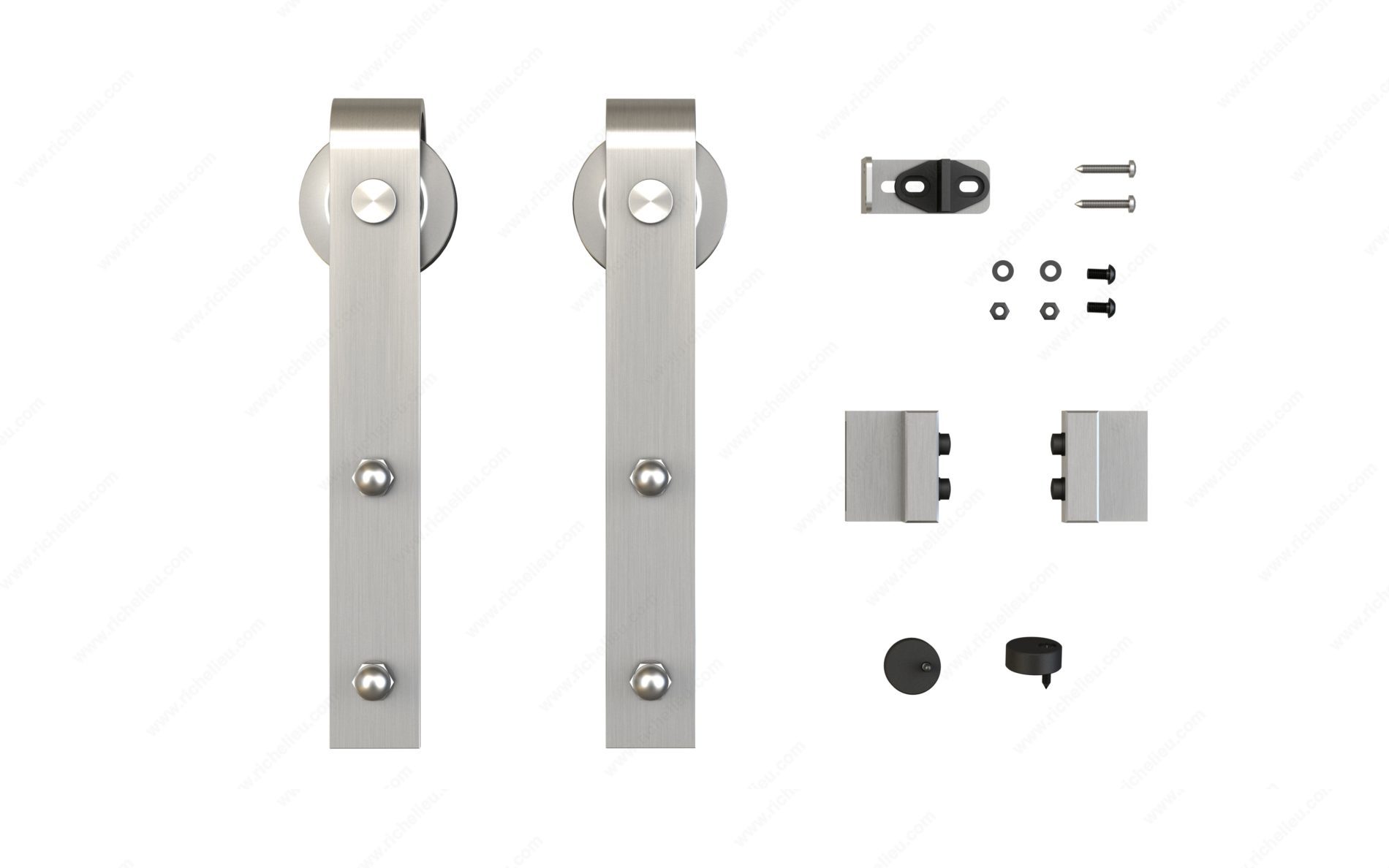

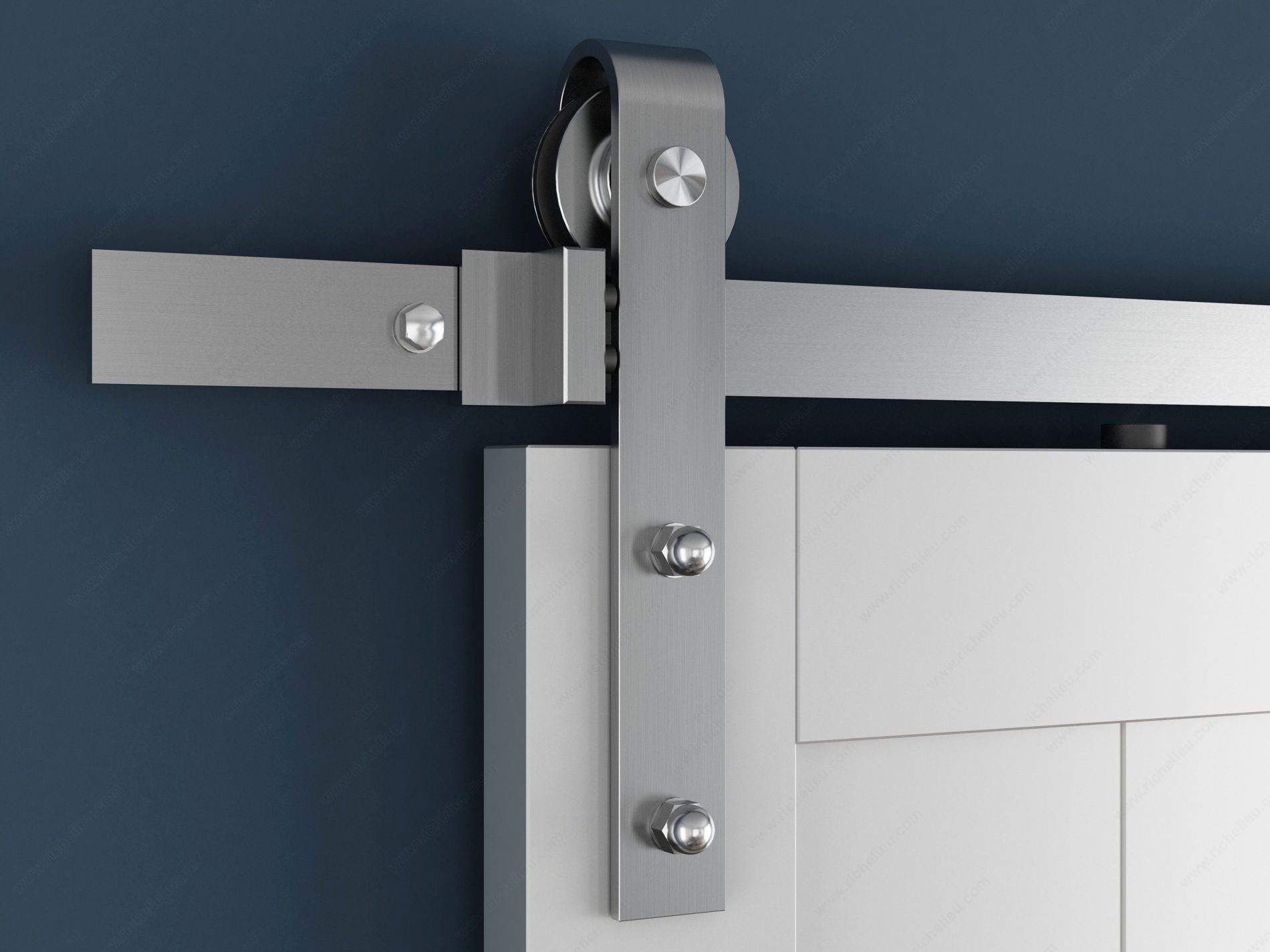

- Strap mount ball bearing wheels with through-bolt fastener
- Built-in anti-derailing device
- Pre-drilled tracks for installation of soft-close mechanism, 176 lb (80 kg) capacity (sold separately)
- Drywall anti-compression discs
- Adjustable wall mount bottom guide

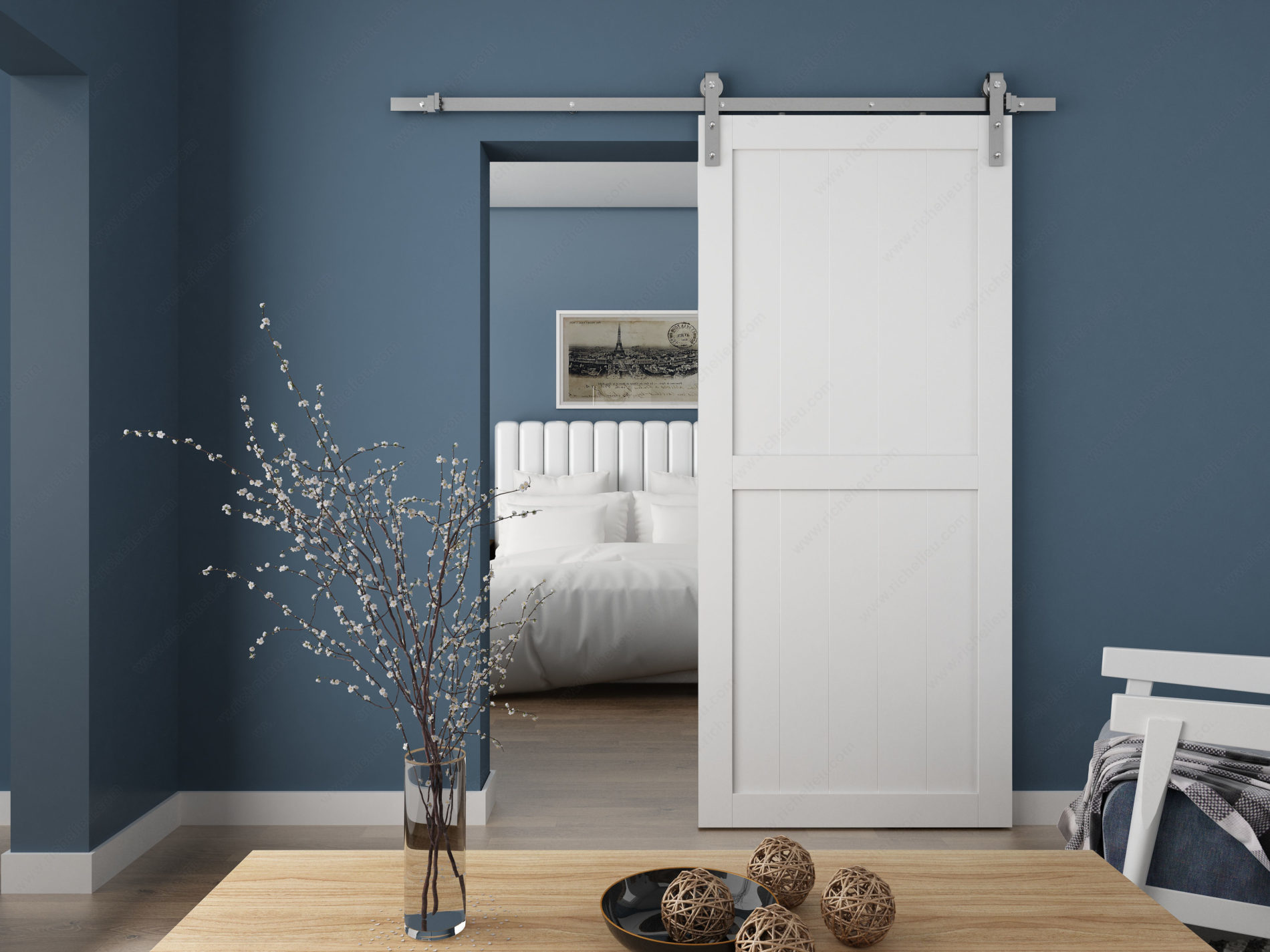

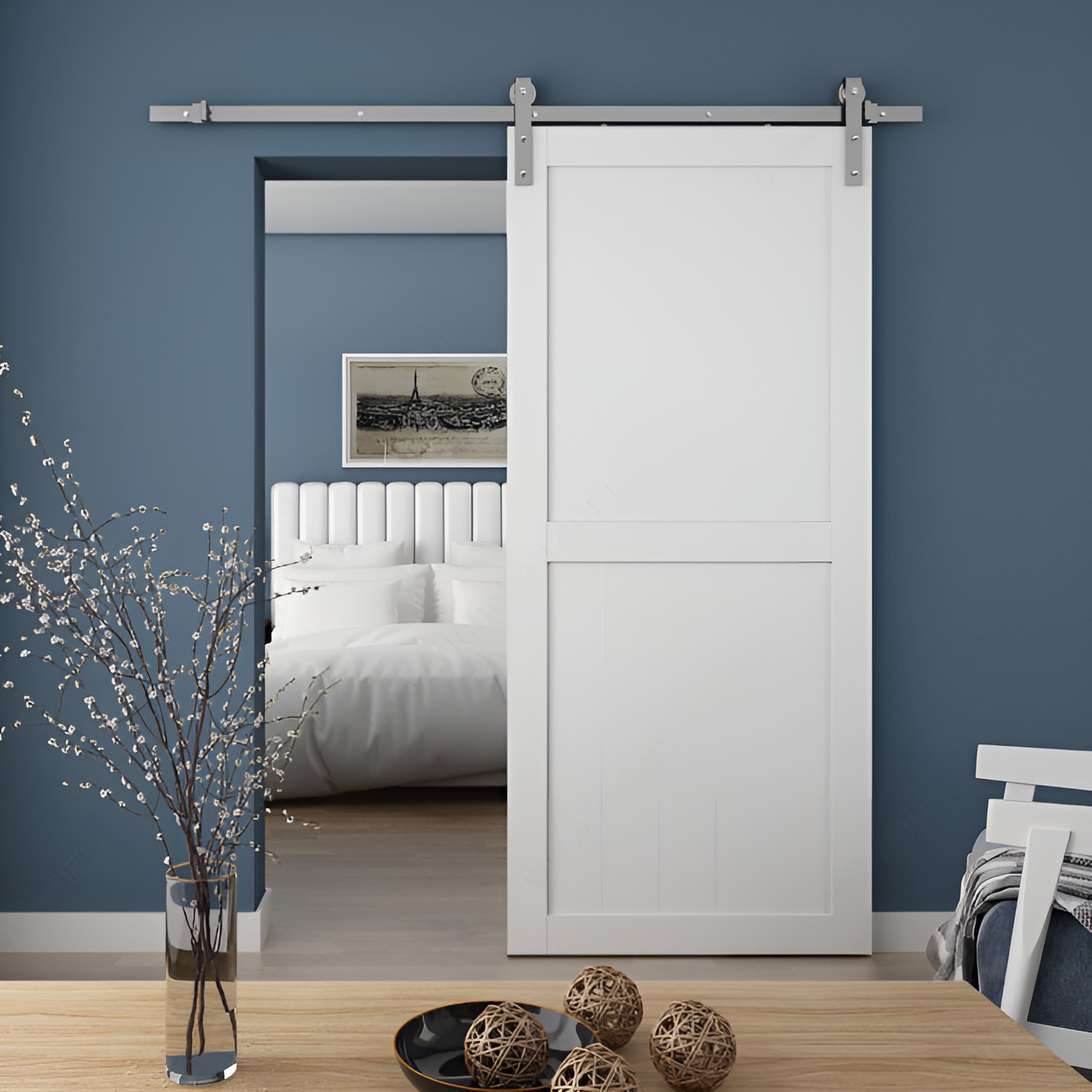

This barn door system is designed for high-use hospitality and commercial applications.
IMPORTANT: The minimum door width is 36 in (914 mm) when using a soft-close mechanism, and the maximum door weight is 176 lb (80 kg).
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door, Barn Door
Brand: Richelieu
Detailed Door Movement: Single Sliding
Displayed in These Showrooms: Toronto
Door Height: 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 35 to 45 mm
Door Width: 608 to 1 270 mm
Finish: Stainless Steel (170)
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: Max. 220 lb*
Number of Doors: 2
Overall Length: 2 m
Product #: WEBKIT1217268
Product number: WEBKIT1217268
Product №: WEBKIT1217268
Roller Position: Upper
Roller Type: Ball Bearing, Axle (Bushing)
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Style: Contemporary
Track Length: 2 m
Track Mounting: Wall Mount
Weight Capacity per Door: Max. 100 kg
