Richelieu WEBKIT1217274 Pro Series Robust Strap Mount Sliding SystemRichelieu WEBKIT1217274 Pro Series Robuste Strap Mount Sliding System is engineered for durability and high performance, accommodating wood doors weighing up to 220 lb (100 kg). This professional-grade sliding system features a robust steel flat bar track set, complete with direct mount wall fasteners and standoffs for easy installation. The strap mount ball bearing wheels are equipped with through-bolt fasteners for a secure fit, ensuring smooth and reliable door movement. Designed with user safety in mind, this system includes a built-in anti-derailing device and drywall anti-compression discs, making it ideal for high-use hospitality and commercial applications. The tracks are pre-drilled for the optional soft-close mechanism, supporting doors up to 176 lb (80 kg) for added convenience (soft-close mechanism sold separately). With an adjustable wall mount bottom guide, the system is adaptable to various door heights and thicknesses, accommodating doors from 23 7/8 to 50 inches wide and 1 3/8 to 1 25/32 inches thick. Finished in a sleek matte black, the Richelieu Robuste system combines rustic aesthetics with modern functionality, making it a perfect choice for both standard access and barn door applications.
Pro Series Robuste Strap Mount Sliding System
The professional grade Pro Series Robuste System is made for wood doors up to 220 lb (100 kg).

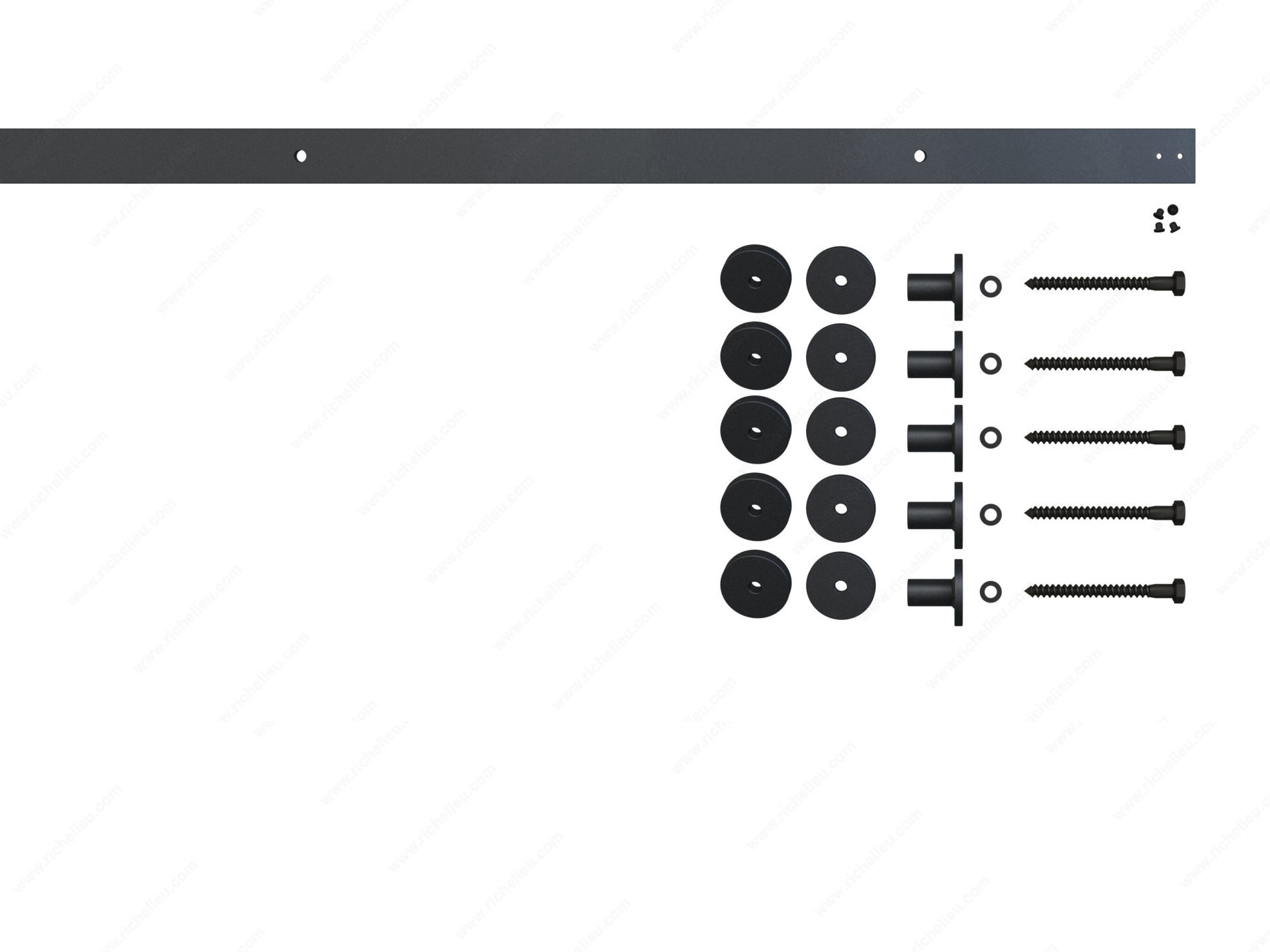

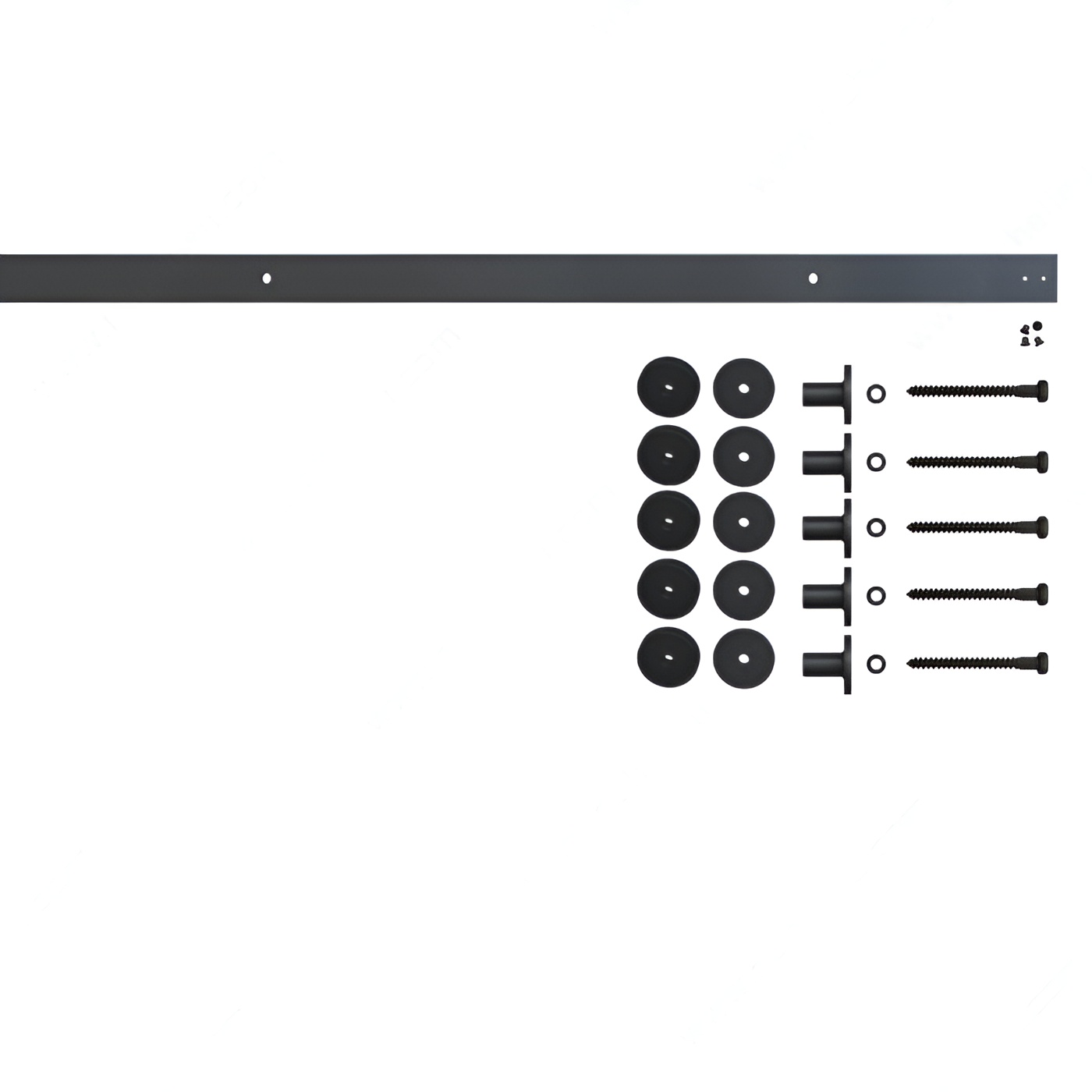

- Steel flat bar track set with direct mount wall fasteners and standoffs

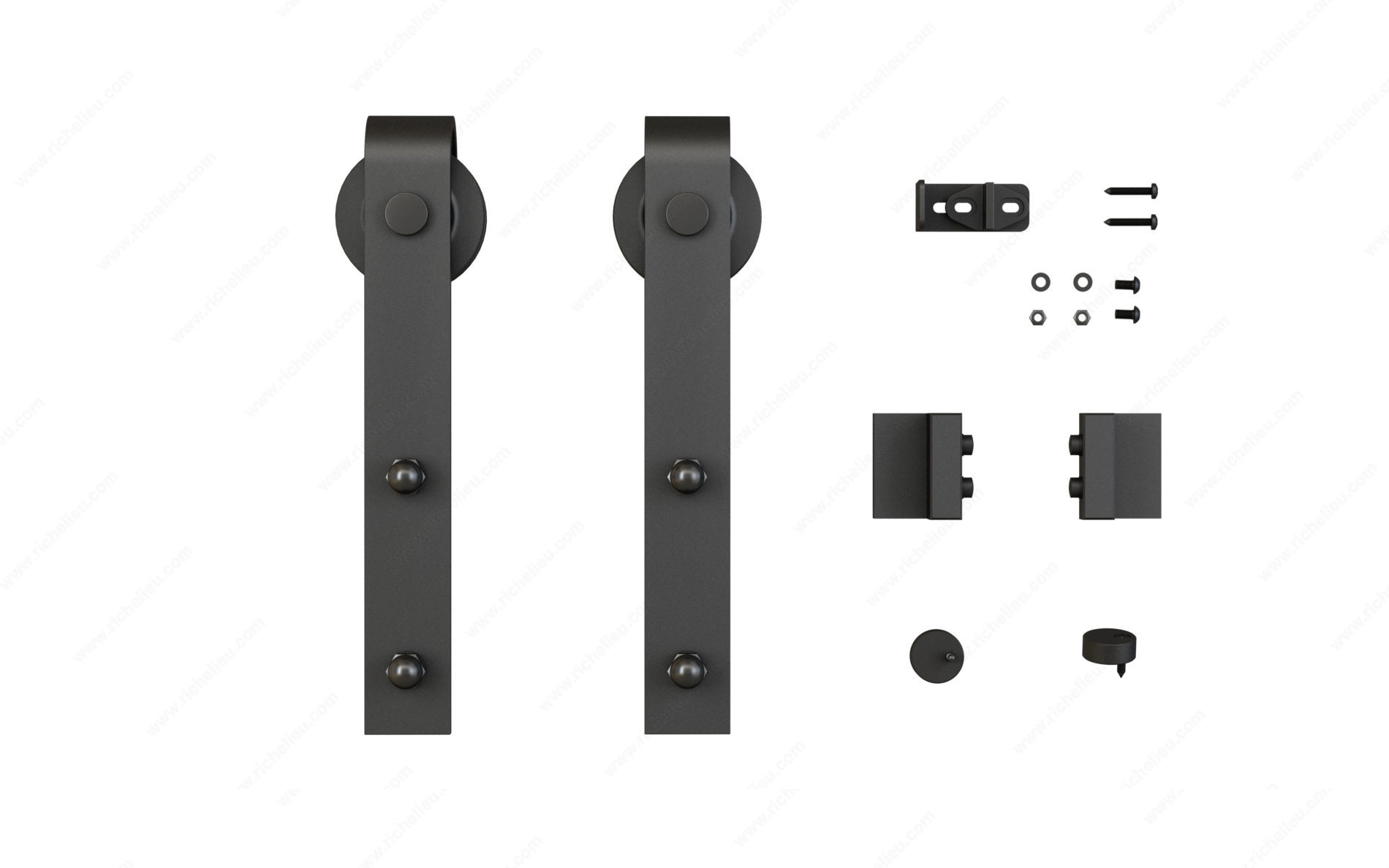

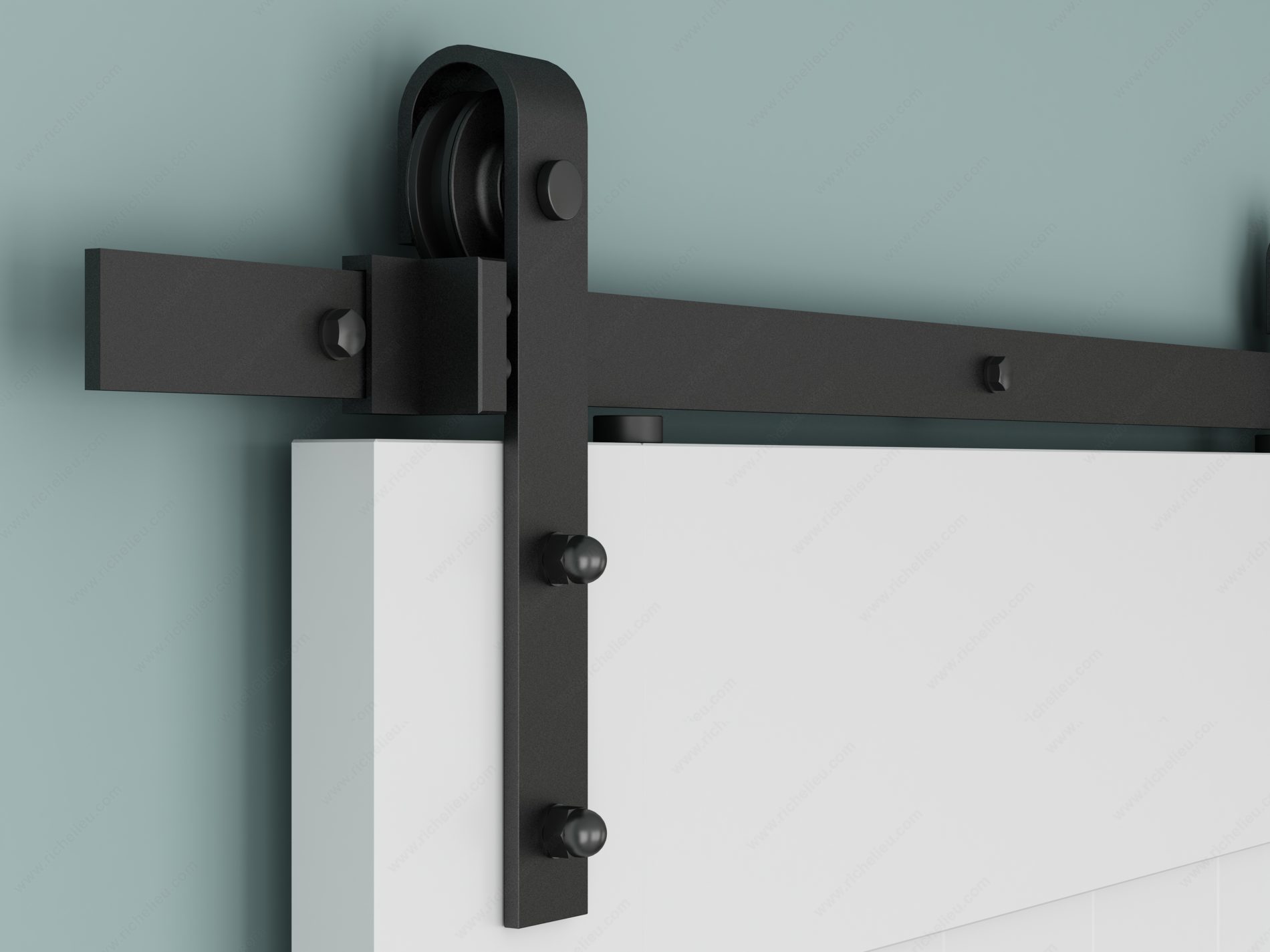

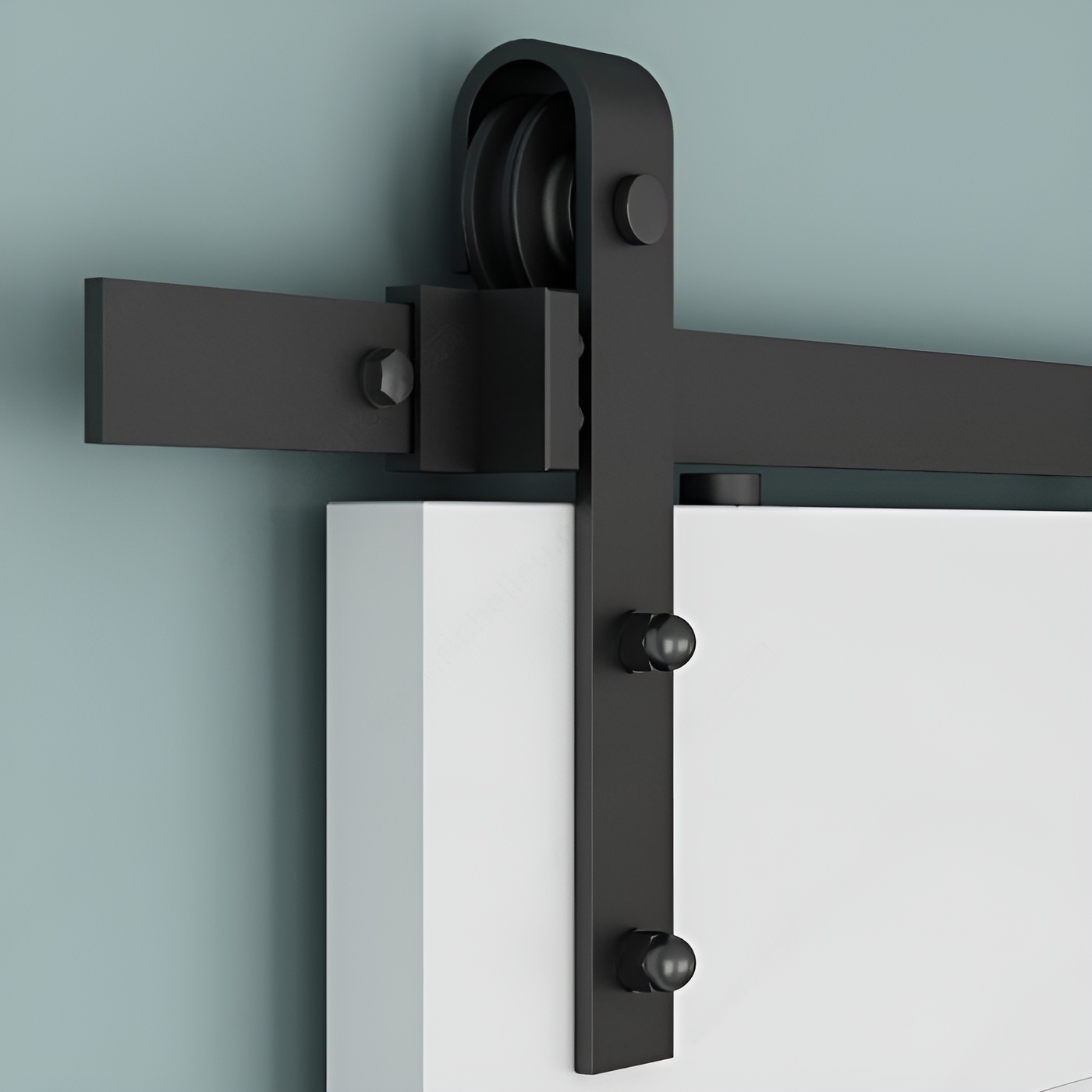

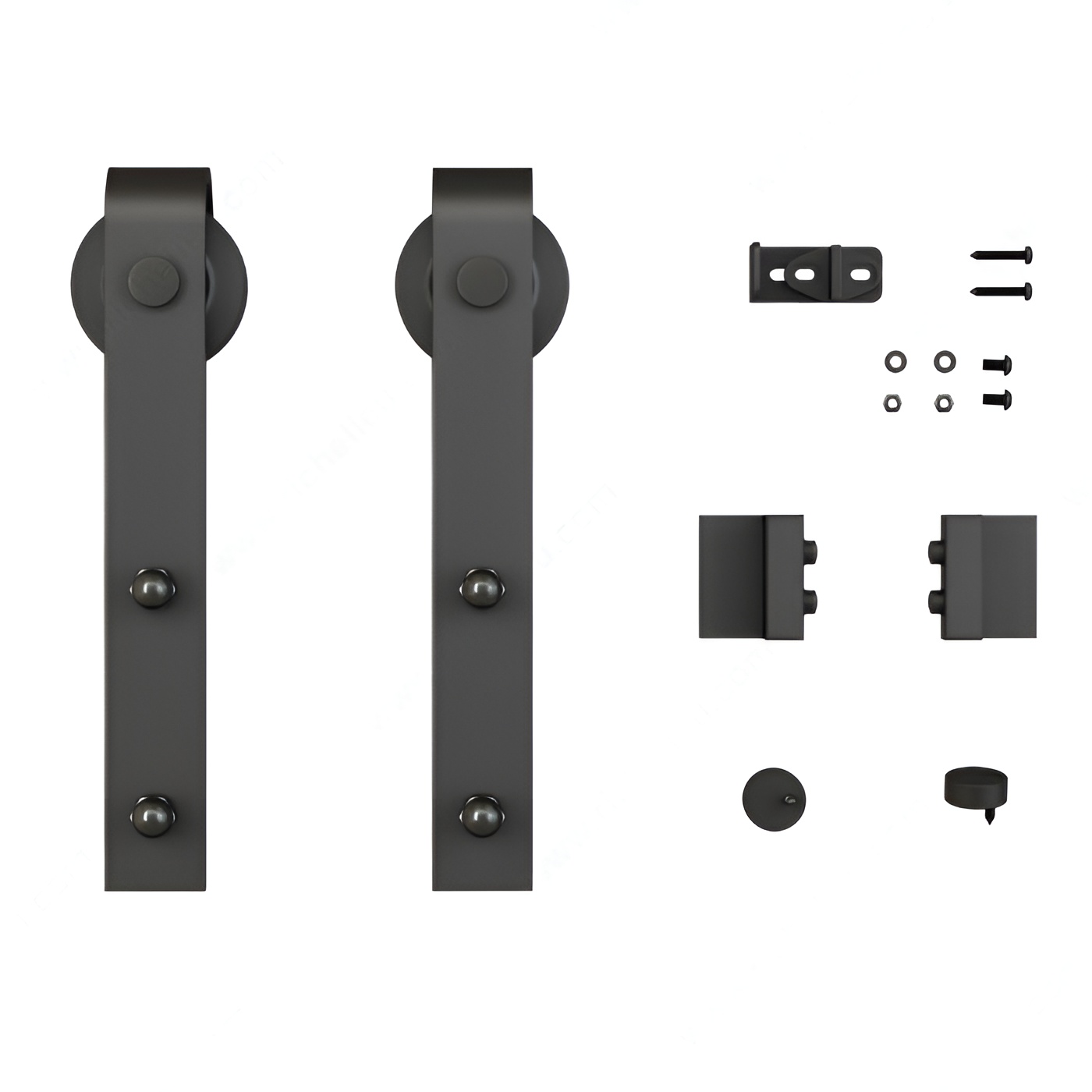

- Strap mount ball bearing wheels with through-bolt fastener
- Built-in anti-derailing device
- Pre-drilled tracks for installation of soft-close mechanism, 176 lb (80 kg) capacity (sold separately)
- Drywall anti-compression discs
- Adjustable wall mount bottom guide

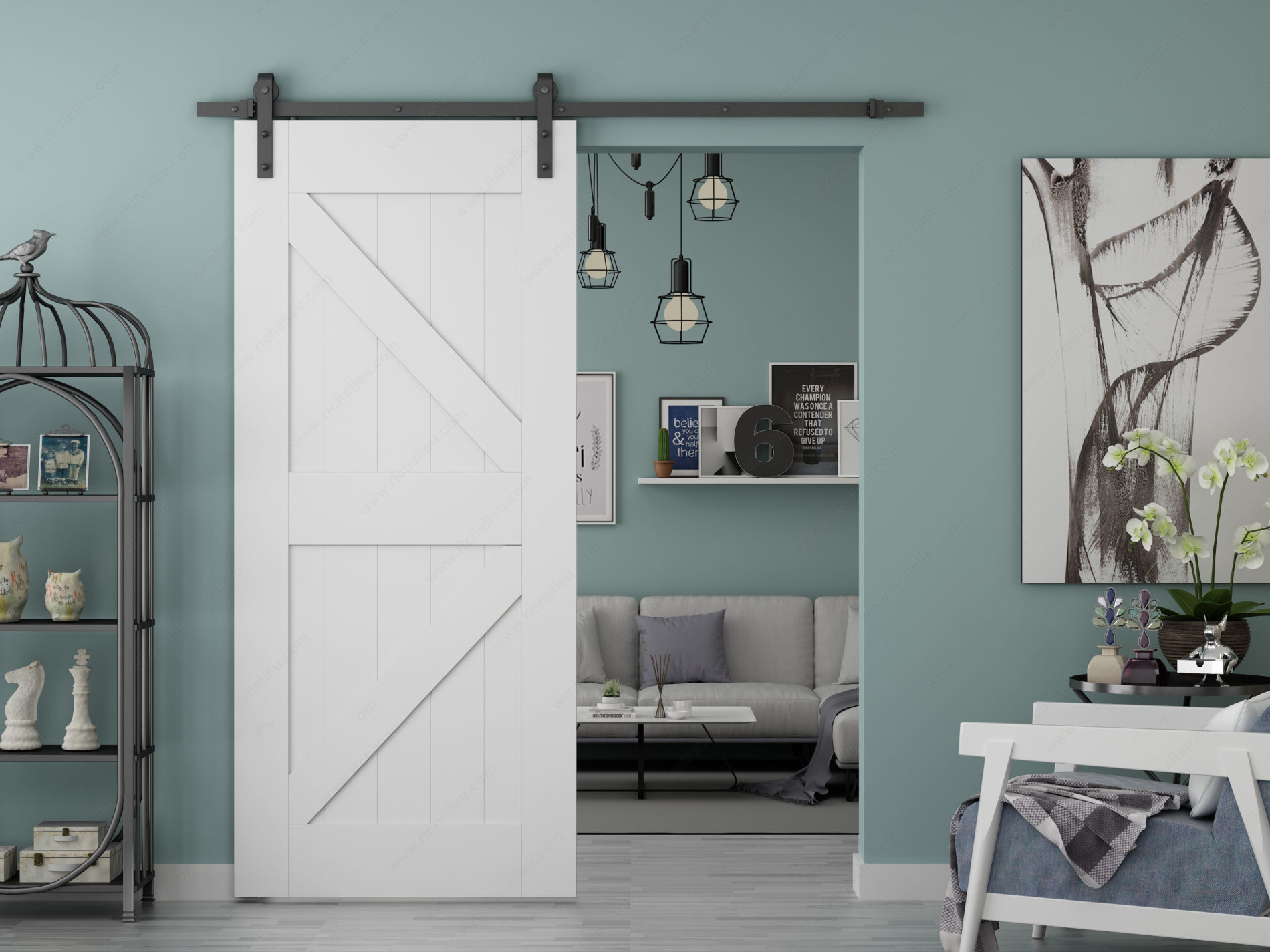

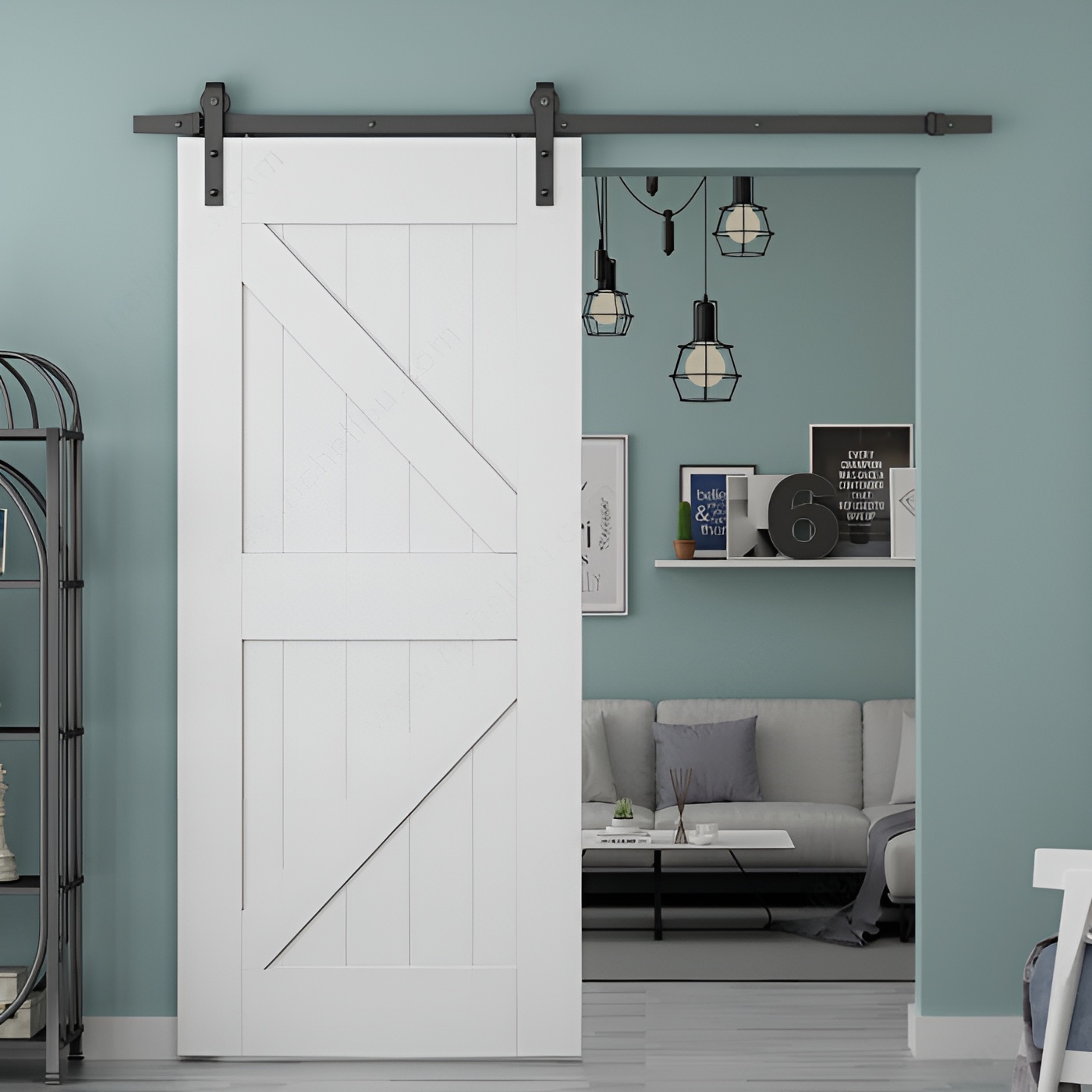

This barn door system is designed for high-use hospitality and commercial applications.
IMPORTANT: The minimum door width is 36 in (914 mm) when using a soft-close mechanism, and the maximum door weight is 176 lb (80 kg).
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door, Barn Door
Brand: Richelieu
Detailed Door Movement: Single Sliding
Displayed in These Showrooms: Toronto
Door Height: 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 35 to 45 mm
Door Width: 608 to 1 270 mm
Finish: Matte Black
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: Max. 220 lb*
Number of Doors: 2
Overall Length: 2 m
Product #: WEBKIT1217274
Product number: WEBKIT1217274
Product №: WEBKIT1217274
Roller Position: Upper
Roller Type: Ball Bearing, Axle (Bushing)
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Style: Rustic
Track Length: 2 m
Track Mounting: Wall Mount
Weight Capacity per Door: Max. 100 kg
