Richelieu WEBKIT1220357 Terno Solo Vetro 80 Sliding Glass Door SystemTerno Solo Vetro 80 Sliding Glass Door System
The Terno Solo Vetro 80 is a sliding glass door system for single sliding glass doors and sliding partitions with fixed glass panels. Made for glass doors 5/16 in to 1/2 in (8 mm to 12.7 mm) thick, weighing up to 176 lb (80 kg) each.
- Hardware sets include soft self-closing mechanisms with anti-derailment devices
- Concealed dry-glazing clamping shoe requires no drilling of the glass
- Flex-mount upper track can be ceiling or wall-mounted and has track options for sliding doors with fixed glass panels
- Select from Silver or Black Anodized tracks and profiles
- Clip-on fascia to cover clamping shoes and track
- Rubber press-on gaskets for fixed glass panels-- no adhesive required
- Optional Synchro hardware sets for bi-parting applications with a durable pulley cable system for linking two doors that open and close together in opposite directions

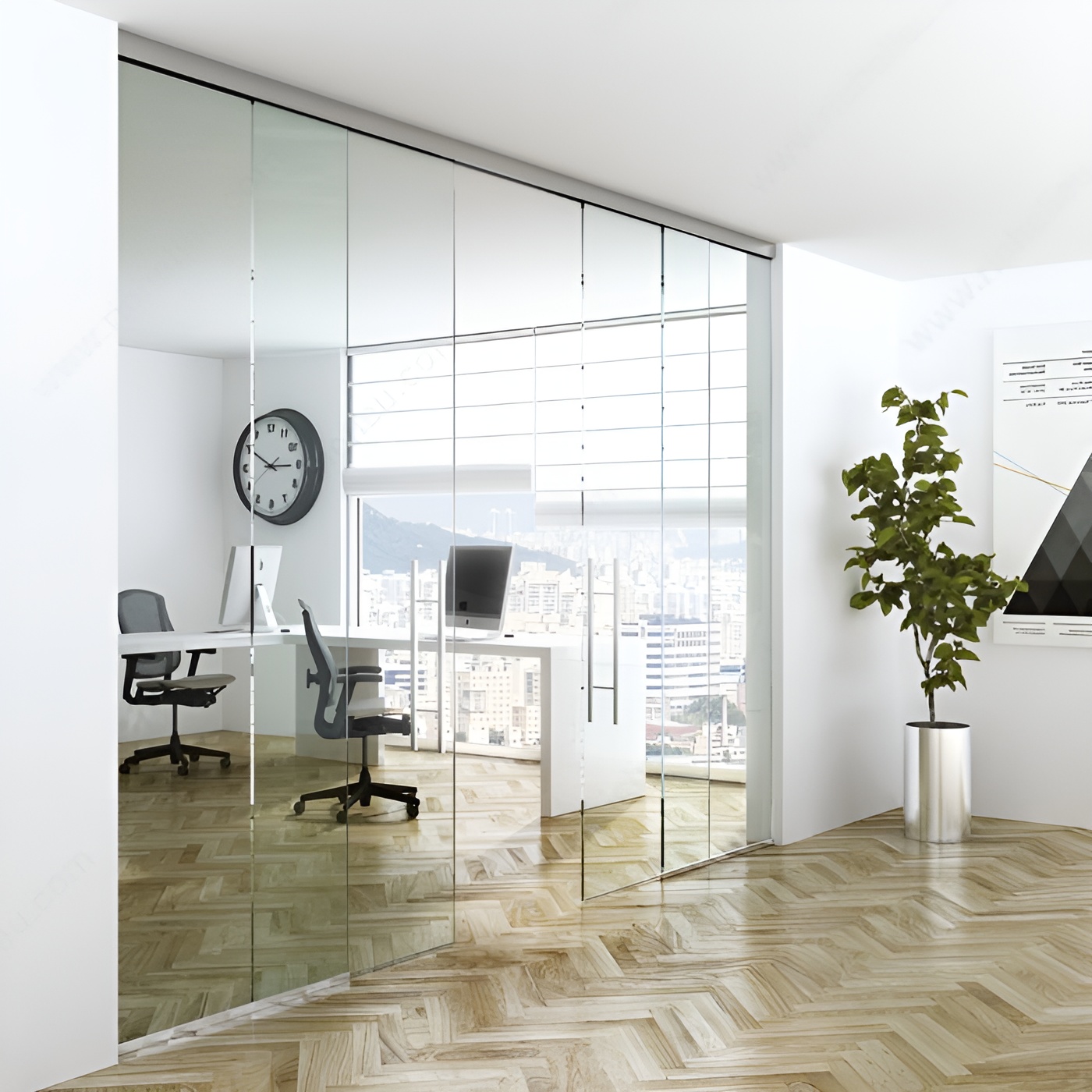

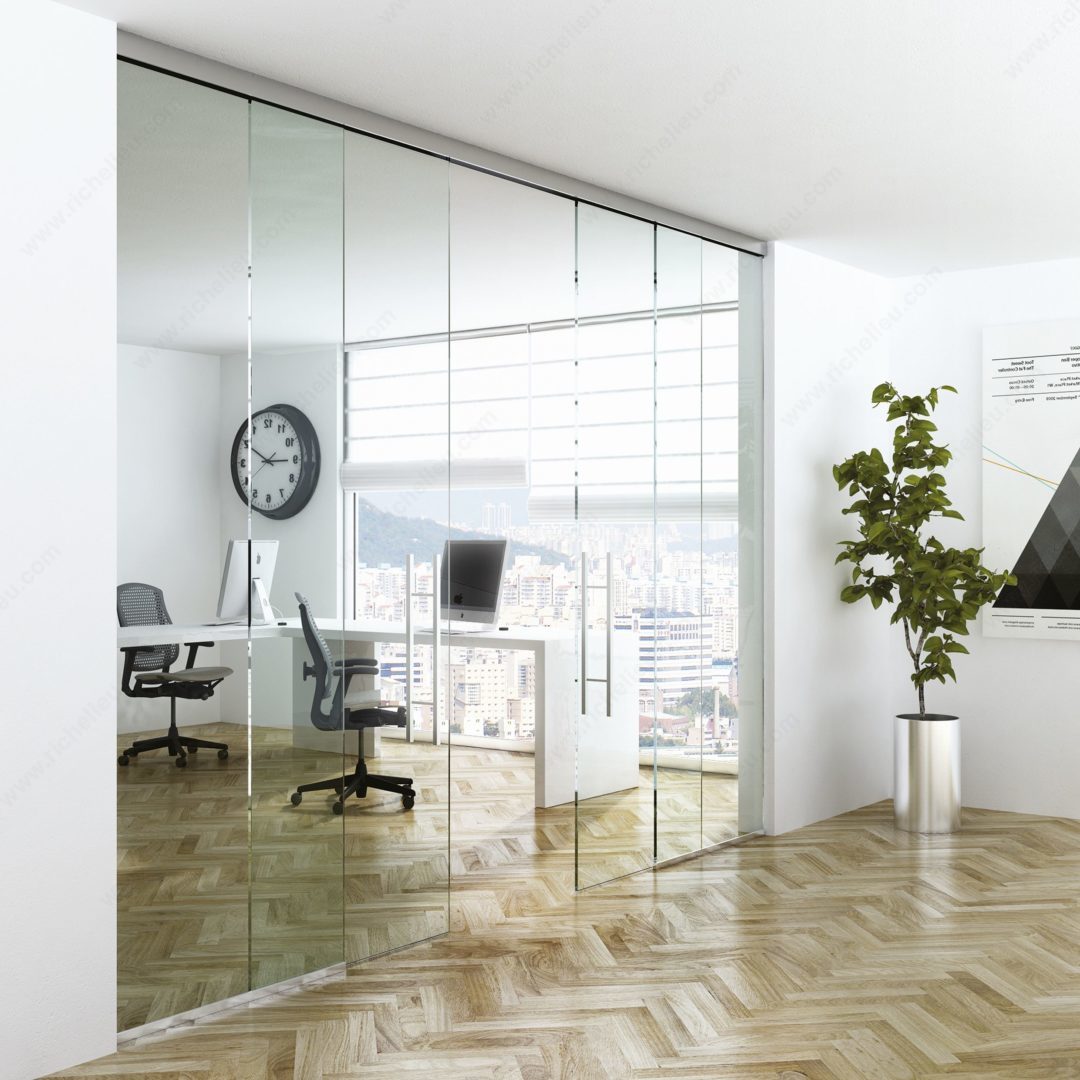

The Terno Solo Vetro 80 is ideal for commercial and residential applications, meeting rooms, office partitions, and transaction counters in public spaces.
IMPORTANT: Refer to LINE ART document for glass calculations.
Attributes
Ship via: No UPS - Common Carrier Only
Brand: Terno
Detailed Door Movement: Single Sliding
Displayed in These Showrooms: New York, Dallas, Fort Meyers, Nashville
Door Height: Max. 2 743 mm
Door Material: Glass
Door Movement: Straight Sliding
Door Thickness: 8 to 12.7 mm
Door Width: 600 to 1 000 mm
Finish: Anodized Silver
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: Max. 176 lb*
Number of Doors: 1
Overall Length: 2 m
Product #: WEBKIT1220357
Product number: WEBKIT1220357
Product №: WEBKIT1220357
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: One-Way Operation
Soft- Closing: Yes
Track Length: 2 m
Track Mounting: Ceiling Mount, Wall Mount
Track Type: Fixed Glass Panels
Track type: Fixed Glass Panels
Weight Capacity per Door: Max. 80 kg
