HAWA TELESCOPIC Systems 80/2 - 80/3 - 40/4
The HAWA TELESCOPIC Systems are a series of pulley systems that work with the Hawa Junior 80/Z system to synchronize the movement of two, three, or four wood doors.
Each can operate multiple doors with or without a recessed bottom guide channel in the floor. We suggest a recessed bottom guide channel in the floor for large doors and heavy traffic areas.
The pulley system includes a fiberglass reinforced toothed belt that resists slipping and stretching.
The following are the telescopic pulley systems to choose from, with the number of doors each operate.
- Hawa Telescopic 80/2 for two wood doors, 176 lb (80 kg) each
- Hawa Telescopic 80/3 for three wood doors, 176 lb (80 kg) each
- Hawa Telescopic 40/4 for four wood doors, 88 lb (40 kg) each

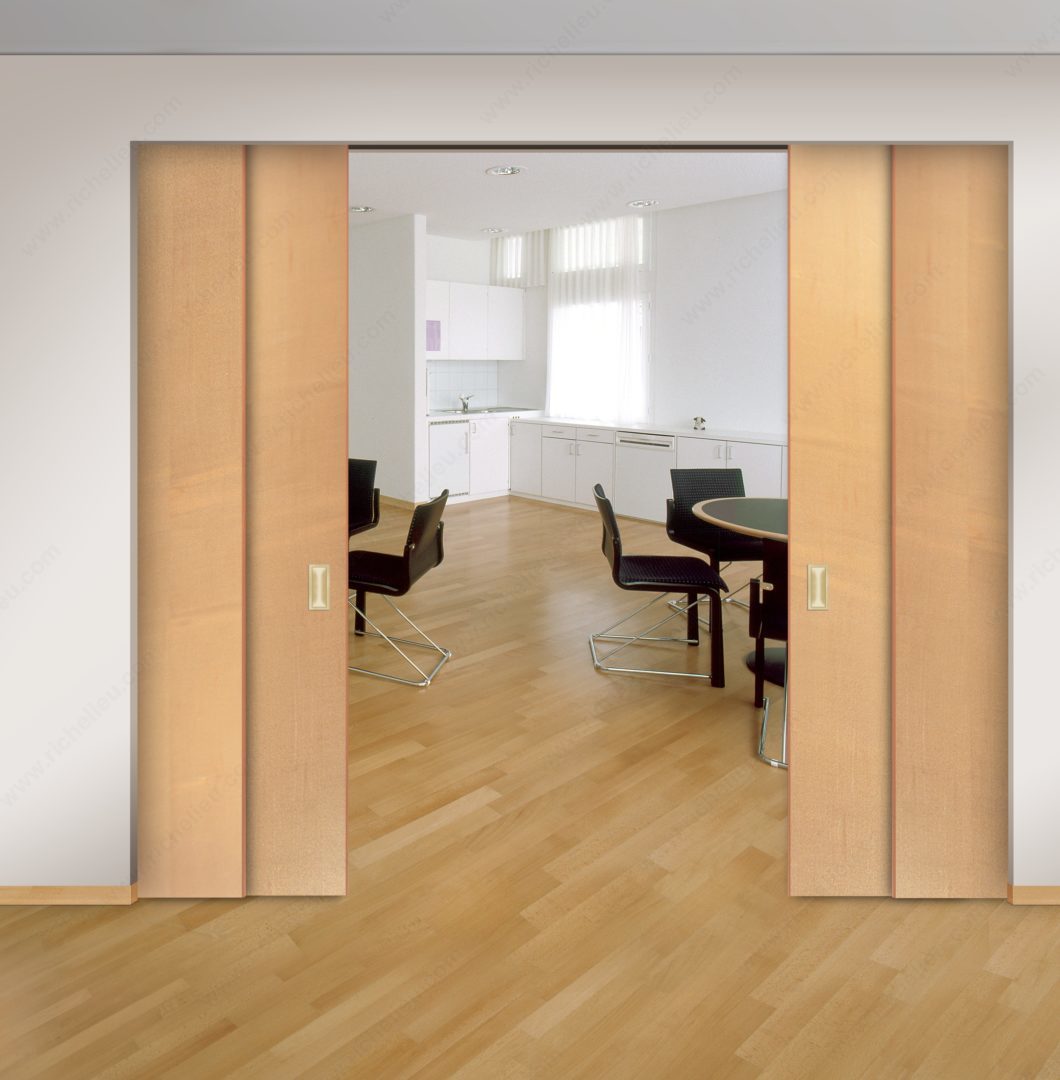

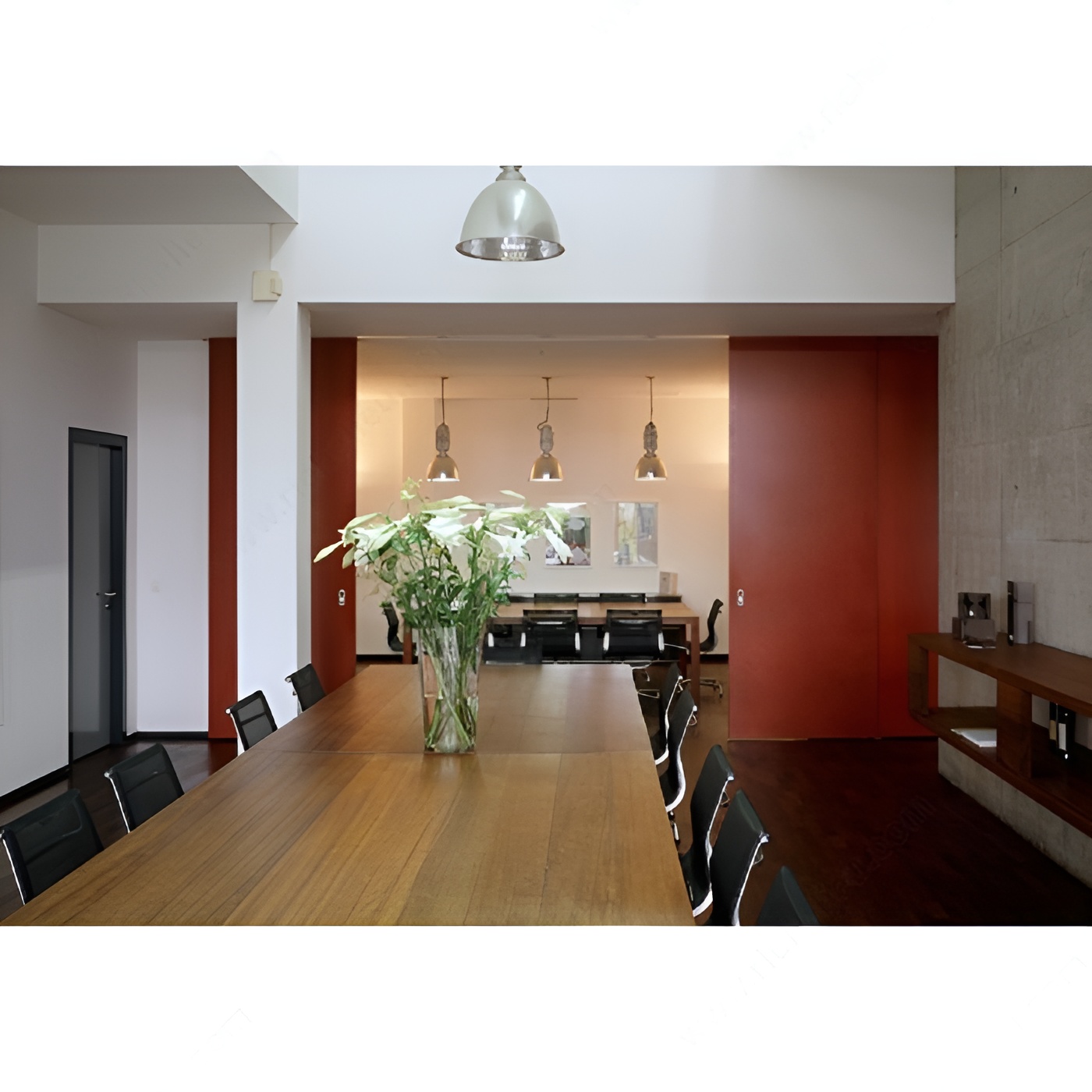

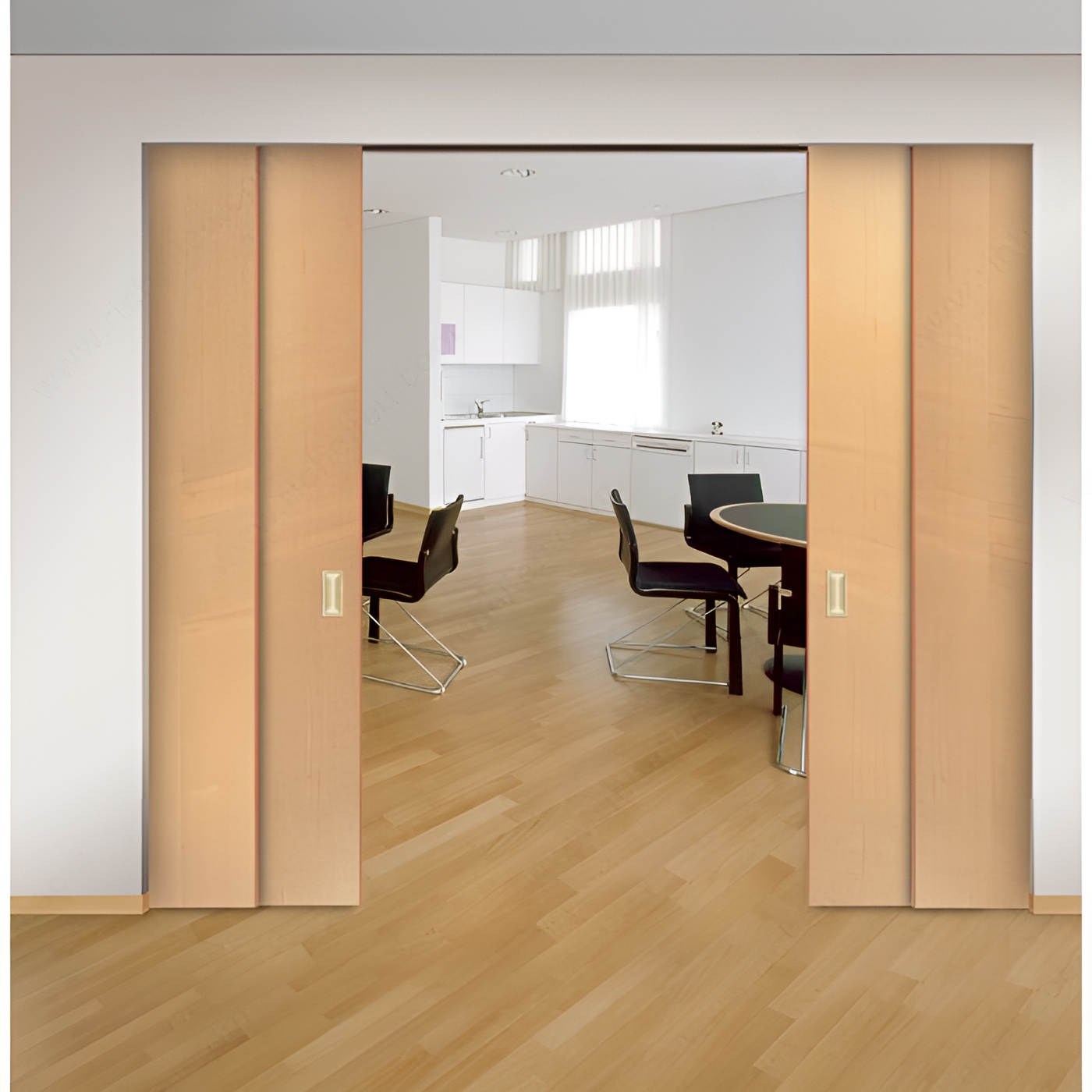

The HAWA TELESCOPIC Systems are ideal for residential and commercial movable partitions in office environments, meeting rooms, multifunctional spaces, restaurants, dining rooms, basement renovations, and exhibit halls.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Sliding Wall, Screen Panel
Brand: Hawa
Detailed Door Movement: Telescoping
Door Height: 23 5/8 to 126 in*
Door Installation: Top Hung
Door Material: Wood
Door Movement: Movable Wall
Door Position: Inset/Inlay
Door Thickness: 40 to 47 mm
Door Width: 500 to 820 mm
Finish: Satin Aluminum
Groove Depth: 25/32 in*
Groove Needed for Guiding System: Yes
Groove Width at the Bottom of Door: 15/32 in*
Length - Overall Dimensions: 13 ft 1 in*
Load Capacity: 88.2 lb*
Manufacturing Material: Aluminum
Number of Doors: 4
Overall Length: 4 m
Product #: WEBKIT1220408
Product number: WEBKIT1220408
Product №: WEBKIT1220408
Roller Type: Axle (Bushing)
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Finish: Satin Aluminum
Track Length: 4 m
Track Material: Anodized Aluminum
Track Mounting: Ceiling Mount
Weight Capacity per Door: 40 kg
