Richelieu WEBKIT1220414 HAWA SYMMETRIC 80/Z Biparting Synchronized SystemRichelieu WEBKIT1220414 HAWA SYMMETRIC 80/Z Biparting Synchronized System is designed to offer seamless sliding functionality for two wood doors, each capable of supporting a weight of up to 176 lb (80 kg). This innovative system features a pulley mechanism that connects to both ends of the upper track, ensuring smooth and synchronized movement as the doors slide in opposite directions. Constructed with a fiberglass-reinforced toothed belt, the HAWA SYMMETRIC 80/Z ensures reliable operation in a variety of environments, whether residential or commercial. It is compatible with the HAWA Junior 80/Z hardware set and is suitable for door widths ranging from 19 3/4 inches to 47 inches (500 mm to 1200 mm), accommodating diverse design preferences. The system is adjustable and ideal for standard access doors in settings such as boardrooms, restaurants, and meeting rooms. With a door height capacity of 23 5/8 inches to 157 inches and a thickness of 1 3/16 inches to 3 5/32 inches, it provides versatile installation options. Further enhancing its functionality, the system includes two stoppers and is designed for ceiling mount installation, making it a robust choice for any project requiring efficient space management.
HAWA SYMMETRIC 80/Z Biparting Synchronized System
The HAWA SYMMETRIC 80/Z Biparting Synchronized system is for two wood doors sliding in opposite directions on one track, each weighing up to 176 lb (80 kg).
Features:

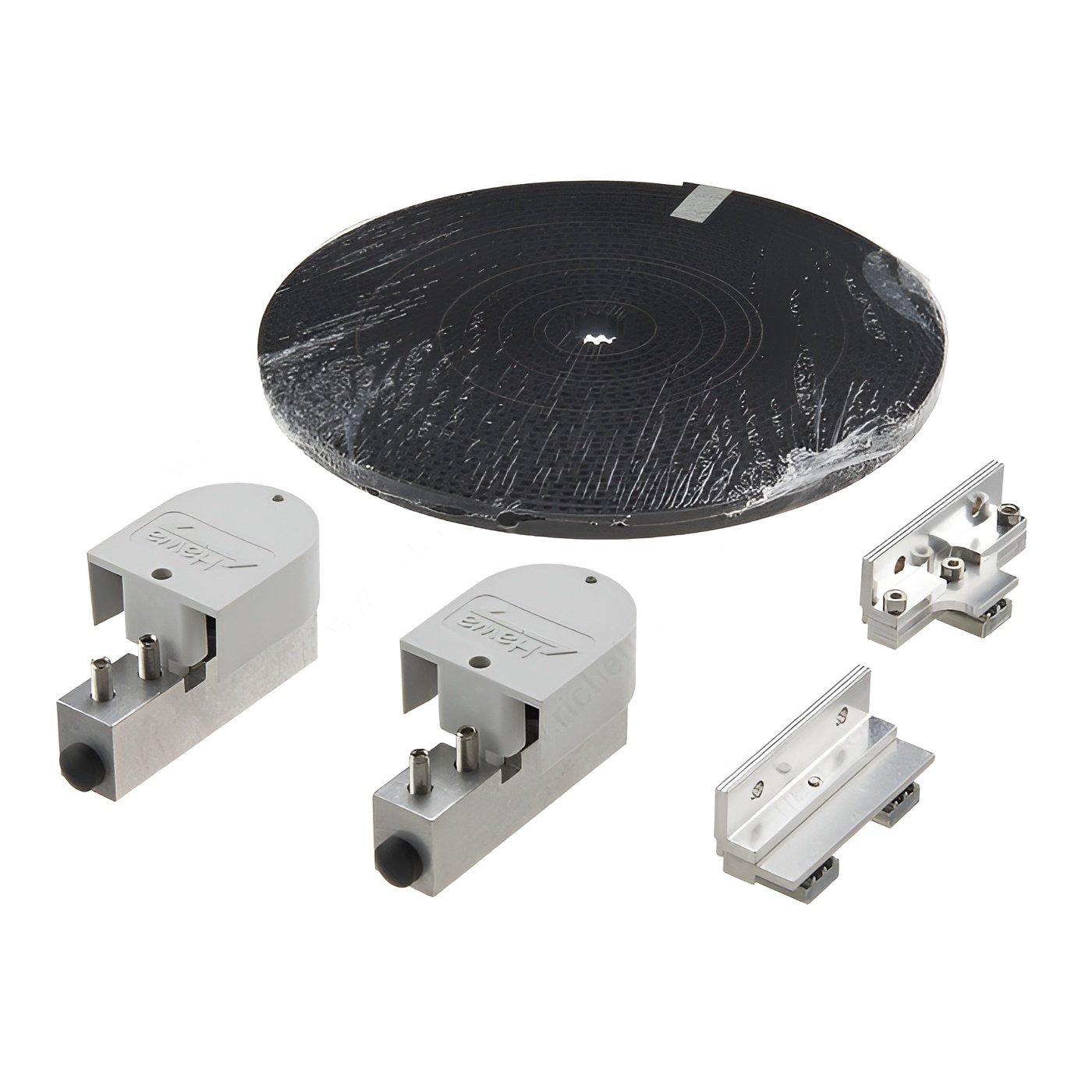

- Pulley system attaches to both ends of the upper track

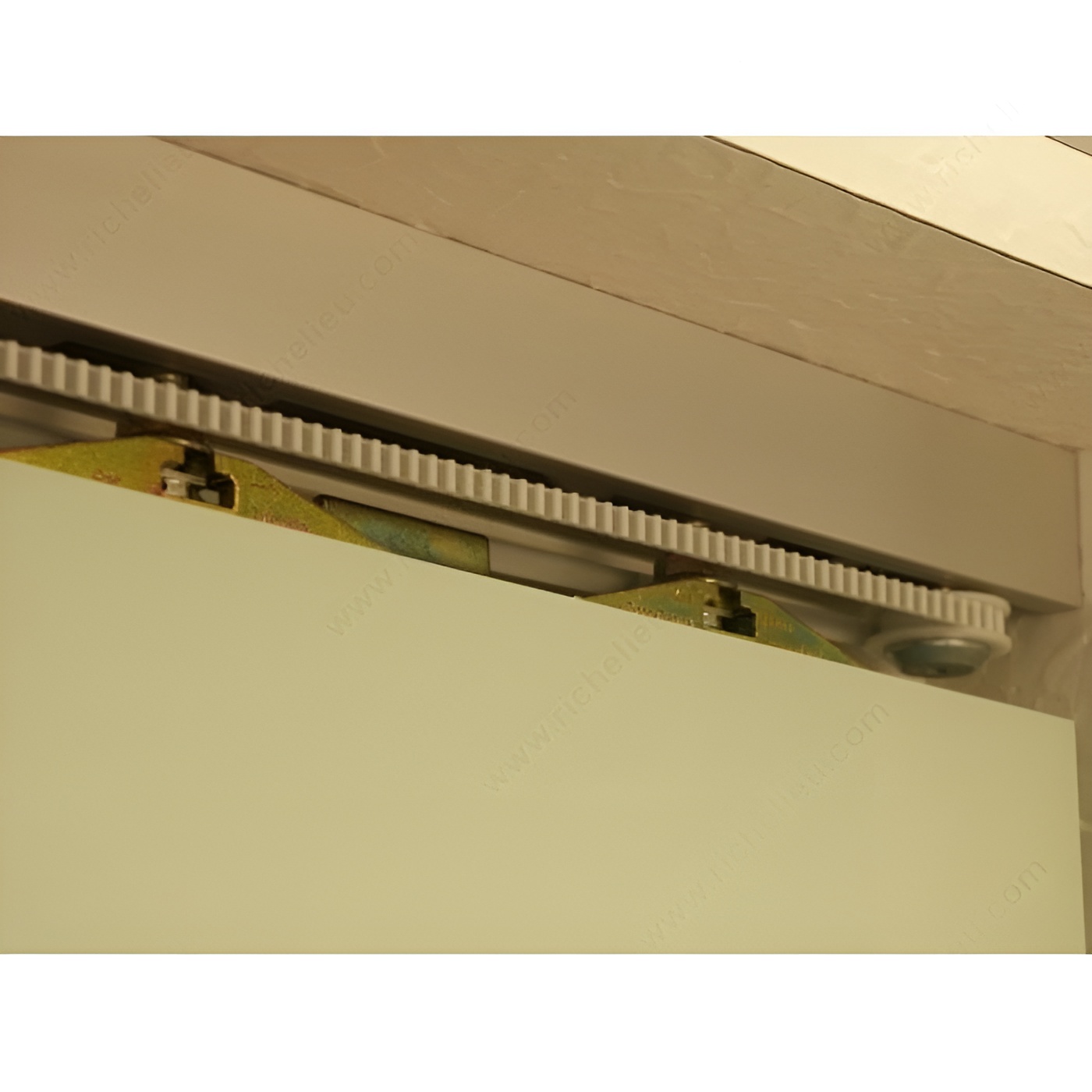

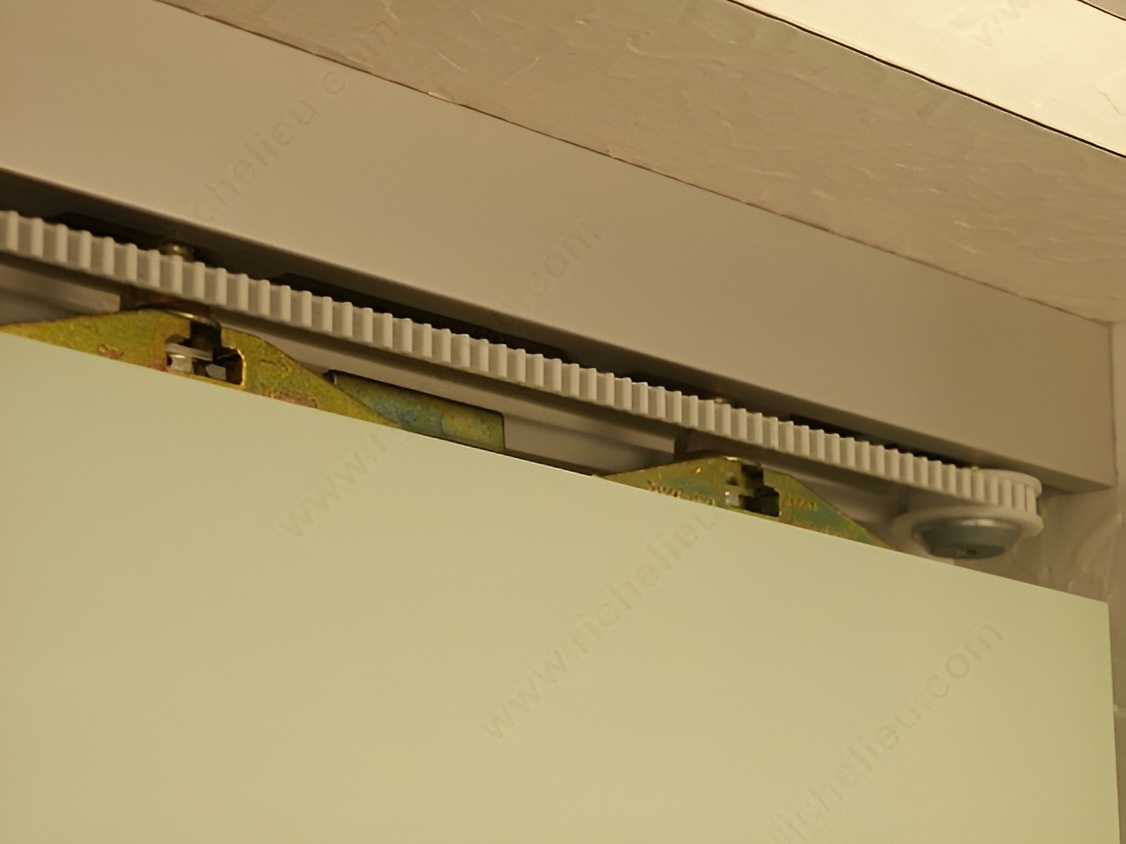

- Fiberglass reinforced toothed belt links both doors
- Works with the HAWA Junior 80/Z hardware set
- Standard set for door widths of 19 3/4 in to 47 in (500 mm to 1200 mm) each

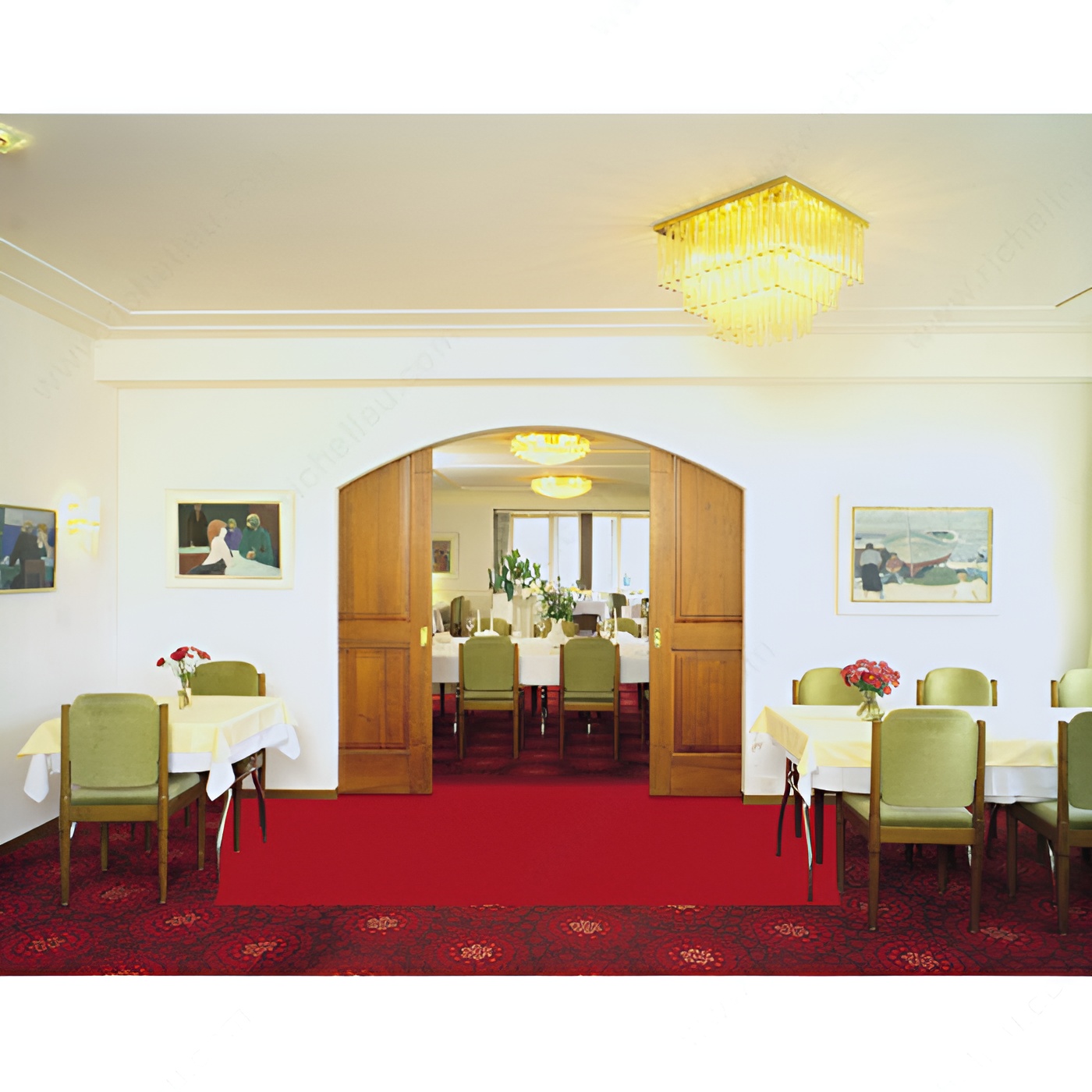

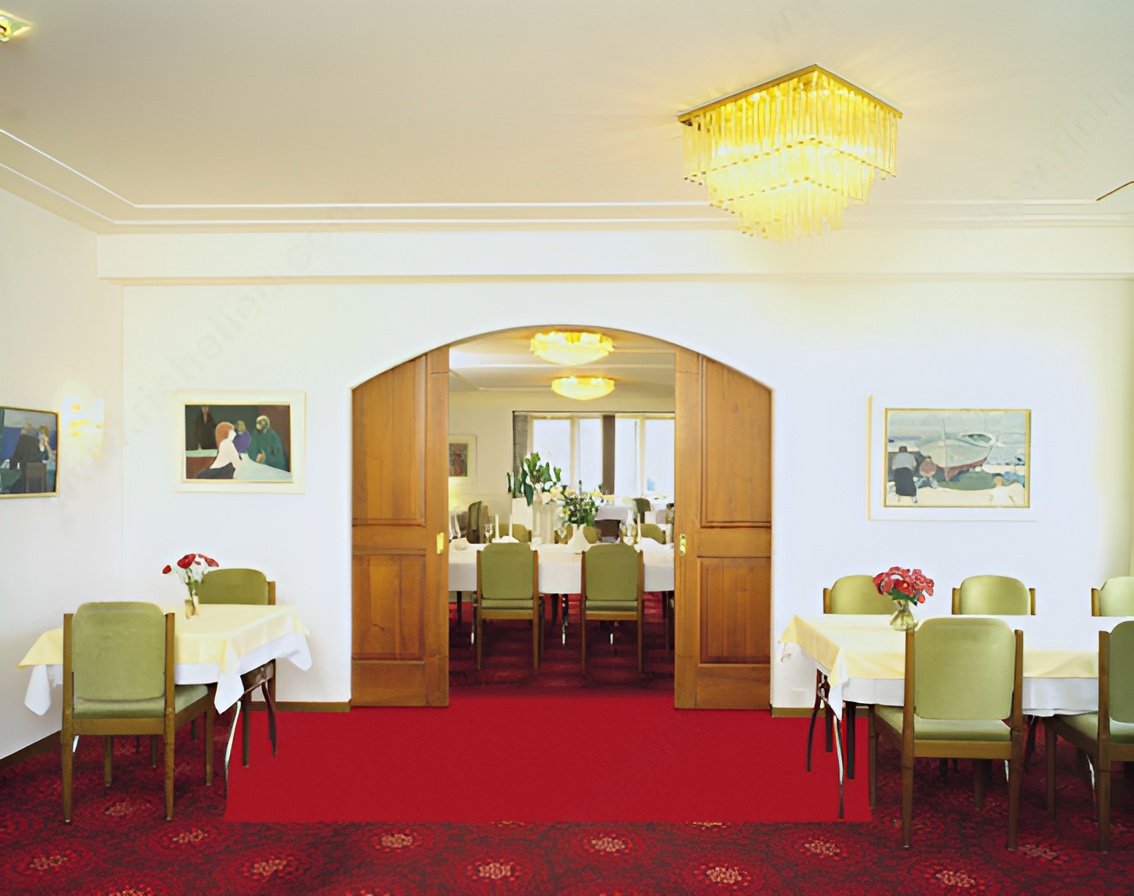

The HAWA SYMMETRIC 80/Z is an ideal solution for double door boardrooms, restaurants/breakfast rooms, and meeting rooms in residential and commercial applications.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Application: Standard Access Door
Brand: Hawa
Detailed Door Movement: Biparting
Door Height: 3 050 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 30 to 50 mm
Door Width: 500 to 1 200 mm
Function: Sliding Door
Groove Depth: 20 mm
Groove Width at the Bottom of Door: 12 mm
Length - Overall Dimensions: 15 ft 8 in*
Load Capacity: 88.2 to 176 lb*
Manufacturing Material: Aluminum
Number of Doors: 2
Overall Length: 4 800 mm
Product #: WEBKIT1220414
Product number: WEBKIT1220414
Product №: WEBKIT1220414
Roller Position: Upper
Roller Type: Axle (Bushing)
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Stopper: Two
Track Length: 2.5 m
Track Material: Anodized Aluminum
Track Mounting: Ceiling Mount
Weight Capacity per Door: Max. 80 kg
