Richelieu WEBKIT1236399 HAWA APERTO 60H Modular Sliding Door SystemRichelieu WEBKIT1236399 HAWA APERTO 60H Modular Sliding Door System offers a versatile solution for creating dynamic spaces in both commercial and residential environments. This innovative movable wall partition system accommodates sliding and stacking doors, with each panel capable of supporting a maximum weight of 132 lb (60 kg). Designed for flexibility, the HAWA APERTO 60H features plain anodized tracks that can be surface or recessed mounted, making installation seamless. This modular system includes a standard parking unit that can house up to nine door panels, along with a center stop equipped with an adjustable retention spring to stabilize sliding doors while allowing easy pivot operation. The tracks connect effortlessly with pins and fixing plates, ensuring unobstructed movement. Additionally, optional curved track segments can be special-ordered for enhanced maneuverability. The system accommodates doors up to 8 ft 6 in in height and is compatible with wood doors ranging in thickness from 1 3/8 to 1 31/932 inches and widths from 21 5/8 to 59 inches. Locking options are available, including keyed and non-keyed deadbolts. For technical support, Richelieu provides dedicated email assistance to help pre-calculate parking areas, ensuring the ideal setup for multifunctional spaces like meeting rooms, restaurants, and more.
HAWA APERTO 60H Modular Sliding Door System

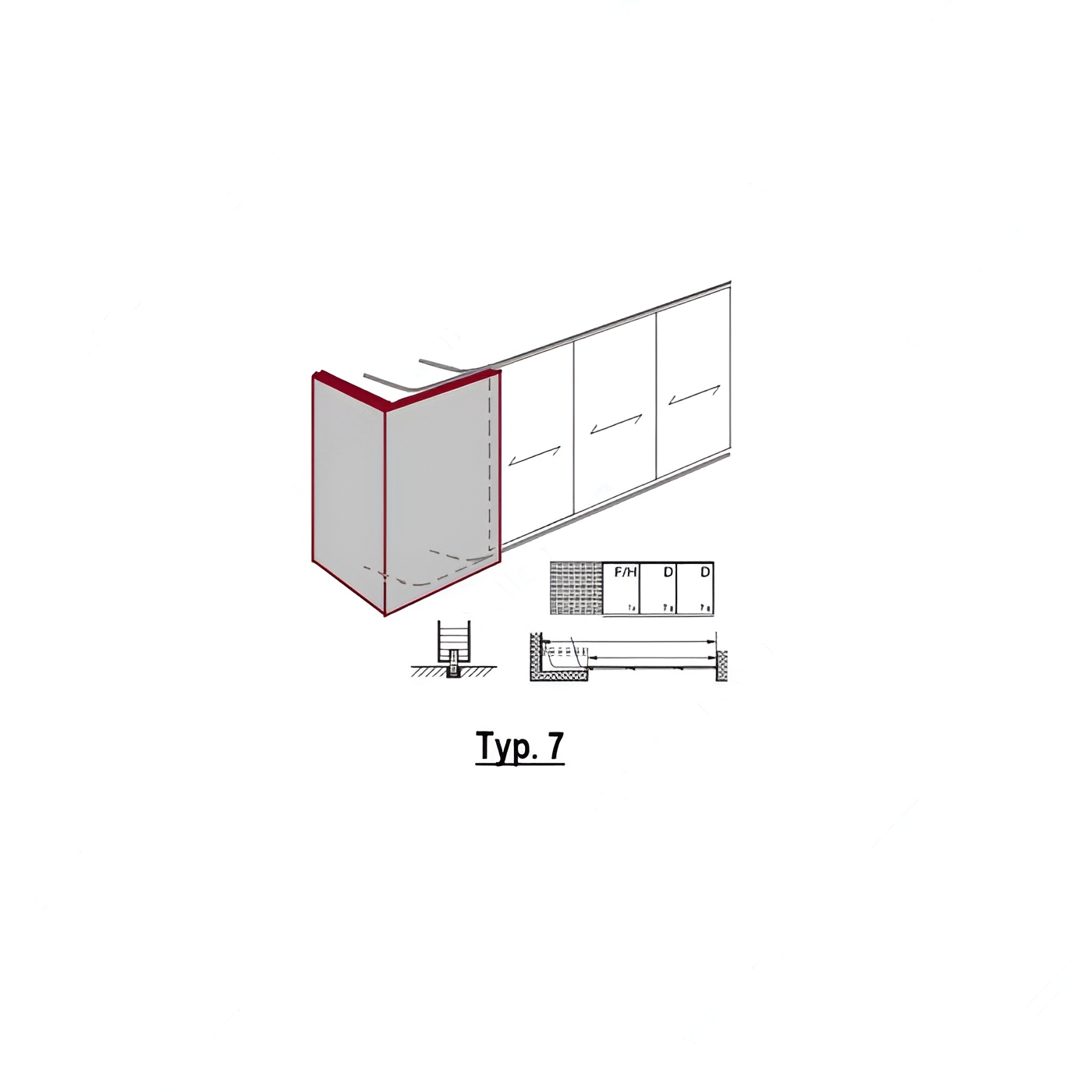

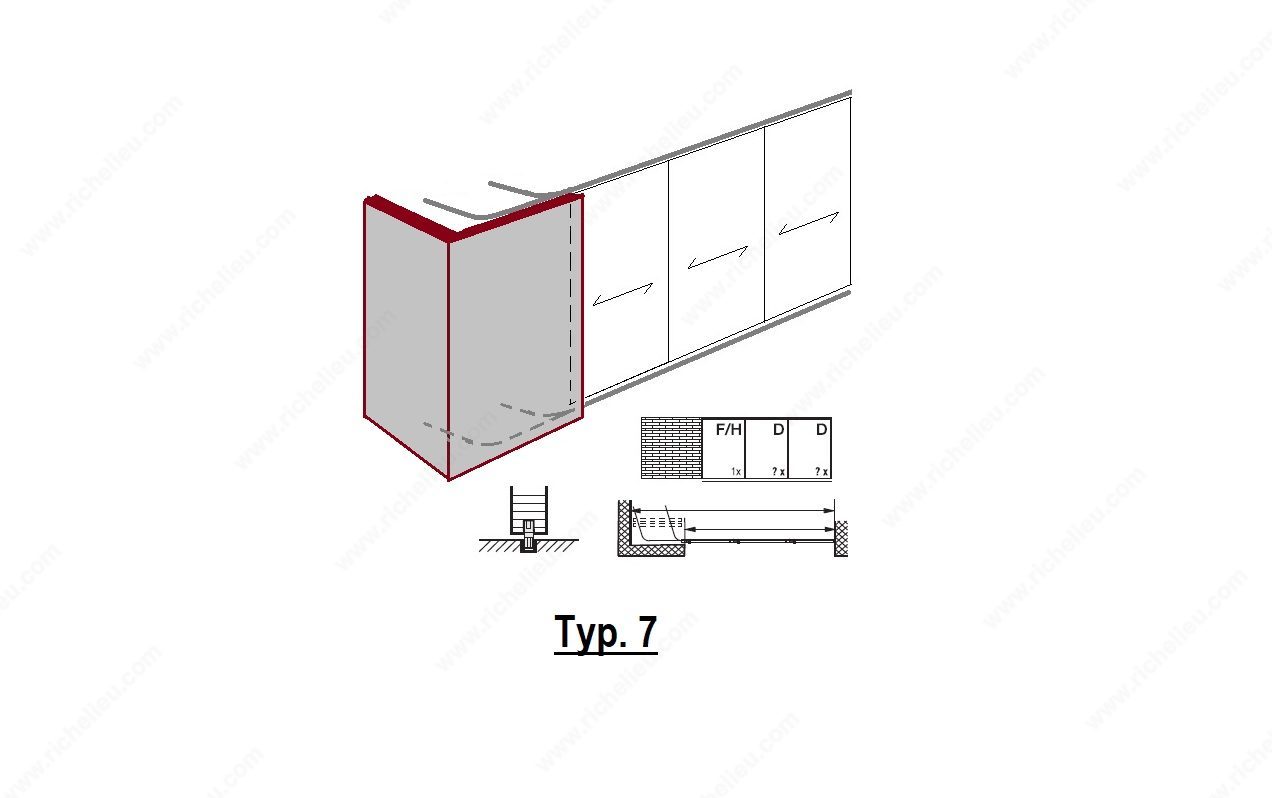

The HAWA APERTO 60H Modular is a movable wall partition system for sliding and stacking doors.
Features:
- Maximum panel weight of 132 lb (60 kg) each
- All tracks and guide channels are plain anodized
- Tracks can be surface and recessed mount
- Standard modular parking unit for up to nine door panels
- Center stop with adjustable retention spring to keep sliding doors stationary so that the pivot door can be operated
- Tracks are joined and extended with connecting pins and fixing plates without obstructing movement of the doors
- Parking modules include servicing track end piece for trolleys to load easily
- Optional curved track segments available for changes in direction, via special order
- Offers modular units with and without bottom guides
- Locking options keyed and non-keyed deadbolts
- Technical support available via email to pre-calculate parking areas:
Canada:
[email protected] USA:
[email protected] The HAWA APERTO 60H Modular 90 Degree is an ideal solution for multifunctional rooms in commercial and residential environments, such as meeting rooms, restaurants, storage areas, and other great rooms.
Attributes
Ship via: No UPS - Common Carrier Only
Bottom Guide: Yes
Brand: Hawa
Detailed Door Movement: Stacking
Door Configurations: Parallel to upper track
Door Height: 2 600 mm
Door Material: Wood
Door Movement: Movable Wall
Door Thickness: 35 to 50 mm
Door Width: 550 to 1 500 mm
Function: Sliding Door
Load Capacity: 132 lb*
Number of Doors: 3
Product #: WEBKIT1236399
Product number: WEBKIT1236399
Product №: WEBKIT1236399
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Mounting: Ceiling Mount
Weight Capacity per Door: 60 kg
