Richelieu WEBKIT1236400 HAWA APERTO 60H Modular Sliding Door SystemRichelieu WEBKIT1236400 HAWA APERTO 60H Modular Sliding Door System offers an innovative solution for movable wall partitions, ideal for both commercial and residential spaces. Designed to accommodate sliding and stacking doors, this system supports a maximum panel weight of 132 lb (60 kg) per door, making it robust and reliable. The anodized tracks are available for both surface and recessed mounting, providing flexibility in installation. A standard modular parking unit can accommodate up to nine door panels, ensuring efficient use of space. The center stop features an adjustable retention spring that keeps sliding doors stationary, allowing easy operation of the pivot door. Connecting pins and fixing plates enable seamless track extensions without hindering door movement. For added versatility, optional curved track segments can be customized upon request. The HAWA APERTO 60H Modular accommodates various door configurations, with heights up to 8 ft 6 in, thicknesses from 1 3/8 to 1 31/32 in, and widths ranging from 21 5/8 to 59 in. Locking options include both keyed and non-keyed deadbolts, ensuring security for your spaces. With technical support available for parking area calculations, this system is perfect for multifunctional rooms such as meeting spaces, restaurants, and storage areas.
HAWA APERTO 60H Modular Sliding Door System
The HAWA APERTO 60H Modular is a movable wall partition system for sliding and stacking doors.
Features:
- Maximum panel weight of 132 lb (60 kg) each
- All tracks and guide channels are plain anodized
- Tracks can be surface and recessed mount
- Standard modular parking unit for up to nine door panels
- Center stop with adjustable retention spring to keep sliding doors stationary so that the pivot door can be operated
- Tracks are joined and extended with connecting pins and fixing plates without obstructing movement of the doors
- Parking modules include servicing track end piece for trolleys to load easily
- Optional curved track segments available for changes in direction, via special order
- Offers modular units with and without bottom guides
- Locking options keyed and non-keyed deadbolts
- Technical support available via email to pre-calculate parking areas:
Canada:
[email protected] USA:

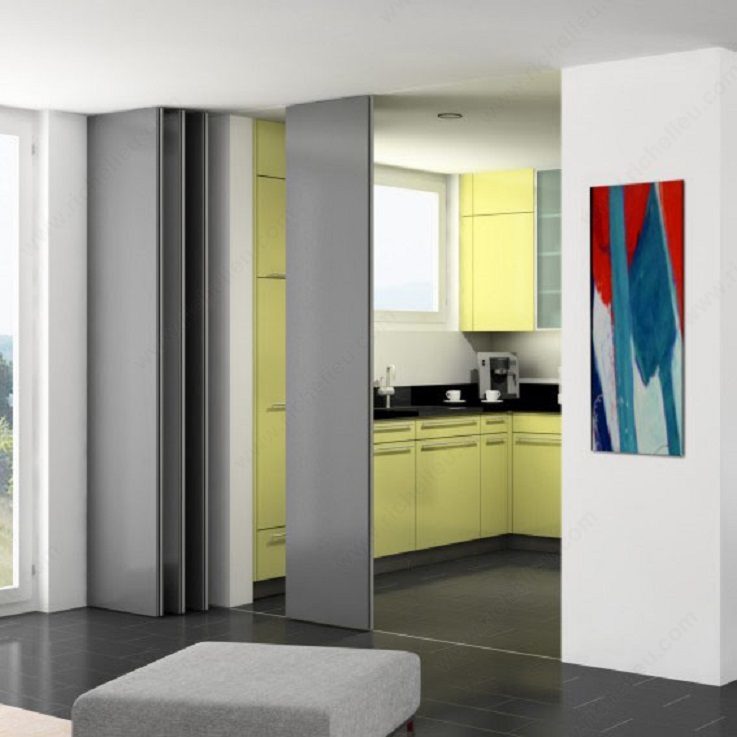

[email protected] The HAWA APERTO 60H Modular 90 Degree is an ideal solution for multifunctional rooms in commercial and residential environments, such as meeting rooms, restaurants, storage areas, and other great rooms.
Attributes
Ship via: No UPS - Common Carrier Only
Bottom Guide: No
Brand: Hawa
Detailed Door Movement: Stacking
Door Configurations: Parallel to upper track
Door Height: 2 600 mm
Door Material: Wood
Door Movement: Movable Wall
Door Thickness: 35 to 50 mm
Door Width: 550 to 1 500 mm
Function: Sliding Door
Load Capacity: 132 lb*
Number of Doors: 3
Product #: WEBKIT1236400
Product number: WEBKIT1236400
Product №: WEBKIT1236400
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Mounting: Ceiling Mount
Weight Capacity per Door: 60 kg
