Richelieu WEBKIT1236490 HAWA LIBRA 20H Vertical Sliding SystemRichelieu WEBKIT1236490 HAWA LIBRA 20 H Vertical Sliding System is engineered to support cabinet doors weighing up to 44 lb (20 kg) each, providing a seamless vertical sliding solution for modern cabinetry. This system features a versatile pulley system that allows the use of workshop panel materials or the opposite door as a counterweight, ensuring synchronized operation for both single and bi-parting door setups. Designed primarily for wood doors, it can be adapted to aluminum frame doors with a minimum frame width of 1 31/932 in (50 mm), making it suitable for various applications, including inset and full overlay configurations. The installer has the flexibility to determine the door travel distance, enhancing customization options. Additionally, the system can be securely locked with a standard furniture lock, providing peace of mind for storage solutions. Ideal for open breakfast and bar areas in hotels, entertainment units that conceal TVs, office storage units, and appliance garages, the HAWA LIBRA 20 H system combines functionality with aesthetic appeal. With a maximum door height of 39 3/8 in and a maximum width of 63 in, this product ensures that you can create stylish, space-saving solutions without compromising on design or performance.
HAWA LIBRA 20 H Vertical Sliding System
The HAWA LIBRA 20 H Vertical Sliding System is for cabinet doors weighing up to 44 lb (20 kg) each.
Features:
- Pulley system counterweight is the workshop panel material or the opposite door for synchronized applications
- Hardware sets available for single door and two door synchronized biparting doors
- Intended for wood doors, can be adapted to aluminum frame doors with a minimum frame width of 1 31/32 in (50 mm)
- Suitable for inset and full overlay applications
- Versatile system, the installer determines door travel distance
- Lockable with a standard furniture lock
- A HAWA Sliding Solutions product

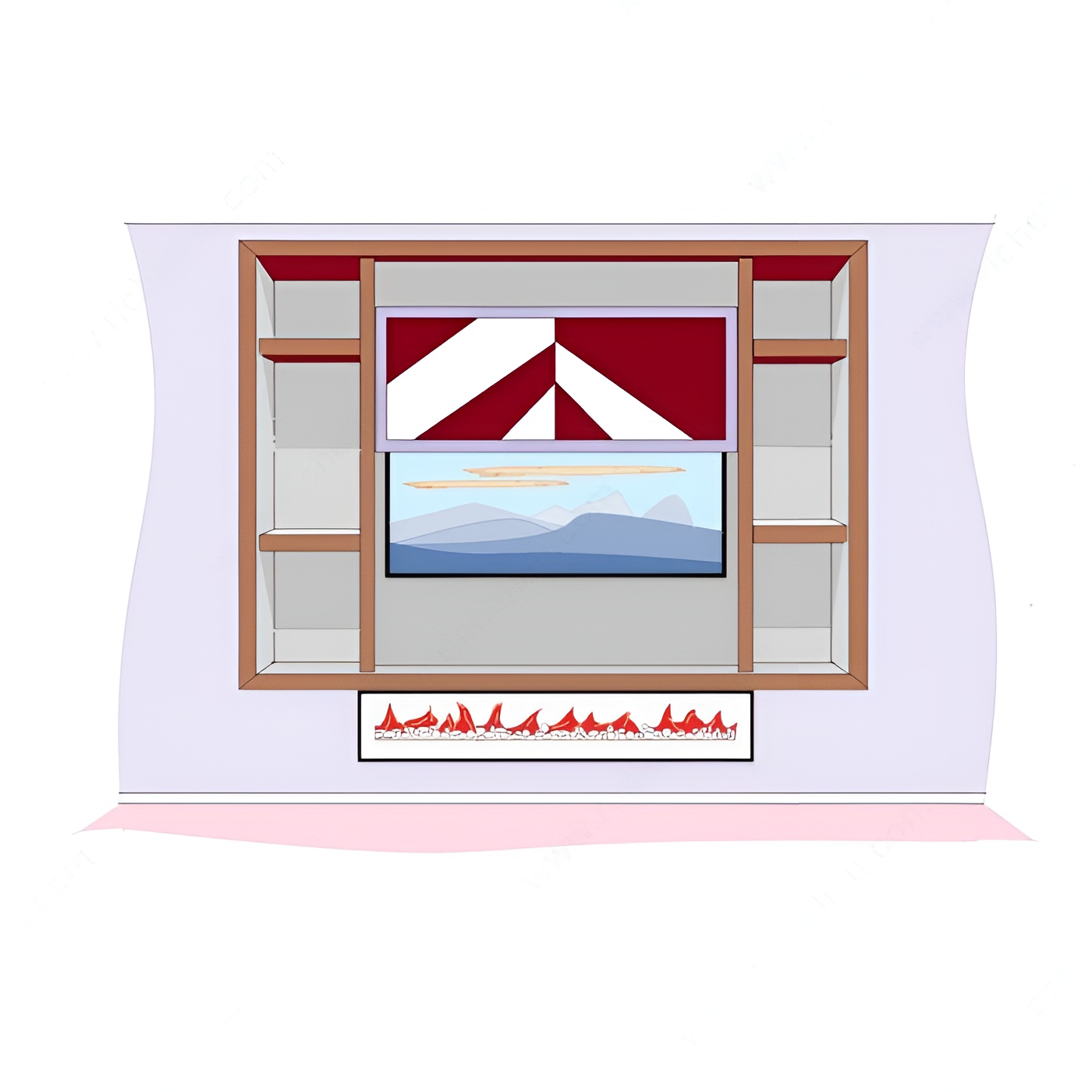

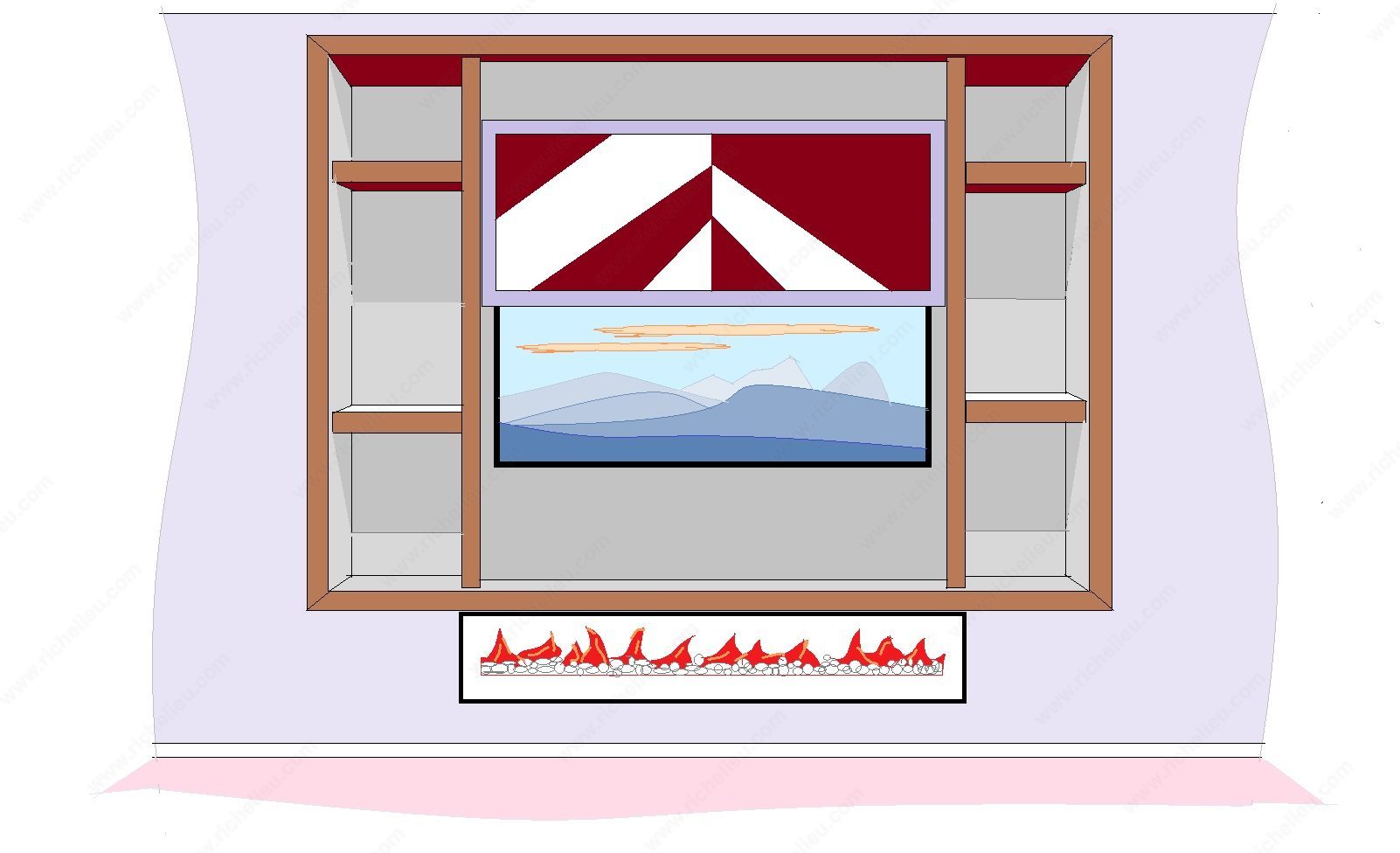

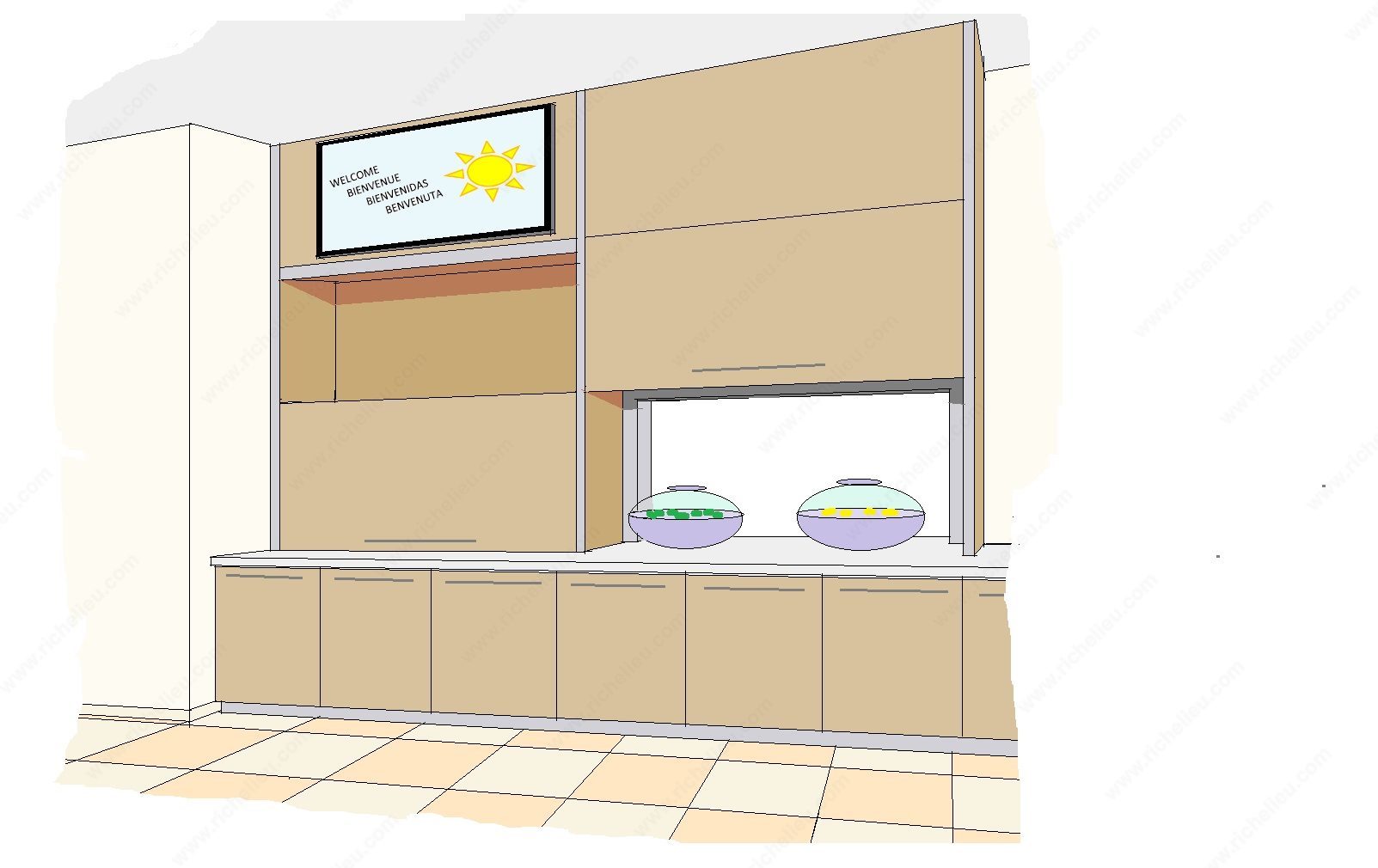

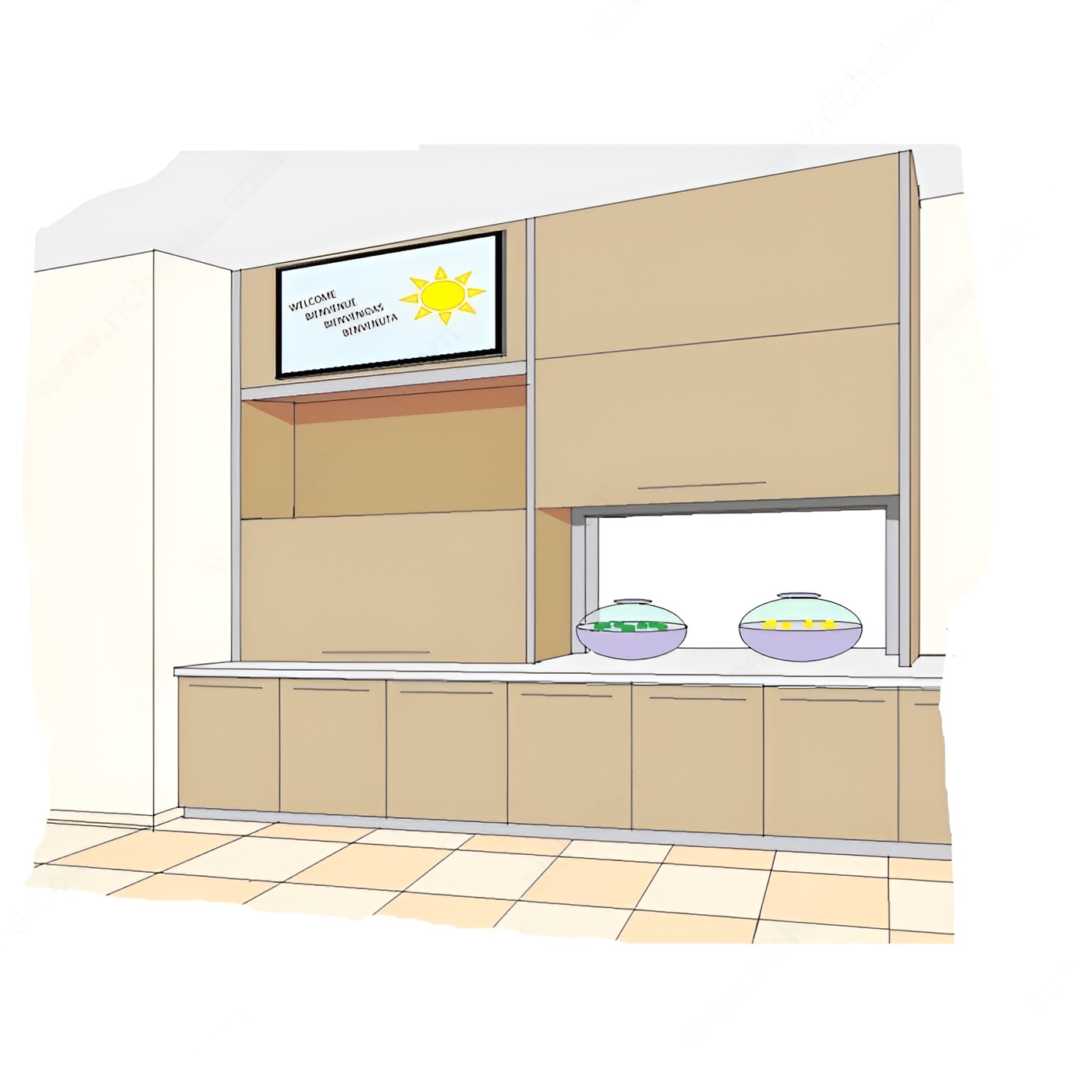

The HAWA LIBRA 20 H Vertical Sliding System is an ideal solution for open breakfast and bar areas in hotels, entertainment units to conceal TVs, office storage units, and hutch and appliance garages.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Storage
Brand: Hawa, EKU
Detailed Door Movement: Vertical Sliding
Door Height: Max. 1 000 mm
Door Material: Wood
Door Movement: Vertical
Door Thickness: 16 to 25 mm
Door Width: Max. 1 600 mm
Length - Overall Dimensions: Max. 98 3/8 in*
Load Capacity: 44.1 lb*
Number of Doors: 1
Overall Length: Max. 2 500 mm
Product #: WEBKIT1236490
Product number: WEBKIT1236490
Product №: WEBKIT1236490
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Length: Max. 2 500 mm
Weight Capacity per Door: 20 kg
