Richelieu WEBKIT1240073 CS Cavity Sliders Pocket Door System offers an innovative solution for seamlessly integrating sliding wood doors into various spaces. Designed to accommodate doors weighing up to 500 lb (227 kg), this system includes options for SofStop soft-close mechanisms supporting weights of 264 lb (120 kg) per door, ensuring smooth and controlled closure. This versatile pocket door system is compatible with standard 2 x 4 wood and metal wall stud construction. Users can select from pocket frames accommodating door widths from 24 in (610 mm) to 48 in (1219 mm) and heights up to 96 in (2438 mm). Constructed from robust double-wall aluminum, the frames feature an upper running track that can be customized for unique door sizes, shipped disassembled for cost-effective delivery and straightforward installation. Included are carriage hardware sets that can be chosen with or without the soft-close feature, along with a convenient CarriSnap mounting suspension plate for easy setup. Additional benefits include a pivoting bottom guide for simple loading and large wheel trolleys equipped with precision ground bearings for enhanced performance. Ideal for residential, commercial, and institutional applications, the Richelieu CS Cavity Sliders Pocket Door System combines durability and functionality seamlessly.

CS Cavity Sliders Pocket Door System

The CS Cavity Sliders Pocket Door Systems are for sliding wood doors weighing up to 500 lb (227 kg) each with options for SofStop soft-close mechanisms of up to 264 lb (120 kg) per door. Made for standard 2 x 4 wood and metal wall stud construction.

Features:
- Choose from a selection of pocket frames for door widths from 24 in (610 mm) to 48 in (1219 mm) and for door heights of up to 80 in (2030 mm) and 96 in (2438 mm)
- Pocket frames are made of sturdy double-wall aluminum including the upper running track, which can be cut to size to suit custom-size doors
- The frames are supplied disassembled for low-cost shipping and ease of installation
- Choose from a wide variety of carriage hardware sets with or without SofStop soft-close mechanism
- CarriSnap mounting suspension plate available for the top of the door for mounting and releasing the upper trolley without tools
- SoftStop soft-close mechanisms come in single or twin action for doors weighing up to 176 lb (80 kg), and single action for doors weighing up to 264 lb (120 kg)
- Trim clips are included in the pocket frame sets for easy press-on mounting of door jamb trim
- Features a pivoting bottom guide to ease loading the door into the pocket frame during installation
- Large wheel trolleys with precision ground bearings for smooth running

For basic pocket door kits without soft-close, see the Suggested Products section below for a direct link to CS Cavity Slider Pocket Door Kit.

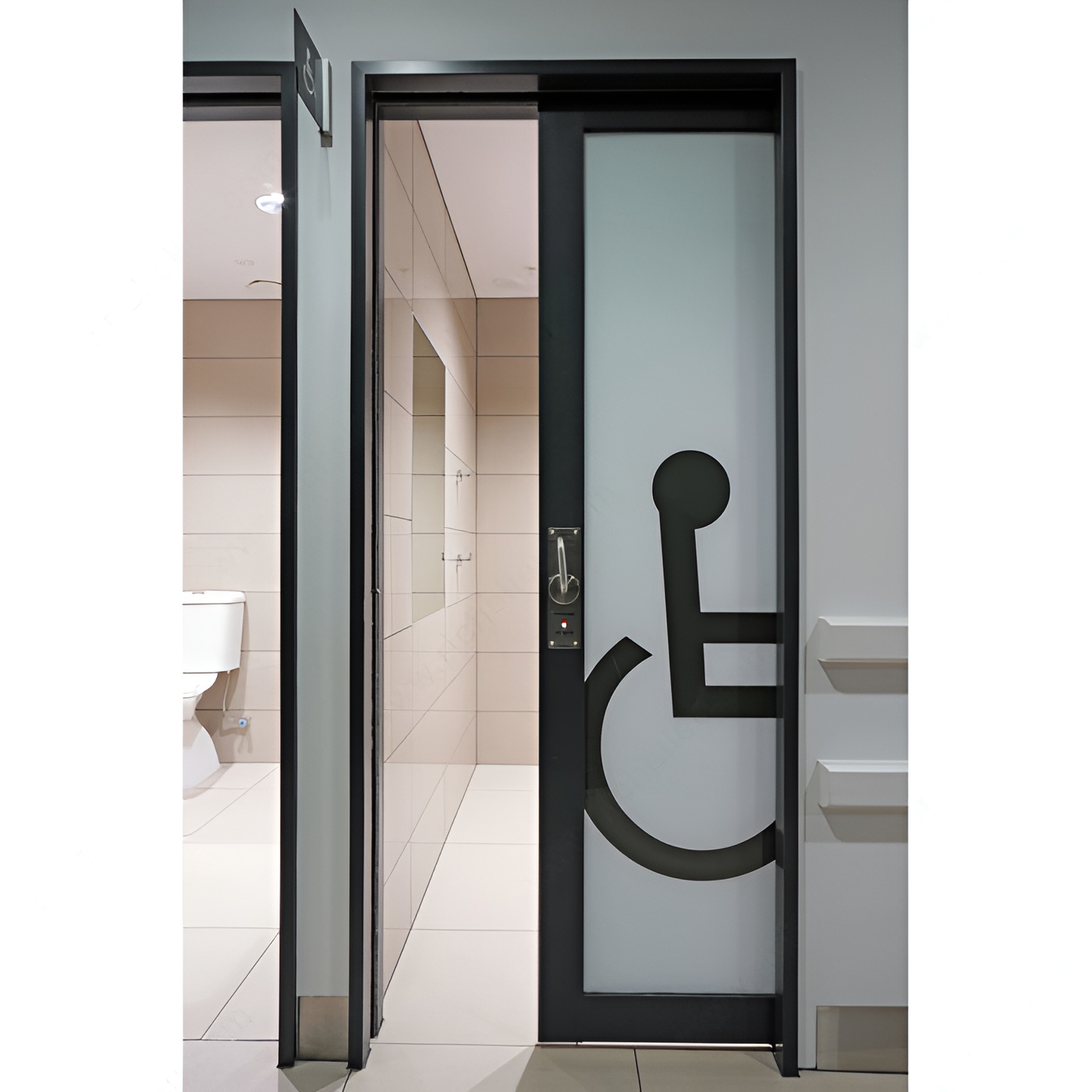

Ideal for a wide variety of applications in residential, commercial, and institutional projects .

IMPORTANT: For 2 x 6 wall construction, see the CS Cavity Sliders Ultimate Pocket Door System.
