CINETTO PS23 Bifold Kits

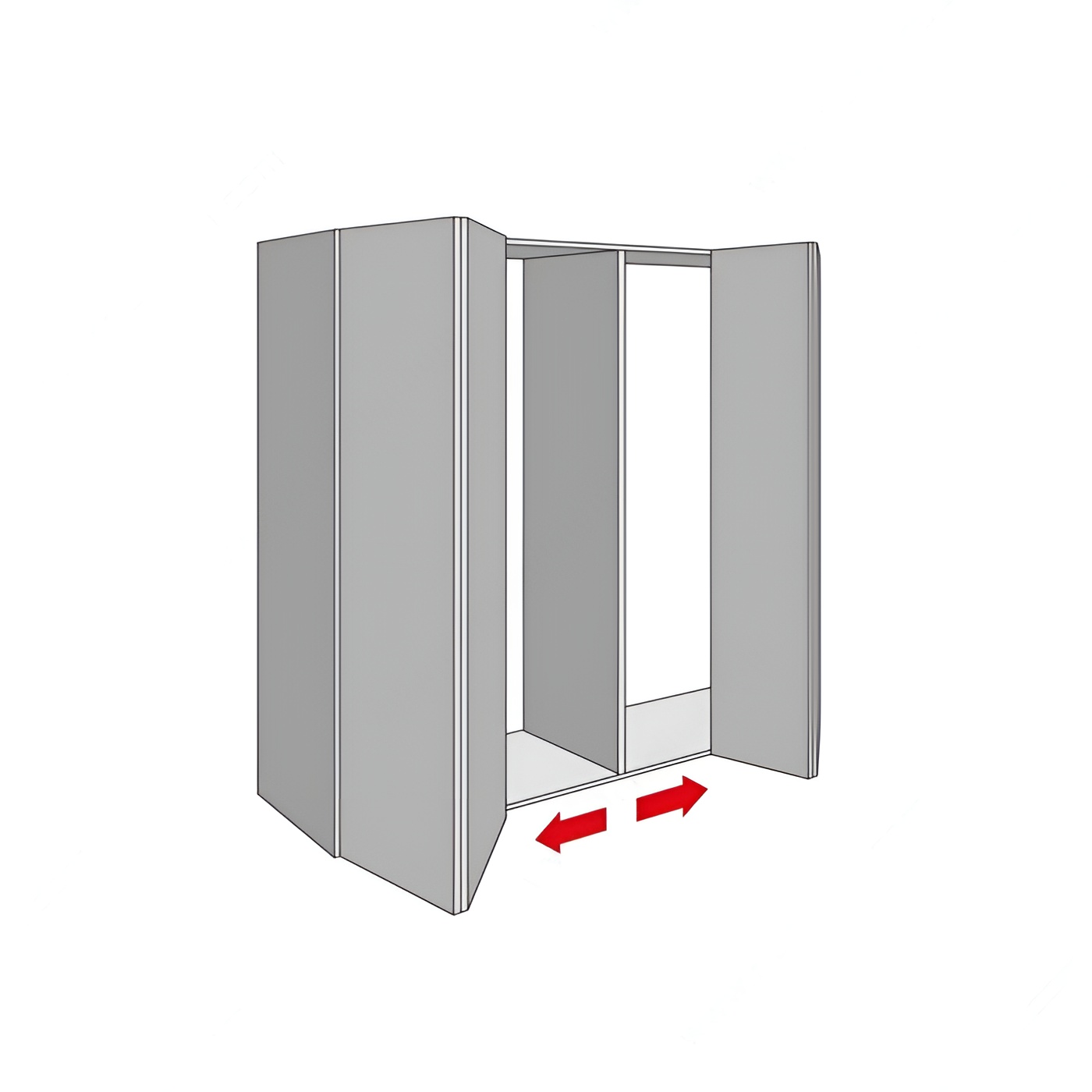

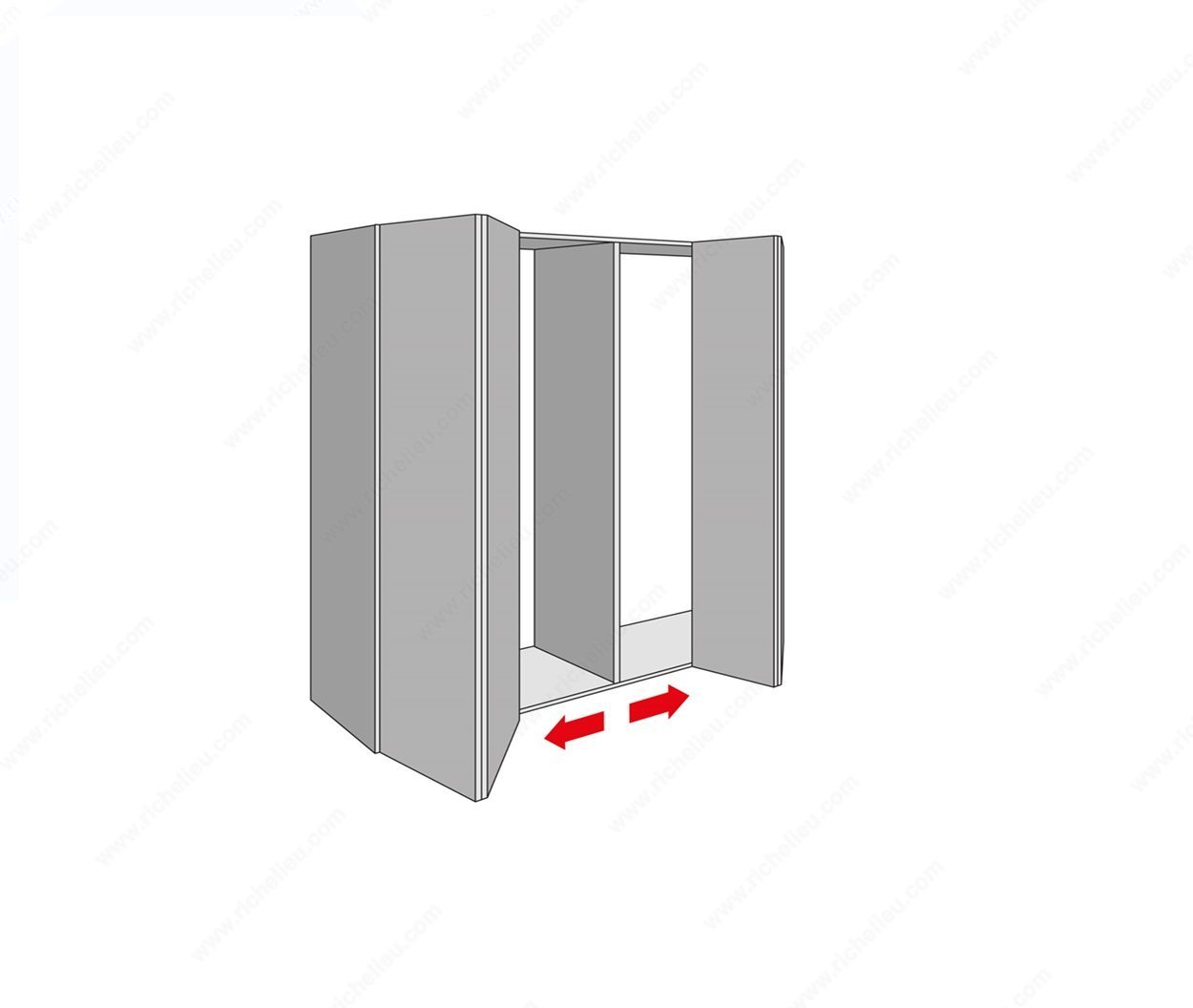

CINETTO PS23 Bifold Kits with track are designed for two or four tall woodboard panel doors bifolding to the left or right, with a weight capacity of up to 110 lb (50 kg) per pair.
Features:
- For panel material 3/4" to 1-9/16" (19 mm to 40 mm) thick, depending on the type of anchor hinge you use
- Two-door kits include 47" (1.19 m) of upper track
- Four-door kits include 78-1/2" (1.99 m) of upper track
- Select from silver and anodized black tracks

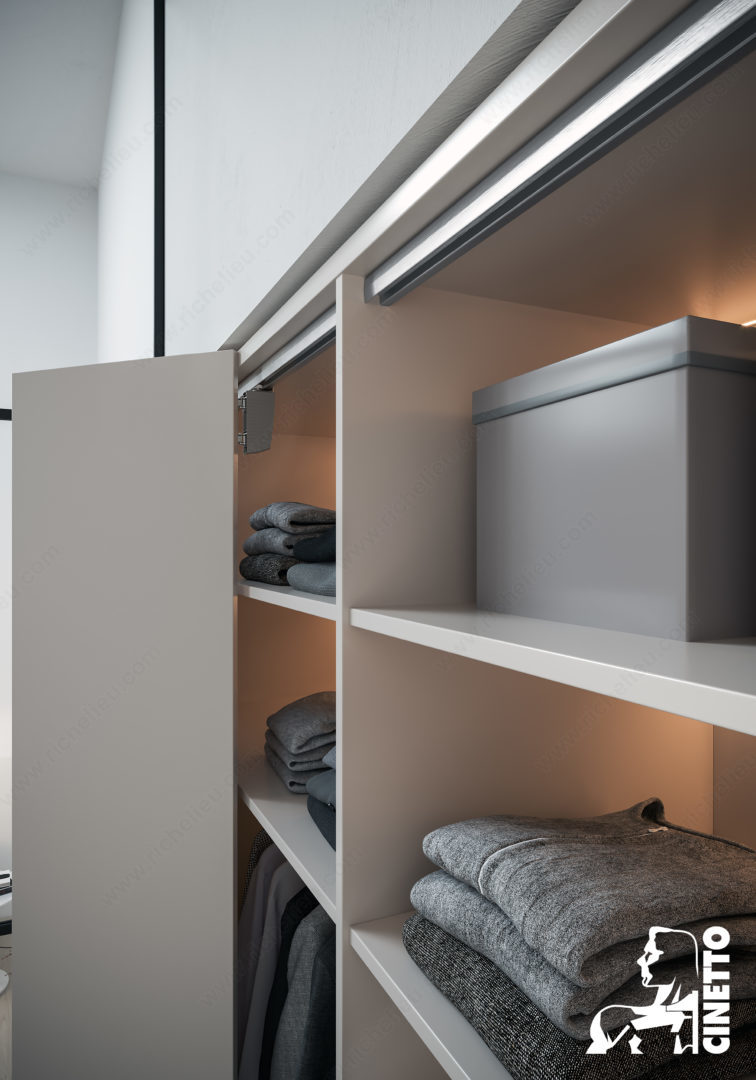

- Upper concealed hinges with trolleys and covers
- Asymmetric hinges to join panels
- For widths of up to 17-5/8" (450 mm) per panel without a bottom guide track
- Add SELF OPENING for push-to-open feature
- Add-on bottom guide rail available (sold separately) for greater stability when working with widths of up to 23-5/8" (600 mm) per panel
- Works with common euro-type concealed cabinet hinges of your choice (sold separately) to anchor the first door panel
- Smooth operation
- Simple and flexible low-cost installation

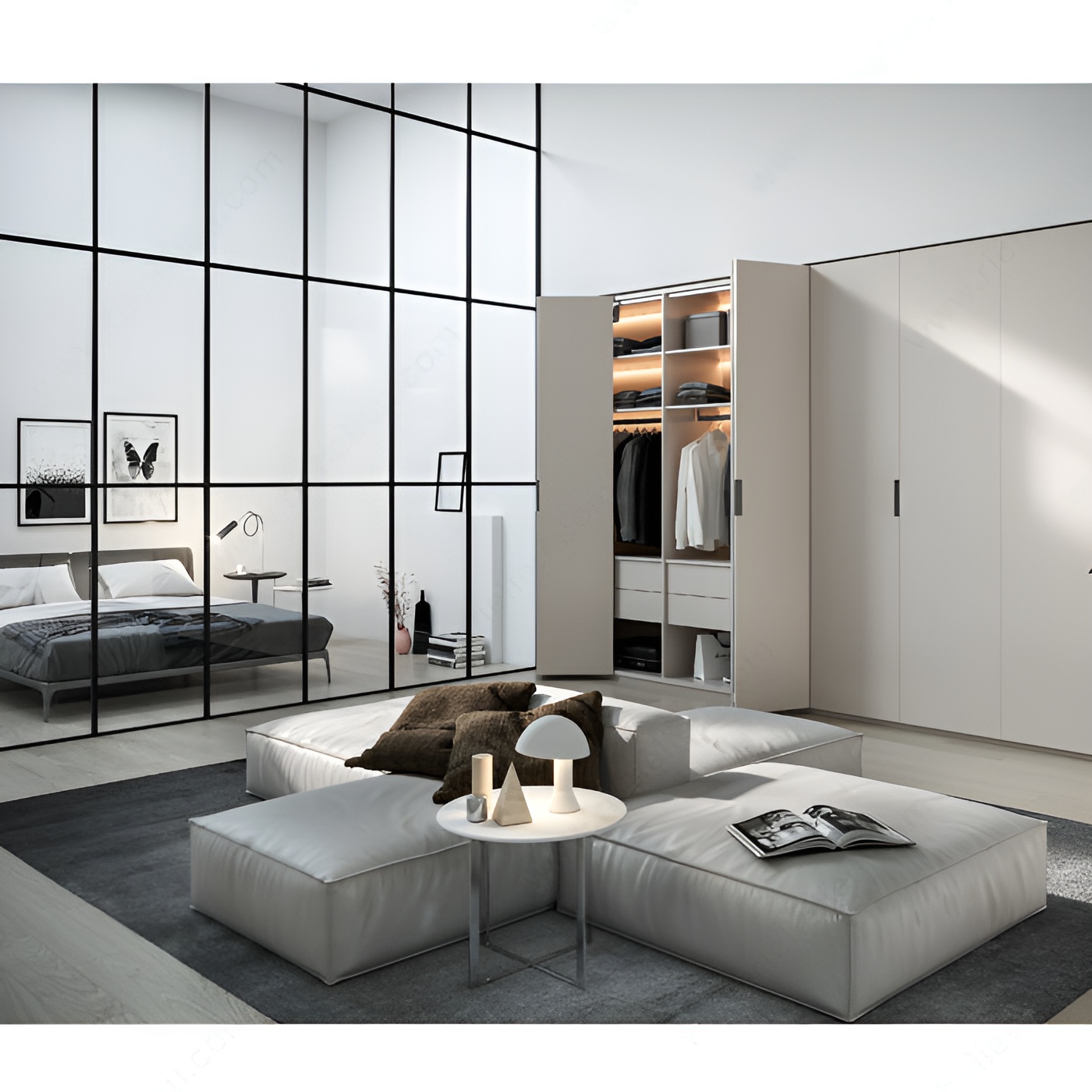

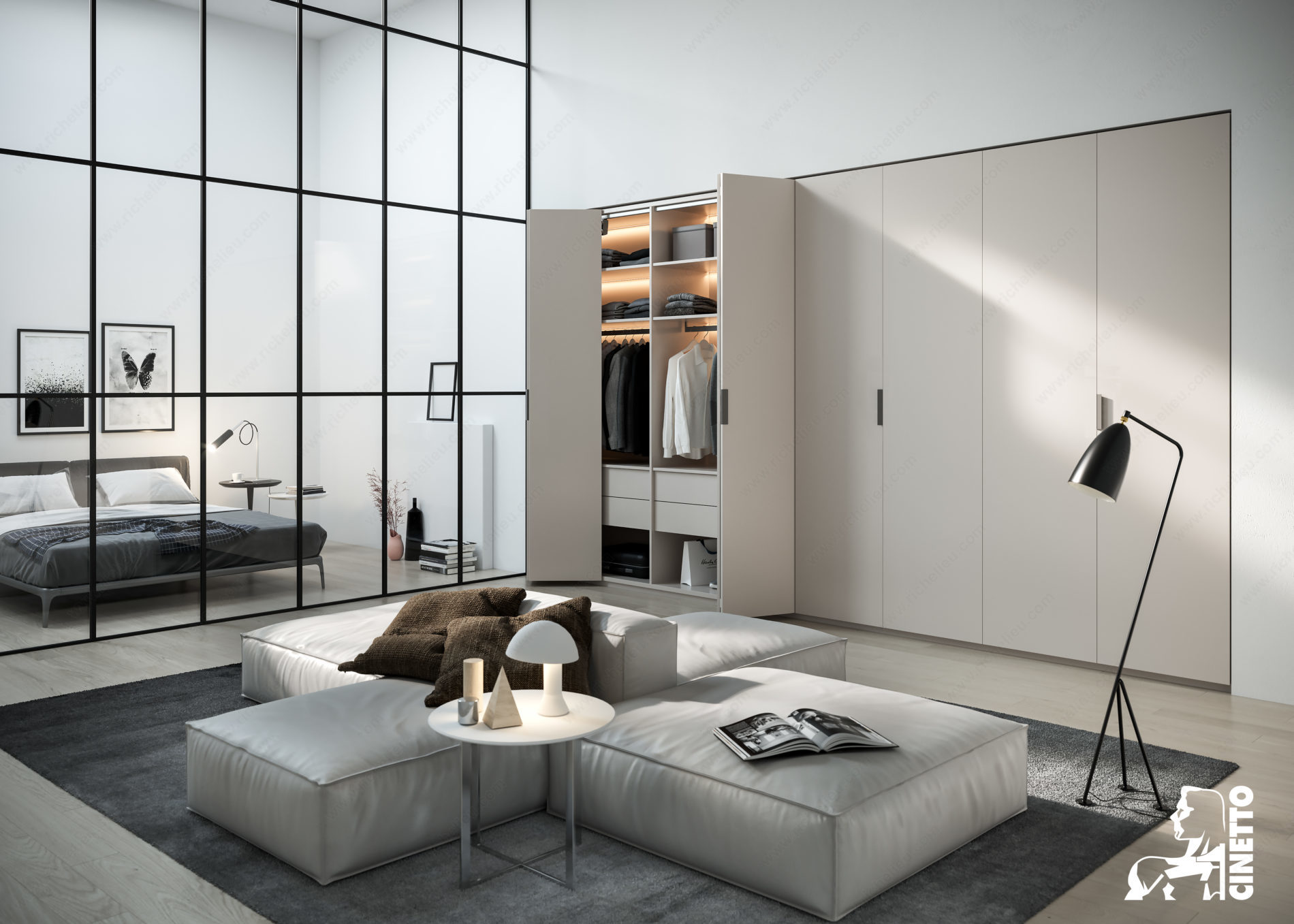

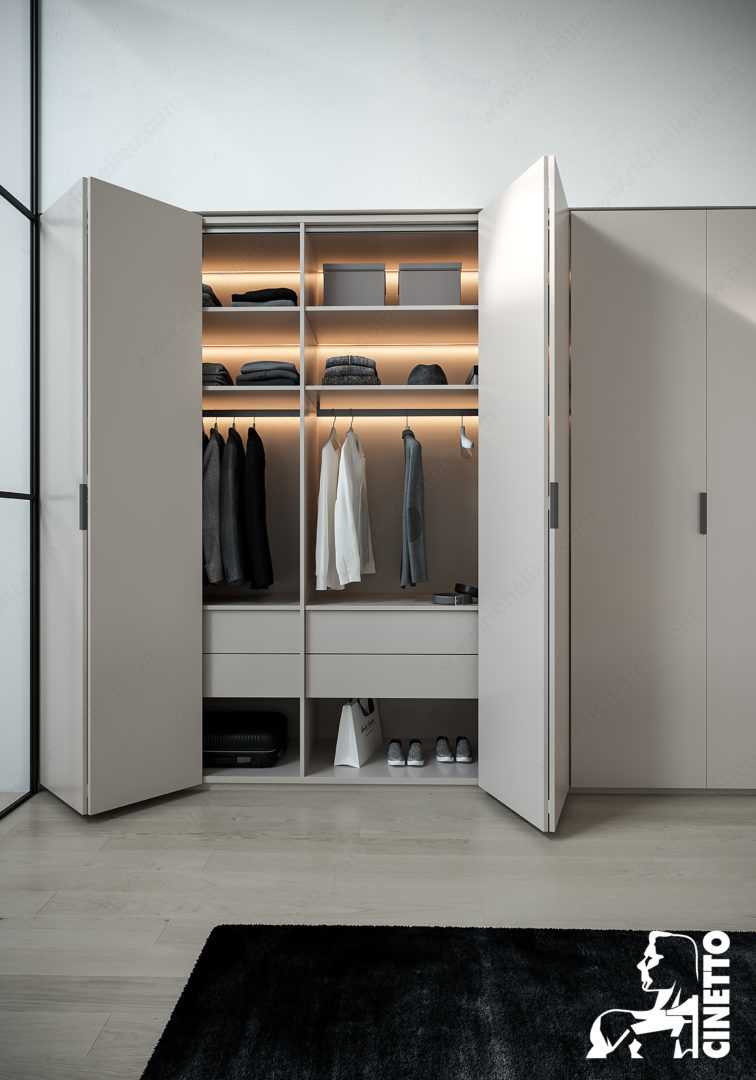

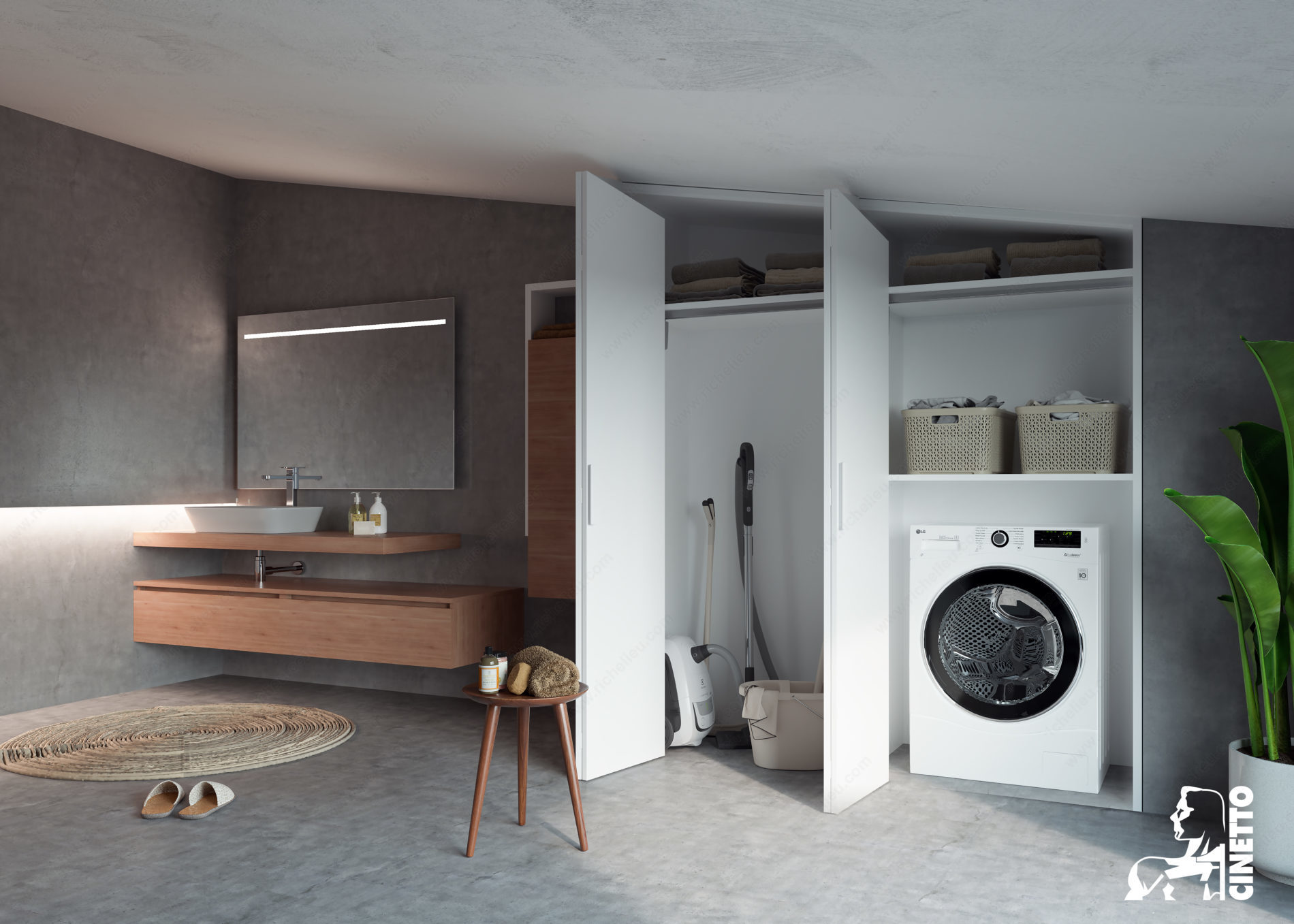

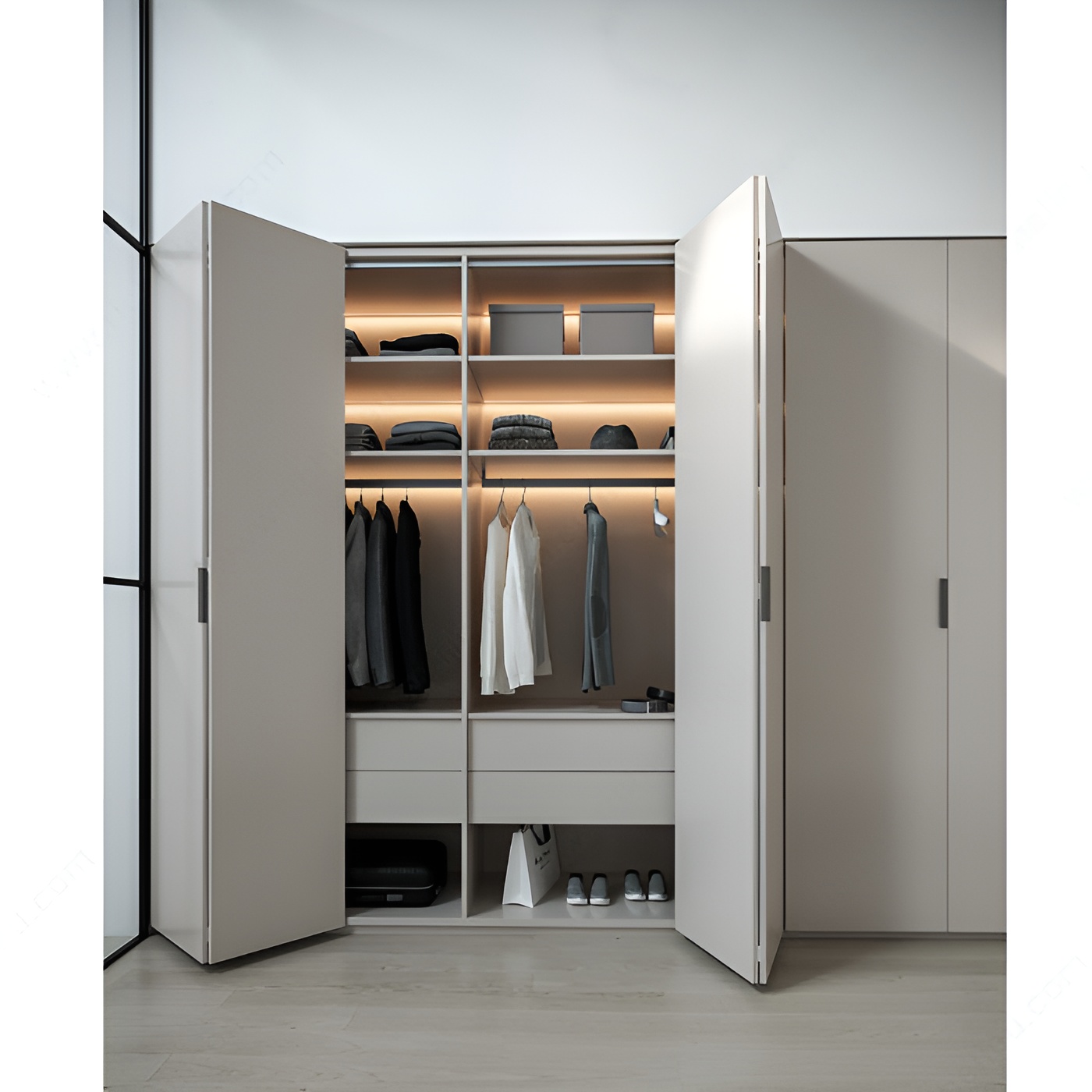

Ideal for closets, wardrobes, pantries, and large storage units.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Wardrobe, Pantry, Storage
Brand: CINETTO
Detailed Door Movement: Bifolding
Displayed in These Showrooms: Toronto, Mississauga
Door Height: 750 to 3 000 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Folding
Door Thickness: 19 to 25 mm
Door Width: 300 to 550 mm
Finish: Anodized Silver
Length - Overall Dimensions: 78 5/8 in*
Load Capacity: 110 lb*
Manufacturing Material: Metal, Aluminum, Plastic
Material: Plastic, Aluminum, Metal
Number of Doors: 4
Opening: Left and Right-Hand Opening
Overall Length: 1 996 mm
Packaging format: Per unit
Product #: WEBKIT1242183
Product Type: Bifolding Door
Product number: WEBKIT1242183
Product type: Bifolding Door
Product №: WEBKIT1242183
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Length: 1 996 mm
Track Material: Anodized Aluminum
Track Mounting: Ceiling Mount
Weight Capacity per Door: 50 kg
Weight Capacity per Panel: 25 kg
