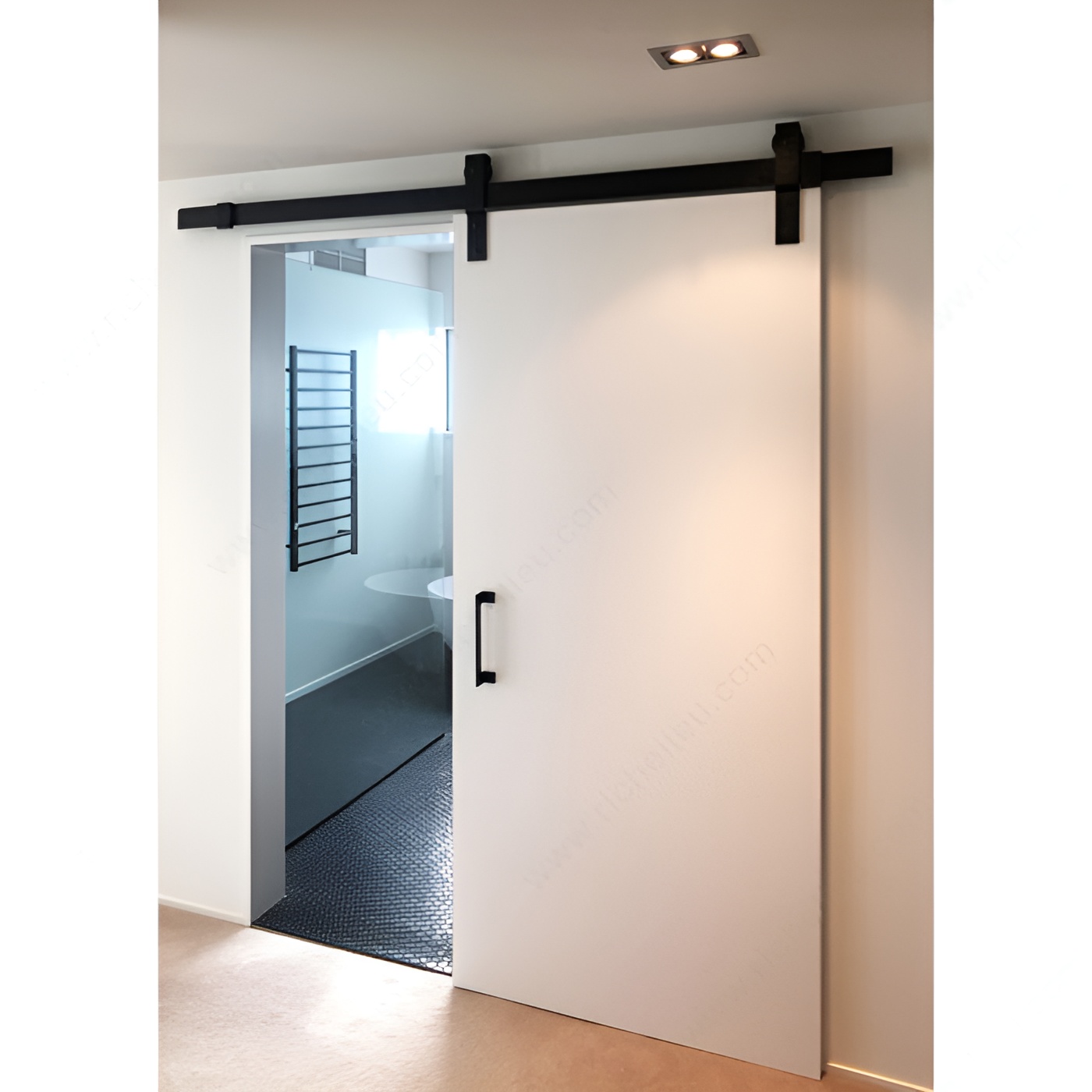

Richelieu WEBKIT1242711 CS Barn Door Sliding System InstructionsRichelieu WEBKIT1242711 CS BARNDOOR Sliding Door System offers a robust solution for those seeking to incorporate heavy wood doors into their spaces. Designed to accommodate doors weighing up to 400 lb (180 kg) without SoftStop or 264 lb (120 kg) with SoftStop (sold separately), this system is ideal for both residential and commercial applications. The sleek aluminum black anodized finish not only enhances aesthetic appeal but also ensures durability. It supports door thicknesses ranging from 1 1/4 in (32 mm) to 1 3/4 in (45 mm), making it versatile for various projects. The anti-jump system guarantees that wheels remain securely on the track, providing peace of mind during operation. Available in two track types-NARROW for door projections of 1 5/8 in (40 mm) to 2 3/8 in (61 mm) and WIDE for 2 3/8 in (62 mm) to 3 1/8 in (80 mm)-the system can adapt to diverse installation needs. You can choose from multiple lengths, including 72 in (1828 mm), 84 in (2134 mm), 96 in (2438 mm), and 120 in (3048 mm). Whether integrating large feature doors, access doors, or room dividers, the Richelieu CS BARNDOOR system delivers smooth, reliable performance tailored to your design vision.
CS BARNDOOR Sliding Door System
The CS BARNDOOR Sliding Door system is designed for heavy wood doors, with a weight capacity of 400 lb (180 kg) without SoftStop, or 264 lb (120 kg) with SoftStop (sold separately).
Features:
- Aluminum black anodized finish
- For door thickness of 1 1/4 in (32 mm) to 1 3/4 in (45 mm)
- Anti-jump system ensures wheels cannot jump off the track
- Adjustable fixing bracket for different door projections
- Type NARROW track for door projections 1 5/8 in (40 mm) to 2 3/8 in (61 mm)
- Type WIDE track for door projections 2 3/8 in (62 mm) to 3 1/8 in (80 mm)
- Available in different lengths: 72 in (1828 mm), 84 in (2134 mm), 96 in (2438 mm), 120 in (3048 mm)
- Commercial grade system
- Smooth operating
Ideal solution for residential and commercial applications for large heavy feature doors, access doors, room dividers, and office doors.
Other track lengths are possible by special order. Contact your local sales office and technical team for more information.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door, Barn Door
Detailed Door Movement: Single sliding, Barn door
Door Height: Max. 120 in
Door Material: Wood
Door Movement: Straight Sliding
Door Projection: 1 5/8 to 2 3/8 in
Door Thickness: 1 1/4 to 1 3/4 in
Door Width: 24 to 36 in
Function: Sliding Door
Length - Overall Dimensions: 72 in
Load Capacity: 400 lb
Number of Doors: 1
Overall Length: 72 in
Product #: WEBKIT1242711
Product number: WEBKIT1242711
Product №: WEBKIT1242711
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Mounting: Wall Mount
Weight Capacity per Door: 400 lb
