Richelieu WEBKIT1242820 EVO Sliding Door System GuideRichelieu WEBKIT1242820 EVO Sliding Door System combines functionality and style, making it a versatile choice for both residential and commercial applications. Designed for wood doors with a thickness of 19 mm (3/4 in) to 36 mm (1 3/8 in) and glass doors ranging from 8 mm (5/16 in) to 10 mm (3/8 in), this system supports various weight capacities of 40 kg (88 lb), 60 kg (132 lb), or 80 kg (176 lb). Available in four elegant finishes-black, chrome, champagne, and titanium-this system allows for customization to match any décor. The track lengths come in three options: 2 m (78 3/4 in), 3 m (118 in), and 4 m (157 in), providing flexibility for different spaces. The concealed soft-close mechanisms offer a smooth operation and can be adjusted for various positions, while the adjustable bracket support mounts enhance installation ease. The system includes two sizes of matching SLIM pull handles with a self-adhesive back for easy application on multiple surfaces. Ideal for designer doors, walk-in closets, and standard access doors, the EVO Sliding Door System not only elevates aesthetics but also ensures a seamless user experience. With simple, low-cost installation, it’s an excellent addition to any modern space.
EVO Sliding Door System
The EVO Barn Door-style Sliding System is for wood or glass doors and is available in three different weight capacities: 40 kg (88 lb), 60 kg (132 lb), and 80 kg (176 lb).
Features:

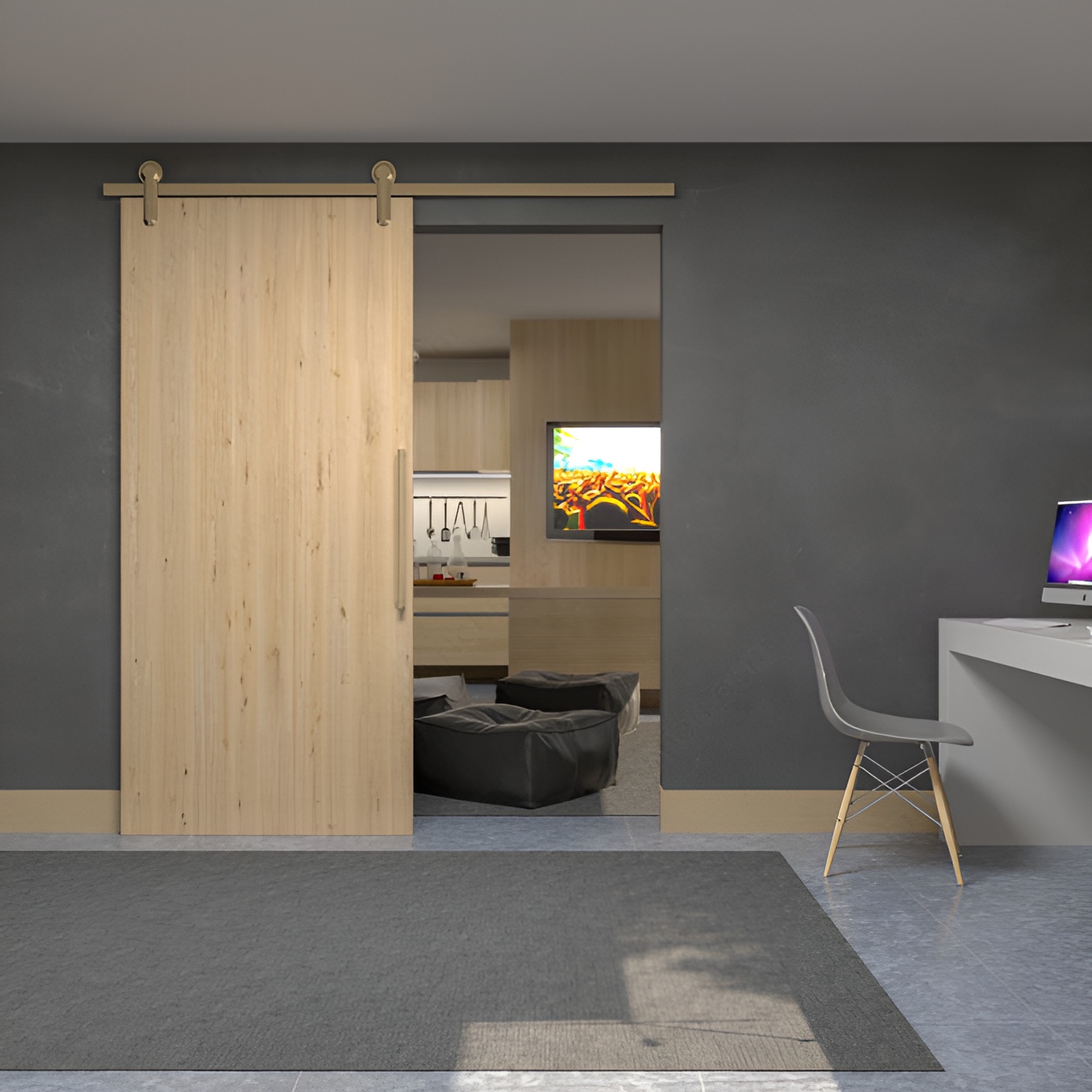

- For wood doors 19 mm (3/4 in) to 36 mm (1-3/8 in) thick

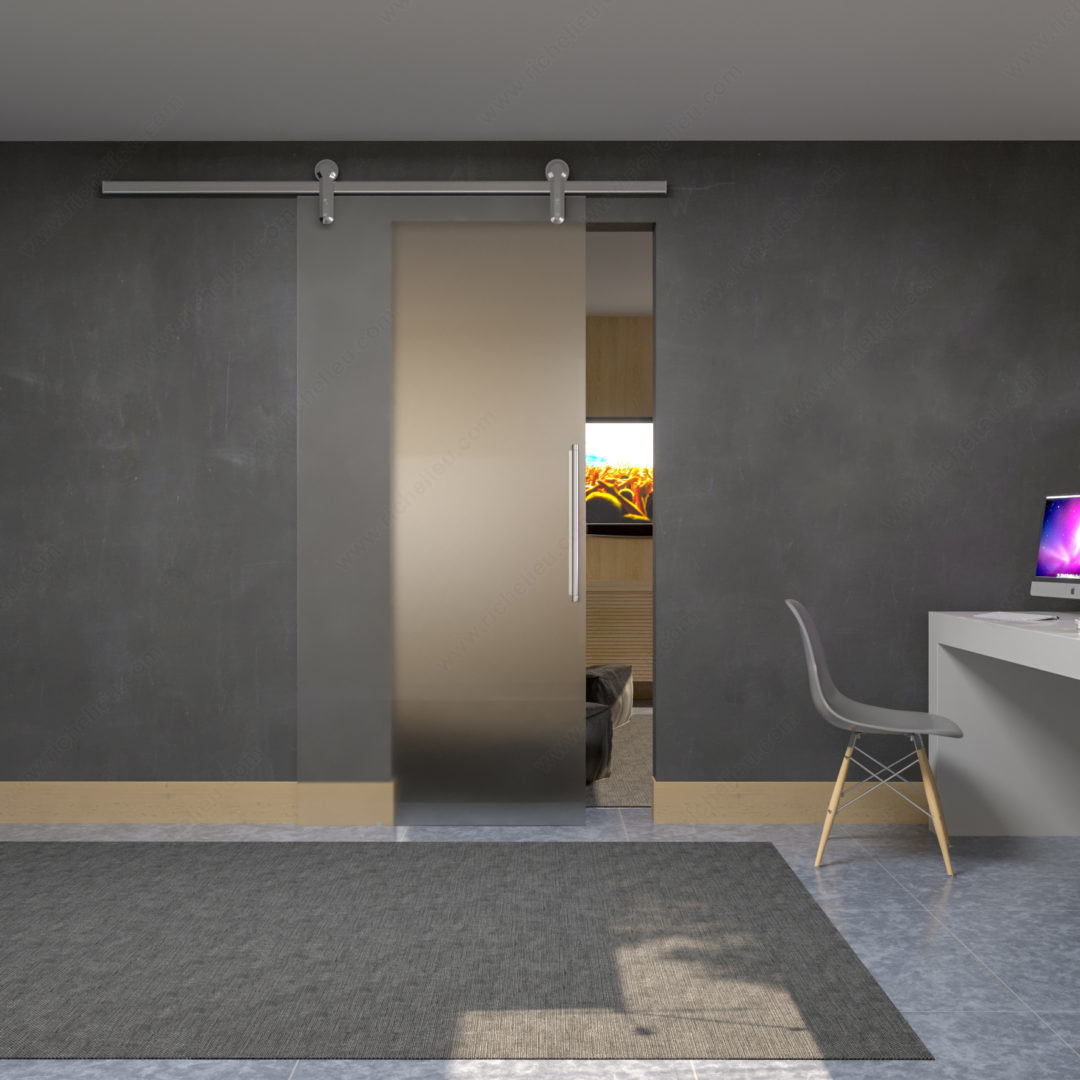

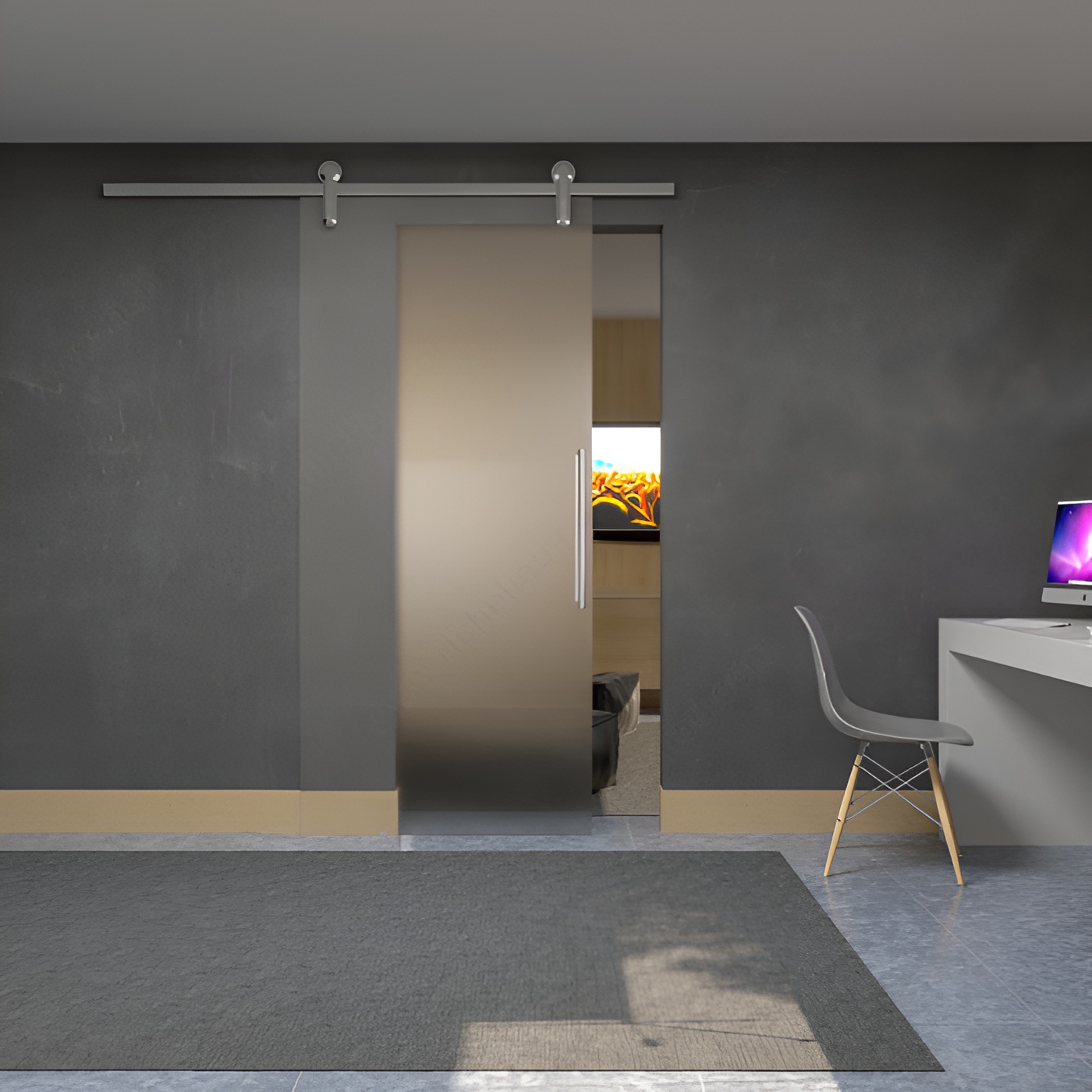

- For glass doors 8 mm (5/16 in) to 10 mm (3/8 in) thick
- Available in four finishes: black, chrome, champagne, and titanium
- Three choices of track length: 2 m (78-3/4 in), 3 m (118 in), and 4 m (157 in)

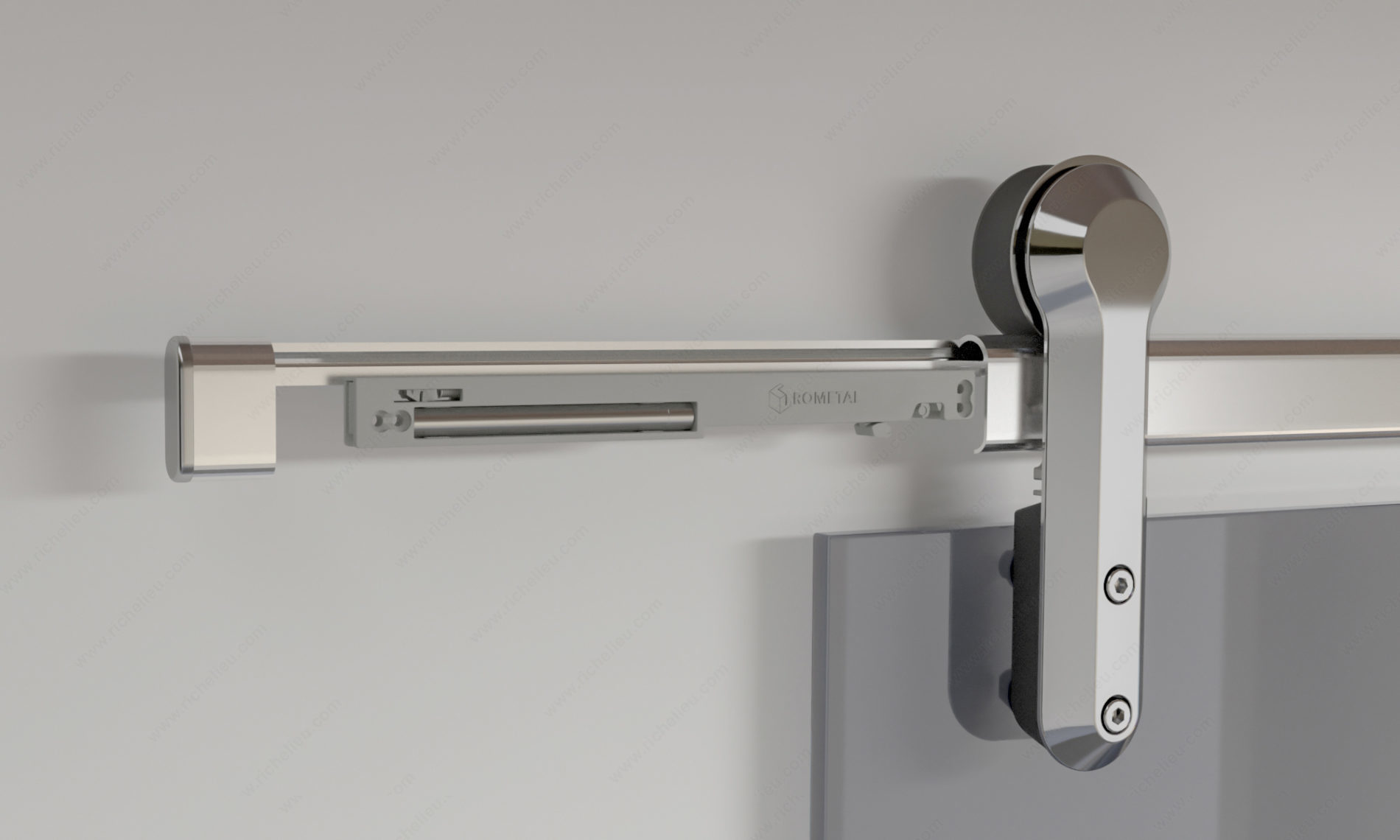

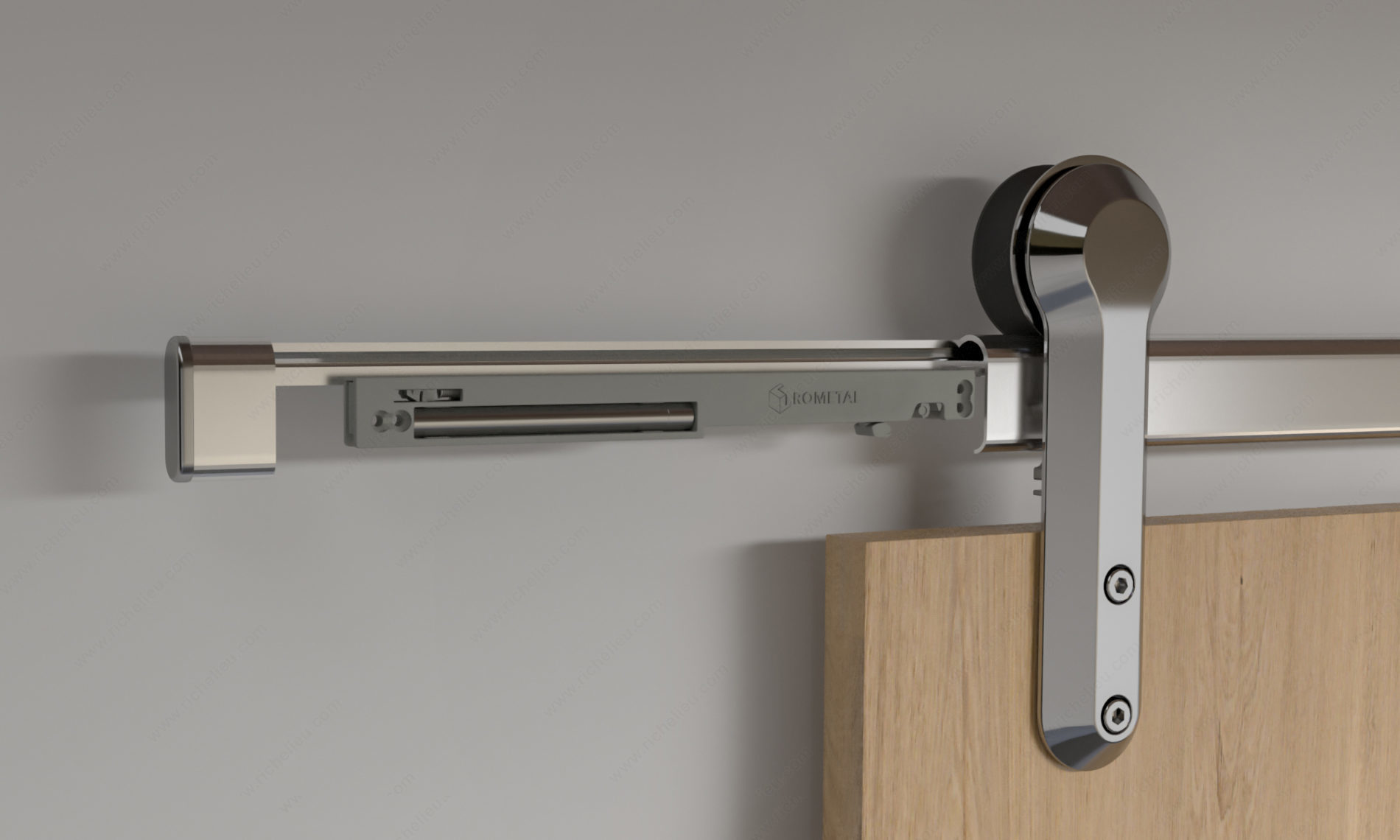

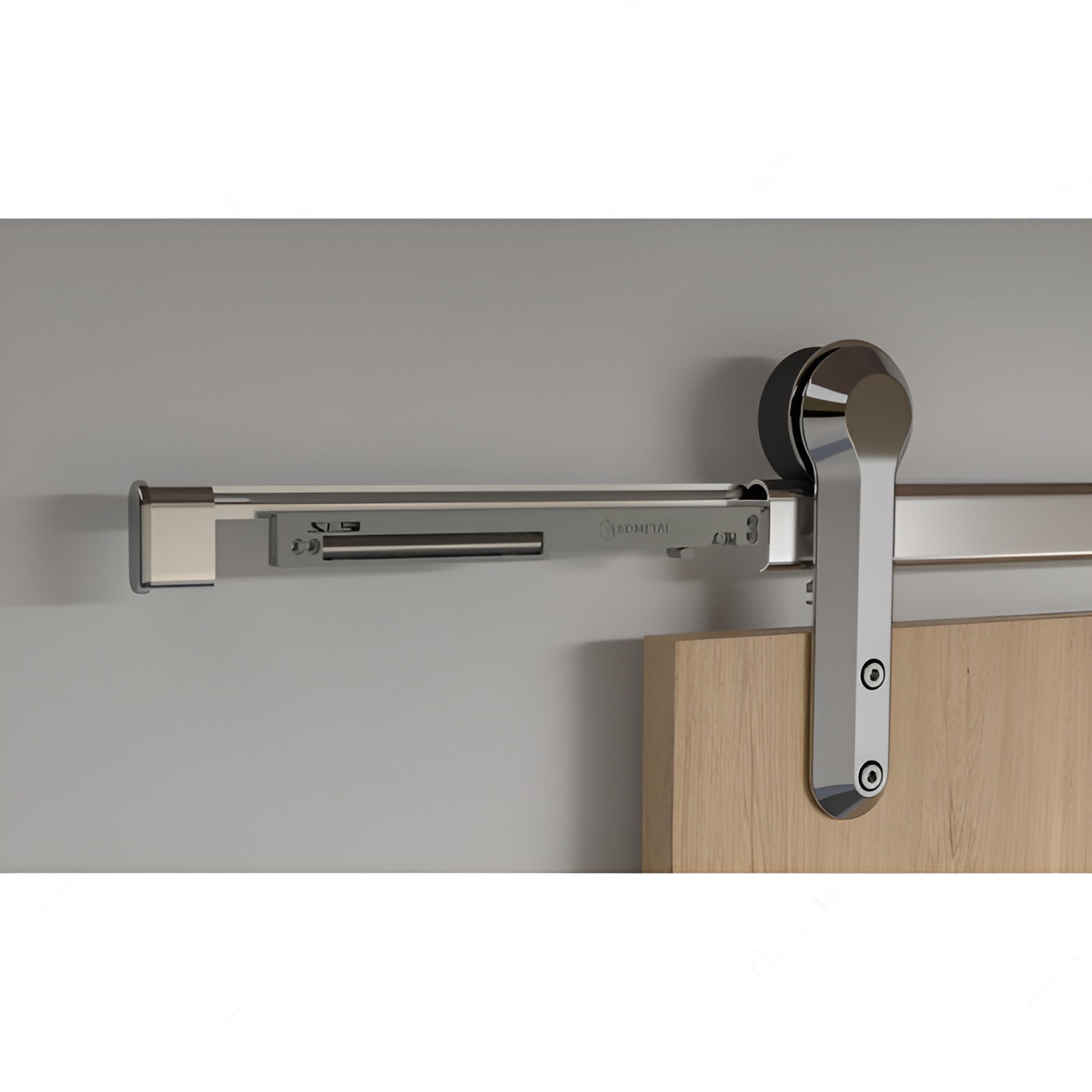

- Concealed soft-close mechanisms can be adjusted to different positions
- Bracket support mounts can be adjusted to different positions behind the track
- Choose from two sizes of matching SLIM pull handles with a self-adhesive back that can be applied to smooth surfaces such as wood, laminate, glass, steel, or aluminum
- Smooth operating
- Simple, flexible, and low-cost installation
IMPORTANT: The minimum door width for use with a soft-close mechanism is 700 mm (27-1/2 in).
Lighting may alter the appearance of some finishes and cause them to differ from the published renderings.
An ideal solution for residential and commercial applications for thin and thick doors, feature designer doors, walk-in closets, pantries, and standard interior access doors.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Application: Standard Access Door, Barn Door
Detailed Door Movement: Single sliding, Barn door
Displayed in These Showrooms: Toronto
Door Height: Max. 2 600 mm
Door Installation: Top Hung
Door Material: Wood (19 mm - 36 mm), Glass (8 mm - 10 mm)
Door Movement: Straight Sliding
Door Projection: 80 mm
Door Thickness: 8 to 36 mm
Door Width: 700 to 1 000 mm
Finish: Chrome (140)
Function: Sliding Door
Groove Depth: 12.7 mm
Groove Needed for Guiding System: Yes
Groove Width at the Bottom of Door: 12 mm
Height Clearance: 191 mm
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: 33.1 to 88.2 lb*
Manufacturing Material: Anodized Aluminum
Material: Anodized Aluminum
Number of Doors: 1
Overall Length: 2 000 mm
Product #: WEBKIT1242820
Product number: WEBKIT1242820
Product №: WEBKIT1242820
Roller Position: Upper

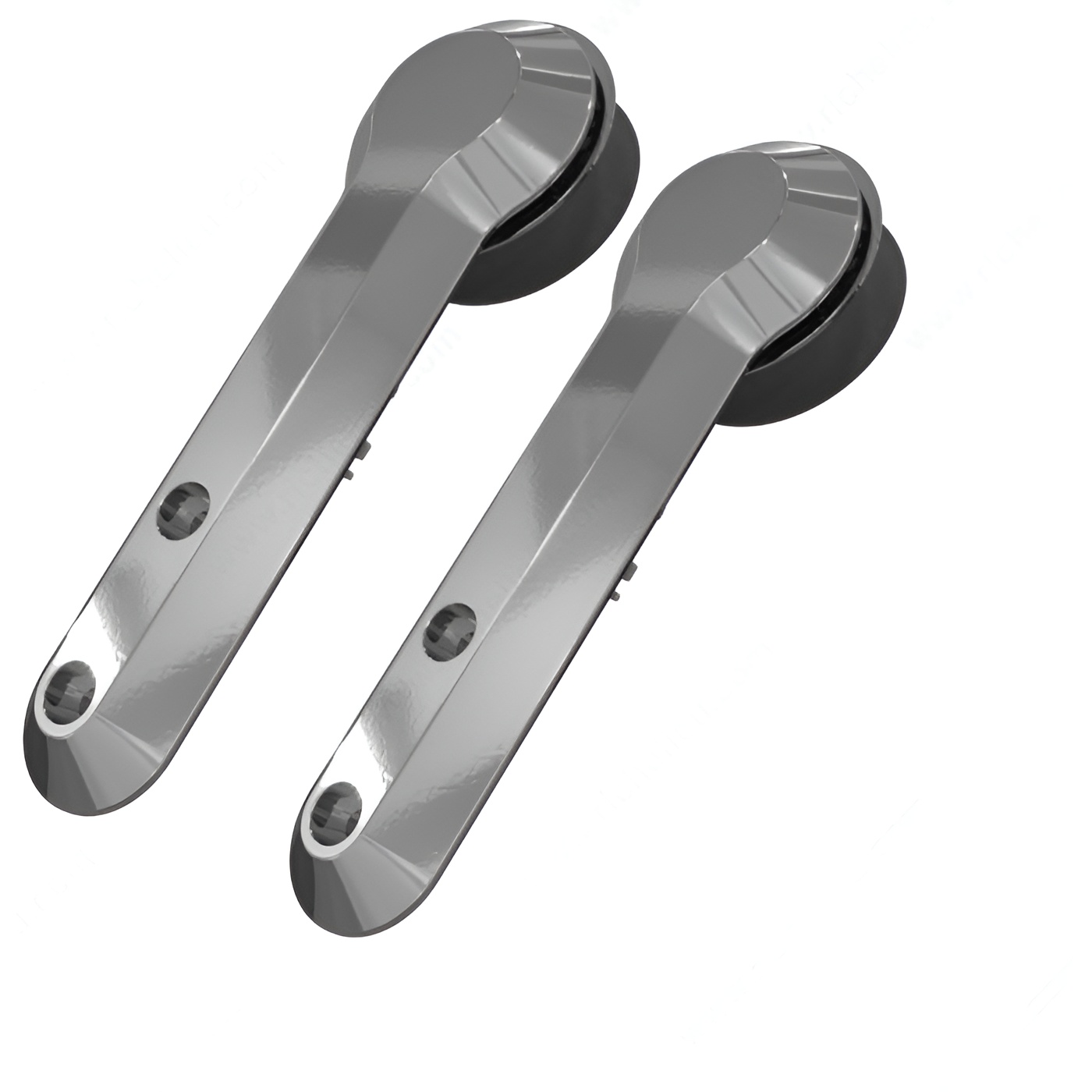

Roller Type: Premium Ball Bearing
Running Track Fixing: Bracket
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: One-Way Operation
Soft- Closing: Yes
Style: Barn Door
Track Mounting: Wall Mount
Weight Capacity per Door: 15 to 40 kg
