Richelieu WEBKIT1242825 EVO Sliding Door System InstructionsRichelieu WEBKIT1242825 EVO Sliding Door System offers a sophisticated barn door style designed for both wood and glass doors, accommodating a range of weight capacities from 40 kg (88 lb) to 80 kg (176 lb). This versatile system is suitable for doors with thicknesses between 19 mm (3/4 in) to 36 mm (1 3/8 in) for wood, and 8 mm (5/16 in) to 10 mm (3/8 in) for glass, making it a perfect choice for various applications, including walk-in closets and pantries. Available in four elegant finishes-black, chrome, champagne, and titanium-this sliding door system also offers three track lengths: 2 m (78 3/4 in), 3 m (118 in), and 4 m (157 in). The concealed soft-close mechanisms are adjustable for optimal performance, while the bracket support mounts can be positioned as needed. With smooth operation and straightforward installation, the EVO system includes two sizes of matching SLIM pull handles, ideal for a seamless aesthetic on surfaces such as wood, laminate, glass, steel, or aluminum. Designed for a maximum door height of 8 ft 6 in, this system is perfect for enhancing both residential and commercial spaces with style and function.
EVO Sliding Door System

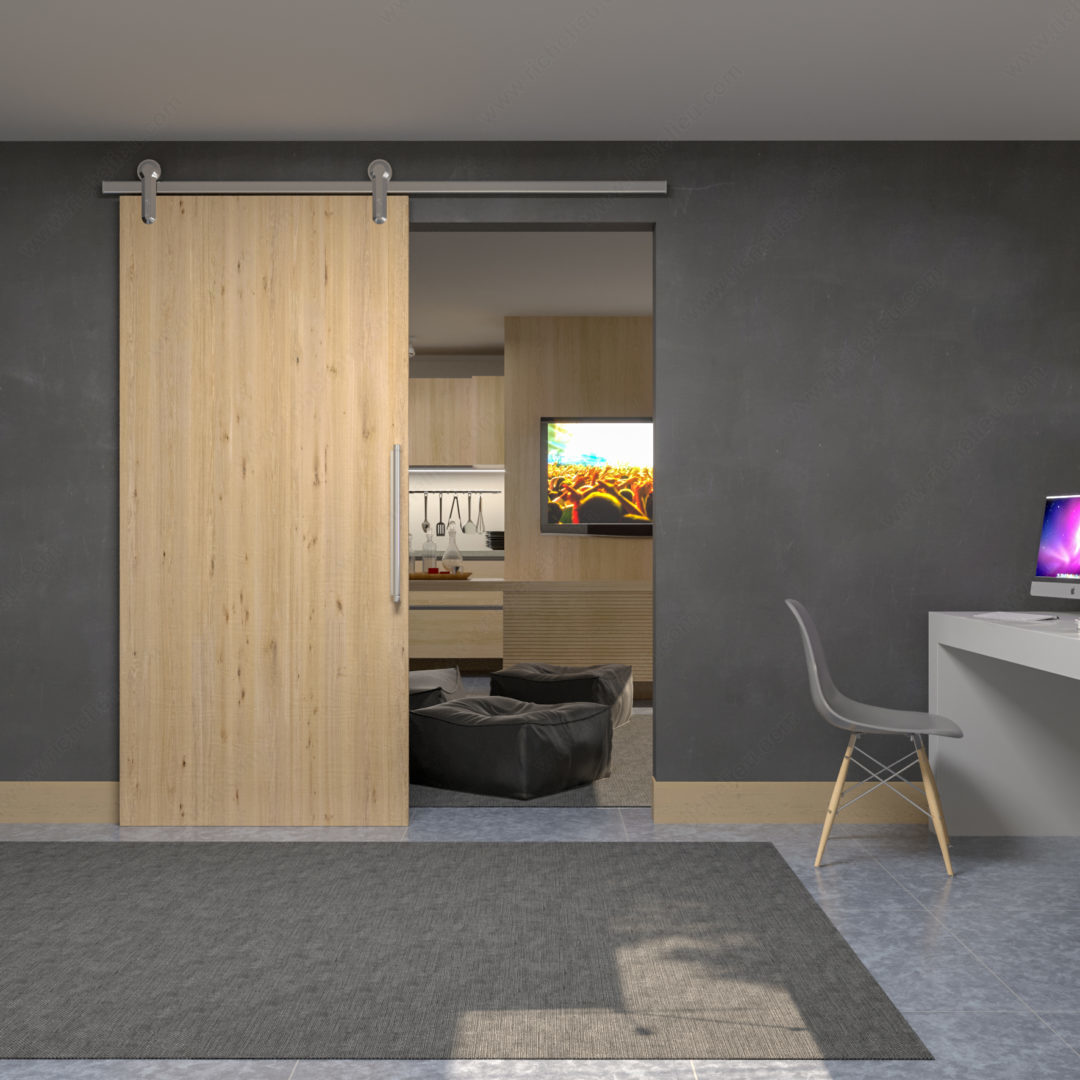

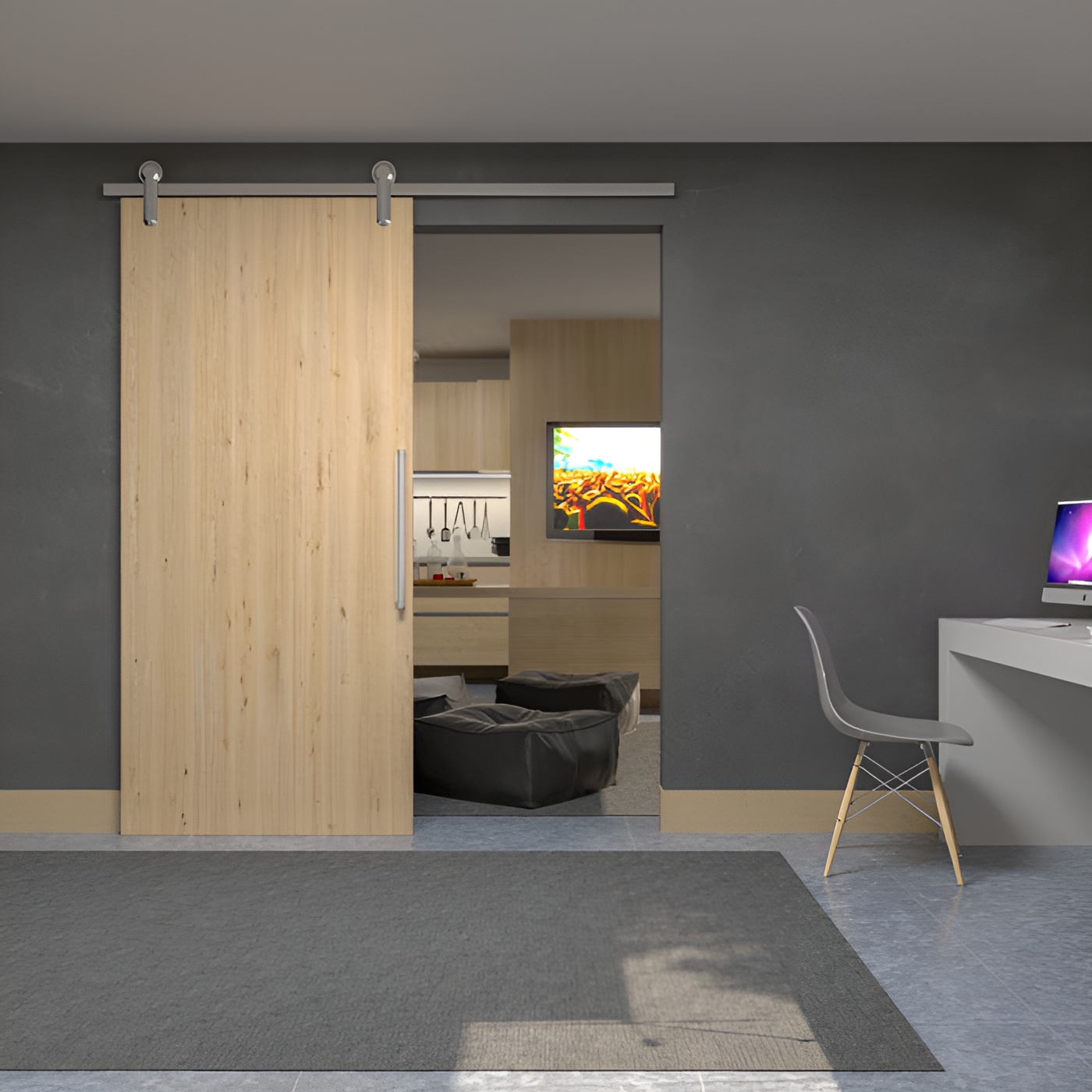

The EVO Barn Door-style Sliding System is for wood or glass doors and is available in three different weight capacities: 40 kg (88 lb), 60 kg (132 lb), and 80 kg (176 lb).
Features:
- For wood doors 19 mm (3/4 in) to 36 mm (1-3/8 in) thick

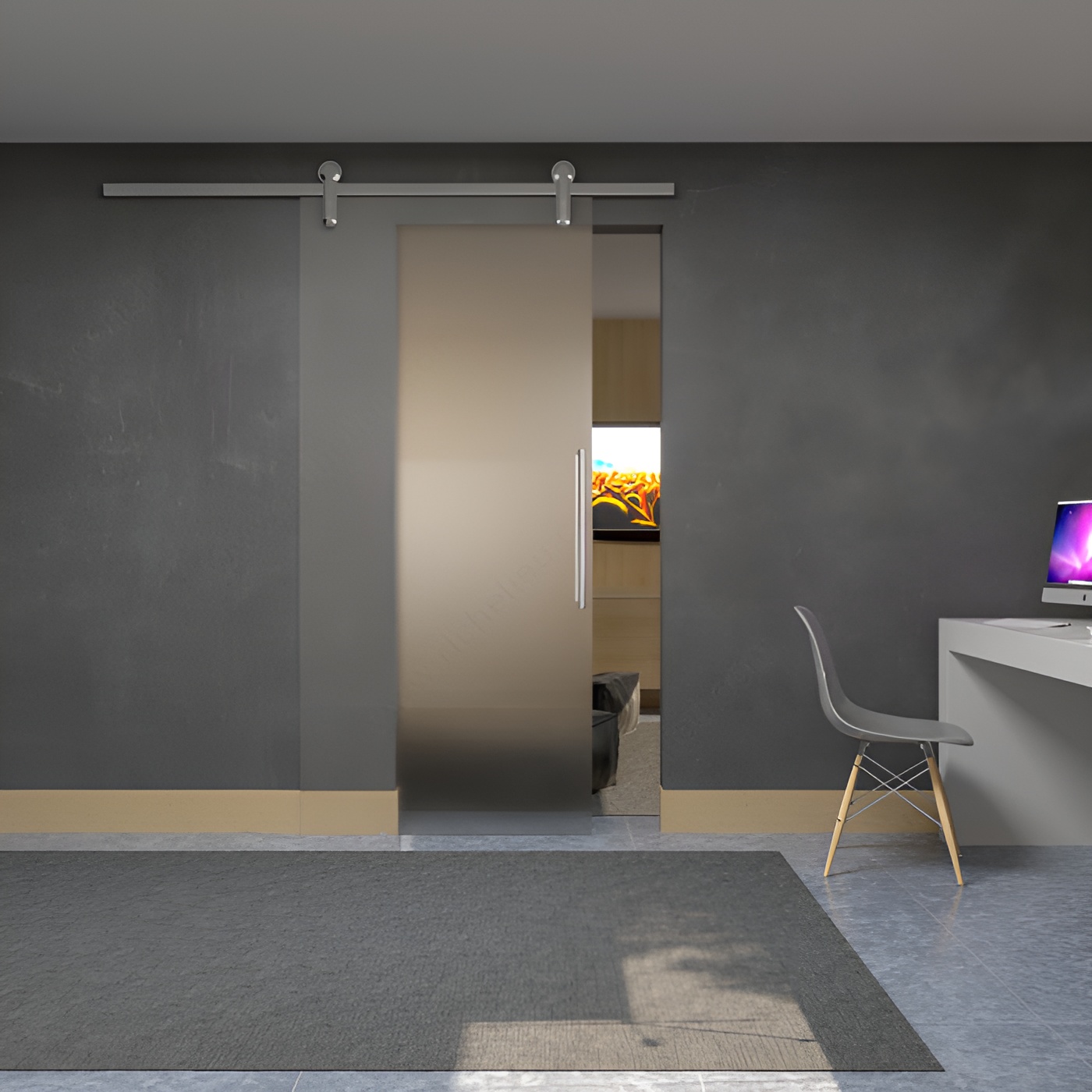

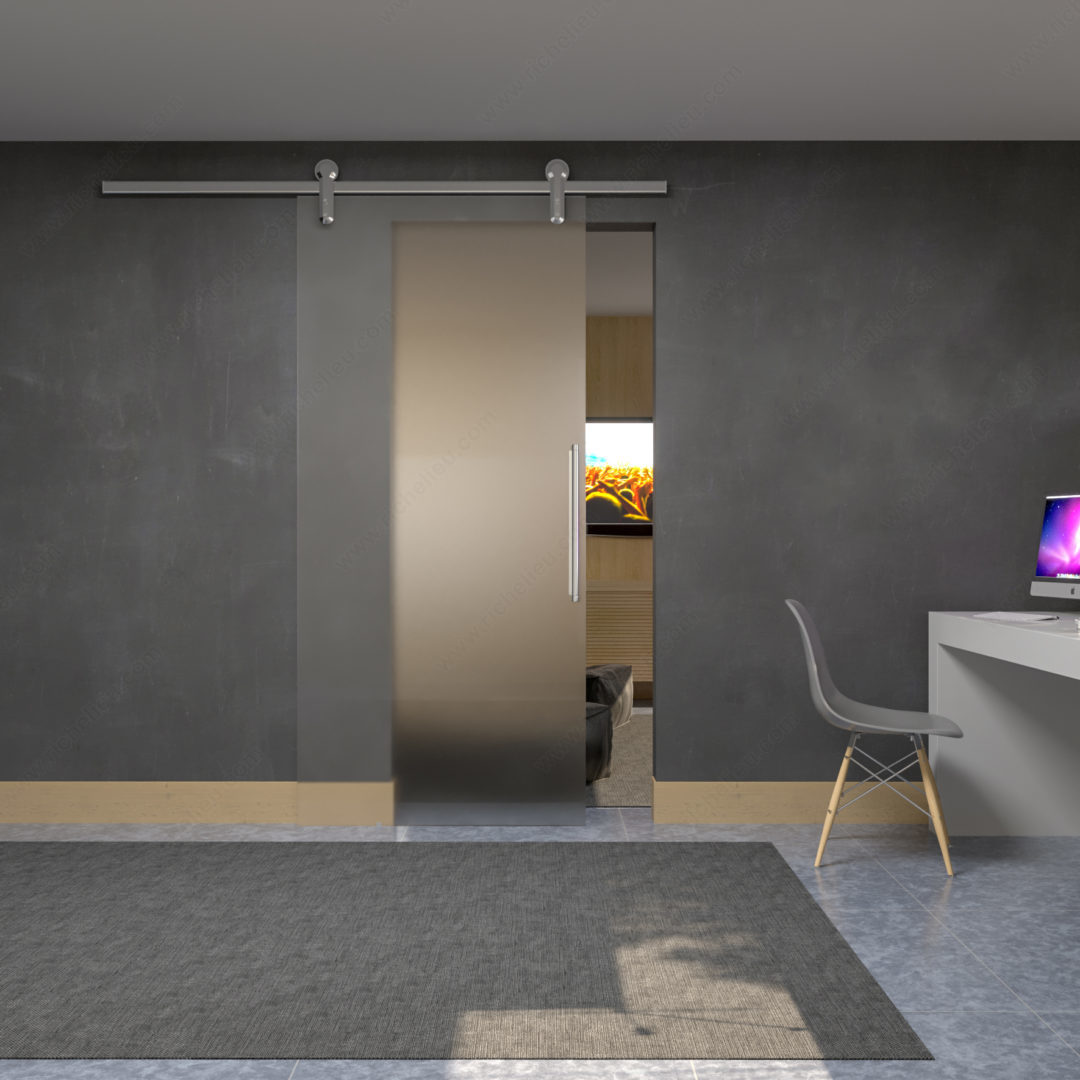

- For glass doors 8 mm (5/16 in) to 10 mm (3/8 in) thick
- Available in four finishes: black, chrome, champagne, and titanium
- Three choices of track length: 2 m (78-3/4 in), 3 m (118 in), and 4 m (157 in)

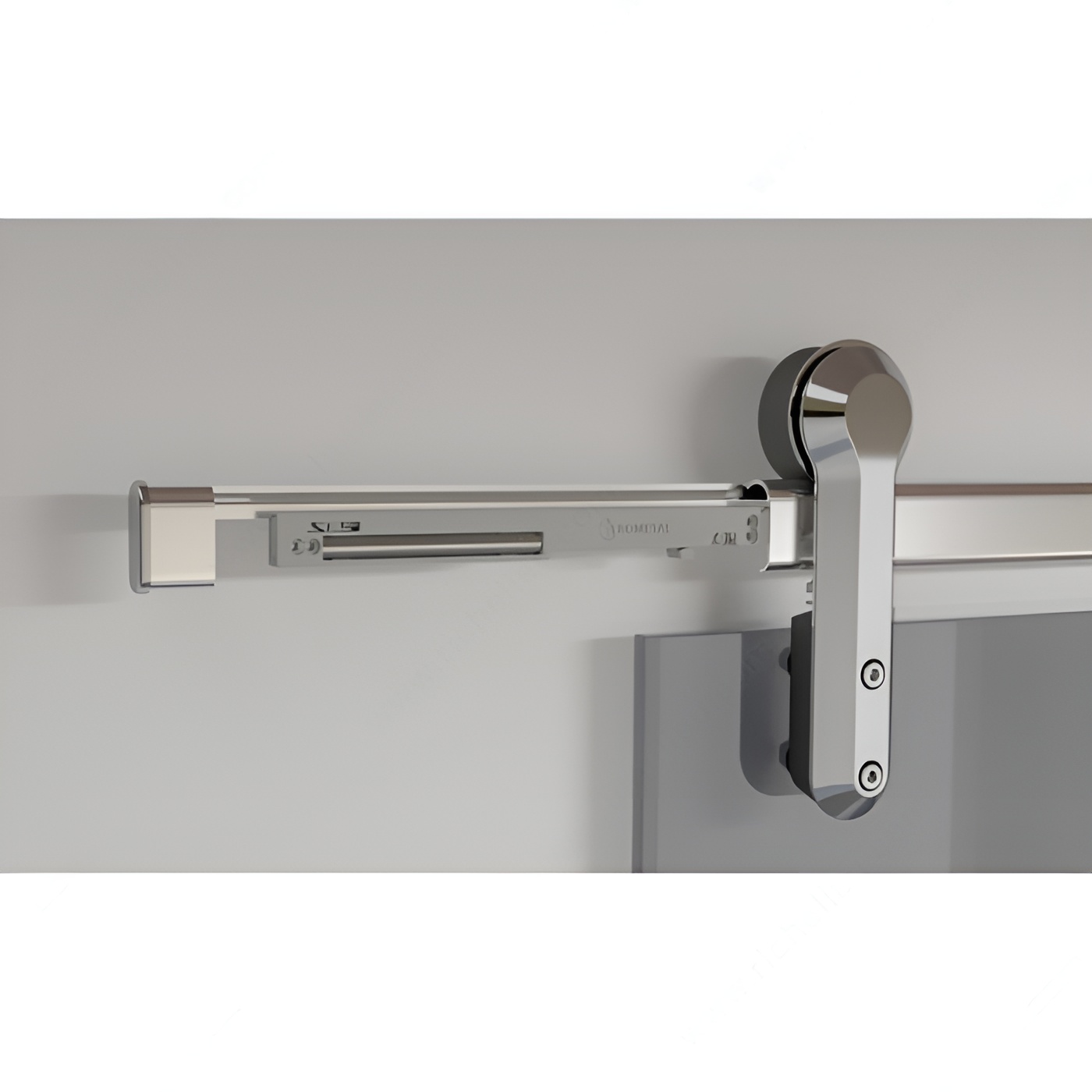

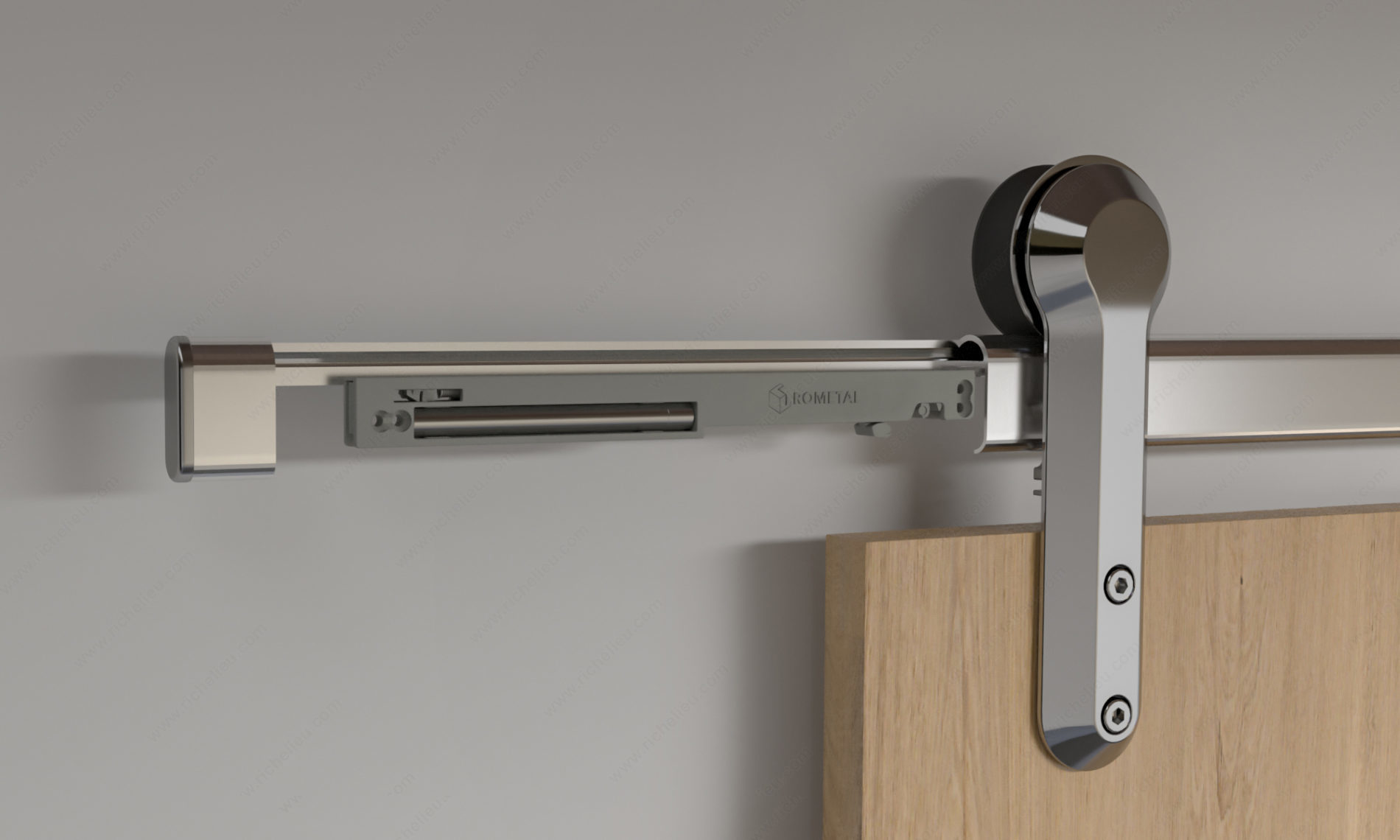

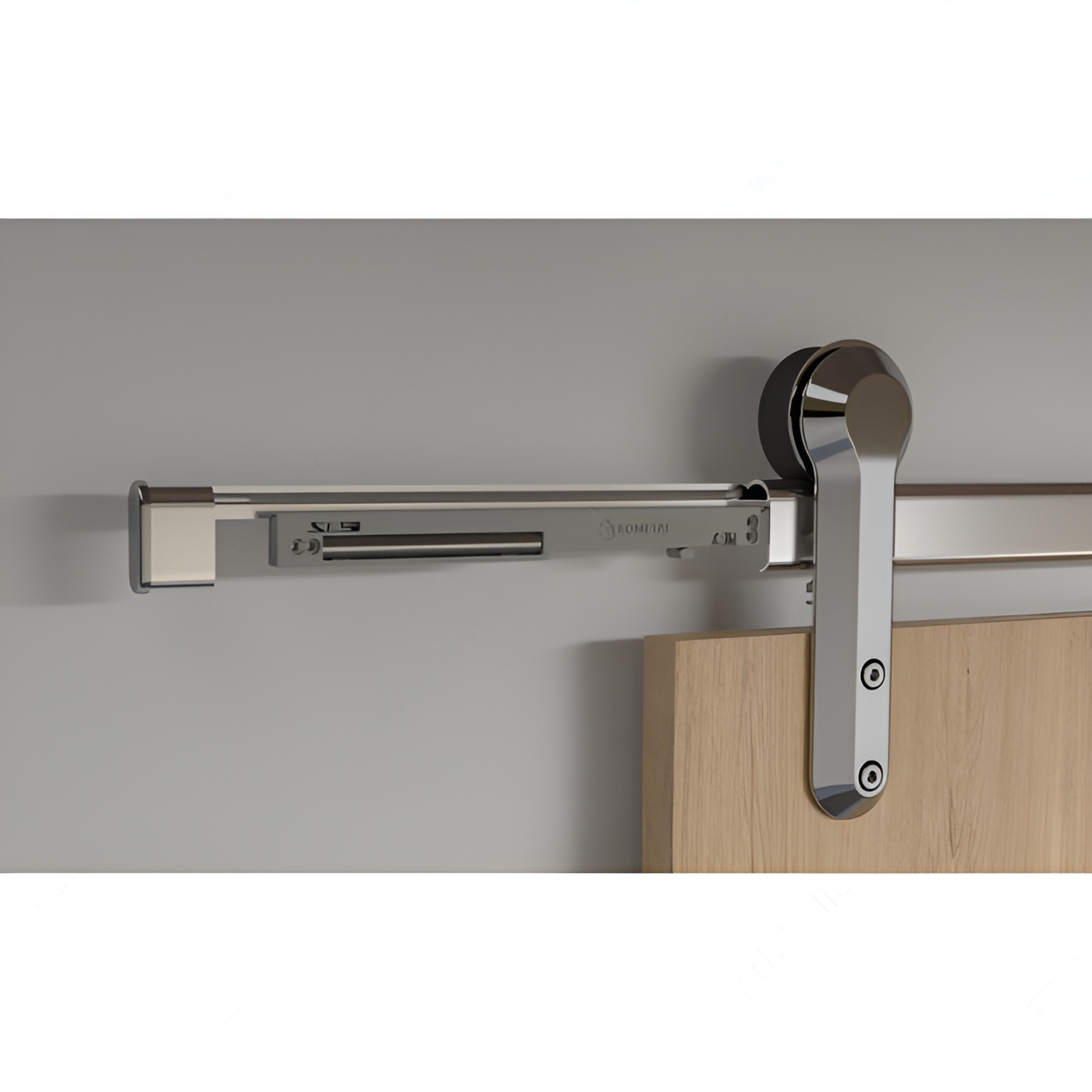

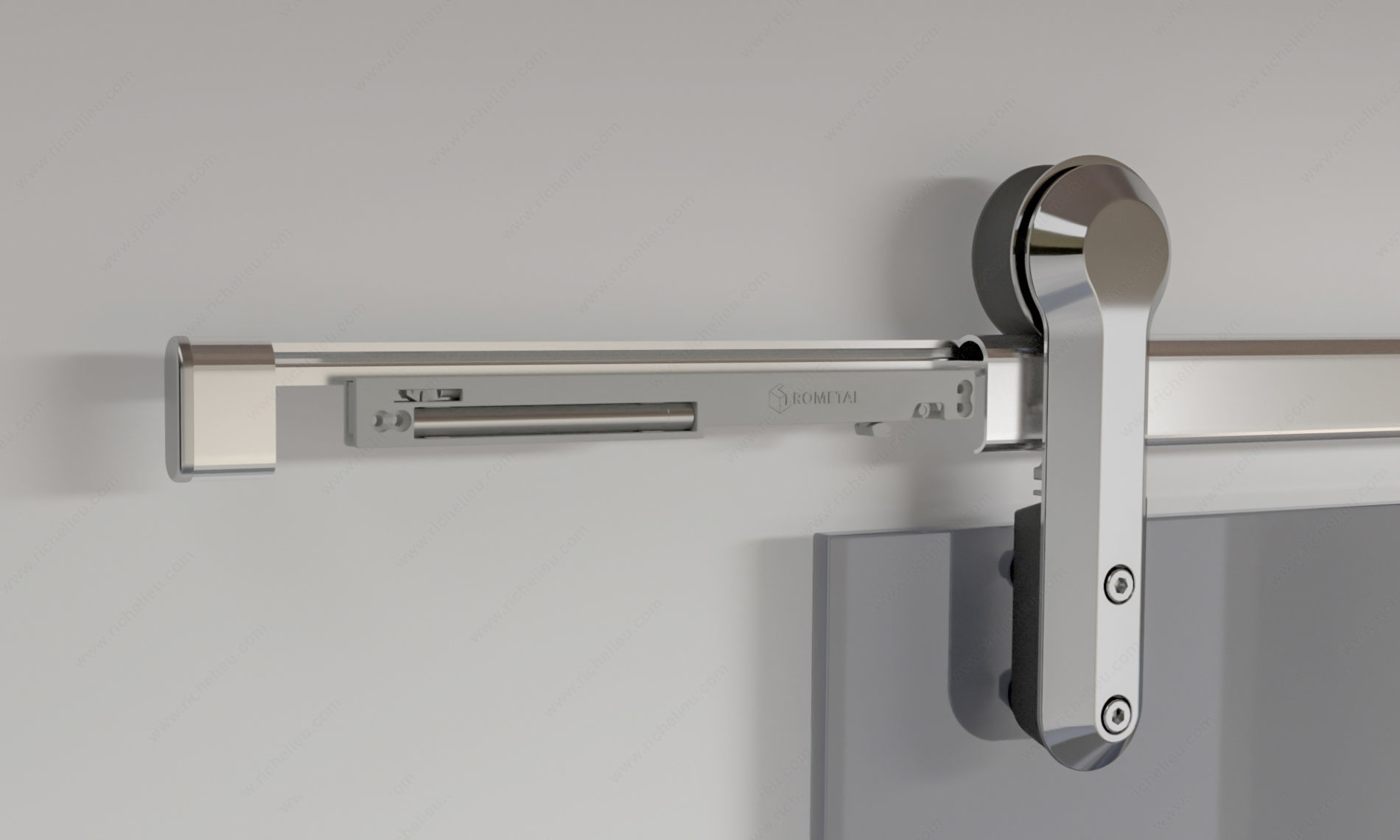

- Concealed soft-close mechanisms can be adjusted to different positions
- Bracket support mounts can be adjusted to different positions behind the track
- Choose from two sizes of matching SLIM pull handles with a self-adhesive back that can be applied to smooth surfaces such as wood, laminate, glass, steel, or aluminum
- Smooth operating
- Simple, flexible, and low-cost installation
IMPORTANT: The minimum door width for use with a soft-close mechanism is 700 mm (27-1/2 in).
Lighting may alter the appearance of some finishes and cause them to differ from the published renderings.
An ideal solution for residential and commercial applications for thin and thick doors, feature designer doors, walk-in closets, pantries, and standard interior access doors.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Application: Standard Access Door, Barn Door
Detailed Door Movement: Single sliding, Barn door
Displayed in These Showrooms: Toronto
Door Height: Max. 2 600 mm
Door Installation: Top Hung
Door Material: Wood (19 mm - 36 mm), Glass (8 mm - 10 mm)
Door Movement: Straight Sliding
Door Projection: 80 mm
Door Thickness: 8 to 36 mm
Door Width: 700 to 1 219 mm
Finish: Chrome (140)
Function: Sliding Door
Groove Depth: 12.7 mm
Groove Needed for Guiding System: Yes
Groove Width at the Bottom of Door: 12 mm
Height Clearance: 191 mm
Length - Overall Dimensions: 9 ft 10 in*
Load Capacity: 132 to 176 lb*
Manufacturing Material: Anodized Aluminum
Material: Anodized Aluminum
Number of Doors: 1
Overall Length: 3 000 mm
Product #: WEBKIT1242825
Product number: WEBKIT1242825
Product №: WEBKIT1242825
Roller Position: Upper
Roller Type: Premium Ball Bearing
Running Track Fixing: Bracket
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: One-Way Operation
Soft- Closing: Yes
Style: Barn Door
Track Mounting: Wall Mount
Weight Capacity per Door: 60 to 80 kg
