Richelieu WEBKIT1242897 RO 30 Sliding Door System InstructionsRichelieu WEBKIT1242897 RO 30 Sliding Door Systems provide an elegant and functional solution for single sliding, bypassing, and biparting sliding wood cabinet doors. Capable of supporting doors weighing up to 33 lb (15 kg), this versatile system is perfect for both residential and commercial applications, including storage units, office furniture, bookshelves, and entertainment units. Designed for wood doors with a thickness ranging from 5/8 in (15 mm) to 3/4 in (20 mm), the RO 30 offers two hardware options: choose the RM 026 for inset applications with a recessed track, or the RM 009 + RM 010 surface mount track set for full overlay applications. The direct mount hardware installation ensures a straightforward setup, allowing you to achieve a sleek, clean aesthetic. For optimal performance, it’s important to maintain a balanced door dimension, ideally with a height-to-width ratio of no more than 1:3. The system accommodates door heights from 12 to 59 in and widths from 12 to 36 in. Finished in silver, the Richelieu RO 30 Sliding Door System is not only practical but also enhances the overall design of your cabinetry. Elevate your space with this reliable and stylish sliding door solution.
RO 30 Sliding Door Systems

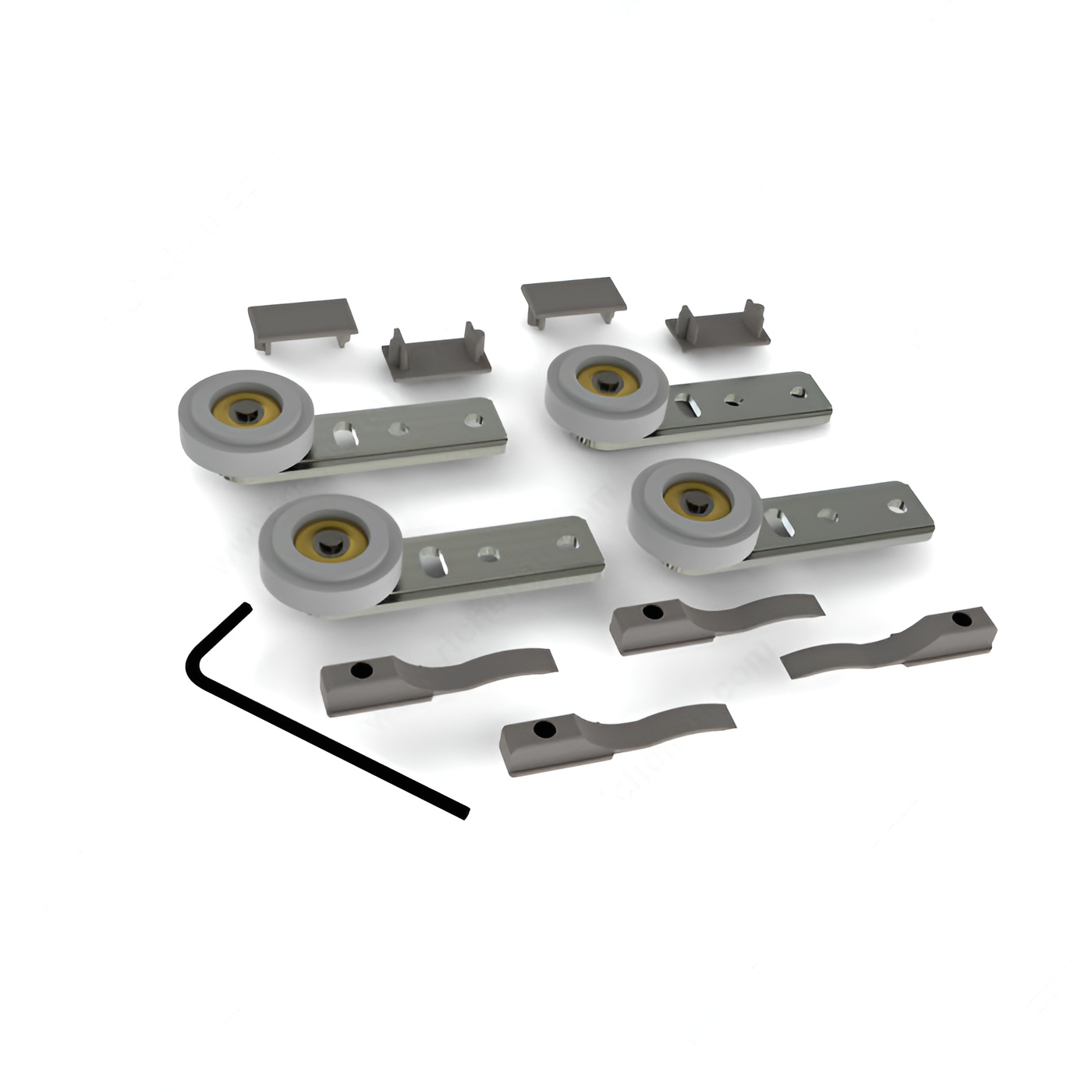

The RO 30 Sliding Door Systems are designed for single sliding, bypassing, and biparting sliding wood cabinet doors weighing up to 33 lb (15 kg) each. Select from two different types of hardware sets: one for inset applications with recessed track, and the other for full overlay applications for surface mount tracks mounted to the front edge of the cabinet top and base.
Features:
- For wood doors 5/8 in (15 mm) to 3/4 in (20 mm) thick

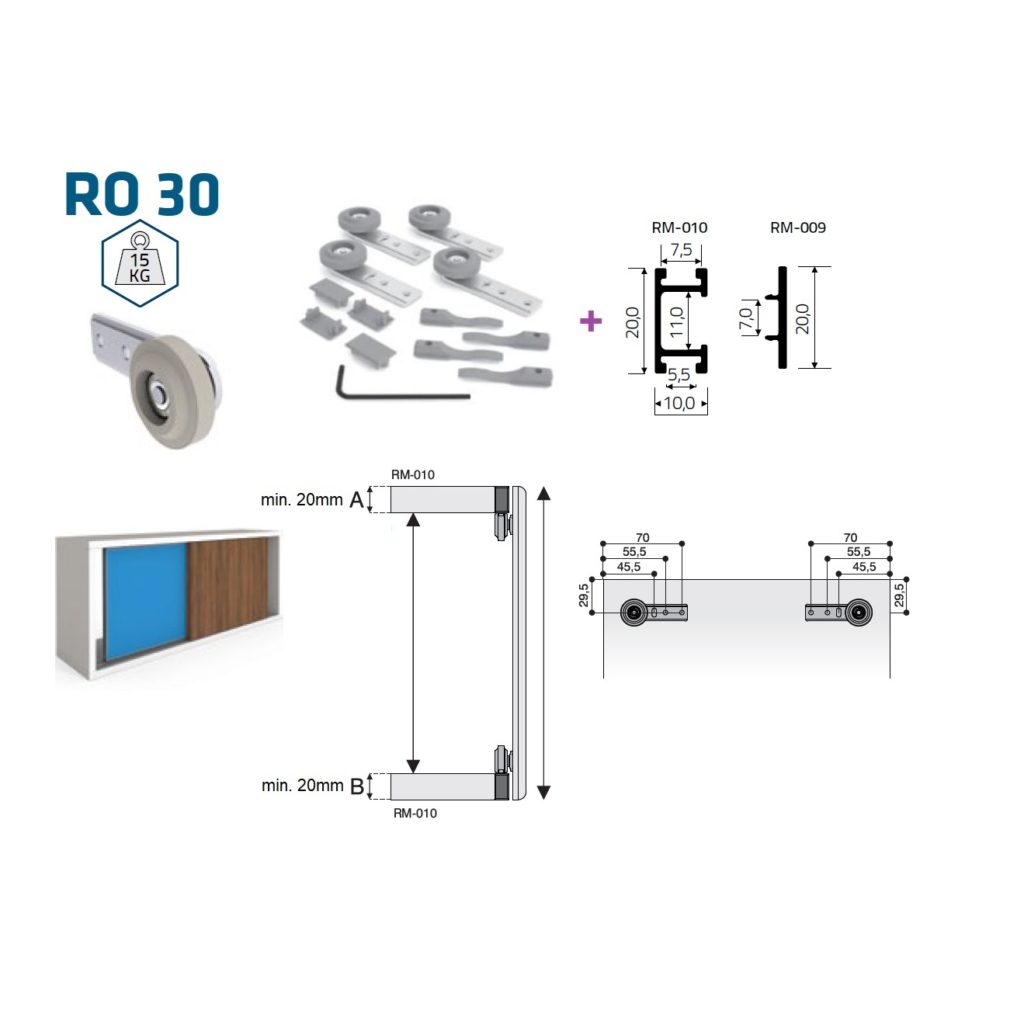

- For inset applications select type RM 026 recessed upper and lower track
- For overlay applications select RM 009 + RM 010 surface mount track set

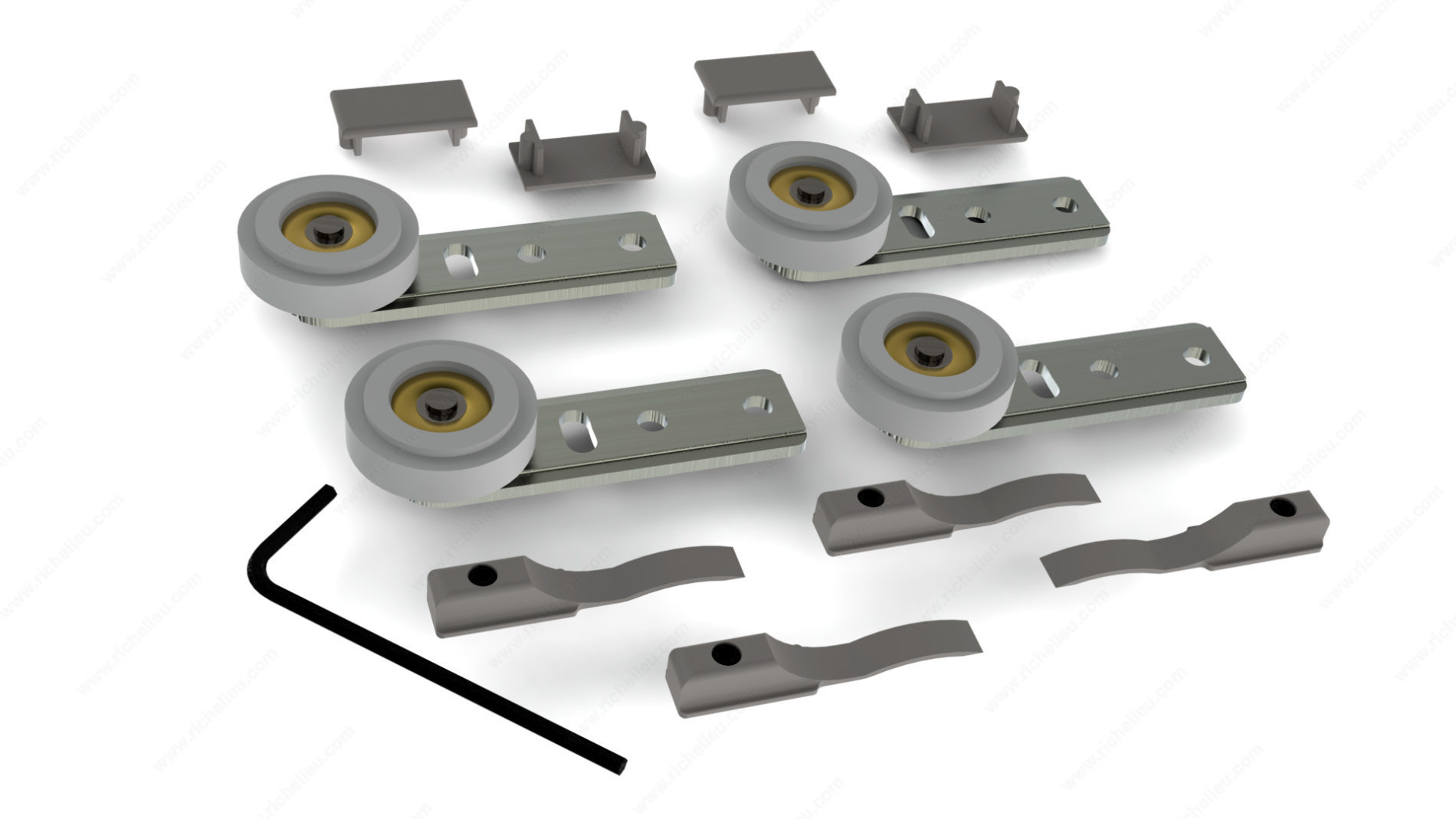

- Simple and flexible direct mount hardware installation
IMPORTANT: For optimal performance, make sure the dimensions of the door are balanced. It is suggested to build the door height 3 times or less than the width of the door (max. 1:3 ratio).
Ideal for residential and commercial applications for small to medium size cabinet doors for storage units, office furniture, bookshelves, and entertainment units.
Attributes
Application: Furniture, Cabinet, Storage
Detailed Door Movement: Single sliding
Door Height: 305 to 1 500 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Full Overlay
Door Thickness: 15 to 20 mm
Door Width: 305 to 914 mm
Finish: Silver
Length - Overall Dimensions: Max. 78 3/4 in*
Load Capacity: 33.1 lb*
Number of Doors: 1
Overall Length: Max. 2 000 mm
Product #: WEBKIT1242897
Product number: WEBKIT1242897
Product №: WEBKIT1242897
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Finish: Silver
Track Mounting: Surface Front
Weight Capacity per Door: 15 kg
