RO 30 Sliding Door Systems
The RO 30 Sliding Door Systems are designed for single sliding, bypassing, and biparting sliding wood cabinet doors weighing up to 33 lb (15 kg) each. Select from two different types of hardware sets: one for inset applications with recessed track, and the other for full overlay applications for surface mount tracks mounted to the front edge of the cabinet top and base.
Features:
- For wood doors 5/8 in (15 mm) to 3/4 in (20 mm) thick
- For inset applications select type RM 026 recessed upper and lower track

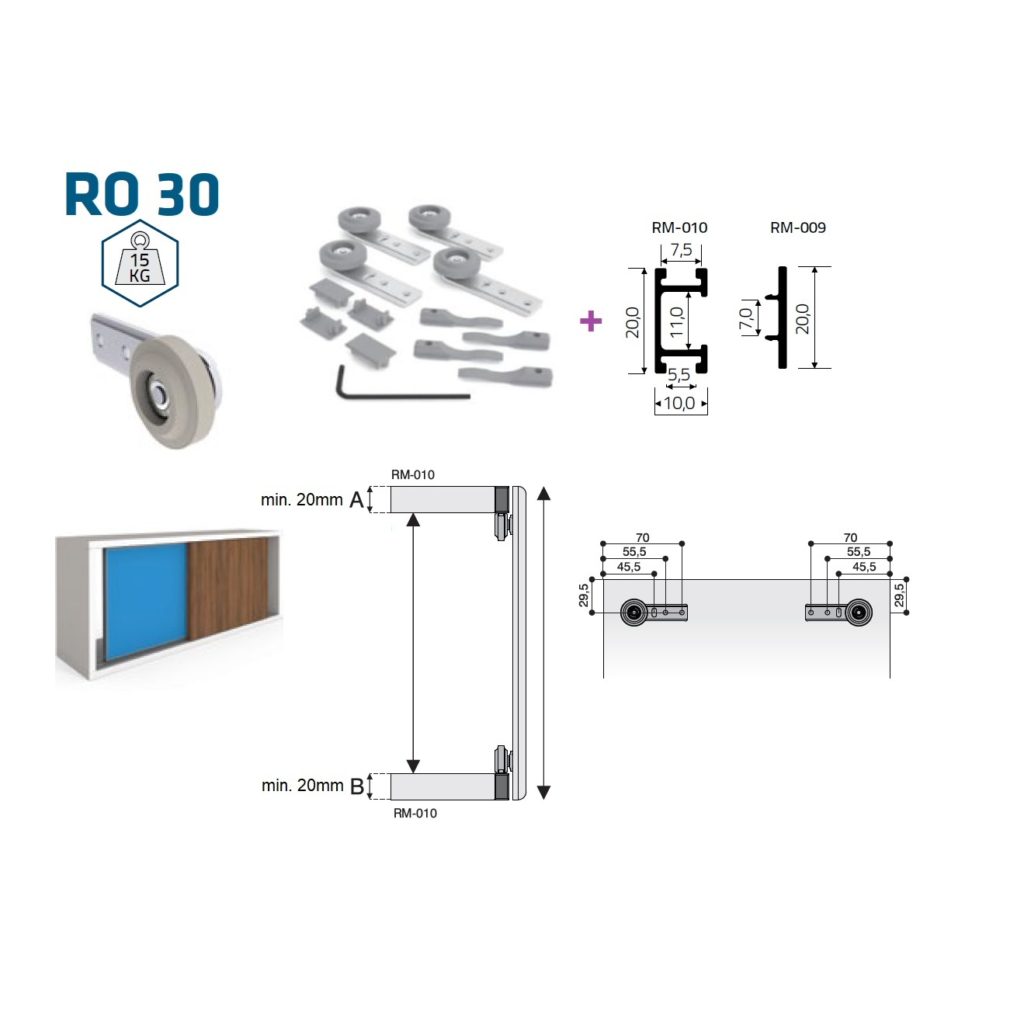

- For overlay applications select RM 009 + RM 010 surface mount track set
- Simple and flexible direct mount hardware installation
IMPORTANT: For optimal performance, make sure the dimensions of the door are balanced. It is suggested to build the door height 3 times or less than the width of the door (max. 1:3 ratio).
Ideal for residential and commercial applications for small to medium size cabinet doors for storage units, office furniture, bookshelves, and entertainment units.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Furniture, Cabinet, Storage
Detailed Door Movement: Biparting
Door Height: 305 to 1 500 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Full Overlay
Door Thickness: 15 to 20 mm
Door Width: 305 to 752 mm
Finish: Silver
Length - Overall Dimensions: Max. 9 ft 10 in*
Load Capacity: 33.1 lb*
Number of Doors: 2
Overall Length: Max. 3 000 mm
Product #: WEBKIT1242898
Product number: WEBKIT1242898
Product №: WEBKIT1242898
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Finish: Silver
Track Mounting: Surface Front
Weight Capacity per Door: 15 kg
